BTMETER BT-770T True RMS Digital Multimeter User Manual

1. Introduktion

The BTMETER BT-770T is a True RMS 6000 counts digital multimeter designed for precise measurements in various electrical and electronic applications. It offers a wide range of functions including AC/DC voltage, AC/DC current up to 20A, resistance, continuity, capacitance, frequency, transistor hFE, diode testing, and temperature measurement. This manual provides essential information for safe and effective operation of your BT-770T multimeter.

Image: The BTMETER BT-770T Digital Multimeter, showcasing its large display and overall design. The display measures 2.36 inches (60mm) in width and 1.18 inches (30mm) in height.

2. Sikkerhedsoplysninger

Always adhere to safety precautions when using the multimeter to prevent electric shock or damage to the instrument. This device is rated IEC CAT III 1000V and CAT IV 600V, providing high-voltage protection across all ranges. It features dual fuses (800mA/250V and 20A/250V) for enhanced safety.

• Overskrid ikke de maksimale inputværdier, der er angivet for hvert område.
• Sørg for, at testledningerne er i god stand og korrekt tilsluttet, før du foretager målinger.
• Mål aldrig voltage on circuits with power exceeding 1000V DC or 750V AC.
• Udvis ekstrem forsigtighed, når du arbejder med spændingsførende kredsløb.
• Udskift batteriet, når indikatoren for lavt batteri vises, for at sikre nøjagtige aflæsninger.
• Do not operate the meter if it appears damaged or if the rubber sleeve is removed.

3. Produktet er slutview

Familiarize yourself with the components of your BT-770T multimeter for optimal use.

Image: A detailed diagram of the BTMETER BT-770T Multimeter, highlighting its key functional components.

1. Rødt lys indikator: Illuminates for certain functions like NCV detection.
2. CDS sensor: Detects ambient light for automatic backlight control.
3. Green light indicator: Illuminates for certain functions.
4. Stor LCD-skærm: Displays measurement readings and function indicators.
5. Transistor hFE test socket: For testing transistor gain.
6. Dial indicator lamp: Illuminates the function dial in low light.
7. 20A Max input jack: Til målinger af høje strømstyrker.
8. 600mA/600uA Max input jack: For low current measurements.
9. Detachable rubber sleeve: Giver beskyttelse mod fald og stød.
10. Continuity, LED, and Diode test input jack: For these specific functions.
11. COM T- Port: Fælles terminal til alle mål.

The multimeter also features a 180° rotatable kickstand and a strong magnet on the back for hands-free operation.

Billede: Nærbillede views of the BTMETER BT-770T, illustrating its protective rubber sleeve, the battery compartment for a 9V battery, and the integrated 180° rotatable kickstand.

4. Opsætning

4.1 Batteriinstallation

The BT-770T multimeter requires one 9V battery (included). To install or replace the battery:

1. Sørg for, at multimeteret er slukket.
2. Find batterirummet på bagsiden af ​​enheden.
3. Use a slim Phillips head screwdriver to open the battery cover.
4. Insert the 9V battery, observing correct polarity.
5. Sæt batteridækslet på igen og fastgør det med skruen.

4.2 Tilslutning af testledninger

Connect the black test lead to the COM terminal. Connect the red test lead to the appropriate input jack based on the measurement function:

• VΩHzCapTemp: For bdtage, resistance, frequency, capacitance, and temperature measurements.
• mAµA: For low current measurements (up to 600mA).
• 20A: Til målinger af høje strømstyrker (op til 20A).

5. Betjeningsvejledning

Turn the rotary switch to select the desired measurement function. The multimeter features an automatic backlight that activates in low light conditions via a CDS sensor, illuminating both the screen and the dial indicator.

Image: The BTMETER BT-770T Multimeter in use, demonstrating live wire identification with a single test lead and the automatic backlight feature activating in a dark environment.

5.1 bindtage-måling (AC/DC)

1. Set the rotary switch to the V~ (AC Voltage) eller V- (DC-volumentage) stilling.
2. Tilslut testledningerne parallelt til det kredsløb eller den komponent, der testes.
3. Læs bindtage værdi på LCD-skærmen.

5.2 Strømmåling (AC/DC)

Forsigtighed: Always connect the multimeter in series with the circuit when measuring current. Ensure the circuit is de-energized before connecting the leads.

1. Set the rotary switch to the A~ (AC Current) or A- (DC Current) position.
2. Select the appropriate input jack (mAµA or 20A) based on the expected current.
3. Forbind testledningerne i serie med kredsløbet.
4. Tilslut strøm til kredsløbet og aflæs strømværdien.

5.3 Modstandsmåling

1. Indstil drejekontakten til Ω (modstand) positionen.
2. Sørg for, at kredsløbet er spændingsløst, før du måler modstanden.
3. Tilslut testledningerne på tværs af komponenten.
4. Aflæs modstandsværdien.

5.4 Kontinuitetstest

1. Set the rotary switch to the Continuity position.
2. Tilslut testledningerne på tværs af kredsløbet eller komponenten.
3. An audible beep and a green indicator light will confirm continuity (low resistance).

5.5 Diodetest

1. Set the rotary switch to the Diode position.
2. Forbind den røde ledning til anoden og den sorte ledning til katoden på dioden.
3. Den fremadrettede voltage-faldet vises. Byt ledningerne for at kontrollere for et åbent kredsløb.

5.6 Kapacitansmåling

1. Set the rotary switch to the Capacitance position.
2. Sørg for, at kondensatoren er helt afladet før test.
3. Tilslut testledningerne over kondensatoren.
4. Aflæs kapacitansværdien.

5.7 Frekvensmåling

1. Set the rotary switch to the Hz (Frequency) position.
2. Tilslut testledningerne til signalkilden.
3. Aflæs frekvensværdien.

5.8 Temperaturmåling

The BT-770T includes an extensible thermocouple for temperature measurements.

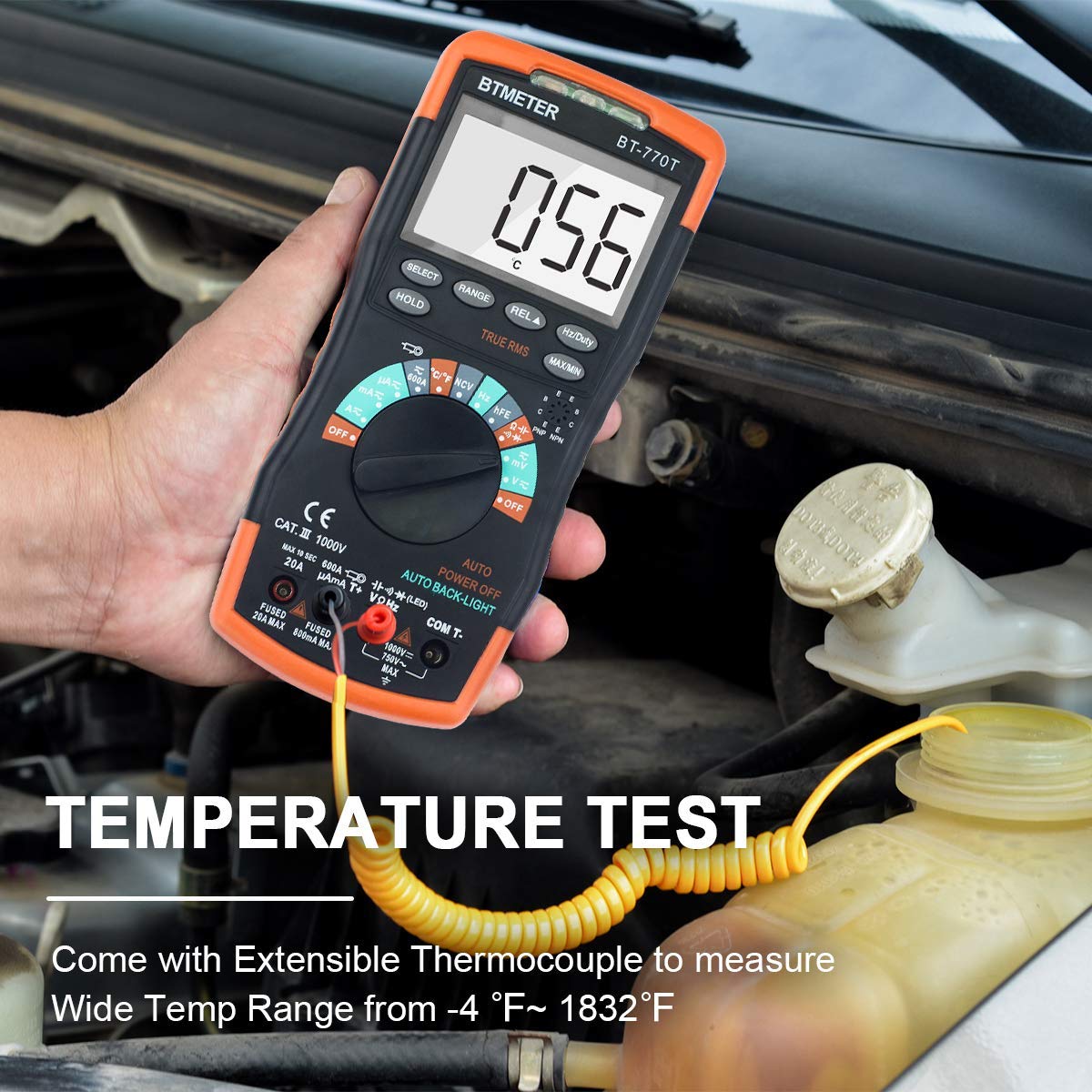

Image: The BTMETER BT-770T Multimeter being used to measure temperature with its extensible thermocouple, shown in an automotive engine bay.

1. Set the rotary switch to the Temp position (°C/°F).
2. Connect the thermocouple to the appropriate input jacks.
3. Place the thermocouple tip on or in the object whose temperature is to be measured.
4. Aflæs temperaturen på displayet.

5.9 Non-Contact Voltage (NCV) Detektion

NCV-funktionen muliggør detektering af AC-volumentage uden direkte kontakt.

1. Indstil drejekontakten til NCV-positionen.
2. Flyt toppen af ​​multimeteret tættere på lederen.
3. An audible beep and a red indicator light will signal the presence of AC voltage.

5.10 Data Hold, Max/Min, Auto Power Off

• HOLDE: Tryk på HOLD-knappen for at fryse den aktuelle aflæsning på displayet. Tryk igen for at slippe.
• MAX / MIN: Press the MAX/MIN button to record the maximum or minimum measured value. Press again to cycle through MAX, MIN, and normal modes.
• Automatisk sluk: Multimeteret slukker automatisk efter en periode med inaktivitet for at spare på batteriet.

6. Specifikationer

The following tables detail the measurement ranges, resolutions, and accuracies of the BTMETER BT-770T.

Image: Comprehensive tables outlining the ranges, resolutions, and accuracies for DC Voltage, AC Voltage (True RMS), DC Current, AC Current (True RMS), Resistance, and Temperature measurements of the BTMETER BT-770T Multimeter.

6.1 Generelle specifikationer

• Vise: 6000 Counts, True RMS
• Sikkerhedsvurdering: IEC CAT III 1000V, CAT IV 600V
• Strømkilde: 9V Battery (Alimenté par batterie)
• Varens vægt: 1 Pound (453.59 grams)
• Dimensioner: 22.71 x 14.6 x 6.81 cm (pakke)
• Modelnummer: BT-770T
• UPC: 778469100592

6.2 Temperaturmåling

6.3 DC Voltage

6.4 AC Voltage (True RMS)

6.5 DC-strøm

6.6 AC Current (True RMS)

6.7 Modstand

7. Vedligeholdelse

7.1 Rengøring

Tør måleren af ​​med reklameamp klud og mildt rengøringsmiddel. Brug ikke slibemidler eller opløsningsmidler.

7.2 Udskiftning af batteri

Replace the 9V battery when the low battery indicator appears on the display. Refer to section 4.1 for instructions.

7.3 Udskiftning af sikringer

If the current measurement functions stop working, the fuses may need replacement. The BT-770T uses two fuses: 800mA/250V and 20A/250V. Consult a qualified technician for fuse replacement to ensure proper safety and functionality.

8. Fejlfinding

• Ingen visning: Check battery installation and charge. Replace if necessary.
• Forkerte aflæsninger: Ensure test leads are properly connected and the correct function range is selected. Check for damaged leads.
• Strømmåling virker ikke: Check the fuses. Refer to section 7.3.
• "OL" on display: Indicates an overload or out-of-range measurement. Select a higher range or ensure the component is within the meter's capabilities.

9. Garanti og support

The BTMETER BT-770T Digital Multimeter comes with a 12 måneders garanti from the date of purchase, covering manufacturing defects. For technical support or warranty claims, please contact BTMETER customer service through their official webwebsted eller din forhandler.
