1. Sikkerhedsoplysninger
Read all instructions carefully before installing and operating the fan. Retain this manual for future reference.
- Elektrisk sikkerhed: Ensure the power supply is disconnected at the main circuit breaker before installation or servicing. All electrical wiring must comply with local codes and regulations.
- Montering: The fan must be mounted to a structure capable of supporting its weight (approximately 3.86 kg / 8.51 lbs) and the dynamic load of its operation. Ensure the mounting box is securely fastened.
- Klingeafstand: Maintain a minimum clearance of 2.3 meters (7.5 feet) from the floor to the bottom of the fan blades and at least 0.5 meters (1.6 feet) from the wall to the blade tips.
- Ventilation: Do not operate the fan in areas with high humidity or where flammable materials are present.
- Børn og kæledyr: Hold børn og kæledyr væk fra ventilatoren under drift og installation.
- Professionel installation: Hvis du er usikker på nogen del af installationsprocessen, skal du kontakte en kvalificeret elektriker.
2. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter med installationen.
- Loftsventilatormotorsamling
- Fan Blades (3, Copper material)
- Nedstang og baldakin
- Monteringsbeslag
- Fjernbetjening
- Instruktionsmanual
- Hardwarepakke (skruer, skiver, trådmøtrikker)
- Strømledning

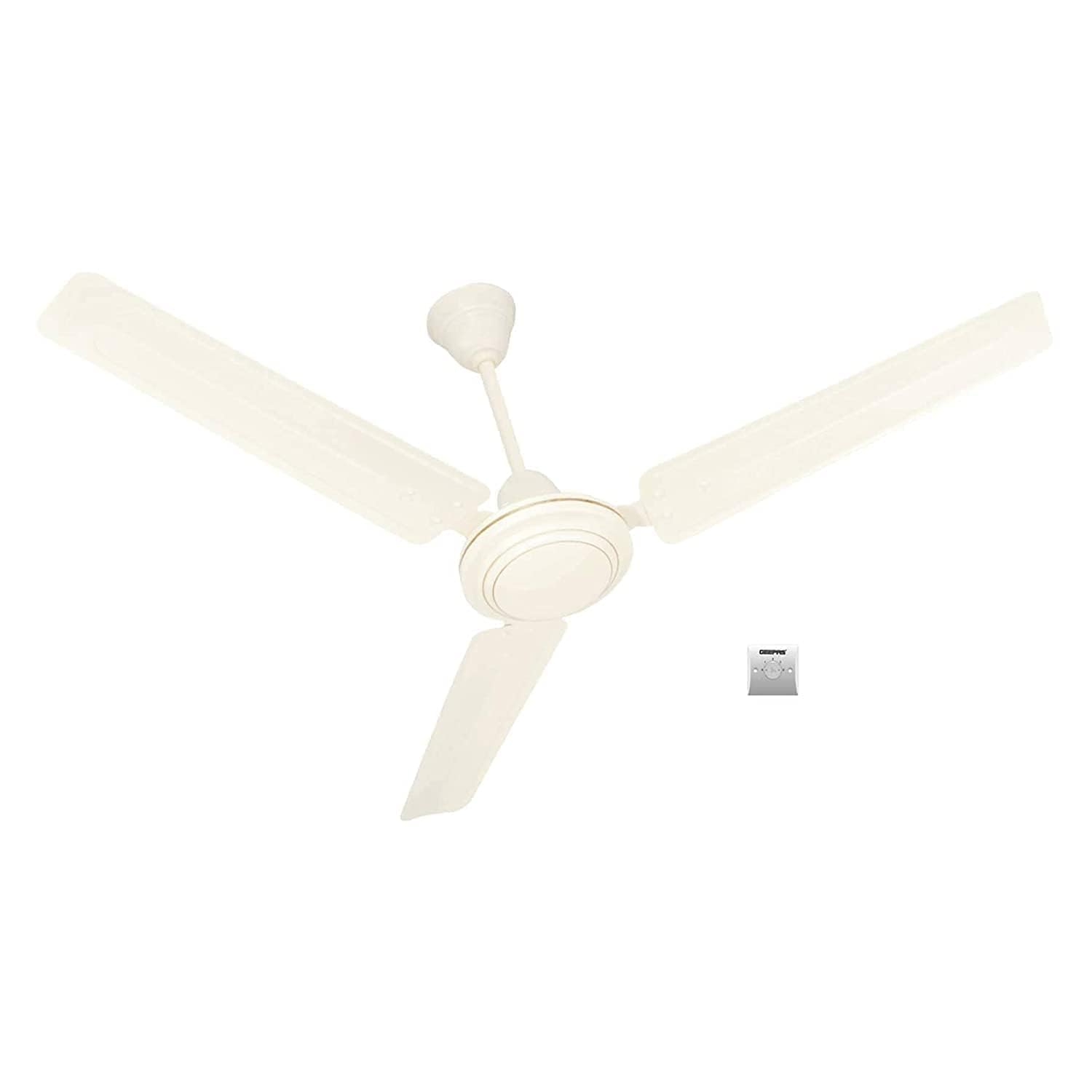

Image 2.1: Geepas GF9428 Ceiling Fan. This image shows the main unit of the Geepas GF9428 ceiling fan, highlighting its white finish and overall design. The fan is designed for indoor use and features a modern aesthetic.
3. Produktet er slutview
The Geepas GF9428 is a 56-inch electric ceiling fan designed for indoor air circulation. It features a modern design with 3 copper blades and offers 5 speed settings controlled by a remote.
3.1 nøglekomponenter
- Motorhus: Contains the electric motor that drives the fan blades.
- Ventilatorblade: Three copper blades, 56 inches in diameter, designed for efficient air movement.
- Downrod: Connects the fan motor to the mounting bracket, determining the fan's height from the ceiling.
- Baldakin: Covers the electrical connections and mounting bracket at the ceiling.
- Monteringsbeslag: Secures the fan to the ceiling junction box.
- Fjernbetjening: Provides convenient operation of fan speeds and power.
Image 3.1: Geepas GF9428 Ceiling Fan. This image illustrates the assembled Geepas GF9428 ceiling fan, showcasing its sleek white finish and the arrangement of its three copper blades. It provides a visual reference for the fan's overall structure.
4. Installation
Follow these steps carefully for proper and safe installation. Ensure power is OFF at the circuit breaker before beginning.
4.1 Montering af beslaget
- Locate a suitable ceiling joist or a fan-rated electrical junction box.
- Secure the mounting bracket to the ceiling joist or junction box using the provided screws and washers. Ensure it is firmly attached.
4.2 Samling af ventilatoren
- Attach the downrod to the motor housing, securing it with the pin and clip.
- Carefully feed the electrical wires from the motor through the downrod.
- Attach the fan blades to the motor housing using the blade screws. Ensure all screws are tightened securely.
4.3 Tilslutning af ventilatoren
- Lift the fan assembly and hang it from the mounting bracket using the provided hook or safety cable.
- Connect the fan's electrical wires to the house wiring according to the wiring diagram (typically black to black, white to white, and green/bare copper to ground). Use wire nuts to secure connections.
- Tuck all wires neatly into the junction box.
4.4 Slutsamling
- Slide the canopy up to the ceiling and secure it to the mounting bracket with the canopy screws.
- Restore power at the circuit breaker and test the fan operation.
5. Betjening
Your Geepas GF9428 ceiling fan is operated using the included remote control.
5.1 Fjernbetjeningsfunktioner
- ON/OFF knap: Tryk for at tænde eller slukke for blæseren.
- Hastighedskontrolknapper: The fan has 5 speed settings. Use the designated buttons (often labeled 1-5 or with fan icons) to adjust the fan speed from low to high.
- Timerfunktion (hvis relevant): Some remote controls may include a timer function to automatically turn off the fan after a set period. Refer to the remote's specific markings.
Ensure the remote control has working batteries and is pointed towards the fan's receiver for optimal performance.
6. Vedligeholdelse
Regular maintenance ensures optimal performance and extends the lifespan of your ceiling fan. Always disconnect power before performing any maintenance.
- Rensning: Brug en blød, damp cloth to clean the fan blades and motor housing. Do not use abrasive cleaners or solvents. Dust the blades regularly to prevent accumulation, which can affect balance and performance.
- Klingens fasthed: Periodically check all blade attachment screws. They may loosen over time due to vibration. Retighten as necessary.
- Motor smøring: Ventilatormotoren er permanent smurt og kræver ikke yderligere smøring.
- Årlig inspektion: Annually inspect the downrod, mounting bracket, and canopy for any signs of wear, damage, or loose connections.
7. Fejlfinding
Se tabellen nedenfor for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilator starter ikke | Ingen strømforsyning Løse ledningsforbindelser Problemer med fjernbetjening | Kontroller afbryderen og vægafbryderen Kontroller, at alle ledningsforbindelser er sikre (sluk for strømmen) Replace remote batteries; ensure remote is paired with fan |
| Blæseren slingrer | Løse knivskruer Ubalancerede klinger Løst monteringsbeslag | Spænd alle knivskruer Use a balancing kit (not included) or ensure blades are clean and undamaged Ensure mounting bracket is securely fastened to the ceiling |
| Støjende drift | Løse skruer Motorproblemer Interferens med loftet | Check and tighten all screws on the fan and mounting Contact customer support if motor noise persists Ensure canopy is not touching the ceiling or downrod |
| Fjernbetjening virker ikke | Døde batterier Uden for rækkevidde Ikke parret | Udskift batterierne Move closer to the fan Refer to remote pairing instructions (if applicable) |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Geepas |
| Modelnummer | GF9428 |
| Farve | Hvid |
| Fan type | Loft Fan |
| Størrelse | 56 tommer (1.42 meter) |
| Antal blade | 3 |
| Bladmateriale | Kobber |
| Strømkilde | Elektrisk |
| Strømforbrug | 75 watt |
| Hastighed | Op til 290 RPM |
| Antal hastigheder | 5 |
| Kontrolmetode | Fjernbetjening |
| Installationstype | Loftmontering |
| Anbefalet brug | Air Circulation (Indoor) |
| Varens vægt | 3.86 kg (8.51 lbs) |
| Smart Home Compatible | Ingen |
| Trådløs | Ingen |
9. Garanti og support
Geepas products are manufactured to the highest quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Geepas webwebsted.
Gem din købskvittering som købsbevis i tilfælde af garantikrav.
Kontaktoplysninger:
For assistance, please contact Geepas customer service through their official webwebstedet eller kontaktoplysningerne på din produktemballage.
