Indledning
Tak for købetasing the Muskoka 370-05-200 Electric Fireplace. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric fireplace and media console. Please read all instructions carefully before use and retain this manual for future reference.
Vigtige sikkerhedsoplysninger
ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du læse alle instruktioner, før du bruger dette apparat.
- Tag altid stikket ud af pejsen, når den ikke er i brug, eller før rengøring.
- Brug ikke en pejs med en beskadiget ledning eller stik, eller hvis varmeapparatet ikke fungerer korrekt eller er blevet tabt/beskadiget på nogen måde.
- Før ikke ledningen under gulvtæpper. Dæk ikke ledningen med tæpper, løbere eller lignende belægninger. Anbring ledningen væk fra trafikområdet, og hvor den ikke vil blive snublet over.
- Indsæt ikke fremmedlegemer i ventilations- eller udstødningsåbninger, og lad dem ikke komme ind i dem, da dette kan forårsage elektrisk stød, brand eller beskadige pejsen.
- For at forhindre en mulig brand, må du ikke blokere luftindtag eller udstødning på nogen måde. Må ikke bruges på bløde overflader, som f.eks. en seng, hvor åbninger kan blive blokeret.
- Denne pejs er varm under brug. For at undgå forbrændinger må bar hud ikke berøre varme overflader. Hold brændbare materialer, såsom møbler, puder, sengetøj, papir, tøj og gardiner, mindst 0.9 m fra pejsens forside, og hold dem væk fra siderne og bagsiden.
- Ekstrem forsigtighed er nødvendig, når en varmeovn bruges af eller i nærheden af børn eller handicappede, og når pejsen efterlades i drift og uden opsyn.
- Tilslut kun til korrekt jordede stikkontakter.
Pakkens indhold
Before beginning assembly, ensure all parts are present. If any parts are missing or damaged, do not attempt to assemble or operate the product. Contact customer service for assistance.
- Elektrisk pejsindsats
- Media Console Cabinet Components
- Fjernbetjening
- Hardwarepakke (skruer, dyvler, kamlåse osv.)
- Instruktionsmanual
Opsætning & montering
Assembly of the media console is required before installing the electric fireplace insert. It is recommended that two adults assemble this unit. A Phillips head screwdriver is required.
- Udpak komponenter: Carefully remove all parts from the packaging and lay them out on a soft, clean surface to prevent scratching. Verify all parts are present against the package contents list.
- Saml kabinetbunden: Follow the diagrams provided in the separate assembly guide (not included in this manual) to connect the side panels to the base and top panels using the provided hardware. Ensure all connections are secure.
- Install Shelving: Insert the adjustable shelves into the desired positions within the media compartments.
- Fastgør døre: Secure the barn-door-style panels to the cabinet using the provided hinges and hardware. Adjust as necessary for proper alignment.
- Indsæt pejs: Carefully slide the electric fireplace insert into the designated opening in the assembled media console. Ensure it is seated firmly and flush with the front of the cabinet.
- Kabelstyring: Route power cords and media cables through the designated openings in the back panel of the console.

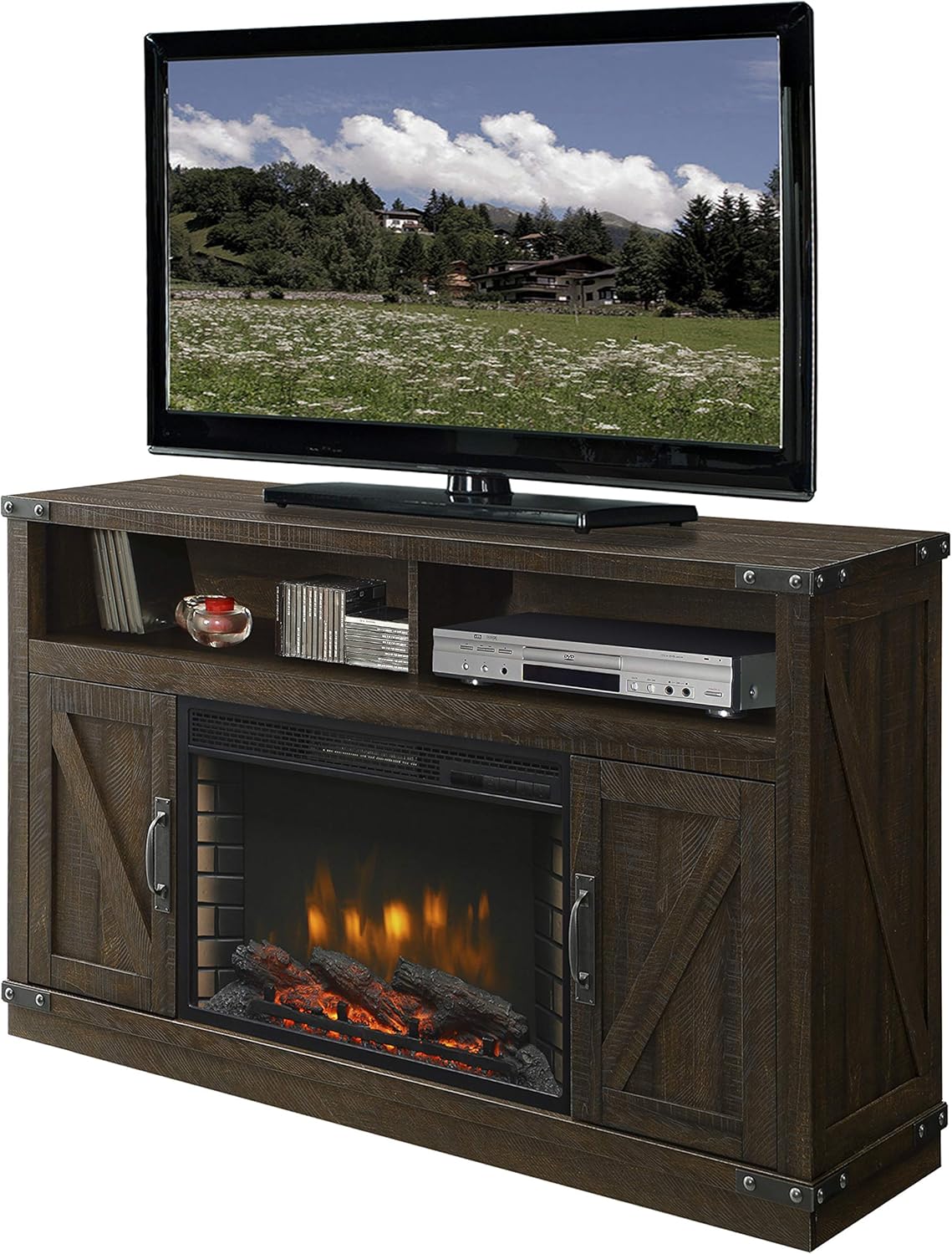

Image: The Muskoka 370-05-200 Electric Fireplace media console fully assembled, featuring the electric fireplace insert and space for media devices and a television.
Betjeningsvejledning
The Muskoka 370-05-200 Electric Fireplace can be operated using the control panel on the unit or the included remote control.
Kontrolpanel og fjernbetjeningsfunktioner
Image: The remote control for the electric fireplace, showing buttons for power, timer, flame brightness, and heat settings.
- Power knap (⏻): Press to turn the fireplace ON or OFF. When turned on, the unit will display the last used flame and heat settings.
- Flammeknap (🔥): Press to cycle through 3 flame brightness levels (low, medium, high) or turn the flame effect off. The flame effect can be used independently of the heater.
- Varme knap (🌡): Press to activate the 4600 BTU fan-forced air heater. Press again to cycle through temperature settings or turn the heater off. The heater features thermostatic temperature control.
- Timer knap (⏱): Press to activate the auto shut-off timer. Each press will cycle through preset time intervals (e.g., 30 minutes, 1 hour, 2 hours, etc.) up to a maximum of 9 hours. The timer indicator will illuminate.
Indledende drift
- Ensure the fireplace is properly assembled and plugged into a grounded 120V AC outlet.
- Press the Power button on the control panel or remote control to turn on the unit.
- Adjust the flame brightness using the Flame button.
- If heat is desired, press the Heat button to activate the heater and select your preferred temperature setting.
- To set a timer for automatic shut-off, press the Timer button.
Image: The Muskoka 370-05-200 Electric Fireplace media console positioned in a living room, demonstrating its aesthetic and functional integration into a home environment.
Opretholdelse
Regelmæssig vedligeholdelse sikrer din elektriske pejs' lange levetid og optimale ydeevne.
- Rensning: Tag altid stikket ud af enheden før rengøring. Brug en blød, tør klud.amp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or solvents. For the glass panel, use a soft cloth and a glass cleaner.
- Ventilationsåbninger: Keep the air intake and exhaust openings clear of dust and debris to ensure proper airflow and prevent overheating. Use a vacuum cleaner with a brush attachment to gently clean these areas.
- Ledning og stik: Periodically inspect the power cord and plug for any signs of damage. If damaged, discontinue use and contact a qualified electrician or service center.
- Opbevaring: Hvis enheden opbevares i længere tid, skal du tage stikket ud af stikkontakten og opbevare den et tørt og støvfrit sted.
Fejlfinding
Hvis du oplever problemer med din elektriske pejs, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ingen strøm til enheden. | Sørg for, at netledningen er korrekt tilsluttet en jordet stikkontakt. Kontroller afbryderen. |
| Ingen flammeeffekt. | Flame effect is turned off or bulb needs replacement. | Press the Flame button to cycle through brightness levels. Consult a service technician if the bulb needs replacement. |
| Varmeapparatet producerer ikke varme. | Heater is off, thermostat setting is too low, or overheat protection activated. | Press the Heat button to turn on the heater. Increase the thermostat setting. Unplug the unit for 15 minutes to reset overheat protection. |
| Fjernbetjening virker ikke. | Afbrudte batterier eller blokering. | Replace batteries in the remote control. Ensure there is no obstruction between the remote and the fireplace sensor. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, skal du kontakte kundesupport.
Specifikationer
- Modelnavn: Muskoka 370-05-200
- Strømkilde: Elektrisk med ledning
- Varmeeffekt: 4600 britiske termiske enheder (BTU)
- Varmedækning: Up to 400 square feet (as per product description)
- Ventilationstype: Vent fri
- Speciel funktion: Timer, Thermostatic Control, Flame Brightness Levels
- Inkluderede komponenter: Electric Fireplace Insert, Remote Control
- Produktdimensioner: 53 x 15.5 x 30 cm (bredde x dybde x højde)
- Varens vægt: 28.6 pund
- Farve: Rustik brun
- Fabrikant: GHP Group, Inc.
- UPC: 872076035213
Garanti & Support
For warranty information, please refer to the documentation included with your purchase or contact the retailer where the product was purchased. For technical support or replacement parts, please contact Muskoka customer service. Keep your proof of purchase for warranty claims.
Manufacturer: GHP Group, Inc.
