FKG 513121 Front Wheel Bearing Wheel Hub Assembly Instruction Manual

Indledning

This manual provides essential information for the proper installation, operation, and maintenance of your FKG 513121 Front Wheel Bearing Wheel Hub Assembly. Please read these instructions thoroughly before beginning any work to ensure safety and optimal performance of the product.

Produkt overview og komponenter

The FKG 513121 Wheel Bearing Wheel Hub Assembly is engineered for precise fitment and durability, featuring high-quality materials and an integrated ABS sensor. It is designed to minimize noise and vibration, ensuring reliable performance.

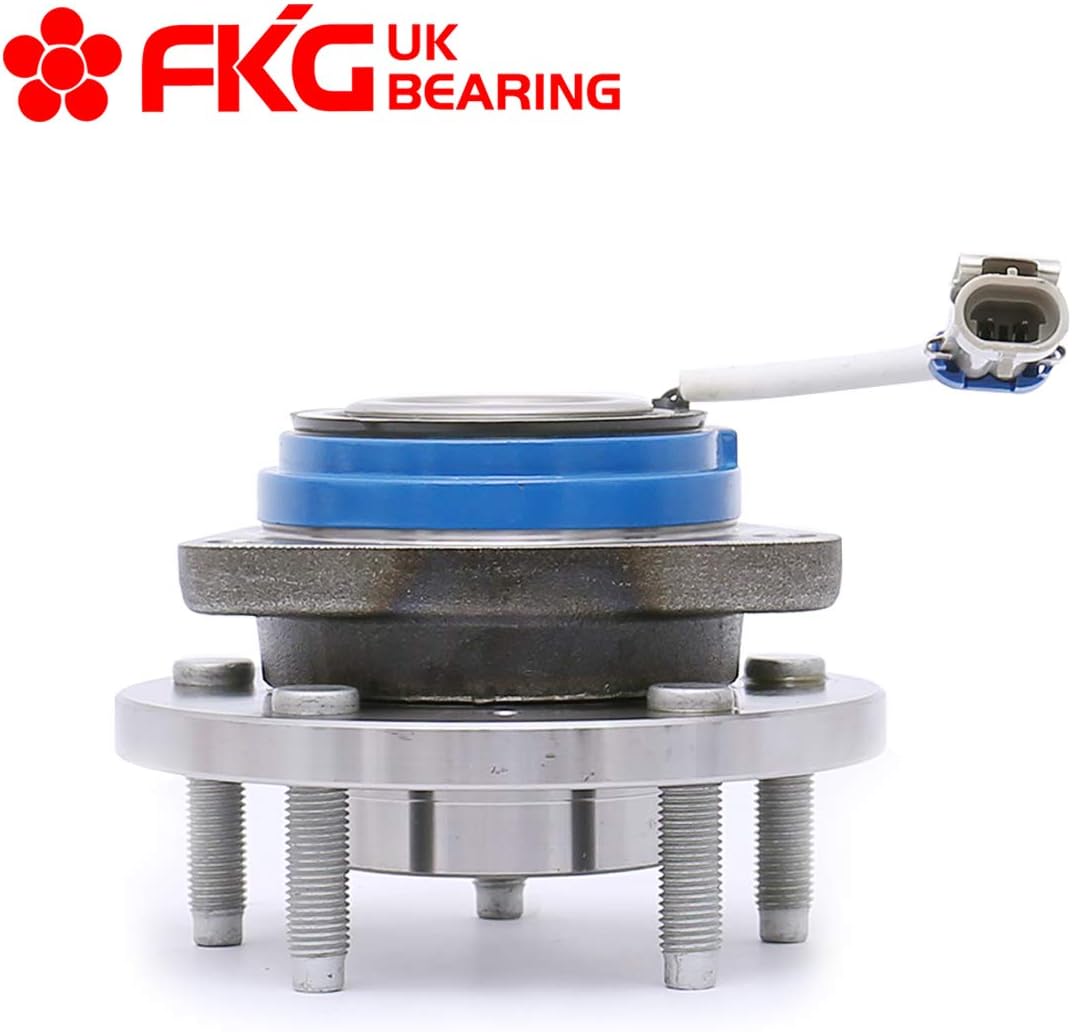

Figur 1: FKG 513121 Front Wheel Bearing Wheel Hub Assembly, side view, showing the integrated ABS sensor connector.

Figur 2: FKG 513121 Front Wheel Bearing Wheel Hub Assembly, angled view, highlighting the hub and studs.

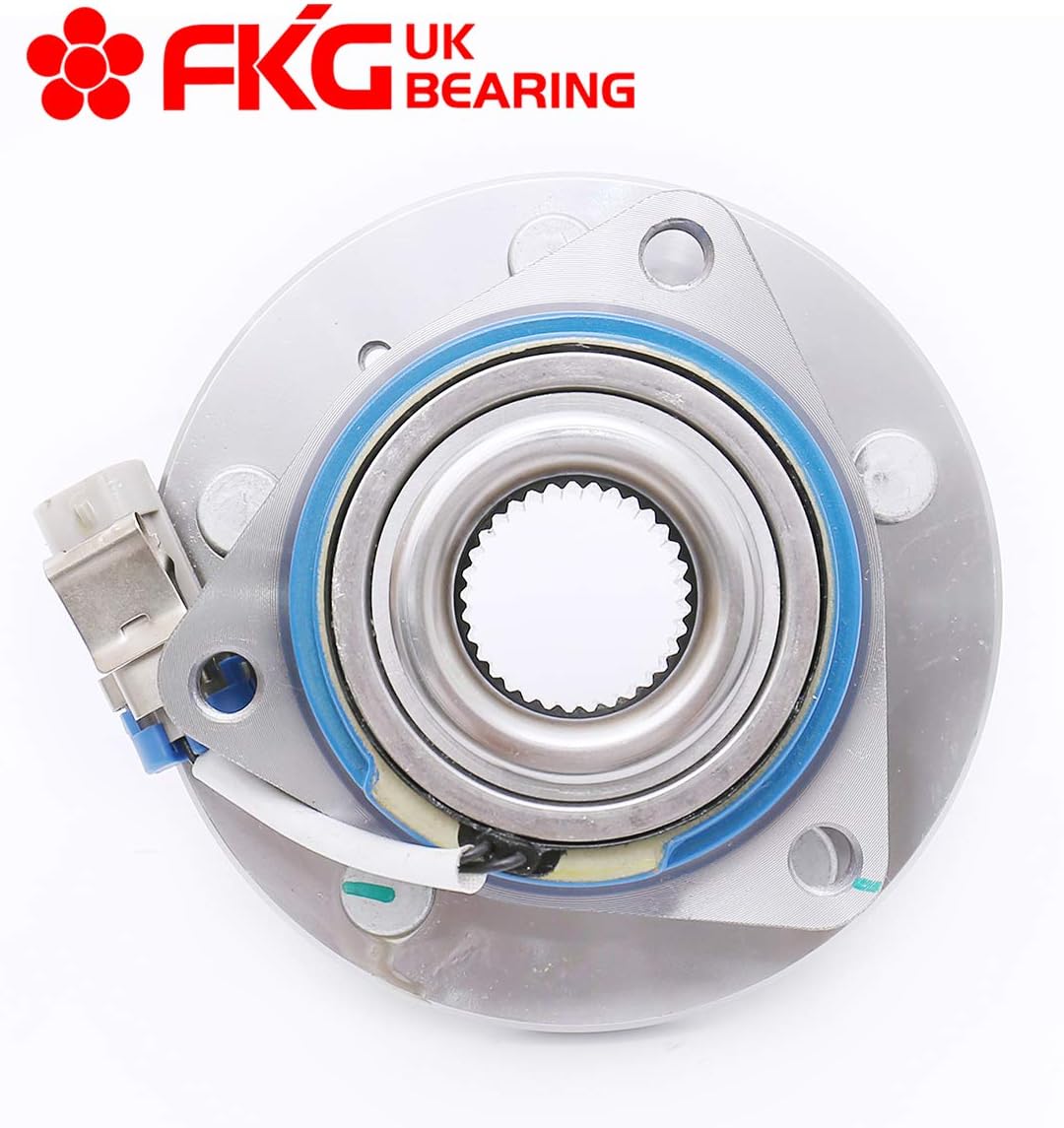

Figur 3: FKG 513121 Front Wheel Bearing Wheel Hub Assembly, top view, showing the central bore and mounting holes.

Køretøjskompatibilitet

The FKG 513121 Front Wheel Bearing Wheel Hub Assembly is compatible with various vehicle models. Please verify your vehicle's make, model, and year against the list below to ensure proper fitment:

• 2000-2013 Chevy Impala (FWD)
• 2005-2010 Buick Allure (FWD)
• 1997-2005 Buick Century (FWD)
• 2005-2009 Buick Lacrosse (FWD)
• 2000-2005 Buick Lesabre (FWD)
• 2006-2011 Buick Lucerne (FWD)
• 1997-2005 Buick Park Avenue (FWD)
• 1997-2004 Buick Regal (FWD)
• 1997-1999 Buick Riviera (FWD)
• 1997-2005 Cadillac Deville (FWD)
• 1997-2002 Cadillac Eldorado (FWD)
• 1997-2004 Cadillac Seville (FWD)
• 2006-2009 Chevy Lumina (FWD)
• 2000-2007 Chevy Monte Carlo (FWD)
• 1997-2003 Oldsmobile Aurora (FWD)
• 1998-2002 Oldsmobile Intrigue (FWD)
• 2000-2005 Pontiac Bonneville (FWD)

Installationsvejledning

Sikkerhed først: Always ensure the vehicle is securely supported on jack stands and the parking brake is engaged. Wear appropriate personal protective equipment, including gloves and eye protection.

1. Klargør køretøjet: Loosen the lug nuts on the wheel. Raise the vehicle and secure it with jack stands. Remove the wheel.
2. Fjern bremsekomponenter: Detach the brake caliper and rotor. Secure the caliper to prevent damage to the brake line.
3. Disconnect ABS Sensor: Carefully disconnect the ABS sensor wire from its connector.
4. Fjern akselmøtrik: Remove the axle nut. This nut is typically torqued to 118 ft-lbs and may require significant force to loosen.
5. Fjern den gamle navsamling: Locate the three bolts holding the wheel hub assembly to the steering knuckle. These bolts are torqued to 96 ft-lbs. Remove these bolts. If the hub is seized, gently tap around the hub with a hammer to loosen it. Ensure the dust shield (space plate) is removed carefully.
6. Ren monteringsoverflade: Thoroughly clean the mounting surface on the steering knuckle to remove any rust or debris. Use a wire brush if necessary. This ensures proper seating of the new hub assembly.
7. Installer ny hub-enhed: Apply a thin layer of grease to the inside of the steering knuckle where the new hub will seat. Position the dust shield (space plate) correctly, then align the new FKG 513121 Wheel Hub Assembly with the mounting holes on the steering knuckle.
8. Secure New Hub: Insert and hand-tighten the three mounting bolts. Torque these bolts to 96 ft-lbs in a star pattern to ensure even seating.
9. Install Axle Nut: Install the new axle nut and torque it to 118 ft-lbs. A torque wrench is essential for this step.
10. Reconnect ABS Sensor: Reconnect the ABS sensor wire. Ensure it is securely clipped and routed away from moving parts.
11. Genmonter bremsekomponenter: Reattach the brake rotor and caliper. Torque caliper bolts to manufacturer specifications.
12. Genmonter hjulet: Mount the wheel and hand-tighten the lug nuts. Lower the vehicle and torque the lug nuts to manufacturer specifications.

Figur 4: Nærbillede view of the ABS sensor connector, which must be properly connected during installation.

Opretholdelse

To ensure the longevity and optimal performance of your FKG wheel bearing hub assembly, regular inspection is recommended. Check for any signs of wear, damage, or unusual noise during routine vehicle maintenance. While the bearings are sealed and pre-greased, maintaining proper tire pressure and alignment can help extend their lifespan.

Fejlfinding

If you experience any issues after installation or during normal operation, consider the following:

• Brummende eller knurrende støj: This often indicates a worn or failing wheel bearing. If the noise is present after installation, re-check torque specifications and ensure proper seating.
• Vibration: Can be caused by an improperly installed hub, unbalanced wheels, or other suspension issues. Verify the hub is correctly installed and torqued.
• ABS Light On: Ensure the ABS sensor is correctly connected and not damaged. Check for any kinks or breaks in the wiring.

If problems persist, it is recommended to consult a certified automotive technician.

Specifikationer

Garanti og support

This FKG wheel bearing assembly comes with a 1 års begrænset garanti. This warranty covers replacement, return, and refund services for manufacturing defects. The product is ISO/TS16949 certified, ensuring it meets strict OE standards for vehicle fitment and reliability.

For technical support or warranty claims, please refer to the contact information provided with your purchase or visit the official FKG webwebsted.
