CAMRY Digital Bathroom Scale EB9861H User Manual

1. Introduktion

Thank you for choosing the CAMRY Digital Bathroom Scale, Model EB9861H. This scale is designed to provide accurate body weight measurements and calculate Body Mass Index (BMI). Featuring an extra-large platform of 33.5 x 31 cm, 6mm tempered glass, and a large LCD display, it offers a safe, stable, and user-friendly experience. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your new scale.

Figure 1: CAMRY Digital Bathroom Scale highlighting its multi-function capabilities including BMI, body weight, precise sensors, 180kg/400lb capacity, auto on/off/calibrate, and error indication.

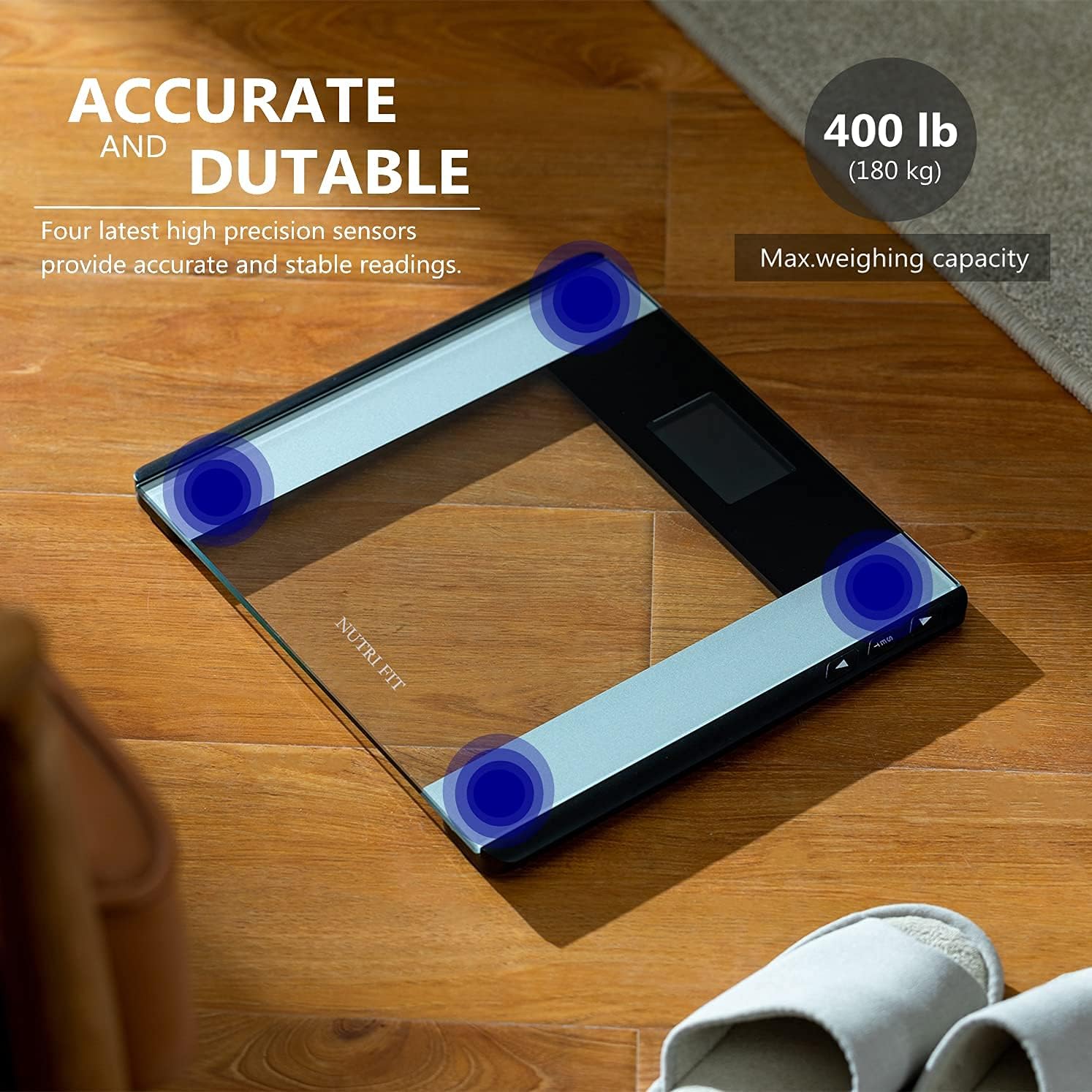

Figure 2: The scale features four high-precision sensors for accurate and stable readings, with a maximum weighing capacity of 180 kg (400 lb).

2. Sikkerhedsoplysninger

• Always place the scale on a hard, flat surface. Using it on soft surfaces like carpet may affect accuracy.
• The scale surface is made of glass. Keep it dry to prevent slipping.
• Do not jump on the scale or drop heavy objects on it, as this may damage the glass platform.
• Vægten må ikke nedsænkes i vand, og der må ikke anvendes slibende rengøringsmidler.
• This scale is for personal use only and not intended for medical diagnosis or treatment.
• Opbevar batterier utilgængeligt for børn. Bortskaf brugte batterier korrekt.

3. Produktet er slutview

The CAMRY EB9861H Digital Bathroom Scale features a sleek design with essential components for accurate and easy weighing.

Figure 3: Key components of the scale include the 6mm tempered glass platform, rounded corners, large buttons for settings, a large 3.6-inch LCD screen, and a streamline edge design.

Figure 4: The large LCD backlight display ensures easy readability of weight and BMI values in various lighting conditions.

• Hærdet glas platform: 6mm thick for durability and safety.
• LCD-skærm: Large 74 x 46 mm screen with white backlight for clear readings.
• Kontrolknapper: Three buttons (SET, Up, Down) located on the side for unit conversion and user profile indstillinger.
• Sensorer: Four high-precision sensors for accurate measurements.

4. Opsætning

4.1 Batteriinstallation

1. Åbn batteridækslet på undersiden af ​​vægten.
2. Isæt 2 AAA-batterier, og sørg for at polerne vender korrekt (+/-).
3. Luk batterirummets dæksel.

4.2 Indledende placering

Place the scale on a hard, flat, and stable surface. Avoid carpets or uneven flooring to ensure accurate readings.

4.3 Enhedskonvertering

To change the weight unit (kilograms, pounds, or stones):

• Locate the unit button (often labeled "UNIT" or "MODE") on the underside or side of the scale.
• Press the button to cycle through the available units (kg, lb, st). The selected unit will be displayed on the LCD screen.

5. Betjening

5.1 Grundlæggende vægtmåling

1. Sørg for, at vægten står på en hård, plan overflade.
2. Step onto the scale with bare feet. The scale will automatically turn on.
3. Stand still until your weight is displayed and stabilizes. The reading will flash a few times before locking.
4. Step off the scale. It will automatically turn off after a few seconds.

5.2 BMI Measurement (Body Mass Index)

To obtain your BMI, you must first set your height. The scale can store up to 12 user profiles.

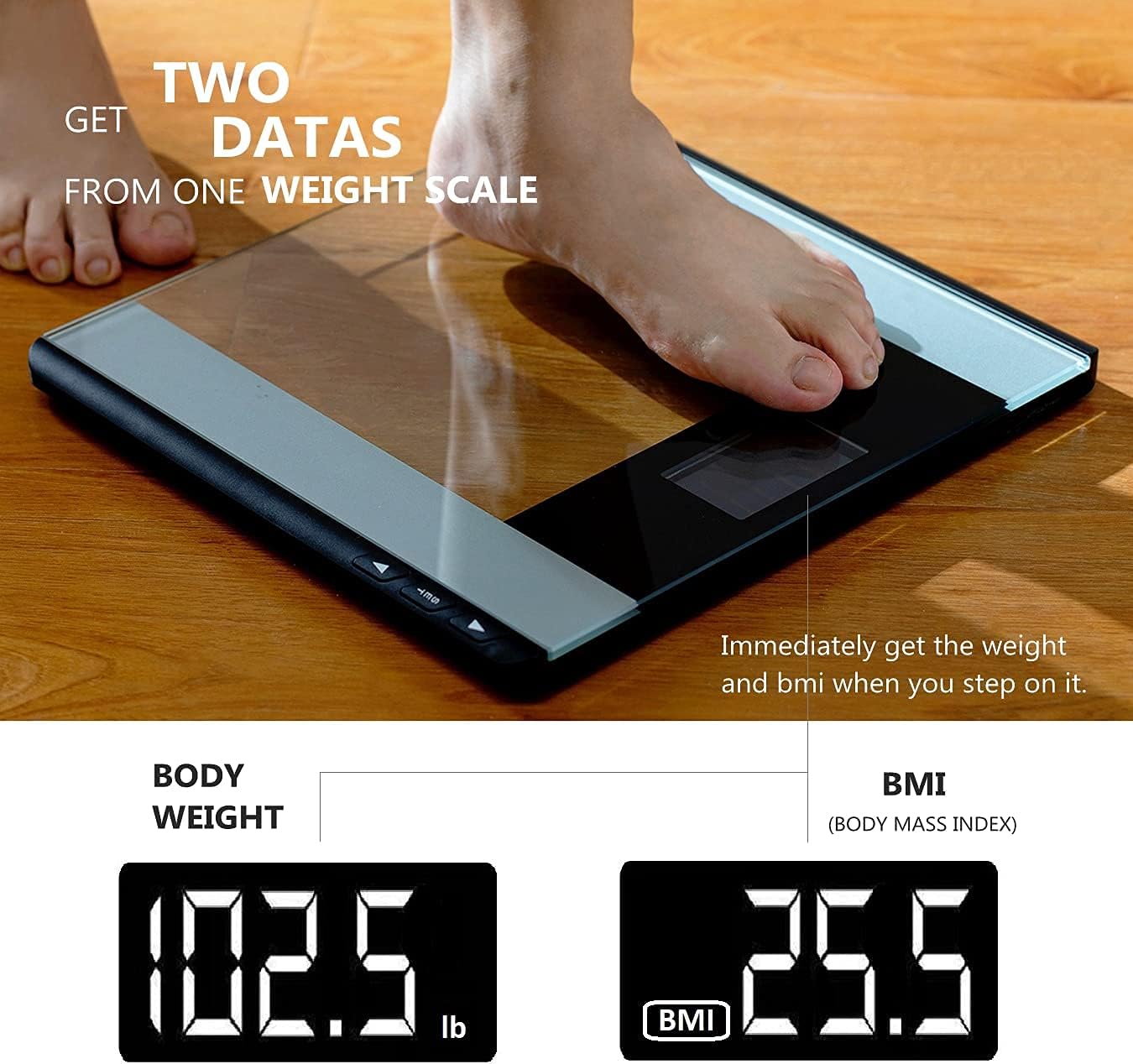

Figure 5: The scale displays both body weight and Body Mass Index (BMI) immediately after stepping on it, provided user height is set.

Indstilling af User Profiles and Height:

1. Tryk på knappen "SET" for at gå ind i brugerprofilenfile indstillinger.
2. Use the "Up" or "Down" buttons to select a user profile (P-01 to P-12).
3. Press "SET" again to confirm the user.
4. The height setting will flash. Use "Up" or "Down" to adjust your height.
5. Press "SET" to save your height. The scale will then return to weighing mode.

Figur 6: Vægten understøtter op til 12 brugere.files (P-01 to P-12), allowing multiple users to store their height data for BMI calculation.

Measuring Weight and BMI:

1. Vælg din brugerprofffile by pressing "SET" and using "Up"/"Down" buttons.
2. Når din profile is selected, step onto the scale.
3. Your weight will be displayed first, followed by your calculated BMI.

6. Vedligeholdelse

6.1 Rengøring

• Tør vægtens overflade af med en blød kludamp klæde.
• Do not use chemical cleaning agents or abrasive materials.
• Sørg for, at vægten er tør før opbevaring eller næste brug.

6.2 Opbevaring

Opbevar vægten et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.

6.3 Udskiftning af batteri

When the battery indicator appears on the display, replace the 2 AAA batteries as described in Section 4.1.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

CAMRY offers a one-year warranty for this product. For any questions, technical support, or warranty claims, please contact CAMRY customer service. You can reach us via the Amazon Mail System or our service email address, as indicated in your purchase documentation.

Gem venligst din købsbevis af garantihensyn.
