TurboTronic 45L Compact Convection Rotisserie Oven User Manual

Indledning

Thank you for choosing the TurboTronic 45L Compact Convection Rotisserie Oven. This manual provides essential information for the safe and efficient operation of your new appliance. Please read all instructions carefully before use and retain this manual for future reference.

Vigtige sikkerhedsinstruktioner

• Læs alle instruktioner før brug af apparatet.
• Rør ikke ved varme overflader. Brug håndtag eller knopper.
• For at beskytte mod elektrisk stød må ledningen, stik eller apparatet ikke nedsænkes i vand eller anden væske.
• Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​bordet eller bordpladen eller røre ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Der skal udvises ekstrem forsigtighed ved flytning af et apparat, der indeholder varm olie eller andre varme væsker.
• Brug ikke apparatet til andet end tilsigtet brug.

Produkt overview

The TurboTronic TT-EV45 is a versatile 45-liter compact oven featuring convection and rotisserie functions, designed for efficient cooking in various settings.

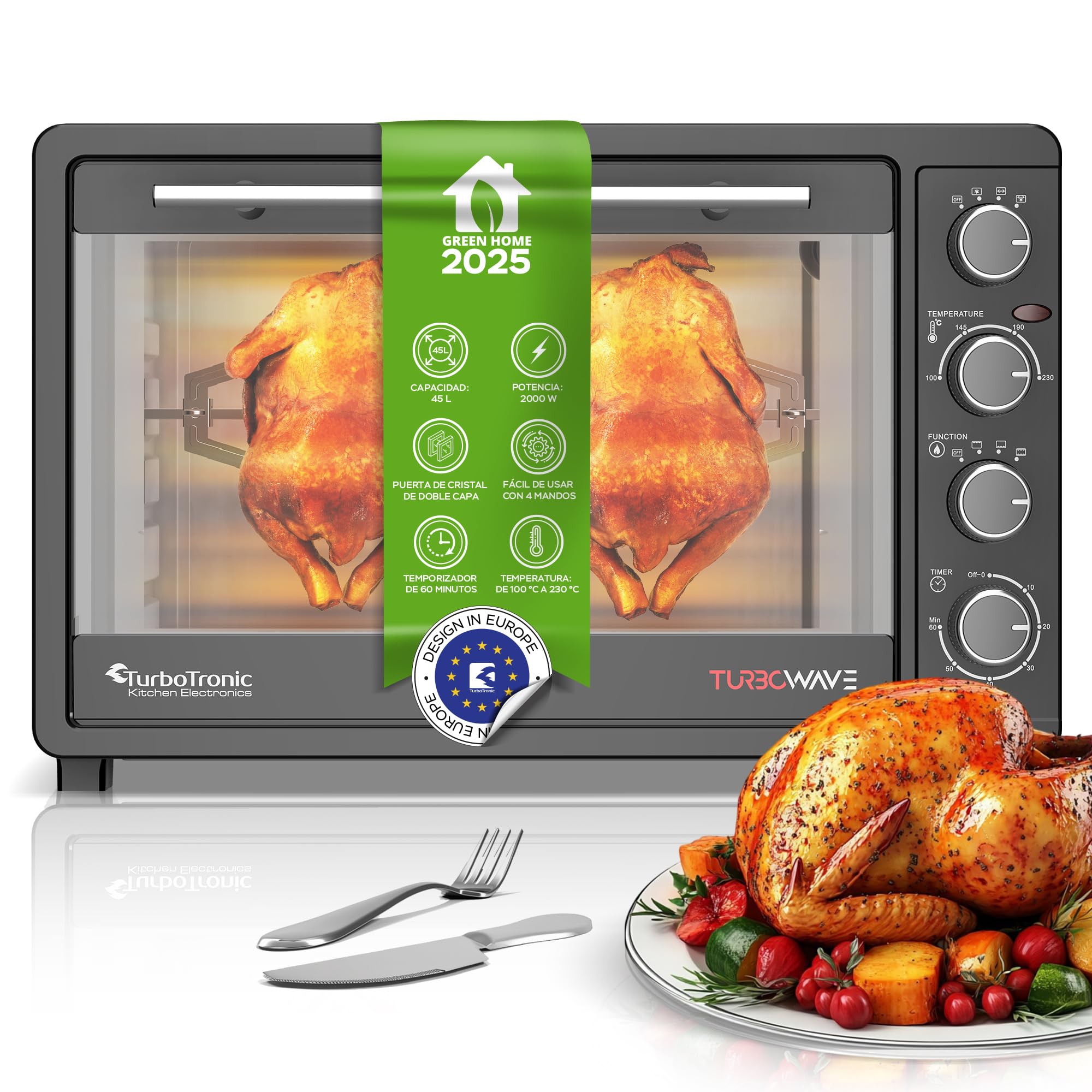

Figur 1: Forside view of the TurboTronic 45L Compact Convection Rotisserie Oven.

Nøglefunktioner

• 45 liters kapacitet: Ideal for preparing large meals in compact spaces.
• 2000 watt effekt: Ensures fast and even cooking.
• Rotisserie funktion: Perfect for crispy, golden roasted meats.
• Konvektionsfunktion: For impeccable and consistent cooking results.
• Kompakt og elegant design: Fits perfectly in any kitchen, saving space.
• Temperaturområde: Justerbar fra 100°C til 230°C.
• Justerbar timer: From 0 to 60 minutes with automatic shut-off.
• Integreret belysning: For easy monitoring of cooking progress.
• Transparent Double Glass Door: Reduces heat loss for energy efficiency.

Komponenter og kontroller

Figur 2: Detaljeret view af kontrolpanelet.

1. Function Knob (Pulsante 1): Selects cooking mode.
   • Konvektion: For even heat distribution.
   • Rotisserie: For roasting meats on a spit.
   • Convection & Rotisserie: Combines both for optimal roasting.
2. Temperature Knob (Pulsante 2): Justerer temperaturen fra 100°C til 230°C.
3. Heating Mode Knob (Pulsante 3): Selects heating elements.
   • Upper Heating: Til grillning og bruning.
   • Lav varme: For baking bases.
   • Upper & Lower Heating: Standardbagning og stegning.
4. Timer Knob (Pulsante 4): Sets cooking time from 0 to 60 minutes. Includes an "Off" position.

Figur 3: Overview af medfølgende tilbehør.

Ovnen leveres med følgende tilbehør:

• 1x Rotisseriespyd med gafler
• 1x Rotisserie Handle
• 1x Grillrist
• 2x Baking Trays
• 1x Crumb Tray / Oil Tray
• 1x Grill Plate with Handle
• 1x Recipe Book and Manual

Opsætning

1. Udpakning: Tag forsigtigt ovnen og alt tilbehør ud af emballagen. Gem emballagen til senere transport eller opbevaring.
2. Indledende rengøring: Tør ovnens inderside og yderside af med en rengøringsklud før første brug.amp cloth. Wash all accessories (baking trays, grill rack, rotisserie spit, etc.) in warm soapy water, rinse, and dry thoroughly.
3. Placering: Place the oven on a stable, heat-resistant, and level surface. Ensure there is adequate ventilation around the oven (at least 10-15 cm clearance on all sides and top) to prevent overheating. Do not place near flammable materials.
4. Strømtilslutning: Ensure the power cord is not damaged. Plug the oven into a grounded electrical outlet with the correct voltage (220-240V, 50/60Hz).
5. Førstegangsafbrænding: It is recommended to run the oven empty for about 15 minutes at maximum temperature (230°C) with both upper and lower heating elements selected. This will burn off any manufacturing residues and odors. Ensure the room is well-ventilated during this process.

Betjeningsvejledning

Familiarize yourself with the control knobs as described in the "Product Overview" sektion.

Generel drift

1. Lave mad: Place your food on the appropriate accessory (baking tray, grill rack, or rotisserie spit).
2. Indsæt tilbehør: Slide the accessory into the desired rack position. The oven offers 4 different rack heights for flexibility.

Figure 4: Illustrates the four rack positions and the rotisserie function.
3. Luk døren: Sørg for, at ovndøren er forsvarligt lukket.
4. Vælg opvarmningstilstand: Drej på Heating Mode Knob (Pulsante 3) to select the desired heating elements (Upper, Lower, or Upper & Lower).
5. Indstil temperatur: Drej på Temperature Knob (Pulsante 2) til din ønskede tilberedningstemperatur (100°C - 230°C).
6. Vælg funktion: Drej på Function Knob (Pulsante 1) to select Convection, Rotisserie, or Convection & Rotisserie, if desired.
7. Indstil timer: Drej på Timer Knob (Pulsante 4) to the desired cooking time (0-60 minutes). The oven will start heating. The indicator light will illuminate.
8. Overvågning: The integrated oven light allows you to monitor cooking progress.
9. Færdiggørelse: Once the set time elapses, the oven will automatically shut off and a bell will sound. Carefully remove food using oven mitts.

Brug af Rotisserie-funktionen

1. Prepare the meat (e.g., chicken) by trussing it securely to ensure it rotates evenly.
2. Insert the rotisserie spit through the center of the meat and secure it with the forks.
3. Place the assembled rotisserie spit into the oven's rotisserie sockets. Use the rotisserie handle for safe placement and removal.
4. Select the "Rotisserie" or "Convection & Rotisserie" function using the Function Knob (Pulsante 1).
5. Indstil den ønskede temperatur og tilberedningstid.
6. The rotisserie will rotate, ensuring even cooking and browning.

Vedligeholdelse og rengøring

Regelmæssig rengøring sikrer optimal ydeevne og forlænger din ovns levetid. Tag altid stikket ud af stikkontakten, og lad den køle helt af, før du rengør den.

Rengøring af indvendig og udvendig

• Tør de indvendige vægge, bunden og glasdøren af ​​med enamp klud og mildt rengøringsmiddel. Ved genstridige pletter skal du bruge et ikke-slibende rengøringsmiddel.
• Do not use abrasive cleaners, scouring pads, or metal utensils as they can damage the oven's surfaces.
• Tør ydersiden af ​​med en blød, damp cloth. Do not allow water to drip into the control panel or electrical components.

Tilbehør til rengøring

Figure 5: Many accessories are easy to clean and dishwasher safe.

• The grill rack, baking trays, rotisserie spit, and crumb tray are designed for easy cleaning.
• These accessories can be washed by hand with warm soapy water or placed in a dishwasher for convenience.
• Ensure all accessories are completely dry before storing or reinserting into the oven.

Fejlfinding

If you encounter issues with your oven, please refer to the following common problems and solutions before contacting customer support.

Specifikationer

Figure 6: Visual representation of oven dimensions and weight.

Garanti og support

TurboTronic products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact your local retailer.

If you require technical assistance or have questions about your product, please contact TurboTronic customer support through their official webwebstedet eller kontaktoplysningerne i din købsdokumentation.
