Sonew Wired Strobe Siren User Manual

1. Introduktion

Thank you for choosing the Sonew Wired Strobe Siren. This device is designed to enhance the security of your home or property by providing both a powerful audible alarm and a highly visible flashing light when triggered by a compatible security system. Its robust construction and high-decibel output make it an effective deterrent and alert system.

2. Sikkerhedsoplysninger

Please read and understand all safety instructions before installing and operating this device. Failure to do so may result in injury, damage to the product, or property damage.

• Elektrisk sikkerhed: This siren operates on 12V DC. Ensure the power source is compatible and correctly wired to prevent electrical shock or damage. Disconnect power before installation or maintenance.
• High Decibel Warning: The siren produces a sound level of 120 dB, which can be very loud. Avoid prolonged exposure to the sound at close range to prevent hearing damage.
• Installation: Installation should be performed by a qualified individual if you are unsure about electrical wiring. Ensure the mounting surface is stable and can support the device securely.
• Miljø: Do not expose the device to extreme temperatures, direct water, or high humidity unless specifically rated for outdoor use (this model is generally for indoor/covered outdoor use).
• Børn og kæledyr: Hold enheden utilgængeligt for børn og kæledyr for at forhindre utilsigtet aktivering eller beskadigelse.

3. Produktet er slutview

The Sonew Wired Strobe Siren combines a powerful audible alarm with a bright flashing red light to provide effective visual and auditory alerts. It is designed for integration with existing 12V security systems.

Nøglefunktioner:

• High-Quality ABS Material: Constructed from durable, fire-retardant ABS plastic, ensuring longevity and safety.
• Integrated LED Strobe: Features a super bright red LED that flashes rapidly when the alarm is active, drawing immediate attention.
• 120 dB High-Definition Sound: Emits a loud, clear alarm sound to alert occupants and deter intruders.
• Stabil ydeevne: Designed for reliable operation within a security system.
• Kompakt og bærbar: Mini size allows for discreet installation and easy handling.
• Energibesparende: Efficient design minimizes power consumption.

Komponenter:

• Red ABS Casing
• Integrated LED Strobe Lights (2)
• Sound Emitter (Internal)
• Power/Signal Wires (Red and Black)
• Monteringshuller

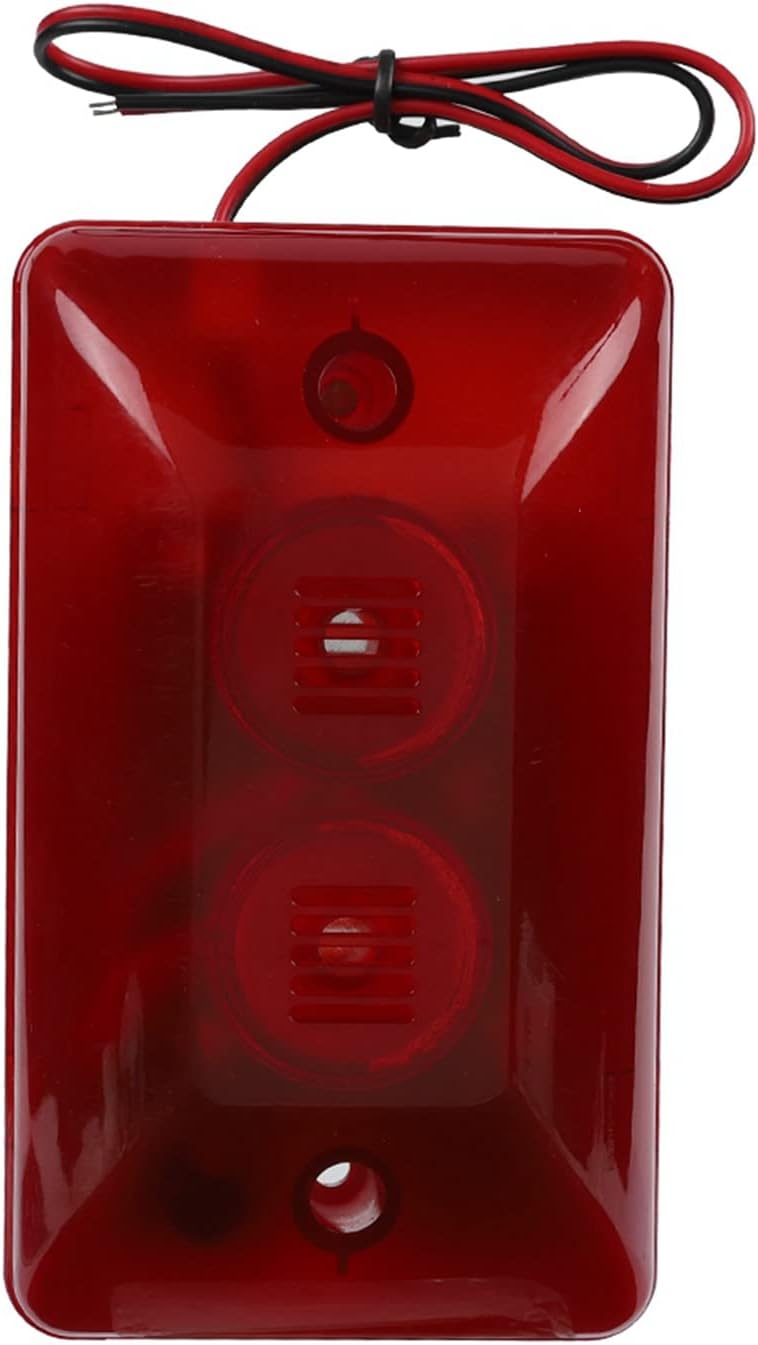

Produkt Views:

4. Specifikationer

5. Opsætning og installation

Follow these steps for proper installation of your wired strobe siren:

1. Vælg en placering: Select a suitable indoor or covered outdoor location for mounting. Ensure it is visible and audible, yet protected from direct weather elements. Consider a location where the siren is difficult for intruders to reach.
2. Forbered monteringsoverfladen: Mark the positions for the mounting screws using the siren's mounting holes as a template.
3. Monter sirenen: Secure the siren to the wall or desired surface using appropriate screws (not included). Ensure it is firmly attached.
4. Ledningsføring:
   • Identify the red and black wires extending from the siren.
   • Tilslut rød ledning to the positive (+) 12V DC output terminal of your security alarm panel or power supply.
   • Tilslut sort ledning to the negative (-) or common ground terminal of your security alarm panel or power supply.
   • Sørg for, at alle forbindelser er sikre og isolerede for at forhindre kortslutninger.
5. Test systemet: After wiring, activate your alarm system to trigger the siren and verify that both the audible alarm and the flashing strobe light function correctly.

Vigtig: Always refer to your security alarm panel's manual for specific wiring diagrams and compatibility information.

6. Betjeningsvejledning

The Sonew Wired Strobe Siren operates in conjunction with your existing 12V DC security alarm system. It does not have independent controls.

• Aktivering: When your security alarm system detects an intrusion or emergency and sends a 12V DC signal to the siren's input wires, the siren will immediately activate.
• Alarmoutput: Upon activation, the siren will emit a loud 120 dB audible alarm, and the integrated red LED strobe lights will begin to flash rapidly.
• Deaktivering: The siren will cease operation when the alarm system deactivates the 12V DC output signal, typically by disarming the system or resolving the alarm condition.

7. Vedligeholdelse

Regular maintenance helps ensure the longevity and optimal performance of your strobe siren.

• Rensning: Periodically wipe the exterior of the siren with a soft, dry cloth to remove dust and dirt. Do not use abrasive cleaners or solvents.
• Inspektion: Annually inspect the wiring for any signs of wear, fraying, or damage. Ensure all connections remain secure.
• Funktionstest: Test the siren's functionality regularly (e.g., monthly) by triggering your alarm system to ensure both the sound and strobe light are working.
• Miljøbeskyttelse: If installed outdoors, ensure it remains protected from direct heavy rain or snow.

8. Fejlfinding

If you encounter issues with your Sonew Wired Strobe Siren, refer to the following common problems and solutions:

9. Garanti og support

Garantioplysninger: Specific warranty terms for the Sonew Wired Strobe Siren are provided by the seller or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims. For detailed warranty information, refer to the documentation provided with your product or contact the retailer where you purchased the device.

Kundesupport: If you require technical assistance, have questions about installation, or need to report a defect, please contact the seller or Sonew customer support directly. Provide your product model number (Sonewo4bq0stk92) and a detailed description of the issue to facilitate faster service.
