TFA Dostmann CLOCCO 60.2549.08 Radio-Controlled Alarm Clock User Manual

1. Introduktion

Thank you for choosing the TFA Dostmann CLOCCO 60.2549.08 Radio-Controlled Alarm Clock. This device combines a minimalist wood-look design with precise radio-controlled timekeeping, an indoor temperature display, and an alarm function. This manual provides essential information for the correct setup, operation, and maintenance of your new alarm clock.

Nøglefunktioner:

• Radiostyret tid: Automatic synchronization with the atomic clock for high precision, eliminating the need for manual time adjustments.
• Indendørs temperaturdisplay: Integrated sensor accurately displays the current room temperature in Celsius.
• Minimalist Wood Look Design: Æstetisk venligasing design suitable for various environments, including bedrooms, living rooms, and offices.
• Variabel skærm: Shows time, date, day of the week, or indoor temperature. The display can be set to react to sound or touch.
• Automatisk dæmpning: The display brightness automatically adjusts between 7:00 PM and 6:59 AM for comfortable viewunder dårlige lysforhold.
• Alarm funktion: Features a reliable alarm with a pre-settable wake-up time.

2. Opsætning

2.1 Udpakning og medfølgende komponenter

Fjern forsigtigt alle komponenter fra emballagen. Sørg for, at følgende dele er til stede:

• TFA Dostmann CLOCCO 60.2549.08 Alarm Clock
• Strømadapter
• 1 x CR2 Battery (for settings backup)
• Instruktionsmanual

2.2 Strømforsyning

The CLOCCO alarm clock operates primarily via the included power adapter. The CR2 battery serves as a backup to retain settings during power outages.

1. Insert the CR2 battery into the designated battery compartment, observing the correct polarity (+/-). This battery ensures your settings are saved if the main power is interrupted.
2. Connect the power adapter cable to the DC input port on the back of the alarm clock.
3. Sæt strømadapteren i en almindelig stikkontakt. Displayet lyser.

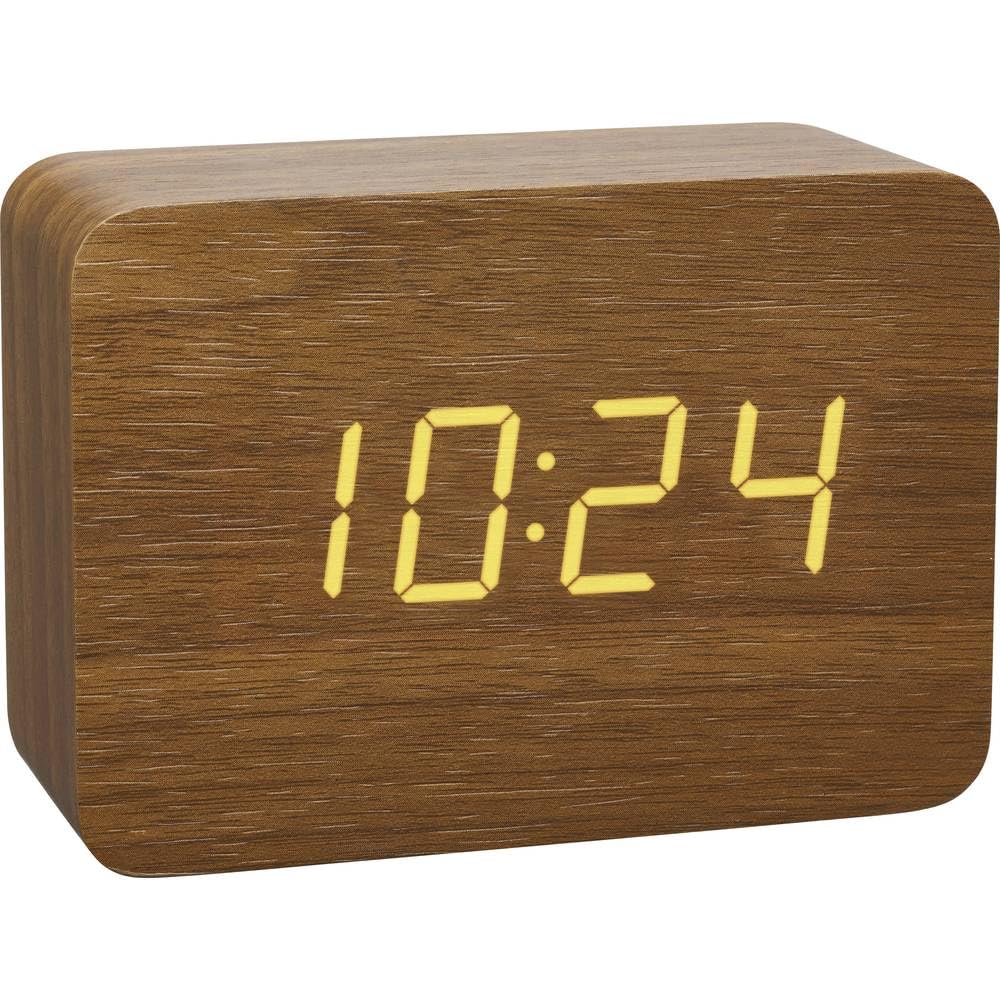

Figur 1: Forside view of the CLOCCO alarm clock, showing the digital display.

2.3 Indledende tidssynkronisering

Upon initial power-up, the alarm clock will automatically attempt to synchronize with the DCF77 radio signal (atomic clock in Frankfurt, Germany). This process may take several minutes to a few hours, depending on your location and environmental conditions.

• Place the alarm clock near a window, away from electronic devices that might cause interference.
• A flashing antenna symbol on the display indicates that the clock is searching for the radio signal.
• Once synchronized, the antenna symbol will become solid, and the correct time will be displayed. The clock will automatically check and adjust the time, typically between 2:00 AM and 4:00 AM daily.
• If synchronization fails, you may need to manually set the time (refer to Section 3.1).

3. Betjeningsvejledning

3.1 Display Modes and Manual Settings

The CLOCCO alarm clock offers various display modes and manual adjustment options:

Figure 2: Feature diagram showing display modes and controls.

• Skift visningstilstande: Press the "SET" button (usually located on the back or top) to cycle through display modes: Time, Date, Day of the Week, Indoor Temperature, or an automatic cycle between these.
• Manuel indstilling af tid/dato: If radio synchronization is unavailable or undesired, press and hold the "SET" button until the time digits flash. Use the "UP" and "DOWN" buttons to adjust the hour, then press "SET" to confirm and move to minutes, then date, and so on. Press "SET" again to exit manual setting mode.
• Temperaturenhed: The temperature is displayed in Celsius (°C). There is no option to change to Fahrenheit.

3.2 Indstilling af alarmen

Sådan indstilles alarmtidspunktet:

1. Press the "ALARM" button (usually on the back or top) once to display the current alarm time.
2. Press and hold the "ALARM" button until the alarm hour digits flash.
3. Use the "UP" and "DOWN" buttons to adjust the desired alarm hour. Press "ALARM" to confirm.
4. The minute digits will flash. Use "UP" and "DOWN" to adjust the alarm minutes. Press "ALARM" to confirm.
5. To activate or deactivate the alarm, press the "ALARM" button briefly when the alarm time is displayed. An alarm icon will appear/disappear on the display.

3.3 Dimming Function and Sound Activation

• Automatisk dæmpning: The display brightness automatically reduces between 7:00 PM and 6:59 AM to prevent excessive light during nighttime hours.
• Manuel lysstyrkejustering: (If available, typically via a dedicated button or holding a button) Some models allow manual adjustment of brightness levels. Refer to the specific button labels on your device.
• Sound-Activated Display: When operating on battery power (if applicable) or in a specific mode, the display can be set to turn off and only illuminate when a sound is detected (e.g., a clap) or when the clock is touched. This conserves energy and reduces light pollution. Consult your device's specific button for this feature (e.g., "DOWN" button for 5 seconds as mentioned in a review).

Figure 3: The CLOCCO alarm clock in a bedroom setting, highlighting its clear display.

4. Vedligeholdelse

4.1 Rengøring

Sådan bevarer du dit vækkeurs udseende og funktionalitet:

• Tør overfladen af ​​med en blød, tør eller let fugtet kludamp klæde.
• Do not use abrasive cleaners, solvents, or polishing agents, as these can damage the finish and display.
• Sørg for, at der ikke kommer væske ind i enhedens åbninger.

4.2 Battery Replacement (CR2 Backup Battery)

The CR2 battery is primarily for backup. If you notice settings are not retained after a power interruption, it may be time to replace this battery.

1. Locate the battery compartment on the back or bottom of the device.
2. Åbn dækslet til rummet.
3. Remove the old CR2 battery and dispose of it according to local regulations.
4. Indsæt et nyt CR2-batteri, og sørg for korrekt polaritet.
5. Luk batterirummets dæksel forsvarligt.

5. Fejlfinding

6. Specifikationer

7. Garanti og support

7.1 Garantioplysninger

This product comes with a limited warranty. Please refer to the warranty card included in your packaging or visit the official TFA Dostmann website for detailed warranty terms and conditions. The availability of spare parts in the EU is typically 1 year from the date of purchase.

7.2 Kundesupport

Should you encounter any issues not covered in this manual or require further assistance, please contact TFA Dostmann customer support. Contact information can usually be found on the product packaging, the official webhjemmeside eller gennem din forhandler.

For mere information, besøg den officielle TFA Dostmann Store.
