Satco 80-2629 Four Light Ballast Bypass Wiring Harness Instruction Manual

1. Introduktion

This manual provides detailed instructions for the safe and proper installation and use of the Satco 80-2629 Four Light Ballast Bypass Wiring Harness. This harness is designed to convert fluorescent fixtures to operate with linear LED T8 lamps that require a ballast bypass (direct wire) installation. Please read all instructions carefully before beginning installation.

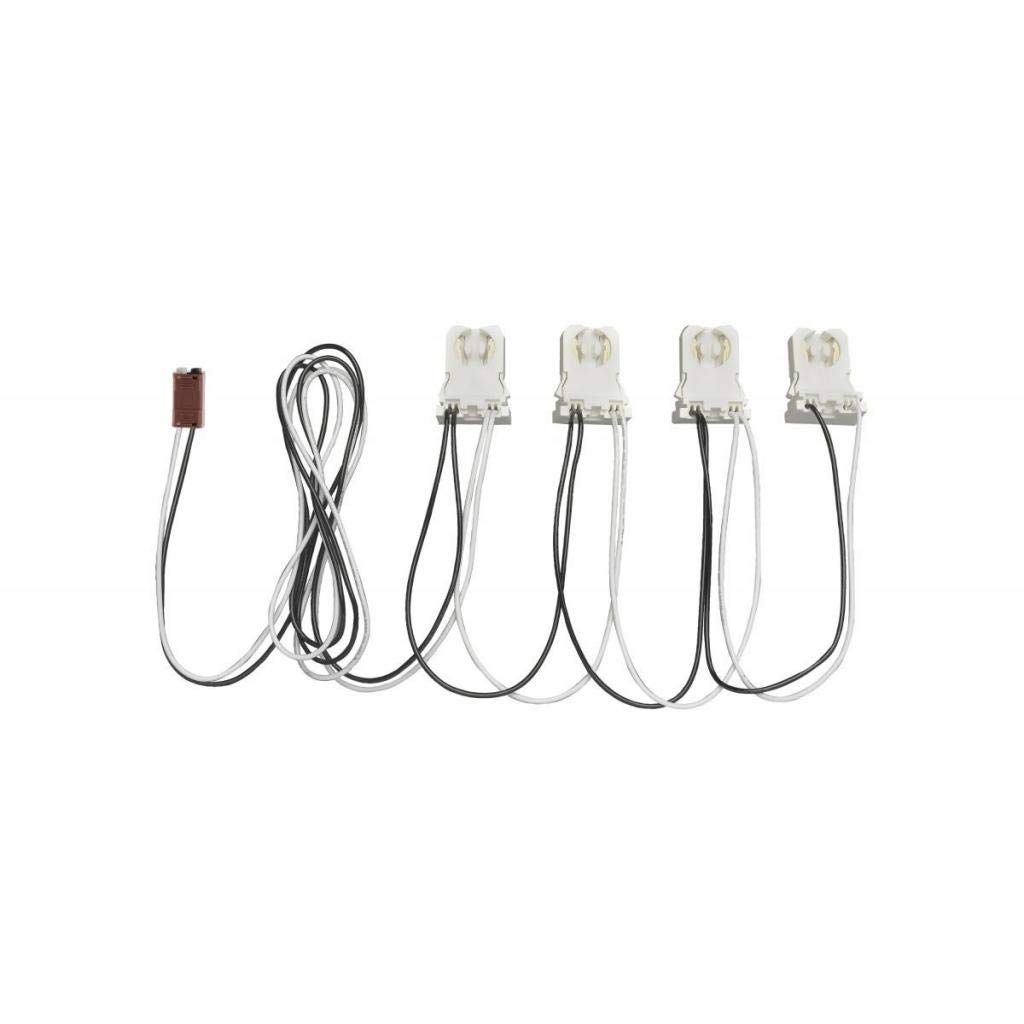

Image 1: Satco 80-2629 Four Light Ballast Bypass Wiring Harness. This image shows the complete wiring harness with connectors for four T8 LED lamps.

2. Sikkerhedsoplysninger

• ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen ved afbryderen eller sikringsboksen før installation eller service.
• Installation should be performed by a qualified electrician or certified professional.
• Sørg for, at alle ledningsforbindelser er sikre og overholder lokale el-forskrifter.
• Do not use with fluorescent lamps eller LED lamps that require a ballast. This harness is for ballast bypass (direct wire) LED T8 lampkun s.
• Inspect the harness for any damage before installation. Do not install if damaged.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• One (1) Satco 80-2629 Four Light Ballast Bypass Wiring Harness

4. Opsætning og installation

This harness is designed for converting a four-lamp fluorescent fixture to operate with four ballast bypass LED T8 lamps. Professional installation is highly recommended.

1. Afbryd strømmen: Sluk for strømmen til armaturet ved afbryderen eller sikringsskabet. Kontroller, at strømmen er afbrudt med en voltmeter.tage tester.
2. Access Fixture Wiring: Remove the fixture cover and existing fluorescent lamps. Locate and identify the existing ballast.
3. Remove Existing Ballast: Disconnect all wires leading to and from the existing ballast. Remove the ballast from the fixture.
4. Install Wiring Harness:
   • Connect the black wire from the Satco 80-2629 harness to the LINE (VARMT) wire from the fixture's power supply.
   • Connect the white wire from the Satco 80-2629 harness to the NEUTRAL wire from the fixture's power supply.
   • Ensure all connections are secured with appropriate wire connectors (not included).
5. Tilslut Lamp Indehavere: The harness provides four sets of lamp holder wires. Each set connects directly to the tombstone (lamp holder) for one LED T8 lamp. Ensure that the wiring to each tombstone provides power to one end of the LED lamp, and neutral to the other end, as required by your specific LED T8 lamps. (Some LED T8 lamps are single-ended power, others are double-ended. Consult your LED lamp instruktioner.)
6. Install LED T8 Lamps: Insert the ballast bypass LED T8 lamps ind i lamp indehavere.
7. Sikker armatur: Sæt dækslet på armaturet igen.
8. Gendan strøm: Turn on power at the circuit breaker or fuse box. Test the lamps.

Image 2: Components of the Satco Ballast Bypass Wiring Harness. This image illustrates the individual lamp holders and the main wiring connections for an easy installation process.

5. Betjeningsvejledning

Once the Satco 80-2629 Four Light Ballast Bypass Wiring Harness is correctly installed and connected to compatible LED T8 lamps, den lamps will operate by simply turning on the power switch to the fixture. There are no additional operating controls on the harness itself.

6. Vedligeholdelse

The Satco 80-2629 wiring harness requires minimal maintenance. It contains no user-serviceable parts. To ensure continued safe operation:

• Periodically inspect the wiring and connections for any signs of wear, damage, or loosening.
• Ensure the fixture remains dry and free from excessive dust or debris.
• Before any inspection or cleaning, always disconnect power to the fixture at the circuit breaker.

7. Fejlfinding

Hvis LED lamps do not illuminate after installation, consider the following:

• Ingen strøm: Check the circuit breaker to ensure power is restored to the fixture.
• Løse forbindelser: Disconnect power and re-check all wiring connections within the fixture and to the harness. Ensure they are secure.
• Forkert L.amp Type: Verify that the installed lamps er ballast bypass (direct wire) LED T8 lamps. This harness is not compatible with fluorescent lamps eller LED lamps that require a ballast.
• Faulty LED Lamp: Test LED'enamps in another compatible fixture if possible, or try a new LED lamp.
• Incorrect Wiring for LED Lamp: Some ballast bypass LED T8 lamps require power to one end and neutral to the other. Ensure your wiring configuration matches the requirements of your specific LED T8 lamps.

8. Specifikationer

9. Garanti og support

For warranty information and technical support regarding the Satco 80-2629 Four Light Ballast Bypass Wiring Harness, please contact the manufacturer directly. Refer to the product packaging or the official Satco webwebstedet for aktuelle kontaktoplysninger og garantivilkår.

Warranty Description from product data: Contact manufacturer for warranty information.
