HZPOWEN 8541760665

Instruction Manual for HZPOWEN AC/DC Adapter

Model: 8541760665

1. Produktet er slutview

This HZPOWEN AC/DC Adapter is designed as a replacement power supply for various Blackstar Fly 3 and Fly 103 series amplifiers and Bluetooth speakers. It provides stable and reliable power, ensuring optimal performance for your compatible devices. The adapter is built with multiple safety features to protect both the adapter and your connected equipment.

Image 1.1: The HZPOWEN AC/DC Adapter with its power cord and barrel connector.

2. Nøglefunktioner

Certificeret kvalitet: CE / FCC / RoHS certified, ensuring compliance with safety and environmental standards.
Optimeret ydeevne: Tested by the manufacturer to match and/or exceed OEM specifications for reliable power delivery.
Input bindtage: AC 100-240V, 50/60Hz, suitable for global use.
Udgang Voltage: DC 6.5V, 2A, providing consistent power to compatible devices.
Kabellængde: Approximately 5 feet (1.5 meters) for convenient placement.
Connector Type: Standard barrel connector with 2.1mm inner diameter and 5.5mm outer diameter.

Billede 2.1: Detaljeret view of the adapter's input (100-240V) and output (6.5V-2A) specifications.

2.1. Multiple Protection Design

The adapter incorporates several protection mechanisms to safeguard your devices:

Over Voltage Beskyttelse: Forebygger skader fra overdreven volumentage.
Overstrømsbeskyttelse: Beskytter mod strømstød.
Kortslutningsbeskyttelse: Automatically shuts off power in case of a short circuit.
Temperaturbeskyttelse: Beskytter mod overophedning.

Image 2.2: Visual representation of the adapter's multiple protection features.

3. Kompatibilitet

This AC/DC adapter is specifically designed to be compatible with the following Blackstar amplifier and speaker models:

Blackstar Fly 3 Bass Amplivligere
Blackstar Fly 3 Guitar Amplivligere
Blackstar Fly 103 Guitar Bluetooth Speaker
Compatible with PSU1FLY, PSU-1, and SW10-06501500-W power supply specifications.

Vigtig bemærkning:

Always verify the input voltage and connector specifications of your device before connecting any power adapter. This HZPOWEN adapter provides a 6.5V DC output. Ensure your Blackstar device requires 6.5V for optimal and safe operation.

Billede 3.1: Eks.amples of compatible Blackstar Fly 3 Guitar and Bass amplivførere.

4. Opsætningsvejledning

Setting up your HZPOWEN AC/DC adapter is a straightforward process:

Undersøg adapteren: Før brug skal adapteren og dens kabel kontrolleres visuelt for tegn på skader. Må ikke anvendes, hvis den er beskadiget.
Opret forbindelse til enhed: Locate the power input jack on your Blackstar amplifier or speaker. Carefully insert the barrel connector of the HZPOWEN adapter into this jack. Ensure a snug fit.
Tilslut til stikkontakten: Plug the AC prongs of the adapter into a standard wall power outlet (AC 100-240V).
Tænd enhed: Once connected, you can power on your Blackstar device.

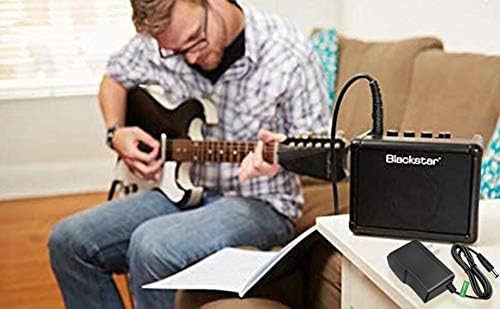

Billede 4.1: En eksample of the adapter connected to a Blackstar amplifner under brug.

5. Driftsvejledninger

The HZPOWEN AC/DC adapter operates automatically once connected. Observe the following guidelines for safe and effective use:

Udsæt ikke adapteren for vand, fugt eller ekstreme temperaturer.
Avoid placing the adapter in poorly ventilated areas during operation to prevent overheating.
Do not attempt to disassemble or modify the adapter. This will void the warranty and could be dangerous.
Tag adapteren ud af stikkontakten, når den ikke er i brug i længere perioder.
Always pull by the plug, not the cord, when disconnecting from the wall outlet.

6. Vedligeholdelse

Korrekt vedligeholdelse sikrer din adapters levetid og sikre drift:

Rensning: Frakobl adapteren fra alle strømkilder før rengøring. Brug en blød, tør klud til at tørre overfladen af. Brug ikke flydende rengøringsmidler eller aerosoler.
Opbevaring: Opbevar adapteren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når den ikke er i brug. Undgå at vikle kablet stramt op for at forhindre skader.
Kabelpleje: Regularly check the cable for any cuts, fraying, or kinks. If damage is observed, discontinue use immediately and replace the adapter.

7. Fejlfinding

If you encounter issues with your HZPOWEN AC/DC adapter, refer to the following common problems and solutions:

Problem	Mulig årsag	Løsning
Enheden tænder ikke.	Adapteren er ikke korrekt tilsluttet. Stikkontakten er ikke aktiv. Device's power switch is off. Adapteren eller enheden er defekt.	Ensure adapter is fully inserted into both the device and the wall outlet. Test stikkontakten med et andet apparat. Verify the device's power switch is in the ON position. Kontakt kundesupport, hvis problemerne fortsætter.
Adapteren føles varm.	Normal drift (let varme). Dårlig ventilation. Overbelastning eller intern fejl.	Sørg for, at adapteren er i et godt ventileret område. Hvis det er for varmt eller afgiver røg/lugt, skal du straks tage stikket ud og stoppe brugen.
Device powers on but behaves erratically.	Forkert voltage eller nuværende. Enhedsfejl.	Verify your device's required input voltage matches the adapter's 6.5V output. Hvis voltage is correct, the issue may be with the device itself.

8. Specifikationer

Attribut	Værdi
Mærke	HZPOWEN
Modelnummer	8541760665
Input bindtage	AC 100-240V, 50/60Hz
Udgang Voltage	DC 6.5V
Udgangsstrøm	2A (2000mA)
Wattage	10 watt
Connector Type	Barrel Connector (2.1mm inner, 5.5mm outer)
Kabellængde	5 fod (ca. 1.5 meter)
Varens vægt	2.39 ounce
Pakkedimensioner	3.9 x 3.1 x 2.1 tommer
Certificeringer	CE / FCC / RoHS

Barrel Connector Dimensions and Polarity

Image 8.1: Diagram showing the barrel connector dimensions (5.5mm outer, 2.1mm inner) and polarity.

9. Garanti og support

HZPOWEN stands behind the quality of its products. For any questions, concerns, or technical assistance regarding your AC/DC adapter, please contact HZPOWEN customer support through the retailer's platform or the official HZPOWEN webwebsted. Gem venligst din købsbevis til garantikrav.

This product is manufactured by HZPOWEN.
