VOLTCRAFT R-BOX 02 Resistance Decade Box

1. Introduktion

The VOLTCRAFT R-BOX 02 is a precision resistance decade box designed for quickly and easily setting various resistance values. It is an ideal tool for educational purposes, training, development, and general electrical testing applications. This manual provides essential information for the safe and effective use of your R-BOX 02.

2. Sikkerhedsinstruktioner

• Read this instruction manual thoroughly before using the device.
• Hold enheden væk fra fugt, støv og ekstreme temperaturer.
• Forsøg ikke at åbne eller ændre enheden. Reparationer bør kun udføres af kvalificeret personale.
• Ensure proper connections are made using 4mm safety sockets to prevent electrical hazards.
• Always disconnect the device from any circuit before making adjustments or connections.
• Overhold den maksimale voltage and current ratings specified for the device to prevent damage.

3. Pakkens indhold

Kontroller venligst pakkens indhold ved modtagelse for at sikre, at alle varer er til stede og ubeskadigede.

• VOLTCRAFT R-BOX 02 Resistance Decade Box (Model: 1611423)
• Instruktionsmanual
• Note: Connection cables are typically sold separately and are not included unless specified.

4. Produktet er slutview

The VOLTCRAFT R-BOX 02 features multiple banks of switches, allowing for precise adjustment of resistance values. The unit is equipped with 4mm sockets for secure connections.

Figur 1: Forside view of the VOLTCRAFT R-BOX 02. This image shows the main unit with its array of toggle switches, each labeled with resistance values, and the 4mm input/output terminals at the top. The labels indicate resistance ranges from 1 Ohm to 4M Ohm, with a note about 1% resistors and 0.3 Ohm internal resistance. Instructions at the bottom state "Start with all switches up (OUT) for 0 Ohms. Switch down (IN) to add Resistance value."

Figur 2: Nærbillede view of the VOLTCRAFT R-BOX 02. This image provides a clearer look at the individual switches and their corresponding resistance values, as well as the color-coded 4mm banana plug terminals (black, yellow, red) at the top for connecting to external circuits. The text on the device indicates "1% Resistors (0.3W) + 0.3Ω internal" and "1 to 11,111,110 Ω (1Ω step)".

5. Opsætning

1. Udpakning: Carefully remove the R-BOX 02 from its packaging.
2. Inspektion: Inspect the device for any signs of physical damage. Do not use the device if it appears damaged.
3. Placering: Place the R-BOX 02 on a stable, flat, and non-conductive surface.
4. Forbindelser: Use appropriate 4mm banana plug cables (not included) to connect the R-BOX 02 to your circuit or test equipment. Ensure connections are secure.

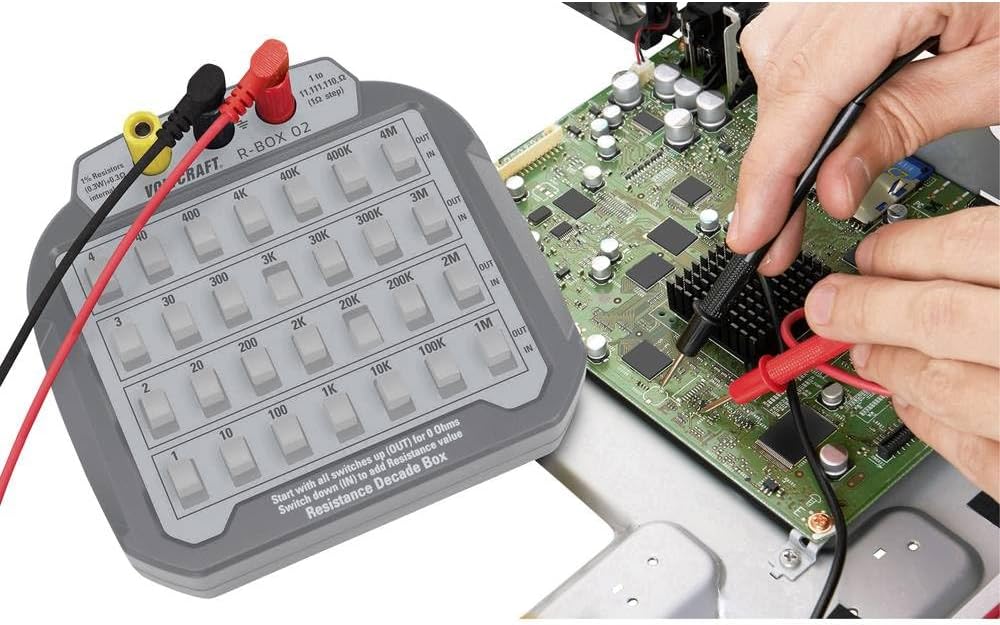

Figure 3: The VOLTCRAFT R-BOX 02 connected to a circuit board. This image illustrates the decade box in an operational setting, with test leads connected from its 4mm terminals to a circuit board, demonstrating its application in electronic testing or development.

6. Betjening

The R-BOX 02 allows you to select a desired resistance value by engaging a combination of switches. Each switch corresponds to a specific resistance value.

6.1 Setting Resistance Values

1. Oprindelig tilstand: Ensure all toggle switches are in the "OUT" (upward) position. In this state, the total resistance is 0 Ohms (excluding internal resistance).
2. Selecting Values: To add a resistance value, push the corresponding toggle switch to the "IN" (downward) position.
3. Calculating Total Resistance: The total resistance presented by the R-BOX 02 is the sum of all resistance values for the switches currently in the "IN" position.
4. Exampdet: To achieve a resistance of 123 Ohms, you would push the switches for 100 Ohms, 20 Ohms, and 3 Ohms to the "IN" position.
5. Maksimal modstand: The R-BOX 02 can provide resistance values from 1 Ohm up to 11,111,110 Ohms (approximately 11.1 MOhms) in 1 Ohm steps.

6.2 Connection to Circuit

Connect the 4mm banana plugs from the R-BOX 02 to the points in your circuit where you wish to introduce the selected resistance. Always ensure the circuit is de-energized before making or breaking connections.

7. Vedligeholdelse

• Rensning: Rengør enhedens yderside med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the R-BOX 02 in a dry, dust-free environment, away from direct sunlight and extreme temperatures.
• Inspektion: Periodically check the 4mm sockets and switches for any signs of wear or damage.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

VOLTCRAFT provides a minimum 2-year warranty from the date of purchase for this product. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or service inquiries, please contact your retailer or the VOLTCRAFT customer service department. Please have your proof of purchase and the product model number (1611423) available when contacting support.
