DEWALT DXPW004E Professional Cold Water Pressure Washer

Indledning

This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DEWALT DXPW004E Professional Cold Water Pressure Washer. Please read this manual thoroughly before using the appliance and keep it for future reference. This pressure washer is designed for professional cleaning tasks, featuring a high-quality motor pump with thermal protection.

Sikkerhedsoplysninger

ADVARSEL:

Læs alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Undladelse af at følge alle instruktionerne nedenfor kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

• Brug altid passende personlige værnemidler, herunder sikkerhedsbriller, høreværn og beskyttelsestøj.
• Sørg for, at strømforsyningen matcher voltage specified on the pressure washer's rating plate.
• Ret aldrig vandstrålen mod mennesker, dyr, elektrisk udstyr eller selve apparatet.
• Keep the work area clear of obstructions and ensure good footing.
• Do not operate the pressure washer if the power cord or high-pressure hose is damaged.
• Afbryd strømforsyningen, før der udføres vedligeholdelse eller rengøring.
• Dette apparat er ikke beregnet til brug af personer med nedsatte fysiske, sensoriske eller mentale evner, eller manglende erfaring og viden, medmindre de er under opsyn eller har fået instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.

Pakkens indhold

Upon unpacking, ensure all components are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

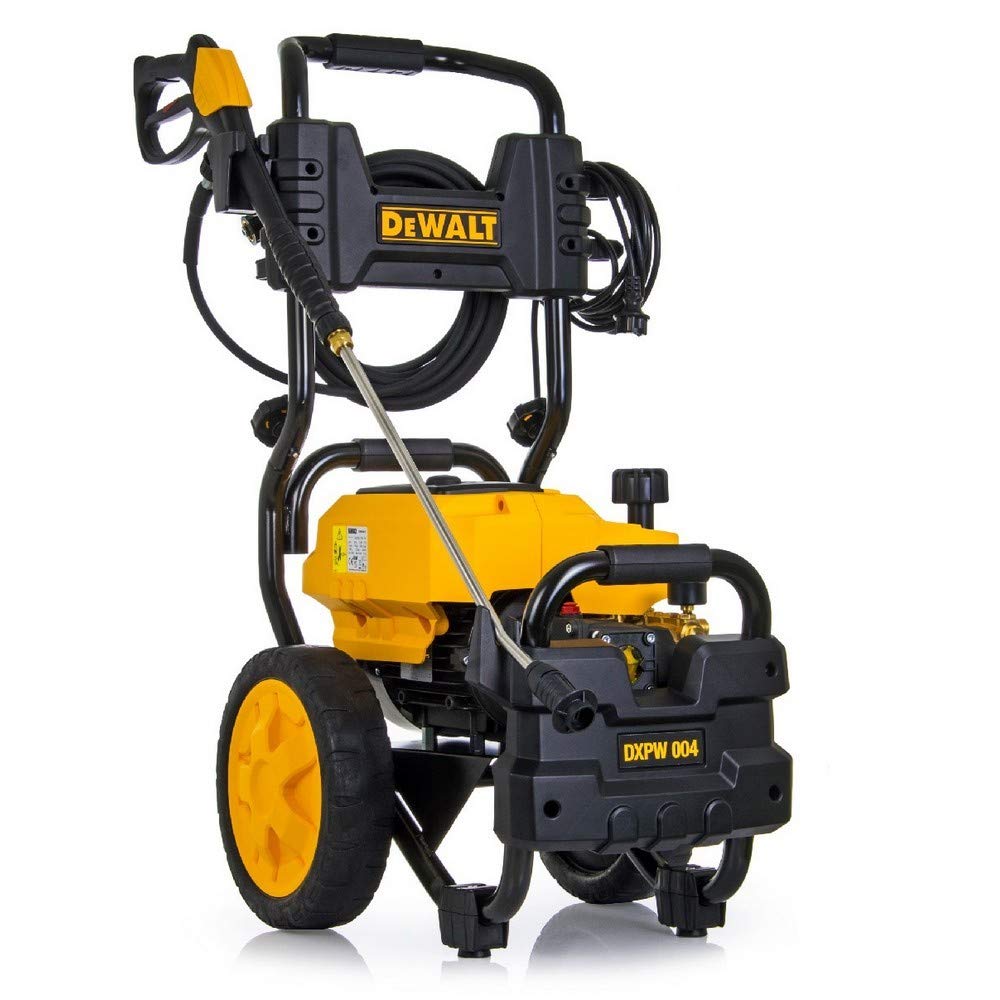

Billede: The complete Dewalt DXPW004E pressure washer system, including the main unit, high-pressure gun, extension lance, and high-pressure hose. A water filter is also visible.

• DEWALT DXPW004E Pressure Washer Unit
• Højtrykspistol
• Forlængerlanse
• Højtryksslange (3 meter)
• Vandfilter
• Strømkabel

Opsætning

1. Saml håndtaget: Attach the handle to the main unit if it is not pre-assembled. Secure it with the provided fasteners.
2. Tilslut højtryksslangen:


   Billede: En detaljeret view of the high-pressure gun, extension lance, and the coiled high-pressure hose, showing connection points.

   Connect one end of the high-pressure hose to the outlet on the pressure washer unit and the other end to the inlet on the high-pressure gun. Ensure all connections are tight to prevent leaks.
3. Attach the Lance: Connect the extension lance to the high-pressure gun. Twist or click into place as per the design.
4. Tilslut vandforsyning: Attach a garden hose (not supplied) to the water inlet on the pressure washer. It is recommended to use the supplied water filter between the garden hose and the pressure washer inlet to protect the pump from debris. Ensure the water supply is turned on fully before starting the unit. The pressure washer requires a continuous and adequate water supply.
5. Tilslut strøm: Plug the power cable into a suitable grounded electrical outlet. Ensure the power switch on the unit is in the "OFF" position before plugging it in.

Betjeningsvejledning

1. Skyl luft fra systemet: Before starting the motor, squeeze the trigger on the high-pressure gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges from the nozzle.
2. Start højtryksrenseren: Drej tænd/sluk-knappen til "ON"-positionen. Motoren starter.
3. Begynd rengøring: Aim the nozzle at the surface to be cleaned, keeping a safe distance. Squeeze the trigger to start the high-pressure water flow. Adjust the distance and angle for optimal cleaning without damaging the surface.
4. Stop af drift: To temporarily stop, release the trigger. The motor may continue to run or cycle on/off depending on the model's auto-stop feature. To completely stop, turn the power switch to "OFF" and release the trigger.
5. Efter brug: Turn off the power switch and disconnect the power cable. Turn off the water supply. Squeeze the trigger on the gun to release any residual pressure in the system. Disconnect the high-pressure hose and garden hose.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din højtryksrensers lange levetid og optimale ydeevne.

• Rengøring af dyse: Hvis dysen tilstoppes, skal du bruge det medfølgende dyserengøringsværktøj (hvis relevant) eller en tynd ståltråd til at fjerne eventuelt snavs.
• Rengøring af vandfilter: Regularly inspect and clean the water filter to prevent debris from entering the pump.
• Pumpevedligeholdelse: The high-quality brass pump is designed for durability. Refer to the manufacturer's guidelines for any specific pump oil or service requirements.
• Opbevaring: Store the pressure washer in a dry, frost-free environment. If storing for extended periods, especially in cold climates, ensure the pump is drained of all water to prevent freezing damage.
• Hose and Cable Inspection: Periodically check the high-pressure hose and power cable for any signs of wear, cuts, or damage. Replace damaged components immediately.

Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på med din højtryksrenser.

Specifikationer

Billede: Side profile of the Dewalt DXPW004E pressure washer, highlighting its robust frame, wheels, and pump assembly.

Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact your authorized DEWALT retailer. Keep your proof of purchase for warranty claims. DEWALT is committed to providing high-quality products and support.
