1. Introduktion
Thank you for choosing the Keter Comfy Deck Box 270L. This durable and versatile storage solution is designed to provide ample space for your outdoor items while offering additional seating. Made from high-quality, weather-resistant polypropylene resin, it is built to withstand various outdoor conditions. This manual provides essential information for safe assembly, operation, and maintenance of your deck box.
Figur 1.1: The Keter Comfy Deck Box 270L in use as both storage and seating.
2. Sikkerhedsoplysninger
Læs venligst alle sikkerhedsinstruktioner omhyggeligt inden montering og brug. Manglende overholdelse af disse instruktioner kan medføre personskade eller beskadigelse af produktet.
- Hold alle emballagematerialer væk fra børn for at undgå kvælningsfare.
- Ensure all parts are present and undamaged before beginning assembly. Do not assemble with broken or damaged parts.
- Lad ikke børn lege inde i dækboksen for at forhindre kvælning.
- Do not exceed the maximum weight capacity of the lid (220 kg) when using it as a seat.
- Do not store flammable or hazardous materials inside the deck box.
- Place the deck box on a flat, stable surface to prevent tipping.
- Always close the lid securely after use to protect contents from weather and pests.
3. Pakkens indhold
Before assembly, verify that all components listed below are included in your package. Each part is typically numbered for easy identification with the assembly manual (not provided here, but usually included in the physical product kit).
| Del navn | Mængde | Beskrivelse |
|---|---|---|
| Sidepaneler | 2 | Long side walls of the box. |
| Endepaneler | 2 | Short end walls, often with handles. |
| Bundpanel | 1 | Bottom panel of the box. |
| Låg | 1 | Top cover, also serves as a seat. |
| Hinge Pins/Connectors | Varierer | Components for attaching the lid and panels. |
| Wheels (if applicable) | 2 | For easy repositioning. |
Note: The exact number and type of small connectors may vary. Refer to the physical instruction manual included with your product for precise details.
4. Monteringsvejledning
The Keter Comfy Deck Box is designed for easy, tool-free assembly. Follow these general steps. For detailed, step-by-step visual instructions, please refer to the specific assembly manual provided in your product packaging.
- Pak ud og undersøg: Carefully remove all components from the packaging. Check each part against the package contents list to ensure nothing is missing or damaged. Do not proceed with assembly if any parts are broken or missing.
- Forbered basen: Place the base panel (Del A, f.eksample) on a clean, flat, and stable surface where the deck box will be located.
- Fastgør sidepaneler: Connect the long side panels (Del B) to the base panel by aligning the tabs and slots and pressing firmly until they click into place.
- Fastgør endepaneler: Connect the short end panels (Del C) to the base and the already attached side panels. Ensure all connections are secure.
- Install Wheels (if applicable): If your model includes wheels, attach them to the designated slots on the bottom of the end panels.
- Fastgør låget: Position the lid (Del D) onto the assembled base. Align the hinges and insert the hinge pins or connectors as per the specific instructions in your product manual. Ensure the lid opens and closes smoothly.
- Endelig kontrol: Once assembled, gently test the stability of the box and the functionality of the lid.
Figur 4.1: The spacious interior of the Keter Comfy Deck Box, ready for storage.
Video 4.2: A demonstration of the Keter Comfy Deck Box 270L, showcasing its opening, closing, and overall design. This video illustrates the product's features and ease of use.
5. Betjeningsvejledning
5.1. Opbevaring
To use the deck box for storage, simply lift the lid. Place items neatly inside, ensuring not to overfill or place excessively heavy objects that could damage the base. Close the lid firmly to protect contents from dust, moisture, and sunlight.
Figur 5.1: The Keter Comfy Deck Box provides ample space for storing outdoor essentials.
5.2. Seating
The robust lid of the Comfy Deck Box is designed to support up to 220 kg, allowing it to be used as an additional seating option. Ensure the lid is fully closed and securely latched before sitting on it. Distribute weight evenly.
5.3. Mobilitet
Equipped with built-in handles and wheels, the deck box can be easily repositioned. To move, slightly tilt the box and pull or push using the handles. Ensure the path is clear of obstacles.
5.4. Låsemekanisme
The deck box features a provision for a padlock (not included) to enhance the security of your stored items. Align the padlock hole on the lid with the corresponding hole on the body and insert a padlock.
6. Vedligeholdelse
Proper care will ensure the longevity and appearance of your Keter Comfy Deck Box.
- Rensning: Clean the deck box regularly with a soft cloth, mild soap, and water. Avoid abrasive cleaners, harsh chemicals, or stiff brushes, as these can damage the resin surface.
- Pletfjernelse: For stubborn stains, a diluted all-purpose cleaner can be used. Rinse thoroughly with water afterward.
- Vinterpleje: While weather-resistant, it is recommended to store the deck box in a sheltered area during extreme winter conditions or to ensure it is completely empty and dry to prevent ice buildup.
- Inspektion: Periodically check all connections and the lid mechanism to ensure they are secure and functioning correctly.
Figur 6.1: The durable polypropylene resin material is easy to clean and maintain.
7. Fejlfinding
If you encounter any issues with your Keter Comfy Deck Box, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Låget lukker ikke ordentligt. | Obstruction inside, misaligned hinges, or uneven surface. | Remove any obstructions. Check hinge alignment and re-seat if necessary. Ensure the box is on a level surface. |
| Vand inde i kassen. | Lid not fully closed, extreme weather conditions, or damaged seal. | Ensure the lid is securely closed. Check for any cracks or damage to the box or lid. While water-repellent, prolonged exposure to heavy rain may allow some moisture ingress. |
| Kassen føles ustabil. | Ujævn montering eller placering på en ujævn overflade. | Verify all panels are securely clicked into place. Move the box to a flat, stable surface. |
| Difficulty moving the box. | Overloaded or wheels are obstructed. | Reduce the weight of contents. Check wheels for debris or damage. |
8. Specifikationer
- Mærke: Keter
- Model: Comfy Deck Box 270L
- Materiale: Durable Polypropylene Resin (Recyclable)
- Farve: Brun
- Kapacitet: 270 liter
- Udvendige mål (L x B x H): 117 cm x 45 cm x 57 cm (ca. 46.1 tommer x 17.7 tommer x 22.4 tommer)
- Varens vægt: 7.12 kg (ca. 15.7 lbs)
- Maximum Lid Weight Capacity: 220 kg (ca. 485 lbs)
- Vandmodstandsniveau: Vandafvisende
- Særlige funktioner: Lockable (padlock not included), immune to corrosion, humidity, and pests, integrated handles and wheels.

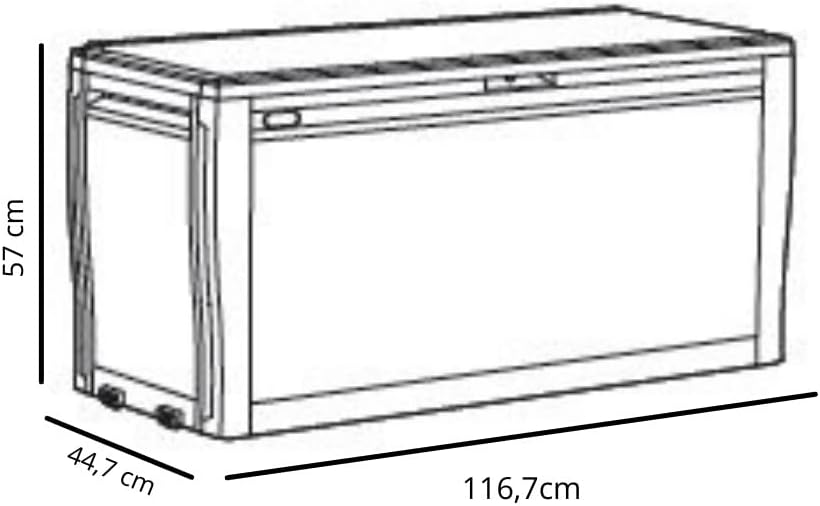

Figur 8.1: Detailed dimensions of the Keter Comfy Deck Box 270L.
9. Garanti og support
Keter products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or to request replacement parts, please refer to the warranty card included with your purchase or visit the official Keter webwebsted. Gem din købsbevis til garantikrav.
Vigtig: The integrity of parts should be checked before assembly. If any parts are broken or damaged, do not proceed with assembly. Returns or exchanges are typically accepted within 7 days of receipt, provided the product is in its original packaging with all received parts. Please communicate any issues within the specified timeframe.
For further assistance, you may contact Keter customer service through their official channels. You can also visit the Keter Brand Store på Amazon for mere produktinformation.
