WOODBRIDGE BTA1515 Freestanding Bathtub User Manual

1. Introduktion

Thank you for choosing the WOODBRIDGE BTA1515 Freestanding Bathtub. This manual provides essential information for the safe installation, proper operation, and effective maintenance of your new bathtub. Please read all instructions carefully before beginning installation or use to ensure optimal performance and longevity of your product.

Image 1.1: The WOODBRIDGE BTA1515 Freestanding Bathtub in a contemporary bathroom.

2. Sikkerhedsoplysninger

Din sikkerhed er altafgørende. Overhold venligst følgende sikkerhedsretningslinjer:

• Ensure all plumbing and electrical work (if applicable) is performed by a qualified professional in accordance with local codes.
• Do not use abrasive cleaners or harsh chemicals on the bathtub surface, as this may damage the finish.
• The bathtub features a non-slip design to enhance user safety. However, always exercise caution when entering and exiting the tub.
• This product complies with CSA B45.5-17/IAPMO Z124-2017 standards and meets the Massachusetts Plumbing & Gas Code.

Image 2.1: Non-slip design on the bathtub bottom.

Image 2.2: Product certifications for compliance and safety.

3. Produktfunktioner

The WOODBRIDGE BTA1515 Freestanding Bathtub is designed for comfort and durability, featuring:

• Premium konstruktion: Made from 100% high-gloss LUCITE acrylic, reinforced with ASHLAND resin and fiberglass for exceptional strength and longevity.
• Dobbeltvægget design: Provides maximum insulation, keeping bath water at its desired temperature for longer periods.
• Integrated Drain System: Features a fully integrated sealed overflow and drain system to prevent leaks and simplify installation.
• Brushed Gold Finish: Includes a stylish brushed gold drain and overflow for a cohesive aesthetic.
• EnduraClean Surface: Easy to clean, stain-resistant, and scratch-resistant surface that maintains its high gloss over time.

Image 3.1: Brushed Gold Overflow and Drain.

Image 3.2: Woodbridge Sealed Drain System vs. Exposed Drains.

Image 3.3: Bathtub construction layers for durability and insulation.

4. Specifikationer

Image 4.1: Detailed dimensions of the BTA1515 bathtub.

5. Opsætning og installation

Proper installation is crucial for the functionality and longevity of your bathtub. It is highly recommended that installation be performed by a certified professional. Refer to the detailed installation manual (PDF) for complete instructions.

5.1 Kontrol før installation

• Verify that the floor is level and capable of supporting the weight of the bathtub when filled with water, plus the user(s).
• Ensure all necessary plumbing connections are accessible and correctly positioned according to local codes.
• Undersøg badekarret for eventuelle skader inden installation.

5.2 Installationen går overview

1. Position the bathtub in its desired location.
2. Connect the drain and overflow system to your home's plumbing. Ensure all connections are secure and watertight.
3. Fill the tub with water and check for any leaks around the drain and pipe connections.
4. Once confirmed leak-free, secure the bathtub to the floor using appropriate methods (e.g., silicone sealant around the base).

6. Betjeningsvejledning

Using your WOODBRIDGE BTA1515 Bathtub is straightforward:

• Ensure the drain stopper is closed before filling the tub.
• Fill the tub with water to your desired level. The overflow system will prevent overfilling.
• After use, open the drain stopper to empty the tub.

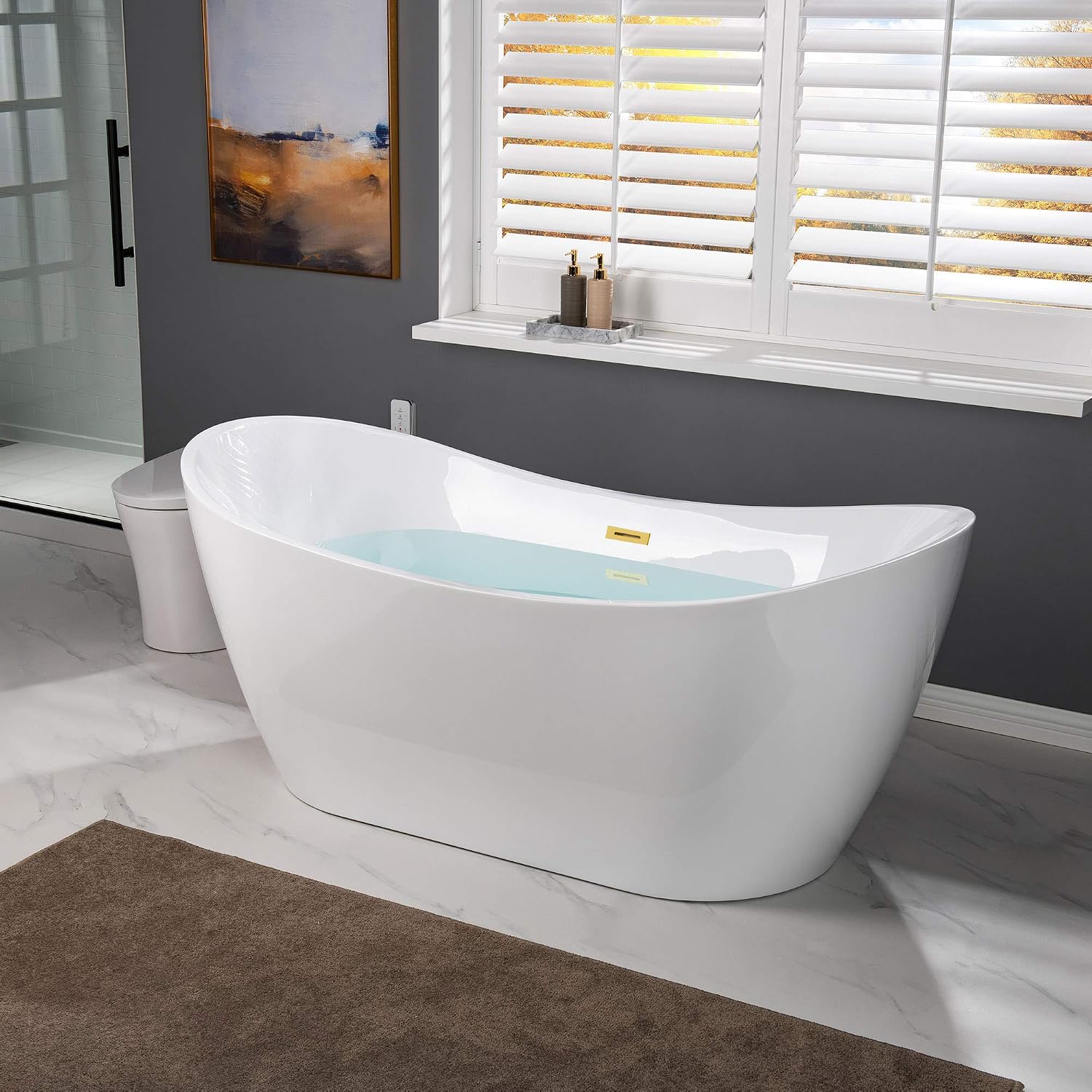

Image 6.1: Bathtub filled with water, ready for use.

Billede 6.2: View of the brushed gold drain and overflow with water.

7. Vedligeholdelse

To keep your WOODBRIDGE bathtub in pristine condition, follow these maintenance guidelines:

• Regelmæssig rengøring: Clean the bathtub regularly with a soft cloth and a non-abrasive, mild bathroom cleaner. Avoid harsh chemicals, scouring pads, or abrasive powders, as these can scratch the acrylic surface.
• Pletfjernelse: For stubborn stains, use a diluted solution of white vinegar and water, or a specialized acrylic bathtub cleaner. Rinse thoroughly after cleaning.
• Forebyggelse af ridser: The EnduraClean surface is scratch-resistant, but avoid dropping heavy or sharp objects into the tub.
• Vedligeholdelse af afløb: Kontroller og rengør afløbet med jævne mellemrum for at forhindre tilstopninger.

Image 7.1: The non-porous, easy-to-clean surface of the acrylic tub.

8. Fejlfinding

If you encounter any issues with your bathtub, refer to the following common problems and solutions:

• Langsom dræning: Check the drain for hair or debris. Remove and clean the stopper assembly if necessary.
• Lækager: If you notice water leaking, first check all plumbing connections around the drain and overflow. Tighten any loose connections. If the leak persists, contact a qualified plumber or WOODBRIDGE customer support.
• Overfladeridser: Minor scratches on the acrylic surface can often be buffed out with a fine-grit polishing compound designed for acrylic, followed by a soft cloth.
• Water Temperature Loss: The double-walled design provides excellent insulation. Ensure your water heater is set to an adequate temperature and capacity for your bathing needs.

9. Garantioplysninger

WOODBRIDGE warrants this product to be free of defects in material and workmanship for a period of 1 år from the date of purchase. This limited warranty covers manufacturing defects under normal use and service. For warranty claims, please retain your proof of purchase and contact WOODBRIDGE customer support.

The warranty does not cover damage resulting from improper installation, misuse, abuse, accident, neglect, or unauthorized repairs or modifications. Normal wear and tear, and cosmetic damage are also not covered.

10. Kundesupport

For any questions, installation assistance, replacement parts, or product-oriented queries, please contact our US-based product support team. Our friendly and knowledgeable team is ready to assist you.

Please visit the official WOODBRIDGE webwebstedet eller se din købsdokumentation for de seneste kontaktoplysninger.

Image 10.1: WOODBRIDGE US-based customer support team.
