ABB LW205 Terminal Enlargement Instruction Manual

1. Introduktion

This manual provides essential information for the safe and effective installation, usage, and maintenance of the ABB LW205 Terminal Enlargement. The LW205 is designed to enhance the terminal capacity of ABB AF190 and AF205 contactors, facilitating secure and robust electrical connections.

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger, når du arbejder med elektriske komponenter:

• Ensure all power is disconnected and locked out before installation or maintenance.
• Kun kvalificeret personale bør udføre installation og service.
• Brug passende personlige værnemidler (PPE), herunder sikkerhedsbriller og isolerede handsker.
• Verify correct wiring and torque specifications for all connections.
• Refer to local electrical codes and standards.

3. Produktet er slutview

The ABB LW205 is a 3-pole terminal enlargement accessory specifically engineered for use with ABB AF190 and AF205 contactors. It provides additional connection points or increased capacity for larger conductors, ensuring reliable power distribution within industrial control systems.

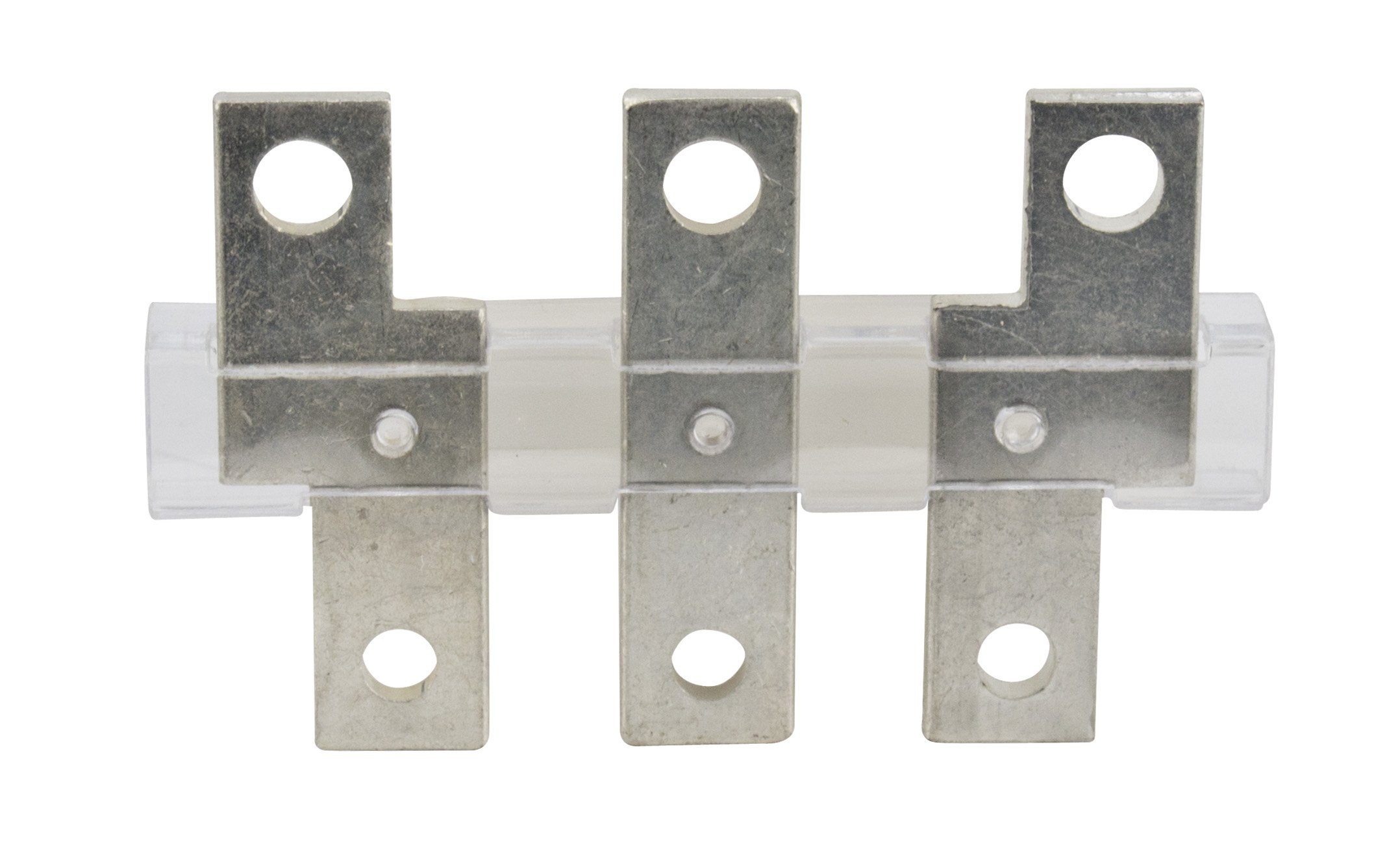

Image: The ABB LW205 Terminal Enlargement, a component designed to expand connection capabilities for contactors.

Nøglefunktioner:

• polakker: 3
• Fase: 3
• Type: Terminal Enlargement
• Kompatibilitet: Designed for AF190 and AF205 Contactors

4. Opsætning og installation

Follow these steps for proper installation of the LW205 Terminal Enlargement:

1. Strømafbrydelse: Ensure that the main power supply to the contactor and associated circuitry is completely disconnected and secured against accidental re-energization.
2. Contactor Preparation: Identify the designated mounting points on the AF190 or AF205 contactor for the terminal enlargement. Refer to the contactor's specific manual for detailed diagrams.
3. Mounting the LW205: Align the LW205 Terminal Enlargement with the contactor's terminals. Secure it firmly using the provided hardware (if applicable) or by engaging its designed interlocking mechanism. Ensure a snug fit to prevent movement or loose connections.
4. Ledningsforbindelser: Connect the appropriate conductors to the enlarged terminals. Ensure that all connections are clean, properly stripped, and tightened to the manufacturer's specified torque values to prevent overheating and ensure optimal electrical contact.
5. Verifikation: Visually inspect all connections for proper seating and tightness. Confirm that no bare wires are exposed and that there are no potential short circuits.
6. Strømgendannelse: Når installationen er fuldført og verificeret, skal strømmen til systemet genoprettes.

5. Brug og funktionalitet

The LW205 Terminal Enlargement functions as a passive component that expands the connection capabilities of the AF190 and AF205 contactors. Once installed, it allows for:

• Connection of larger gauge wires than the standard contactor terminals might accommodate.
• Increased flexibility in wiring configurations.
• Improved current carrying capacity at the connection points due to larger contact areas.

No operational adjustments are required for the terminal enlargement itself; its function is integrated with the contactor's operation.

6. Vedligeholdelse

Regular maintenance helps ensure the longevity and reliable performance of the LW205 Terminal Enlargement:

• Periodisk eftersyn: Annually, or more frequently in harsh environments, inspect the terminal enlargement for any signs of physical damage, discoloration (indicating overheating), or loose connections.
• Rensning: With power disconnected, gently clean any dust or debris from the terminals and surrounding areas using a dry, non-conductive brush or compressed air. Avoid using liquids.
• Tæthedskontrol: Periodically re-check the torque of all terminal connections to ensure they remain secure.
• Miljøforhold: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature degradation.

7. Fejlfinding

The LW205 Terminal Enlargement is a passive component, so most issues will relate to its installation or the overall electrical system. Consider the following if problems arise:

• Overheating at Terminals: This often indicates a loose connection or insufficient wire gauge for the current. Disconnect power, inspect and re-tighten all connections, and verify wire sizing.
• Intermitterende forbindelse: Check for loose mounting of the terminal enlargement to the contactor, or loose wire connections.
• Fysisk skade: If the terminal enlargement is physically damaged (cracked, broken), it must be replaced immediately to ensure safety and proper function.

For issues related to the contactor itself, refer to the ABB AF190/AF205 contactor instruction manual.

8. Specifikationer

9. Garantioplysninger

Specific warranty details for the ABB LW205 Terminal Enlargement are not provided in this document. Please refer to the official ABB website or contact your authorized ABB distributor for current warranty terms and conditions.

10. Supportoplysninger

For technical assistance, product inquiries, or support, please visit the official ABB website or contact ABB customer service directly. Contact information can typically be found on the ABB webwebstedet under afsnittene 'Support' eller 'Kontakt os'.
