Indledning
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Meike MK-MT24 Close-Up Speedlight Macro Twin Lite Flash. Designed for macro photography, this system offers flexible lighting solutions for intricate subjects. Please read this manual thoroughly before using the product to ensure proper function and longevity.

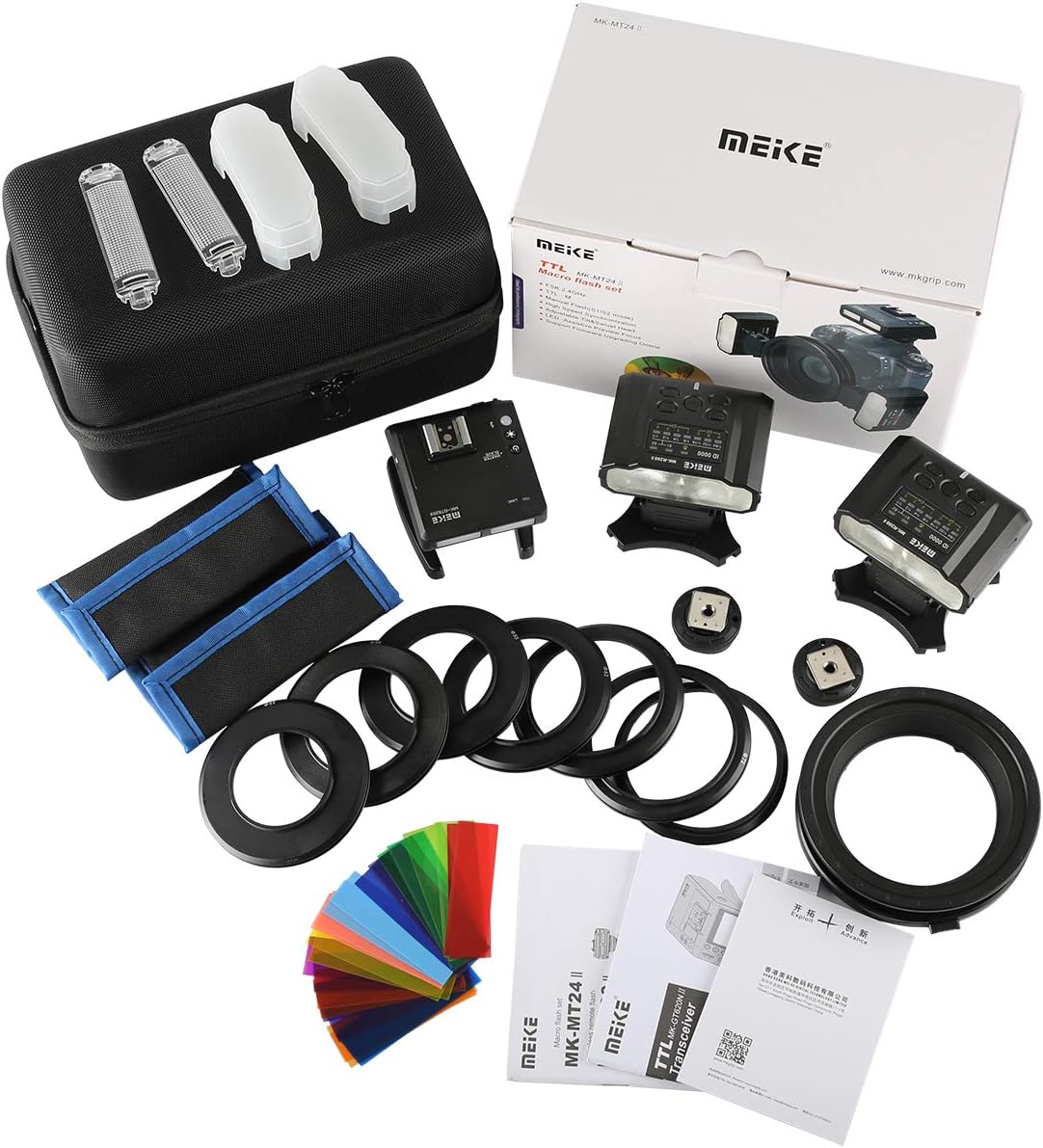

Hvad er der i æsken
The Meike MK-MT24 Macro Twin Lite Flash system includes the following components:
- 1 x MK-GT620 TTL Transceiver
- 2 x MK-R200 Remote Flashes
- 6 x Adapter Rings (52mm, 55mm, 58mm, 62mm, 67mm, 72mm, 77mm)
- Diffusers and Color Gels
- Opbevaringskasse
- Brugermanual
Produkt overview
The Meike MK-MT24 system consists of a main transceiver unit and two remote flash units, designed for precise lighting in macro photography. The transceiver mounts on your camera's hot shoe, while the remote flashes attach to an adapter ring on your lens.
Opsætning
1. Batteriinstallation
Insert 2x AAA Ni-MH batteries into each MK-R200 remote flash unit and 2x AA Ni-MH batteries into the GT620 transceiver. Ensure correct polarity.
2. Attaching Adapter Rings and Flashes
- Select the appropriate adapter ring (52mm, 55mm, 58mm, 62mm, 67mm, 72mm, or 77mm) that matches your camera lens filter thread.
- Screw the selected adapter ring onto the front of your lens.
- Attach the main flash mounting ring to the adapter ring.
- Slide the two MK-R200 remote flashes onto the main flash mounting ring. They can be positioned and rotated for optimal lighting.

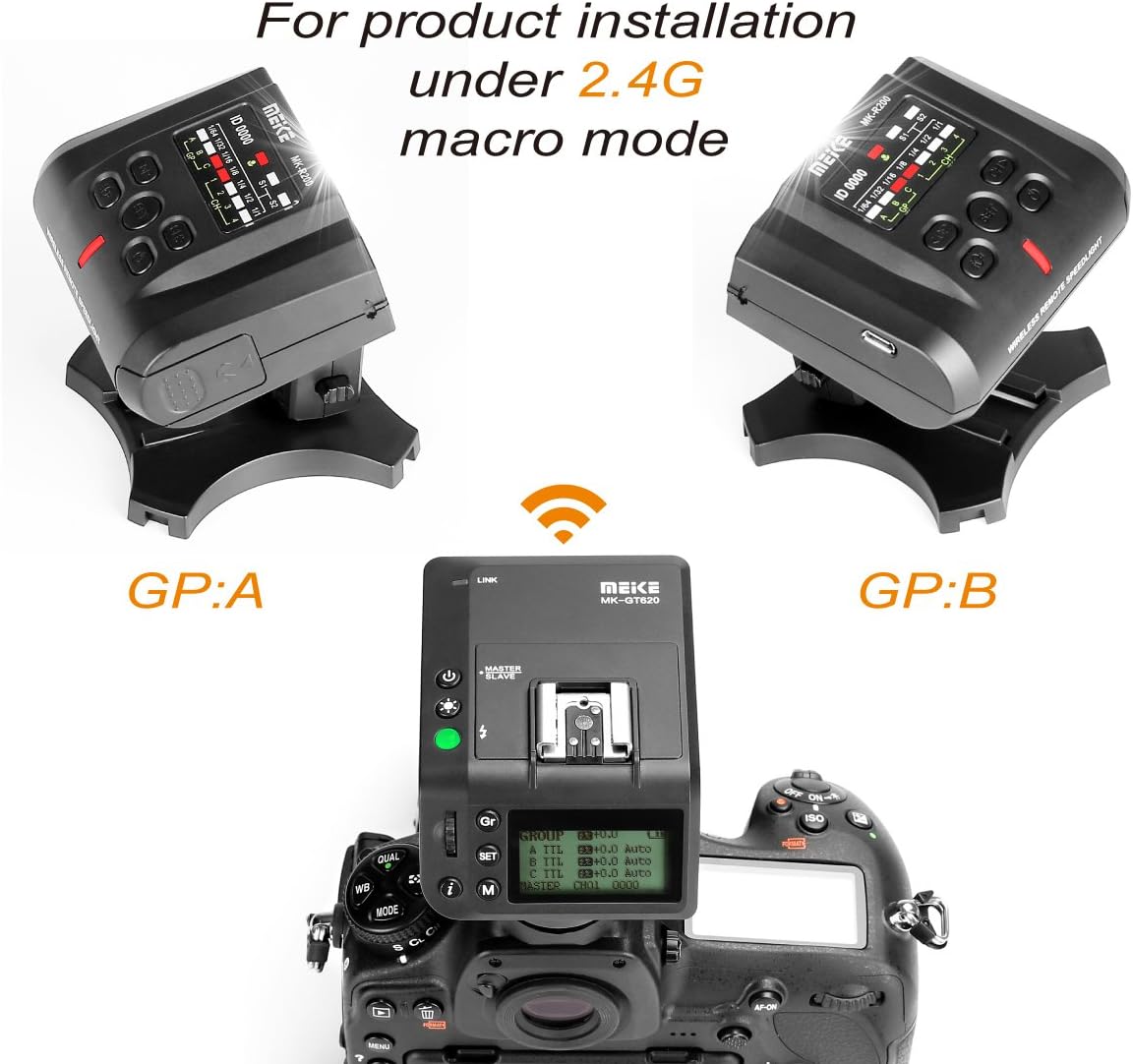

3. Montering af transceiveren
Slide the MK-GT620 TTL transceiver onto your camera's hot shoe and secure it. Ensure it is firmly seated to establish proper electronic contact.
Betjeningsvejledning
Tænd/sluk
Press and hold the power button on the MK-GT620 transceiver and each MK-R200 flash unit to turn them on or off.
Flash-tilstande

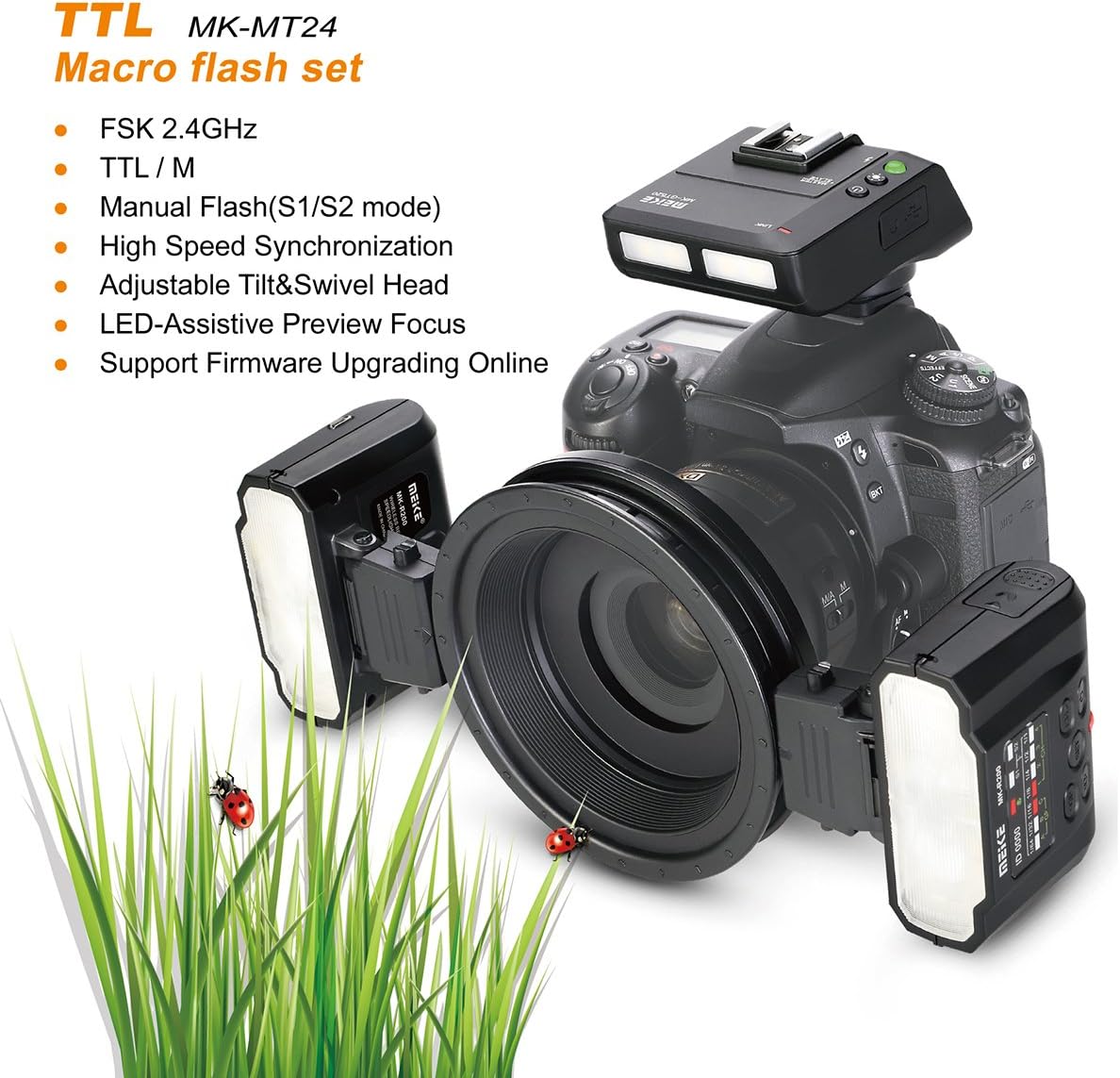

The MK-MT24 supports various flash modes:
- TTL (gennem linsen): Automatisk blitzeksponeringskontrol.
- Manuel blitz (M): Allows manual adjustment of flash output (1/64 to 1/1 power).
- S1/S2-tilstand: Optical slave modes for triggering by another flash. S1 is a simple slave, S2 ignores pre-flashes.
Højhastighedssynkronisering (HSS)
The system supports High Speed Sync, allowing flash photography at shutter speeds faster than your camera's native flash sync speed. This is useful for freezing fast motion or using wider apertures in bright conditions.
Group and Channel Settings
The system supports 3 groups (A/B/C) and 4 channels (1/2/3/4). Ensure the transceiver and remote flashes are set to the same channel for communication. Different flash powers can be set for up to 3 different groups of flashes, providing flexible lighting control.
Adjustable Tilt & Swivel Head
Each R200 flash unit can rotate up to 60° horizontally and 45° vertically, allowing for precise positioning and direction of light. They are also detachable from the mounting ring for off-camera use.
LED-Assistive Preview Fokus
The flashes feature an LED light (0.5W, 5500K±200, Ra 90) that can be used as a modeling light or for assisting with focus in low-light conditions.
Opretholdelse
Batteripleje
Always remove batteries from the units if they will not be used for an extended period to prevent leakage and damage. Use high-quality Ni-MH rechargeable batteries for optimal performance.
Rensning
Clean the flash units and transceiver with a soft, dry cloth. Do not use solvents or abrasive cleaners. Keep the hot shoe contacts clean and free of debris.
Firmware opgradering
The MK-MT24 system supports firmware upgrading. Check the official Meike website for the latest firmware versions and instructions to ensure your unit has the most up-to-date features and bug fixes.
Fejlfinding
- Flashes not firing or syncing:
- Sørg for, at batterierne er korrekt installeret og opladet.
- Verify that the transceiver and remote flashes are set to the same channel.
- Check that the transceiver is securely mounted on the camera's hot shoe.
- Confirm camera flash settings are appropriate (e.g., external flash enabled).
- High Speed Sync not working:
- Ensure your camera and flash system are both set to HSS mode.
- Check for available firmware updates for the flash system, as this can resolve compatibility issues.
- Flashes shutting off unexpectedly:
- This may indicate low battery power. Replace or recharge batteries.
- Ensure the units are not overheating during prolonged use. Allow them to cool down if necessary.
Specifikationer
| Feature | Specifikation |
|---|---|
| Vejledende nummer | 10 (ISO 100.m), 14 (ISO 200.m) |
| LED lys | 0.5W, 5500K±200, Ra 90 |
| Groups & Channels | Group A/B/C and channels 1/2/3/4 |
| Trådløs transmissionsafstand | Indoor >20m, Outdoor >10m (S1/S2); Stable within 15m at any angle (2.4G) |
| Genbrugstid | 4s (1/1 output) |
| Battery (R200) | 2x AAA Ni-MH (not included) |
| Battery (GT620) | 2x AA Ni-MH (not included) |
| Driftstemperatur | -10~50 ℃ |
| Opbevaringstemperatur | -20~70 ℃ |
| Produktdimensioner | 2.95 x 2.36 x 2.95 tommer |
| Varens vægt | 2.48 pund (samlet pakkevægt) |
Garanti og support
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official MEKE webGarantibetingelserne kan variere afhængigt af region og forhandler.
For further assistance, you may contact MEKE customer service through their official channels.
