Indledning
Tak for købetasing the Elk Home Clarion 15-inch LED Flush Mount. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

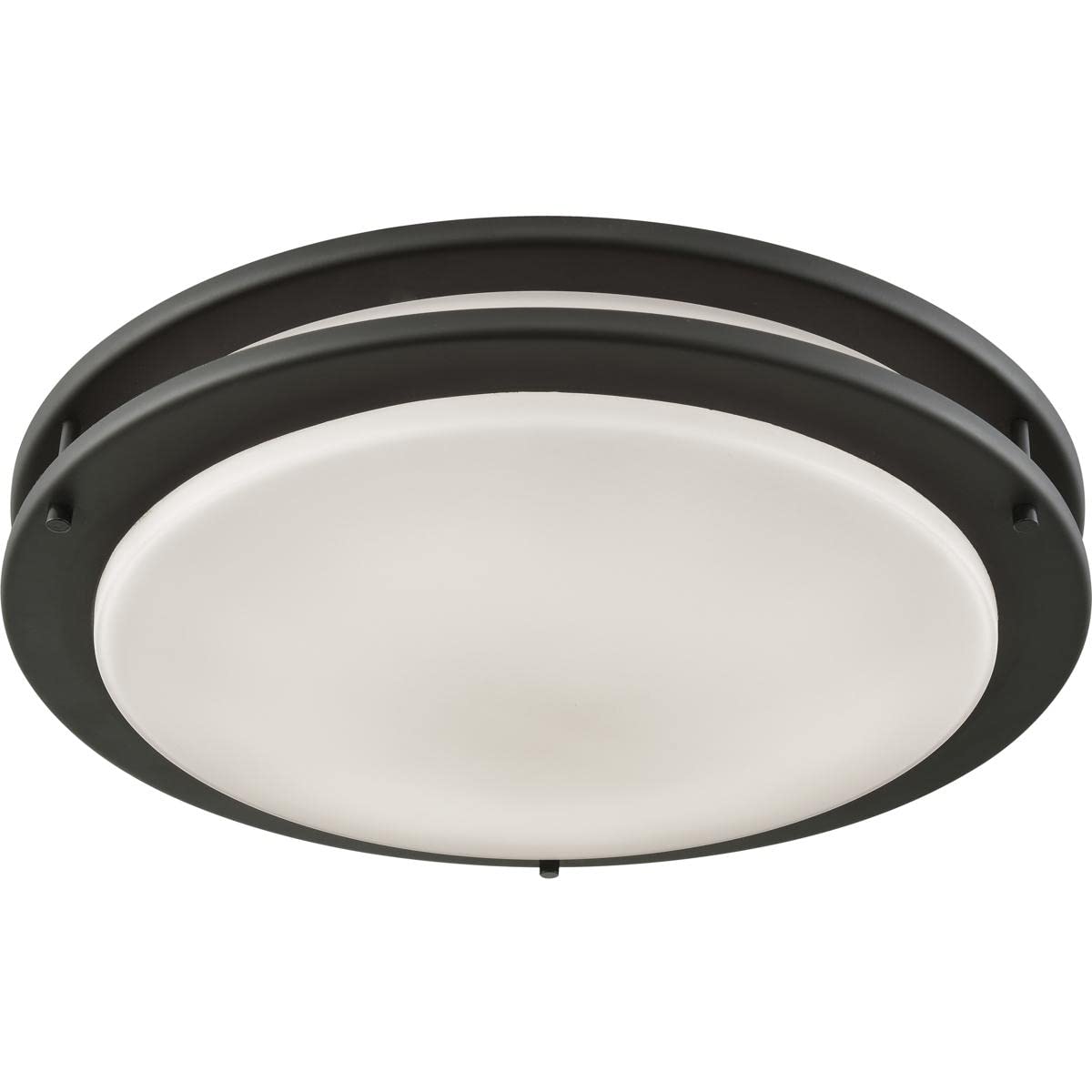

Image 1: The Elk Home Clarion 15-inch LED Flush Mount fixture, showcasing its oil rubbed bronze finish and white glass diffuser.
Sikkerhedsoplysninger
- ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen ved afbryderen eller sikringsboksen før installation eller service.
- Alle elektriske forbindelser skal være i overensstemmelse med lokale forskrifter, forordninger eller National Electric Code (NEC). Kontakt en kvalificeret elektriker, hvis du ikke er bekendt med korrekt elektrisk ledningsføring.
- Brug kun UL/cUL-godkendte ledningsforbindelser.
- This fixture is designed for indoor use and is damp location tolerable. Do not install in areas exposed to direct water spray.
- Do not attempt to alter the fixture or its components.
Pakkens indhold
Bekræft, at alle nedenstående dele er inkluderet i din pakke:
- Clarion 15-inch LED Flush Mount Fixture (with integrated LED)
- White Glass Diffuser
- Mounting Hardware Kit (screws, wire nuts, mounting bracket)
- Instruktionsmanual
Opsætning og installation
Nødvendige værktøjer (medfølger ikke): Stjerneskruetrækker, fladskruetrækker, afisoleringstang, elektrikertape, sikkerhedsbriller, stige.
- Sluk for strømmen: Before starting installation, ensure the power to the circuit is turned off at the main fuse box or circuit breaker.
- Forbered monteringssted: Ensure the ceiling junction box is securely mounted and capable of supporting the fixture's weight.
- Fastgør monteringsbeslag: Secure the mounting bracket to the junction box using the screws provided in the hardware kit.
- Foretag elektriske forbindelser: Carefully connect the fixture's wires to the corresponding wires from the junction box.
- Connect the black wire (hot) from the fixture to the black wire (hot) from the junction box.
- Connect the white wire (neutral) from the fixture to the white wire (neutral) from the junction box.
- Connect the green or bare copper ground wire from the fixture to the ground wire from the junction box.
- Monter armaturet: Carefully push the wired connections into the junction box. Align the fixture with the mounting bracket and secure it using the provided screws.
- Install Glass Diffuser: Place the white glass diffuser into the fixture, ensuring it is seated properly and securely.
- Gendan strøm: Når installationen er færdig, skal du tænde for strømmen igen ved afbryderen eller sikringsskabet.
Image 2: Dimensional drawing of the Clarion LED Flush Mount, indicating a 15-inch width and 3-inch height.
Betjeningsvejledning
The Elk Home Clarion LED Flush Mount is designed for simple operation:
- Tænd/sluk: Brug en almindelig vægkontakt til at tænde eller slukke for armaturet.
- Dæmpningsfunktion: This fixture is dimmable. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed on your wall. Follow the dimmer switch manufacturer's instructions for operation.
- The integrated LED provides 860 lumens of white light at 3000K color temperature.
Opretholdelse
To maintain the appearance and performance of your fixture:
- Rensning: Disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish or electrical components.
- Glass Diffuser: The glass diffuser can be carefully removed for cleaning. Wash with mild soap and water, rinse thoroughly, and dry completely before reinstallation.
- LED lyskilde: The LED light source is integrated and not user-replaceable. It is designed for long-lasting performance.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Armaturet lyser ikke. | Ingen strøm til armaturet. Løse ledningsforbindelser. | Tjek afbryder eller sikring. Kontroller, at alle ledningsforbindelser er sikre (sørg for, at strømmen er slukket, før du kontrollerer). |
| Lyset flimrer eller dæmpes forkert. | Inkompatibel lysdæmper. Løse ledningsforbindelser. | Sørg for, at lysdæmperen er LED-kompatibel. Check wire connections (ensure power is off). |
| Glass diffuser is loose. | Improperly seated or secured. | Carefully re-seat the glass diffuser, ensuring it is firmly in place. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | CL782021 |
| Dimensioner (L x B x H) | 15" x 15" x 3" (381 mm x 381 mm x 76 mm) |
| Materiale | Legeret stål, glas |
| Slutte | Olie gnidet bronze |
| Lyskilde | Integreret LED |
| Wattage | 24 watt |
| Lysstyrke | 860 lumen |
| Farvetemperatur | 3000K |
| Voltage | 120 volt |
| Dæmpbar | Ja (med kompatibel lysdæmper) |
| Indendørs/Udendørs brug | Indendørs (Damp Location Tolerable) |
| Monteringstype | Ceiling Mount, Flush Mount |
| Varens vægt | 5 pund |
| UPC | 748119115368 |
Garanti
This Elk Home fixture comes with a 5 års producentgaranti against defects. This warranty covers manufacturing defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
Kundesupport
For any inquiries, technical assistance, or warranty claims, please contact our customer care line. Refer to the contact information provided with your purchase documentation or visit the official Elk Home webwebsted for supportdetaljer.
