VETUS 6-Blade Bow Thruster Propeller

Produkt overview

This manual provides essential information for the proper installation, operation, and maintenance of your VETUS 6-Blade Bow Thruster Propeller. This propeller is designed as a replacement or component for VETUS bow thruster systems, specifically compatible with 35/55 KGF thrusters. It is constructed from durable plastic and features six blades for efficient water displacement and thrust generation.

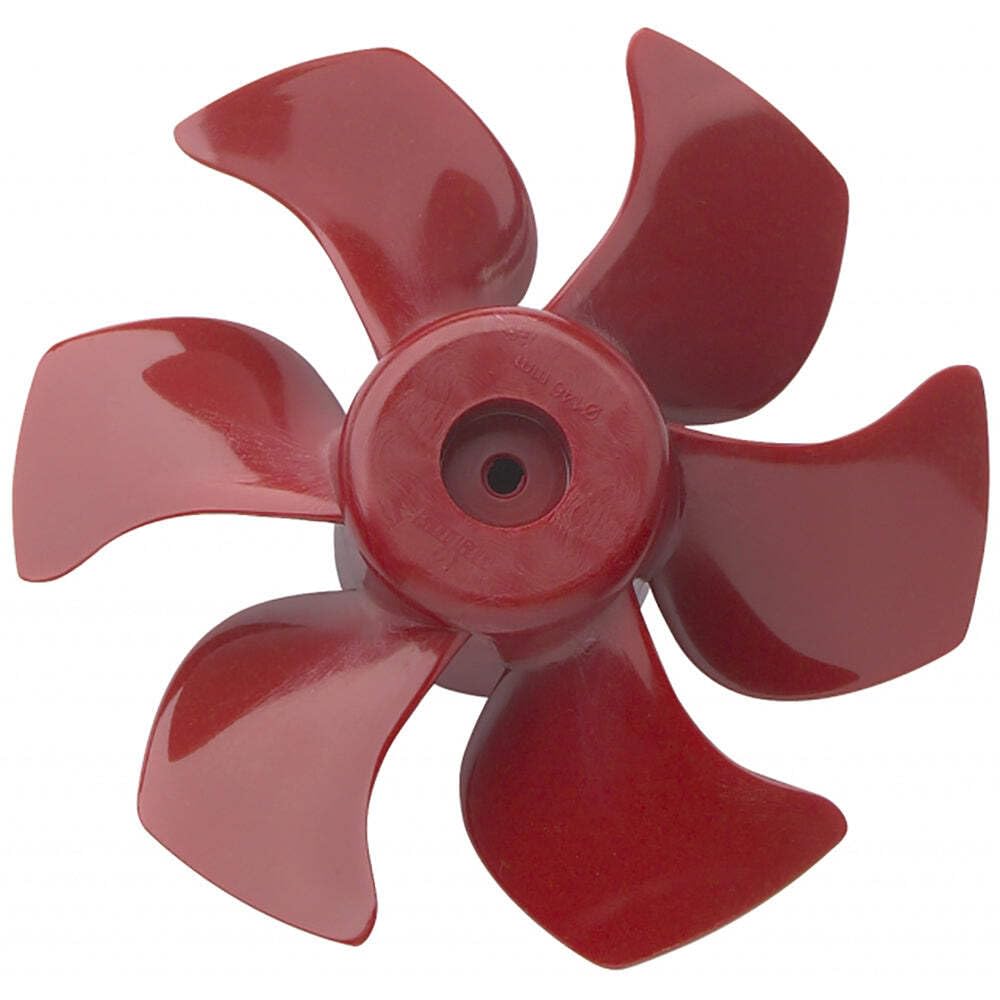

An image showing the VETUS 6-blade bow thruster propeller. The propeller is red, made of plastic, and features six curved blades radiating from a central hub, designed for efficient thrust in marine applications.

Opsætning og installation

The VETUS 6-Blade Bow Thruster Propeller is a component of a larger bow thruster system. Proper installation is crucial for safety and performance. Always refer to the complete bow thruster system's installation manual for detailed instructions.

• Kompatibilitetskontrol: Ensure this propeller (Model SET0087) is compatible with your specific VETUS bow thruster model (35/55 KGF series).
• Sikkerhed først: Before any installation or maintenance, ensure the vessel's power is disconnected from the thruster system to prevent accidental activation.
• Tunnel Preparation: The thruster tunnel must be clean and free of obstructions.
• Propelaksel: Carefully align the propeller with the thruster's drive shaft. Ensure the keyway (if applicable) is correctly seated.
• Securing the Propeller: Fasten the propeller securely using the retaining nut or bolt as specified in the main thruster manual. Apply thread-locking compound if recommended.
• Klareringstjek: After installation, manually rotate the propeller to ensure it spins freely without contacting the thruster tunnel walls or any other components.

Betjeningsvejledning

This propeller functions as the thrust-generating component of a VETUS bow thruster. Its operation is directly controlled by the main bow thruster unit. For detailed operating procedures, refer to the instruction manual provided with your complete VETUS bow thruster system.

• Systemaktivering: Ensure the main bow thruster system is powered on and ready for use.
• Retningskontrol: The propeller will rotate in the direction commanded by the thruster control lever or joystick, providing thrust to port or starboard.
• Varighed af brug: Avoid continuous operation for extended periods to prevent overheating of the thruster motor. Follow the duty cycle recommendations in your main thruster manual.
• Vandforhold: Operate the thruster only when the propeller is fully submerged in water.

Opretholdelse

Regular maintenance of the propeller ensures optimal performance and longevity of your bow thruster system.

• Årlig inspektion: At least once a year, or more frequently if used in harsh conditions, inspect the propeller for signs of wear, cracks, chips, or damage.
• Rensning: Remove any marine growth, fishing lines, or debris that may have accumulated on the propeller blades or hub. Use a soft brush and mild detergent if necessary. Avoid abrasive cleaners or tools that could scratch the plastic.
• Kontrol af akseltætning: While inspecting the propeller, also check the condition of the thruster's shaft seal for any leaks or damage.
• Fastgørelsessikkerhed: Verify that the propeller retaining nut/bolt is still tight and secure.
• Vinterisering: If the vessel is to be stored in freezing temperatures, ensure the thruster tunnel is drained to prevent ice formation around the propeller.

Fejlfinding

If you experience issues with your bow thruster's performance, consider the following common propeller-related problems:

• Reduced Thrust:
  • Obstruktion: Check for marine growth, plastic bags, or other debris wrapped around the propeller blades.
  • Skade: Inspect blades for chips, cracks, or bending that could reduce efficiency.
• Usædvanlig støj eller vibration:
  • Affald: Similar to reduced thrust, foreign objects can cause imbalance and noise.
  • Loose Propeller: Ensure the propeller is securely fastened to the shaft.
  • Beskadigede klinger: Even minor damage can lead to imbalance and vibration.
• Propeller Not Rotating:
  • Severe Obstruction: A large object might be jamming the propeller.
  • Shaft Issue: Check the main thruster unit for issues with the drive shaft or motor.

If troubleshooting steps do not resolve the issue, or if you suspect internal damage to the thruster unit, contact a qualified marine technician or VETUS authorized service center.

Specifikationer

Garantioplysninger

This VETUS product is covered by a limited warranty. The specific terms and conditions of the warranty, including duration and coverage details, are typically provided with the complete VETUS bow thruster system or can be found on the official VETUS webwebsted. Gem venligst din købsbevis til garantikrav.

For detailed warranty information, please refer to the documentation supplied with your VETUS bow thruster or visit the official VETUS global webwebsted.

Kundesupport

For technical assistance, spare parts, or service inquiries regarding your VETUS 6-Blade Bow Thruster Propeller or the complete bow thruster system, please contact your authorized VETUS dealer or distributor.

You can also find contact information and support resources on the official VETUS website. When contacting support, please have your product model number (SET0087) and the ASIN (B0753GVFVT) readily available.
