1. Introduktion
This manual provides essential information for the safe and efficient use of your Walfront DC 12V Speed Reducing Gear Motor. Please read these instructions carefully before installation and operation to ensure proper function and longevity of the product. This motor is designed for applications requiring a compact, high-ratio gear motor with significant output torque.
2. Produktet er slutview
The Walfront DC 12V Speed Reducing Gear Motor features an all-metal gear construction for durability and high load capacity. Its compact design makes it suitable for installations with limited space. The motor includes a D-shaped output shaft for secure mounting and a self-locking mechanism, meaning the output shaft remains fixed when the motor is not powered.
Nøglefunktioner:
- All Metal Gears: Designed for high-temperature resistance, high abrasion resistance, and strong load capacity, effectively protecting the motor body.
- Selvlåsende mekanisme: The output shaft is fixed when the motor is unpowered.
- Pure Copper Wire Core Rotor: Utilizes precision winding technology for enhanced power output.
- D-Shaped Output Shaft: Constructed from high-hardness steel for good toughness, impact resistance, and improved bearing quality and service life.
- Reversibel drift: The motor supports reversible rotation.
Typiske applikationer:
This gear motor is widely adapted for various applications including label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines, and stage belysning.

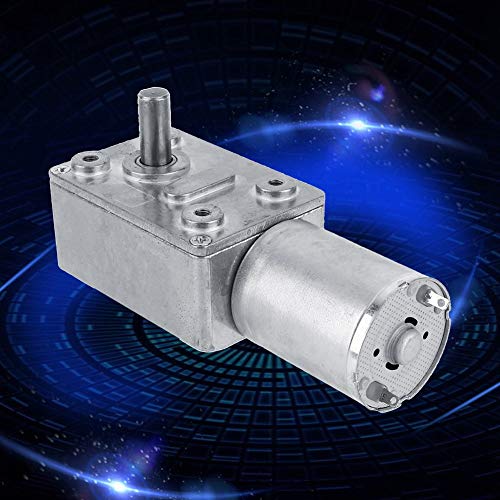

Image 2.1: The Walfront DC 12V Speed Reducing Gear Motor, highlighting its 5 RPM speed. This view shows the gear housing and the D-shaped output shaft.
Image 2.2: The Walfront DC 12V Speed Reducing Gear Motor, indicating its 12V DC power requirement. This image provides a closer look at the motor's electrical connection points.
3. Specifikationer
| Specifikation | Værdi |
|---|---|
| Mærke | Walfront |
| Model | Walfront31m2hvwusx-01 |
| Voltage | DC 12V |
| Nominel belastning | 10KG.CM |
| No-load Speed (This Model) | 5 RPM |
| Materiale Type | Legeret stål |
| Output Shaft Type | D-shaped |
| UPC | 736691347123 |
| ASIN | B074K1Y775 |
Note: Other no-load speed options (6rpm, 20rpm, 40rpm, 62rpm) may be available for different models.
4. Opsætning og installation
4.1 Udpakning og inspektion
Carefully remove the motor from its packaging. Inspect the motor for any visible damage that may have occurred during shipping. Ensure all components are present.
4.2 Montering af motoren
The motor features a D-shaped output shaft and mounting points on the gear housing. Secure the motor firmly to a stable surface using appropriate fasteners. Ensure that the mounting surface can support the motor's weight and any operational forces.
Image 4.1: Dimensional drawing of the Walfront DC 12V Speed Reducing Gear Motor. Key dimensions include a total length of approximately 45.5mm for the gear housing, a width of 32.2mm, a height of 22mm, and a shaft diameter of 5.5mm. The motor body has a diameter of 24.5mm.
4.3 Elektriske forbindelser
Connect the motor to a stable DC 12V power source. The motor has two power leads. Observe correct polarity for desired rotation direction. Reversing the polarity will reverse the motor's direction of rotation.
Caution: Users have reported that the power connections can be delicate and challenging to solder. Exercise care when making electrical connections to prevent damage to the motor terminals.
5. Betjeningsvejledning
5.1 Tænd
Once properly mounted and wired, apply DC 12V power to the motor. The motor will begin to rotate at its rated speed of 5 RPM. The direction of rotation depends on the polarity of the applied voltage.
5.2 Reversible Operation
To reverse the direction of the motor's rotation, simply reverse the polarity of the DC 12V power supply connected to the motor leads.
5.3 Self-Locking Feature
When power is removed from the motor, the output shaft will automatically lock in its current position. This feature prevents unintended movement of the connected mechanism when the motor is not active.
5.4 Overvejelser vedrørende belastning
Ensure that the applied load does not exceed the motor's rated load of 10KG.CM. Exceeding this limit can lead to reduced performance, overheating, and premature motor failure.
6. Vedligeholdelse
The Walfront DC 12V Speed Reducing Gear Motor is designed for low maintenance. However, regular checks can help ensure its longevity and optimal performance.
- Rensning: Keep the motor free from dust and debris. Use a soft, dry cloth to wipe down the exterior. Avoid using liquids or solvents that could damage electrical components.
- Tilslutningskontrol: Periodically inspect electrical connections to ensure they are secure and free from corrosion.
- Load Monitoring: Ensure the motor is not consistently operating under excessive load, which can cause overheating.
- Gearinspektion: While the gears are designed to be all-metal, occasional inspection for unusual noises or resistance during operation can indicate potential issues.
7. Fejlfinding
7.1 Motor Not Running
- Tjek strømforsyningen: Verify that the DC 12V power supply is connected correctly and providing the specified voltage.
- Undersøg ledninger: Ensure all electrical connections are secure and there are no loose or broken wires. Pay particular attention to the motor's power leads, as they can be fragile.
- Overbelaste: Disconnect the motor from any load. If it runs without the load, the attached mechanism might be too heavy or obstructed.
7.2 Incorrect Rotation Direction
- Omvendt polaritet: If the motor is spinning in the wrong direction, reverse the polarity of the DC 12V power supply connections.
7.3 Unusual Noise or Vibration
- Tjek montering: Ensure the motor is securely mounted and not vibrating against its mounting surface.
- Inspect Load: Disconnect the motor from its load to determine if the noise originates from the motor itself or the connected mechanism.
- Interne skader: If the noise persists and the motor is not under load, there might be internal gear or bearing damage. In such cases, replacement may be necessary.
8. Garanti og support
Specific warranty information for the Walfront DC 12V Speed Reducing Gear Motor is not provided in the product details. For warranty claims or technical support, please refer to the retailer or manufacturer's official contact channels where the product was purchased.
For general inquiries or further assistance, please contact Walfront customer service through their official website or the platform where you acquired this product.
