1. Introduktion

Thank you for choosing the MTD Optima 53 SPB HW 12C-PH5L600 Self-Propelled Mulching Lawn Mower. This manual provides essential information for the safe assembly, operation, and maintenance of your new lawn mower. Please read this manual thoroughly before using the product and keep it for future reference.

This lawn mower is equipped with a powerful Briggs & Stratton 625 EXi Series 150 cm³ engine, a durable 53 cm cutting deck, and features a 4-in-1 system for mulching, bagging, rear discharge, and side discharge. Its ergonomic, adjustable, and foldable handlebar ensures comfortable use and easy storage.

2. Sikkerhedsinstruktioner

ADVARSEL: Læs alle sikkerhedsadvarsler og instruktioner. Manglende overholdelse af advarsler og instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

• Always wear appropriate personal protective equipment, including eye protection, hearing protection, sturdy footwear, and long trousers.
• Keep children, bystanders, and pets away from the mowing area.
• Never operate the mower when tired, ill, or under the influence of drugs or alcohol.
• Undersøg det område, der skal slås, og fjern eventuelle genstande, der kan blive slynget ud af bladet.
• Brug ikke plæneklipperen i vådt græs eller regn.
• Always turn off the engine and disconnect the spark plug wire before performing any maintenance, cleaning, or when clearing blockages.
• Tank op i et godt ventileret område med motoren slukket og afkølet. Rygning forbudt under tankning.
• Be aware of the hot muffler and engine parts.

3. Produktet er slutview

Familiarize yourself with the components of your MTD Optima 53 SPB HW lawn mower.

Figur 1: Samlet set view of the MTD Optima 53 SPB HW lawn mower, showcasing its red deck, black engine, and grass collection bag.

Figur 2: Front view of the lawn mower, highlighting the robust front bumper for protection.

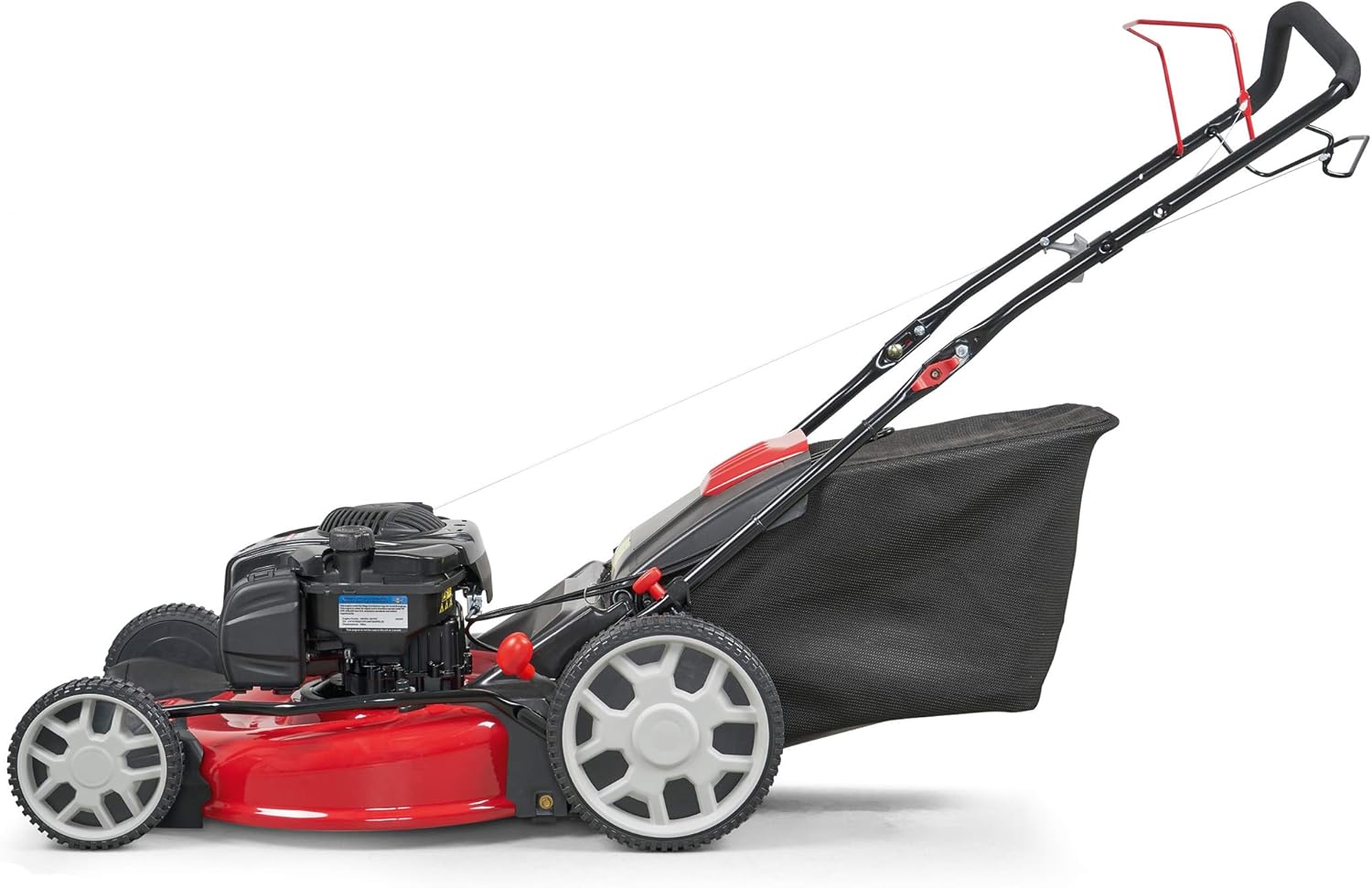

Figur 3: Side view of the lawn mower with the grass collection bag attached, ready for bagging operation.

Figur 4: Top-down view of the Briggs & Stratton engine, showing the air filter cover and fuel cap.

Figur 5: Close-up of the engine, detailing the starter cord handle and engine controls.

Figur 6: Detail of the semi-centralized height adjustment lever, allowing easy selection of cutting height.

Nøglekomponenter:

• Motor: Briggs & Stratton 625 EXi Series 150 cm³
• Klippedæk: 53 cm steel monobloc, 1.8mm thick
• Styr: Ergonomic, foldable, and height-adjustable with grip
• Hjul: Large rear wheels for improved traction
• Græspose: 70-liter soft bag with flap
• Mulching Plug: Included for mulching function
• Side Discharge Deflector: Included for side discharge operation
• Højdejustering: Semi-centralized, 6 positions (28-92 mm)
• Forreste kofanger: Integrated for protection against impacts

4. Opsætning

4.1. Montering

Your lawn mower may require some assembly before first use. Follow these steps:

1. Styrsamling: Unfold the handlebar and secure it in the operating position using the quick-release levers. Adjust the height to your comfort level.
2. Græsposetilbehør: Assemble the grass bag frame and fabric, then hook it onto the rear of the mower.
3. Mulching Plug/Side Deflector: Depending on your desired operation, insert the mulching plug into the rear discharge opening or attach the side discharge deflector to the side opening.

4.2. Brændstof og olie

IMPORTANT: The engine is shipped without oil. Add oil before starting the engine.

• Motorolie: Fill the engine with appropriate 4-stroke engine oil (e.g., SAE 30 or 10W-30) to the 'Full' mark on the dipstick. Refer to the engine manual for exact specifications and capacity.
• Brændstof: Fill the fuel tank with fresh, unleaded gasoline (minimum 87 octane). Do not use E85 fuel.

4.3. Justering af klippehøjde

The cutting height can be adjusted using the semi-centralized levers on each axle. There are 6 positions available, ranging from 28 mm to 92 mm.

1. Ensure the engine is off and the spark plug wire is disconnected.
2. Pull the height adjustment lever outwards and move it to the desired position.
3. Sørg for, at alle hjul er indstillet til samme højde for at opnå et jævnt snit.

5. Betjeningsvejledning

5.1. Start af motoren

1. Sørg for, at brændstoftanken er fyldt, og at oliestanden er korrekt.
2. Push the primer bulb (if equipped) 3-5 times until fuel is visible.
3. Hold the operator presence control bar against the handle.
4. Pull the starter cord with a brisk, continuous motion until the engine starts.

5.2. Engaging Self-Propel

Once the engine is running, engage the self-propel lever (usually located on the handlebar) to activate the drive wheels. Release the lever to disengage self-propel.

5.3. Klippeteknikker

• Poseindpakning: Attach the grass bag. This collects clippings for disposal.
• Mulching: Insert the mulching plug. This finely chops grass clippings and returns them to the lawn as natural fertilizer.
• Sideudflåd: Attach the side discharge deflector. This disperses clippings to the side, useful for taller grass where mulching or bagging is not ideal.
• For at opnå de bedste resultater, undgå at klippe mere end en tredjedel af græsstråets længde ad gangen.

5.4. Standsning af motoren

Release the operator presence control bar to stop the engine. The blade will stop rotating within a few seconds.

6. Vedligeholdelse

WARNING: Always turn off the engine and disconnect the spark plug wire before performing any maintenance or cleaning.

6.1. Rensning

• Rengør undersiden af ​​klippebordet efter hver brug for at forhindre ophobning af græs.
• Tør plæneklipperens yderside af med enamp cloth. Do not use a pressure washer directly on the engine or electrical components.

6.2. Knivpleje

• Inspect the blade regularly for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn.
• Sharpen or replace the blade as needed. Always use genuine MTD replacement parts.

6.3. Motorvedligeholdelse

Refer to the separate Briggs & Stratton engine manual for detailed maintenance schedules. General tasks include:

• Olieskift: Change engine oil after the first 5 hours of operation, then every 25-50 hours or annually.
• Luftfilter: Rengør eller udskift luftfilteret regelmæssigt, især i støvede forhold.
• Tændrør: Inspicer og rengør eller udskift tændrøret årligt.

6.4. Opbevaring

Before storing the mower for an extended period:

• Rengør plæneklipperen grundigt.
• Drain the fuel or add a fuel stabilizer.
• Skift motorolien.
• Remove the spark plug and pour a small amount of engine oil into the cylinder, then slowly pull the starter cord a few times to distribute the oil. Reinstall the spark plug.
• Store in a dry, well-ventilated area. The foldable handlebar allows for compact storage.

7. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på.

8. Specifikationer

9. Garanti og support

This MTD lawn mower comes with a 2 års garanti fra købsdatoen. Gem venligst din købsbevis i tilfælde af garantikrav.

For technical assistance, spare parts, or warranty service, please contact your authorized MTD dealer or visit the official MTD website. Ensure you have your model number (OPTIMA 53 SPB HW) and serial number ready when contacting support.
