Trailer Valet Drill-Powered 5,000 lbs Trailer Dolly Mover - Instruction Manual

Produkt overview

The Trailer Valet 5X is a robust and versatile trailer dolly mover designed to simplify the precise positioning and maneuvering of trailers up to 5,000 pounds. Featuring a built-in jack, solid rubber tires, and the option for both manual and drill-powered operation, it provides exceptional control in tight spaces like garages, storage units, or driveways. Its heavy-duty construction ensures durability in various environments.

Nøglefunktioner

• Maksimal trækkapacitet: Tow trailers up to 5,000 pounds with a tongue weight range of 250 to 500 pounds.
• Kraftig konstruktion: Built with solid steel and protected by a wrinkle black powder-coated finish for long-term durability.
• Solid Rubber Tires: Deep tread tires provide superior traction on flat, level surfaces like concrete or compact gravel.
• Alsidig betjening: Operate manually with the included hand crank or attach the Trailer Valet Drill Adapter (sold separately) for powered maneuvering.
• Integrated Jack: Assists with leveling and hitching the trailer.
• Auto-Brake System: Engages when the handle is down, providing safe, precise control.
• Nem installation: Installs quickly using the included mounting bracket, stow pin, and bolts—no welding required.

Opsætning og installation

The Trailer Valet 5X is designed for straightforward installation, allowing you to quickly prepare your trailer for maneuvering.

Montering af enheden

The 5X unit attaches to your trailer frame using the included 8-inch mounting bracket. Ensure your trailer frame has a maximum height of 5.75 inches and a depth of 3.75 inches for proper fit. The bracket is secured with bolts, eliminating the need for welding.

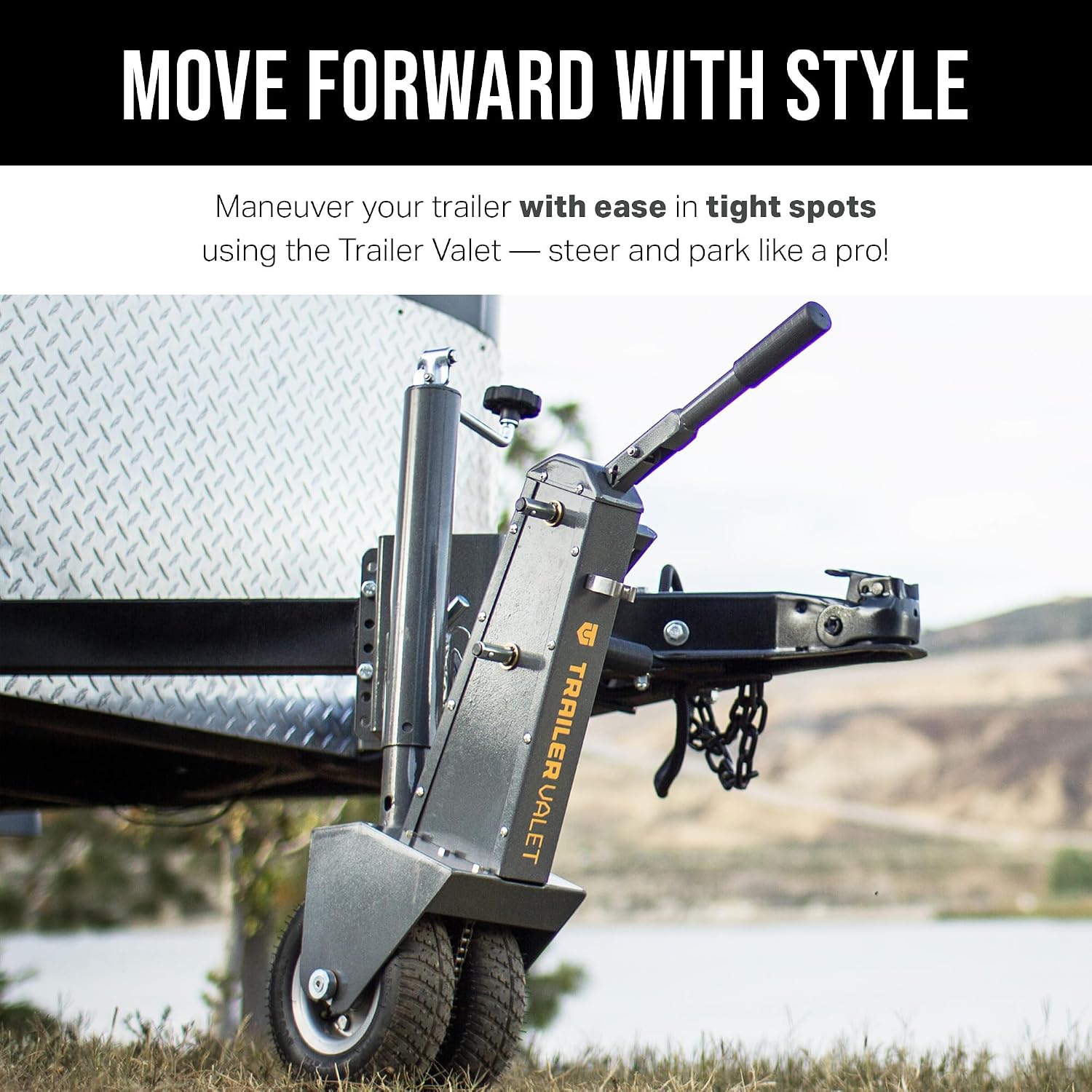

The Trailer Valet 5X mounted on a trailer frame, demonstrating its compact design and readiness for use.

En eksploderede view of the Trailer Valet 5X highlighting its key components including the main unit, mounting bracket, hand crank, and solid rubber tires.

A diagram illustrating all components included in the Trailer Valet 5X kit, such as the 5X unit, security bolt, hand crank, bracket clamps, stow pin, bracket, and bracket bolts.

Installationsvideo

This video demonstrates the quick and easy installation process of the Trailer Valet 5X onto a trailer frame, including securing the mounting bracket and attaching the main unit.

Betjeningsvejledning

The Trailer Valet 5X offers versatile operation for precise trailer maneuvering, whether manually or with a drill.

Manuel betjening

To move the trailer manually, lift the steering handle to disengage the auto-brake. Use the hand crank to move the trailer forward or backward. The unit features high and low drive gears for varying resistance and speed.

A person manually operating the Trailer Valet 5X to move a trailer, showcasing the ergonomic handle and control.

Drill-Powered Operation

For effortless movement, attach the Trailer Valet Drill Adapter (TVDA, sold separately) to any 20–24 volt cordless drill. Insert the drill into the designated port on the unit. The drill will then power the movement of the trailer, making maneuvering even easier.

A close-up of the Trailer Valet 5X being operated with a cordless drill attached to the drill adapter, illustrating the powered maneuvering capability.

Operationelle videoer

En reklamevideoasing the various features and operational benefits of the Trailer Valet 5X, including its maneuverability and ease of use for different trailer types.

Denne video giver en kort gennemgangview of the Trailer Valet 5X, highlighting its key functionalities and how it simplifies trailer movement.

Auto-Brake System

The integrated auto-brake system automatically engages when the steering handle is released and lowered. This feature provides immediate stopping power, ensuring the trailer remains stationary and secure, preventing unintended rolling.

Vedligeholdelse og pleje

To ensure the longevity and optimal performance of your Trailer Valet 5X, regular maintenance is recommended.

• Keep the unit clean and free from dirt and debris.
• Inspect all bolts and connections periodically to ensure they are secure.
• The powder-coated finish provides protection against rust; however, avoid prolonged exposure to harsh weather conditions when not in use.
• For marine applications or frequent use, consider the optional Maintenance Kit (TV5XMK) for enhanced upkeep.

Fejlfinding

If you encounter issues with your Trailer Valet 5X, refer to the following common solutions:

Unit Not Moving or Slipping

• Ensure the auto-brake system is fully disengaged by lifting the handle.
• Verify that the surface is flat and level. The unit performs best on concrete or compact gravel. Soft or loose surfaces like sand, mud, or rocky terrain may reduce traction.
• Check the tongue weight of your trailer. Ensure it is within the recommended range of 250 to 500 pounds for optimal performance.
• If using the drill adapter, ensure your cordless drill is 20-24 volts and fully charged, providing sufficient torque.

Difficulty Maneuvering on Inclines

• The TV5X is designed to push 60-80% capacity loads up a maximum suggested 5% incline. It is not designed to pull up inclines.
• For inclines, ensure the mover is on the lowest side of the incline to push up.

Unit Binding or Grinding

• Check for any obstructions around the wheels or drive mechanism.
• Ensure the unit is properly aligned with the trailer tongue and the mounting bracket is securely fastened.
• If using the hand crank, ensure smooth, consistent pressure. Avoid sudden jerks.

Produktspecifikationer

A detailed graphic displaying the technical specifications and performance capabilities of the Trailer Valet 5X, including maximum trailer weight, tongue weight, and recommended incline.

Garanti og kundesupport

Trailer Valet products are designed for durability and performance. For specific warranty details, please refer to the official Trailer Valet webwebstedet eller garantioplysningerne, der følger med din produktemballage.

For any questions, technical assistance, or support, please contact Trailer Valet Customer Support.

Du kan også besøge Trailer Valet Store on Amazon for yderligere ressourcer og produktinformation.
