Indledning
This manual provides essential information for the safe and efficient use of your SANSUI SCM39-B11 39V High-Vision LCD TV. Please read these instructions thoroughly before operating the television and retain them for future reference. This television features a reliable Japanese design, incorporating a main board developed by Toshiba Visual Solutions Corporation, with evaluation and production management handled by a specialized team in Echizen City, Fukui Prefecture.
The SCM39-B11 model is a 2017 release, designed for terrestrial digital broadcasting, and supports external HDD recording via USB connection.
Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger dette fjernsyn, for at mindske risikoen for brand, elektrisk stød og personskade.
- Udsæt ikke fjernsynet for regn eller fugt.
- Do not block ventilation openings. Ensure adequate space around the television for proper airflow.
- Placer ikke fjernsynet på en ustabil vogn, stativ, stativ, beslag eller bord.
- Tag stikket ud af fjernsynet under tordenvejr eller når det ikke bruges i længere perioder.
- Overlad al service til kvalificeret servicepersonale.
Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- SANSUI SCM39-B11 39V LCD TV
- Fjernbetjening
- Batterier (til fjernbetjening)
- MiniB-CAS Card
- B-CAS Card Cover (with screws)
- Stativ (med skruer)
- Instruktionsmanual (dette dokument)
- Garantikort
Opsætningsvejledning
1. Montering af stativ
Carefully place the television screen-down on a soft, flat surface. Attach the included stand to the bottom of the television using the provided screws. Ensure the stand is securely fastened before placing the television upright.
Billede: Forside view of the SANSUI SCM39-B11 TV with its stand, showing the display and the two silver-colored feet.
2. Tilslutningskabler
Refer to the back panel of the television for connection ports.
Billede: Bagside view of the SANSUI SCM39-B11 TV, displaying the back panel with various input ports including HDMI, USB, and antenna connections.
- Antenneforbindelse: Connect your terrestrial digital antenna cable to the ANTENNA IN port.
- HDMI-enheder: Connect DVD players, Blu-ray players, game consoles, or other HDMI-compatible devices to the HDMI 1 or HDMI 2 ports. This model has 2 HDMI ports.
- USB External HDD: For recording, connect a compatible external USB Hard Disk Drive (HDD) to the USB port.
- Magt: Connect the power cord to the AC inlet on the television and then to a wall outlet.
3. Indledende opsætning
After connecting all cables and powering on the TV, the initial setup wizard will guide you through the process. This typically includes:
- Valg af sprog.
- Region selection.
- Automatic channel scan for terrestrial digital broadcasts. Ensure your antenna is properly connected for this step.
Betjeningsvejledning
Grundlæggende operationer
- Tænd/sluk: Tryk på MAGT knappen på fjernbetjeningen.
- Kanalvalg: Brug CH +/- buttons or the number buttons on the remote.
- Lydstyrkejustering: Brug VOL +/- knapper.
- Inputkilde: Tryk på INPUT button to cycle through connected devices (TV, HDMI 1, HDMI 2, etc.).
Recording with External HDD
This TV supports recording terrestrial digital broadcasts to an external USB HDD. Ensure your HDD is connected to the USB port.
- Scheduling Recordings: Use the Electronic Program Guide (EPG) to select programs for recording. The EPG supports a 1-week display.
- Automatic Chapter Marking: The TV can detect commercials during recording and automatically set chapter marks, allowing for easier navigation during playback.
Afspilningsfunktioner
When playing back recorded content from an external HDD, the following functions are available:
- Gentag afspilning: Replay a section or the entire program.
- Chase Playback: Watch a program from the beginning while it is still being recorded.
- 1.5x Speed Playback: Watch recorded content at an accelerated speed.
Billed- og lydforbedringer
- Blue Light Guard: Activate this function via the remote control to reduce blue light emission by up to approximately 50%, which may help reduce eye strain.
- Picture Enhancer: This feature automatically adjusts the super-resolution processing level according to the input content, ensuring optimal image display at all times.
- Japanese Paper Speakers: The integrated speakers utilize Japanese paper for clear sound reproduction across high to low frequencies.
Yderligere funktioner
- Screen Freeze Function: Pause the live broadcast or current display.
- HDMI Connected Device Linkage: Control compatible HDMI-connected devices using the TV remote.
- Bi-directional Data Communication: Supports two-way data communication.
Opretholdelse
Rengøring af fjernsynet
- Skærm: Tør forsigtigt skærmen af med en blød, tør og fnugfri klud. Tør forsigtigt genstridige mærker afampen the cloth with water or a specialized screen cleaner (ensure it is safe for LCD screens) and wipe carefully. Do not spray liquid directly onto the screen.
- Legeme: Wipe the television body with a soft, dry cloth. Avoid using abrasive cleaners, waxes, or solvents as they can damage the finish.
Vedligeholdelse af fjernbetjening
- Replace batteries when the remote control's response becomes slow or inconsistent.
- Bland ikke gamle og nye batterier eller forskellige typer batterier.
- Hold fjernbetjeningen væk fra fugt og direkte sollys.
Fejlfinding
Hvis du støder på problemer med dit fjernsyn, skal du se følgende almindelige problemer og løsninger, før du kontakter support.
| Problem | Mulig årsag/løsning |
|---|---|
| Ingen strøm | Ensure the power cord is securely plugged into both the TV and the wall outlet. Check if the outlet is functioning. |
| No picture / No signal | Verify antenna connection. Check the input source selection (e.g., HDMI 1, HDMI 2, TV). Perform a channel scan if necessary. |
| Ingen lyd | Check volume level and mute status. Ensure external audio devices are properly connected if used. |
| Fjernbetjening virker ikke | Kontrollér og udskift batterierne. Sørg for, at der ikke er nogen forhindringer mellem fjernbetjeningen og tv'ets IR-sensor. |
| External HDD recording issues | Ensure the USB HDD is properly connected and formatted for the TV. Some HDDs may have compatibility issues. Try a different USB port or HDD if available. |
| HDMI device not recognized | Ensure the HDMI cable is securely connected. Try a different HDMI port or cable. Power cycle both the TV and the HDMI device. |
Produktspecifikationer
Image: A table detailing the specifications of the SANSUI SCM39-B11 TV, including screen size, resolution, tuner type, recording capabilities, connectivity, and power consumption.
| Feature | Specifikation |
|---|---|
| Modelnavn | SCM39-B11 |
| Skærmstørrelse | 39V-type (39 inches) |
| Displayteknologi | LCD |
| Opløsning | High-Vision (HD 1366 x 768) |
| Tunere | Terrestrial Digital x1, BS Digital: None, CS Digital: None |
| External HDD Recording | Supported via USB |
| HDMI porte | 2 systemer |
| USB-porte | 1-system |
| Wall Mount Compatible | VESA 200mm x 200mm |
| Produktets vægt | 6.1 kg |
| Dimensioner (B x H x D) | Approx. 88.8 cm x 57.5 cm x 21.0 cm (with stand) |
| Strømforbrug | 61W |
| Udgivelsesår | 2017 |
Billede: Forside view of the SANSUI SCM39-B11 TV with overlaid measurements for width (88.8cm), height (57.5cm), and weight (6.1kg).

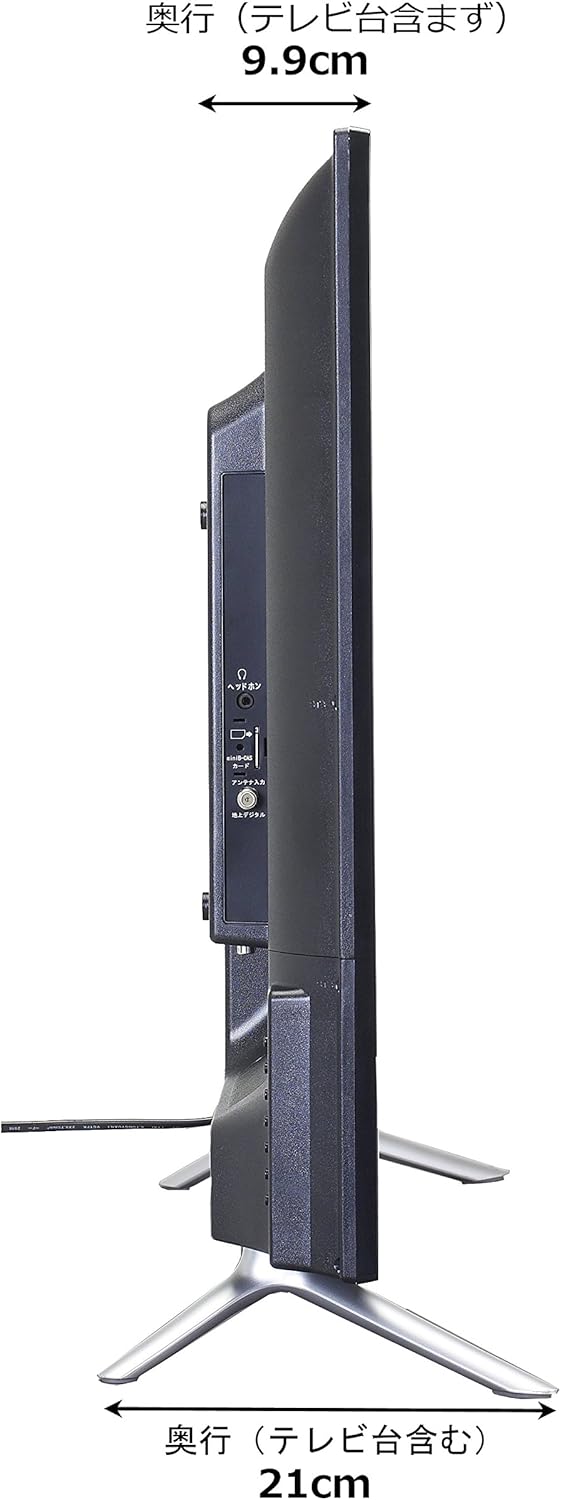

Billede: Side view of the SANSUI SCM39-B11 TV, illustrating the depth of the television body (9.9cm) and the total depth including the stand (21cm).
Image: Diagram showing the SANSUI SCM39-B11 TV on a stand next to a human figure (approx. 160cm tall) for visual scale, with TV dimensions indicated.
Garanti og support
Your SANSUI SCM39-B11 television comes with a warranty. Please refer to the included warranty card for details regarding coverage period and terms. Keep your purchase receipt as proof of purchase.
For technical support, service, or inquiries not covered in this manual, please contact SANSUI customer service. Contact information can typically be found on the warranty card or the official SANSUI webwebsted.
