1. Introduktion
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your GROHE 48197000 Electronic Control Unit. This unit is designed for use with the GROHE Blue Mono 31301000 system, providing precise control over water temperature.

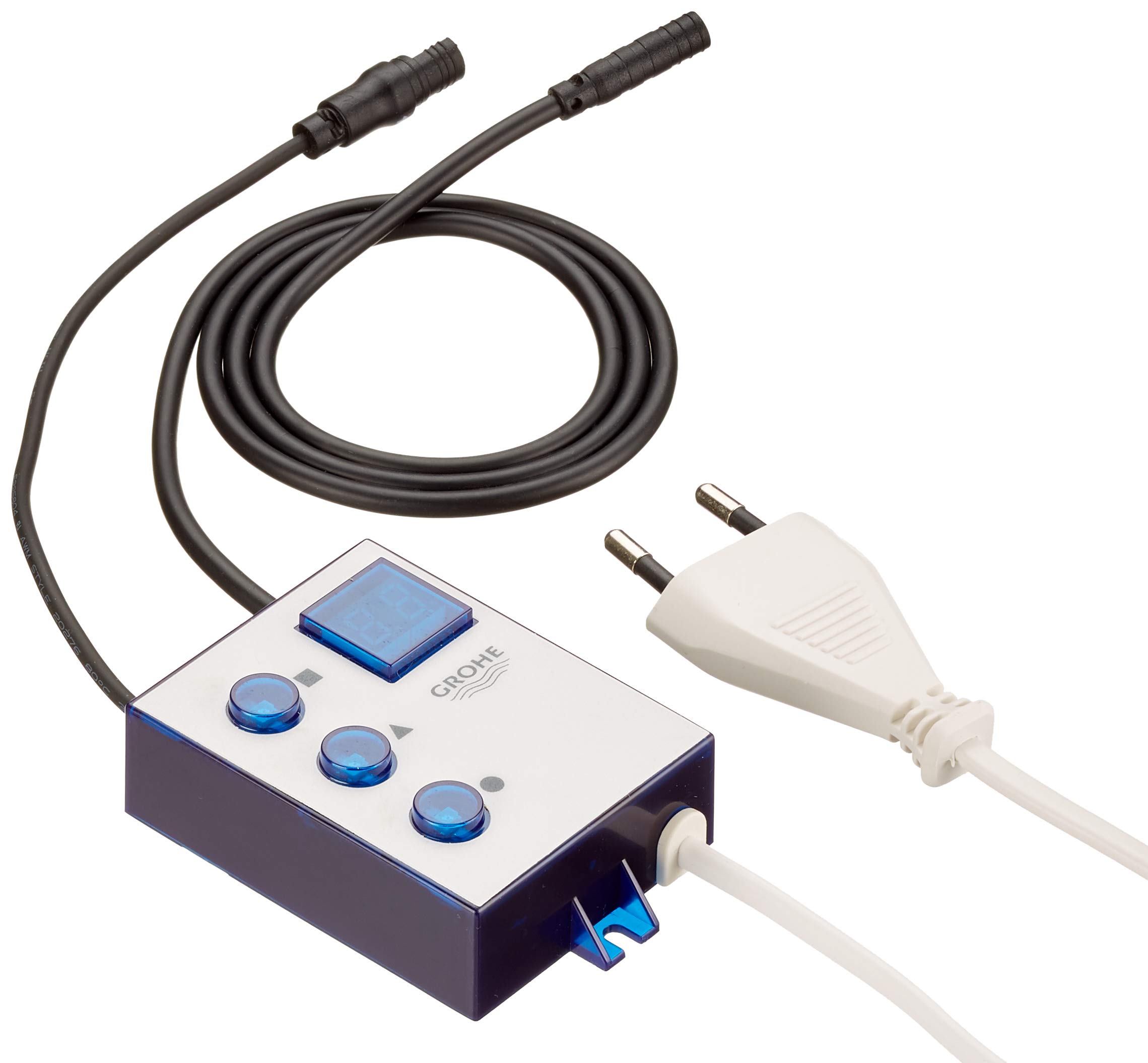

Image of the GROHE 48197000 electronic control unit, featuring its compact design and connection points.
2. Sikkerhedsoplysninger
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or property damage.
- Sørg for, at hovedstrømforsyningen er afbrudt før installations- eller vedligeholdelsesarbejde.
- Installation should be performed by a qualified professional in accordance with local regulations.
- Do not expose the control unit to direct water spray or extreme temperatures.
- Use only original GROHE spare parts and accessories.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter installationen:
- GROHE 48197000 Electronic Control Unit
- Strømstik
- Two connection cables
- Instruktionsmanual (dette dokument)
4. Opsætning og installation
The GROHE 48197000 control unit is designed for integration with the GROHE Blue Mono 31301000 system. Follow these general steps for installation:
- Forberedelse: Ensure the installation area is clean, dry, and has adequate space for the unit and its connections. Confirm that the main water supply and electrical power are turned off.
- Montering: Securely mount the control unit in a suitable location, typically under the sink or within a cabinet, ensuring it is easily accessible for future maintenance. Refer to the specific mounting instructions provided with your GROHE Blue Mono 31301000 system for optimal placement.
- Elektriske forbindelser: Connect the power plug and the two provided cables to the designated ports on the control unit. Ensure all connections are firm and secure.
- Systemintegration: Connect the control unit to the GROHE Blue Mono 31301000 system according to the system's specific wiring diagram. This unit acts as the central interface for temperature regulation.
- Indledende opstart: Once all connections are made and verified, restore the main power supply. The unit's LCD or LED display should illuminate, indicating it is powered on.
5. Betjeningsvejledning
The GROHE 48197000 control unit features three buttons for temperature adjustment and an LCD/LED display for feedback.
- Temperaturjustering: Use the three dedicated buttons to increase, decrease, or set a specific temperature for the water dispensed by your GROHE Blue Mono system. Consult the GROHE Blue Mono 31301000 manual for detailed temperature range and preset options.
- Vis feedback: The LCD or LED display will show the current temperature setting or other relevant system status indicators.
- Energibesparelse: This unit incorporates features designed for energy efficiency. For optimal energy savings, ensure the system is not left running unnecessarily.
Icon representing GROHE Water Saving technology, highlighting energy efficiency.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din styreenheds levetid og optimale ydeevne.
- Rensning: Tør ydersiden af styreenheden af med en blød, tør klud.amp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen og de elektroniske komponenter.
- Tilslutningskontrol: Kontrollér regelmæssigt alle kabelforbindelser for at sikre, at de er fastgjorte og fri for korrosion eller beskadigelse.
- GROHE Longlife Shine: The unit's finish is designed for durability and easy cleaning, maintaining its appearance over time.
Icon representing GROHE Longlife Shine technology, indicating durable and easy-to-clean surfaces.
7. Fejlfinding
If you encounter issues with your GROHE 48197000 control unit, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ingen strømforsyning; løs kabelforbindelse. | Check main power supply. Ensure power plug and cables are securely connected. |
| Temperature adjustment not working. | Incorrect system integration; faulty unit. | Verify connections to the GROHE Blue Mono system. If problem persists, contact customer support. |
| Displayet er tomt eller viser fejl. | Strømproblem; intern fejl. | Cycle power to the unit. If error persists, note any error codes and contact customer support. |
Hvis fejlfindingstrinene ikke løser problemet, bedes du kontakte GROHEs kundesupport.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 48197000 |
| Produkttype | Elektronisk kontrolenhed |
| Kompatibelt system | GROHE Blue Mono 31301000 |
| Farve | Sort |
| Materiale | Metal |
| Display Type | LCD eller LED |
| Vægt | 280 g |
| Inkluderede komponenter | Control unit, power plug, two cables |
| Oprindelsesland | Tyskland |
9. Garantioplysninger
This GROHE product is covered by a manufacturer's warranty. For specific details regarding the warranty period and terms, please refer to the documentation included with your purchase or visit the official GROHE website. The product is generally subject to a return policy of 14 days for refund/replacement when purchased from Amazon.
10. Kundesupport
For technical assistance, spare parts, or further information, please contact GROHE customer support. You can find contact details on the official GROHE webwebstedet eller gennem din lokale distributør.
GROHE Officiel Webwebsted: www.grohe.com
