DEWALT DCD996NT XR Brushless Combi Drill 18V Bare Unit Instruction Manual

Indledning

Thank you for choosing the DEWALT DCD996NT XR Brushless Combi Drill. This powerful 18V tool is designed for professional use, offering exceptional performance for drilling, hammer drilling, and screwdriving applications. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read it thoroughly before use and keep it for future reference.

Figure 1: DEWALT DCD996NT XR Brushless Combi Drill with auxiliary handle. This image shows the complete drill unit, highlighting its robust design and the attached auxiliary handle for improved control.

Generelle sikkerhedsoplysninger

Always follow basic safety precautions when using power tools to reduce the risk of fire, electric shock, and personal injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Always wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves. Disconnect the battery pack from the tool before making any adjustments, changing accessories, or storing the tool.

• Sikkerhed på arbejdsområdet: Hold arbejdsområdet rent og godt oplyst. Rodede eller mørke områder inviterer til ulykker.
• Elektrisk sikkerhed: Undgå kropskontakt med jordforbundne overflader. Udsæt ikke elværktøj for regn eller våde forhold.
• Personlig sikkerhed: Vær opmærksom, hold øje med, hvad du laver, og brug din sunde fornuft, når du betjener et elværktøj. Brug ikke elværktøj, mens du er træt eller påvirket af stoffer, alkohol eller medicin.
• Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din opgave. Frakobl batteriet, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.

Opsætning

1. Installation og fjernelse af batteri

This DEWALT DCD996NT is supplied as a bare unit, meaning the battery and charger are not included. It is compatible with all DEWALT 18V XR Li-ion battery packs. To install a battery, align the battery pack with the rails inside the tool's handle and slide it in until it clicks securely into place. To remove, press the battery release button and pull the battery pack out.

2. Montering af hjælpehåndtaget

The auxiliary handle provides additional control and stability, especially during high-torque applications or when using the hammer drill function. To attach, loosen the handle by twisting it counter-clockwise. Slide the handle over the chuck and onto the front of the drill housing. Position it to your desired angle and tighten by twisting clockwise until secure.

Figure 2: The DEWALT DCD996NT drill with its auxiliary handle properly attached. This handle can be rotated 360 degrees for optimal user comfort and control.

3. Montering og afmontering af bor/tilbehør

The DCD996NT features a 13mm keyless chuck for quick and easy accessory changes. To install an accessory, rotate the chuck collar counter-clockwise until the jaws are open wide enough to insert the bit. Insert the bit fully into the chuck. Rotate the chuck collar clockwise to tighten the jaws securely around the bit. Ensure the bit is centered and firmly gripped before operation. To remove, rotate the chuck collar counter-clockwise to release the bit.

Figur 3: Nærbillede view of the 13mm keyless chuck on the DEWALT DCD996NT. The chuck allows for quick and secure bit changes without the need for a key.

Betjeningsvejledning

1. Trigger Switch and Variable Speed Control

The tool is activated by pressing the trigger switch. The speed is variable; the further the trigger is pressed, the faster the tool operates. Release the trigger to stop the tool. For continuous operation, some models may feature a lock-on button, but this model primarily uses trigger control for precise speed management.

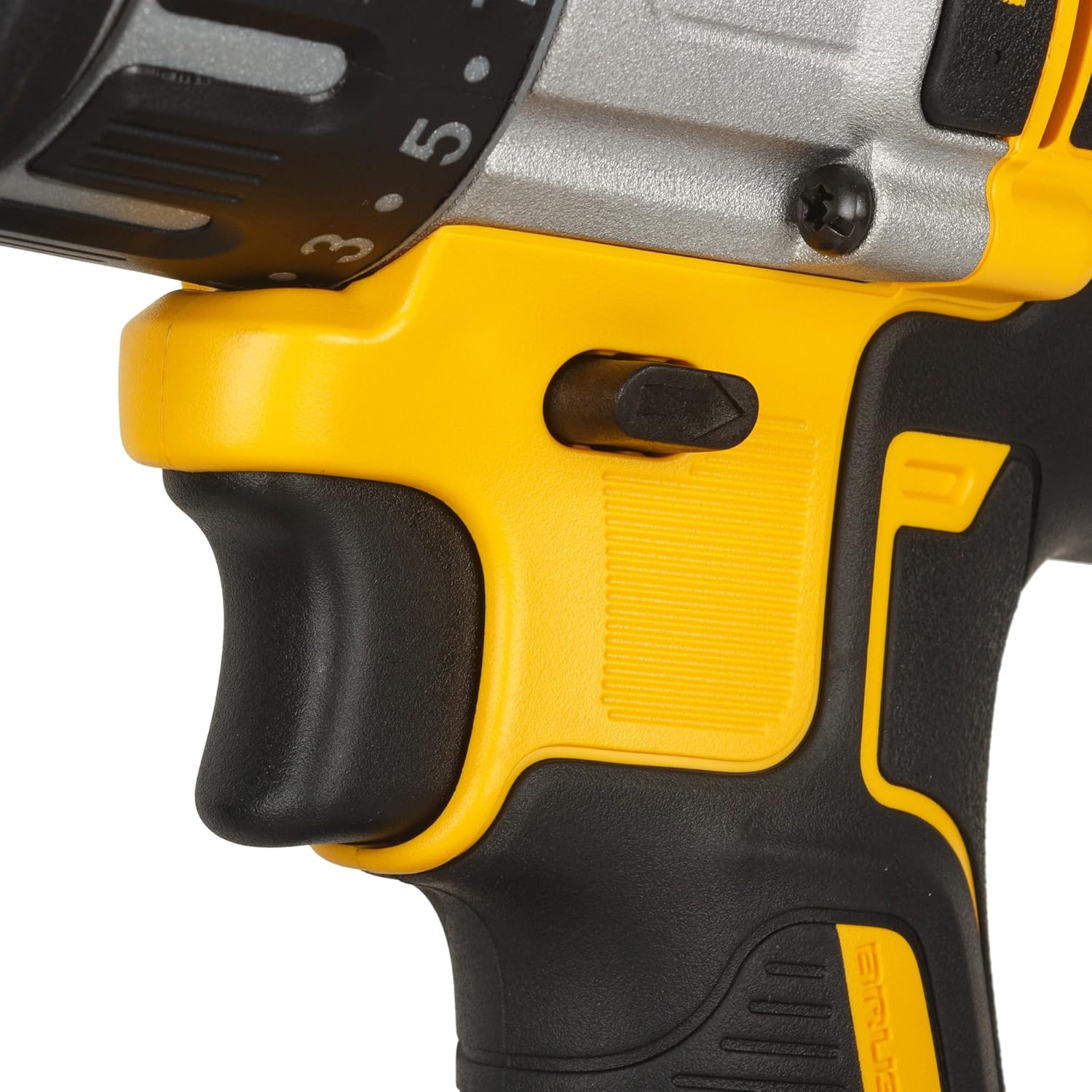

Figur 4: Detaljeret view of the trigger switch and the forward/reverse selector on the DEWALT DCD996NT. The trigger provides variable speed control, while the selector changes the rotation direction.

2. Frem/tilbage-kontrol

A selector switch located above the trigger controls the direction of rotation. Push the switch to the left for forward rotation (drilling/screwing in) and to the right for reverse rotation (removing screws). Position the switch in the center to lock the trigger and prevent accidental startup.

3. Speed Selector (Gearbox)

The DCD996NT features a 3-speed all-metal transmission. Use the gear selector switch located on top of the drill to choose between three speed ranges:

• Hastighed 1 (Lav): For high torque applications, large diameter drilling, and driving screws.
• Hastighed 2 (Mellem): For general drilling and screwdriving.
• Hastighed 3 (Høj): For small diameter drilling and fast work progress.

Always select the appropriate speed for the material and accessory being used. Change gears only when the tool is stopped.

4. Torque Control and Mode Selector

The collar behind the chuck allows you to select the operating mode and adjust the torque for screwdriving applications. Rotate the collar to select one of the following:

• Screwdriving (1-11): Use these settings to control the amount of torque applied when driving screws. The higher the number, the greater the torque. This prevents over-driving screws or damaging the workpiece.
• Boretilstand (): For drilling into wood, metal, and plastics without impact. The clutch is disengaged, providing maximum torque.
• Hammerboremaskine-tilstand (): For drilling into masonry and concrete with impact action. The clutch is disengaged, and the hammer mechanism is engaged.

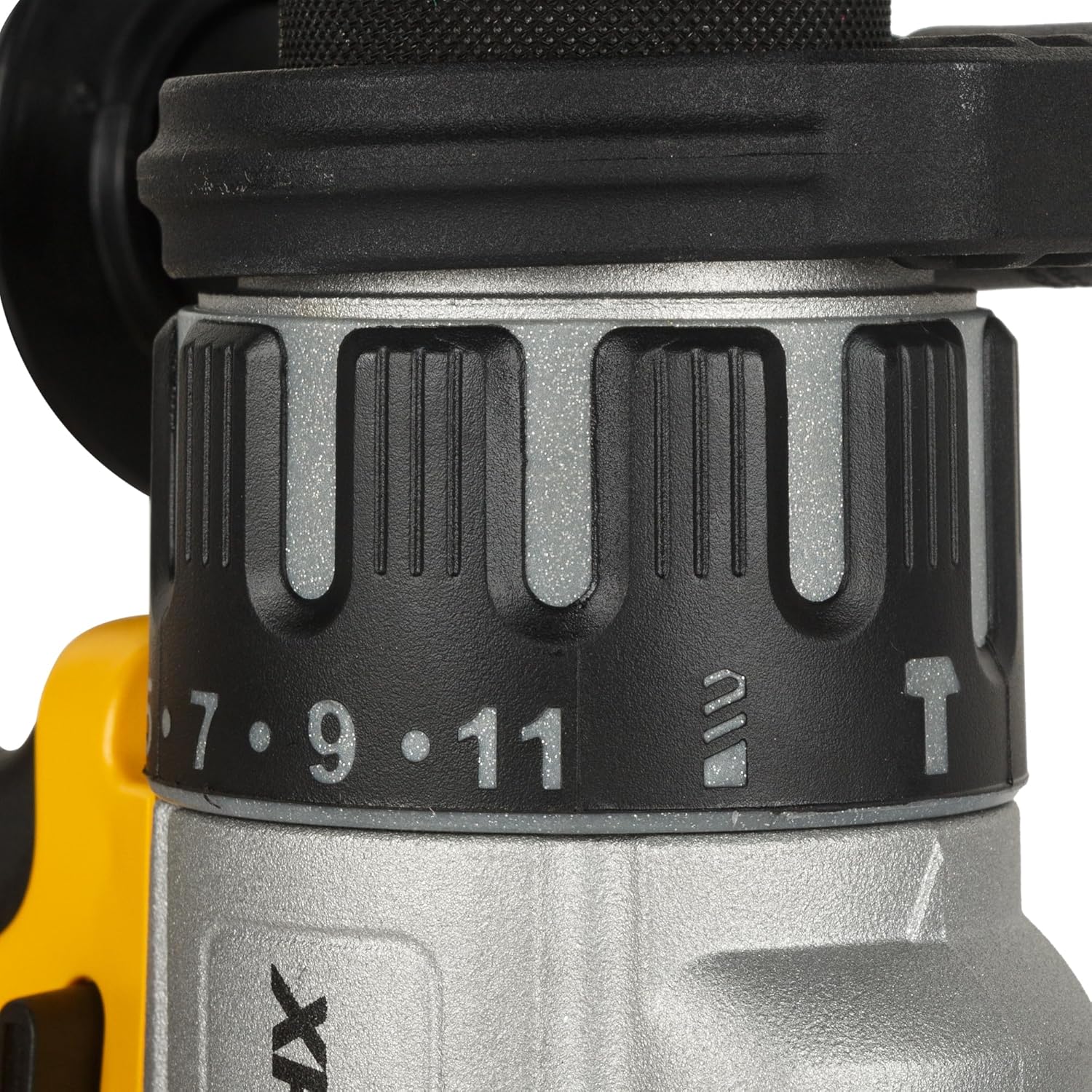

Figure 5: The clutch and mode selector ring on the DEWALT DCD996NT. This ring allows selection between 11 torque settings for screwdriving, drill mode, and hammer drill mode.

5. LED arbejdslys

The DCD996NT features an integrated LED work light to illuminate the work area. A selector switch below the handle allows you to choose between three settings:

• Slukket: Lyset er slukket.
• On (Low Brightness): Light illuminates for 20 seconds after the trigger is released.
• On (High Brightness): Light stays on for 20 minutes, functioning as a work light.

Figure 6: Close-up of the 3-stage LED work light selector on the DEWALT DCD996NT. This feature provides illumination for the work area, with options for temporary or extended lighting.

Opretholdelse

Regular maintenance ensures the longevity and optimal performance of your DEWALT DCD996NT combi drill.

• Rensning: Keep the ventilation slots clear of dust and debris to prevent overheating. Use a soft brush or compressed air to clean the tool. Do not use water or chemical cleaners.
• Vedligeholdelse af borepatron: Rengør spændepatronens kæber med jævne mellemrum for at sikre korrekt greb om borene.
• Børsteløs motor: This tool features a brushless motor, eliminating the need for carbon brush replacement, which simplifies maintenance.
• Opbevaring: Store the tool in a dry, secure location out of reach of children. If storing for extended periods, remove the battery pack. The included TSTAK box (if applicable) provides excellent protection for storage and transport.

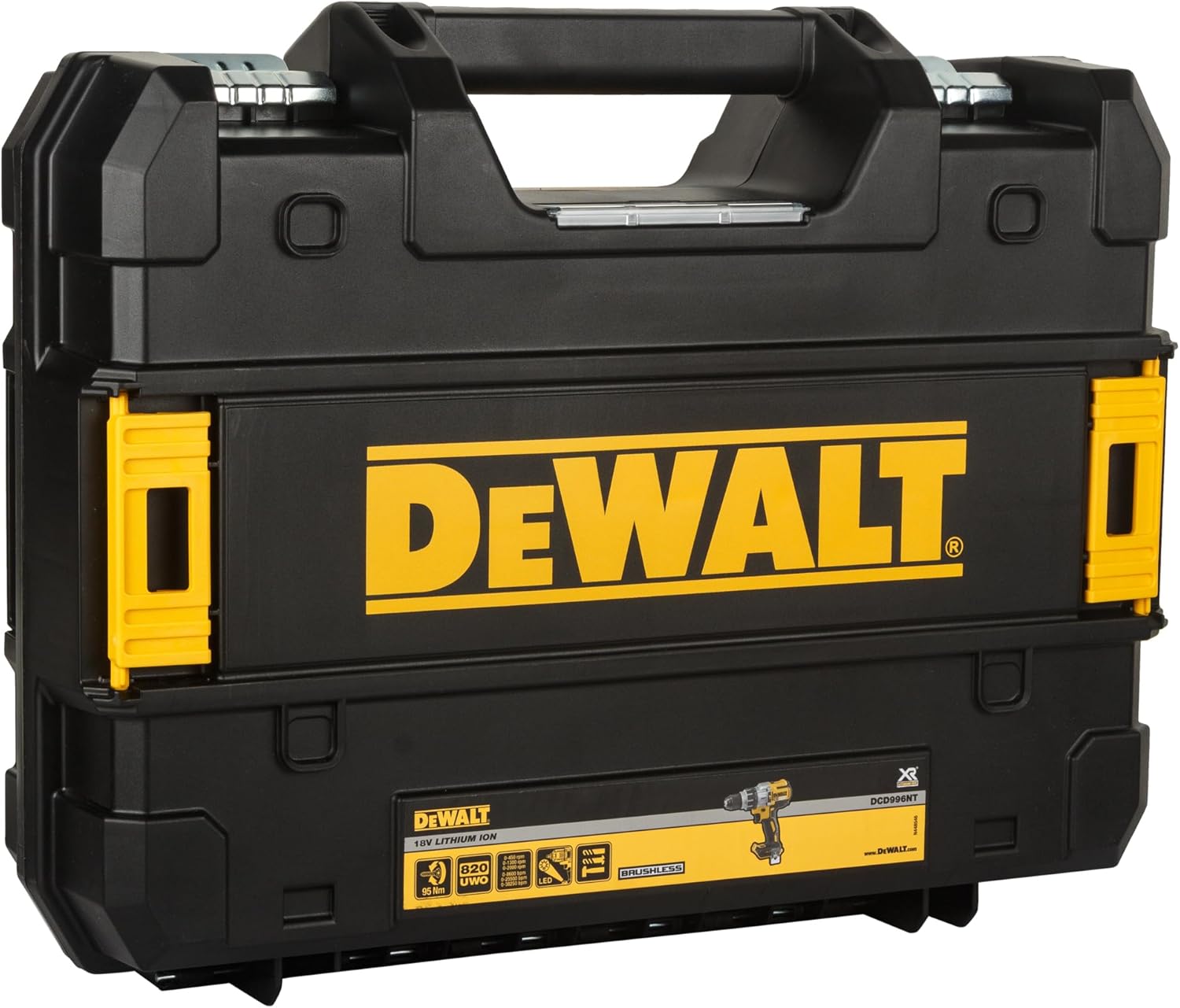

Figure 7: The DEWALT DCD996NT stored within its TSTAK compatible case. Proper storage in a protective case helps maintain the tool's condition and organization.

Fejlfinding

Specifikationer

Garantioplysninger

DEWALT offers a comprehensive warranty for its products. For specific details regarding the warranty period and terms for your DCD996NT XR Brushless Combi Drill, please refer to the warranty card included with your purchase or visit the official DEWALT webwebsted. Gem din købsbevis i tilfælde af garantikrav.

Kundesupport

For teknisk assistance, service eller for at finde et autoriseret servicecenter, besøg venligst den officielle DEWALT website or contact their customer service department. You can find contact information and FAQs at: www.dewalt.com/support
