H.Koenig V24 dampgenerator strygejern brugermanual

1. Vigtige sikkerhedsinstruktioner

Please read all instructions carefully before using the appliance and retain them for future reference. Incorrect use can lead to electric shock, fire, or serious injury.

• Elektrisk sikkerhed: Sørg for, at voltagDen angivne lydstyrke på apparatet svarer til din elnetspænding.tage. Do not operate the iron with a damaged cord or plug. Always unplug the iron from the power outlet when filling with water, emptying, or when not in use.
• Varme overflader: The soleplate and steam emitted are extremely hot and can cause burns. Avoid direct contact with skin. Always place the iron on its stable base when not in use. Allow the iron to cool completely before storing.
• Vandforbrug: Only use tap water unless otherwise specified. Do not add perfumes, vinegar, starch, descaling agents, or other chemicals to the water tank, as these can damage the appliance or cause stains on garments.
• Børn og udsatte personer: Dette apparat er ikke beregnet til brug af personer (herunder børn) med nedsatte fysiske, sensoriske eller mentale evner, eller manglende erfaring og viden, medmindre de er under opsyn eller har fået instruktioner i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed. Børn bør overvåges for at sikre, at de ikke leger med apparatet.
• Opretholdelse: Forsøg ikke at reparere apparatet selv. Kontakt kvalificeret servicepersonale for reparationer.

2. Produktet er slutview

The H.Koenig V24 Steam Generator Iron is designed for efficient and powerful ironing, featuring a high-pressure steam system and a ceramic soleplate for smooth gliding. It offers continuous steam output and vertical steaming capabilities for versatile use.

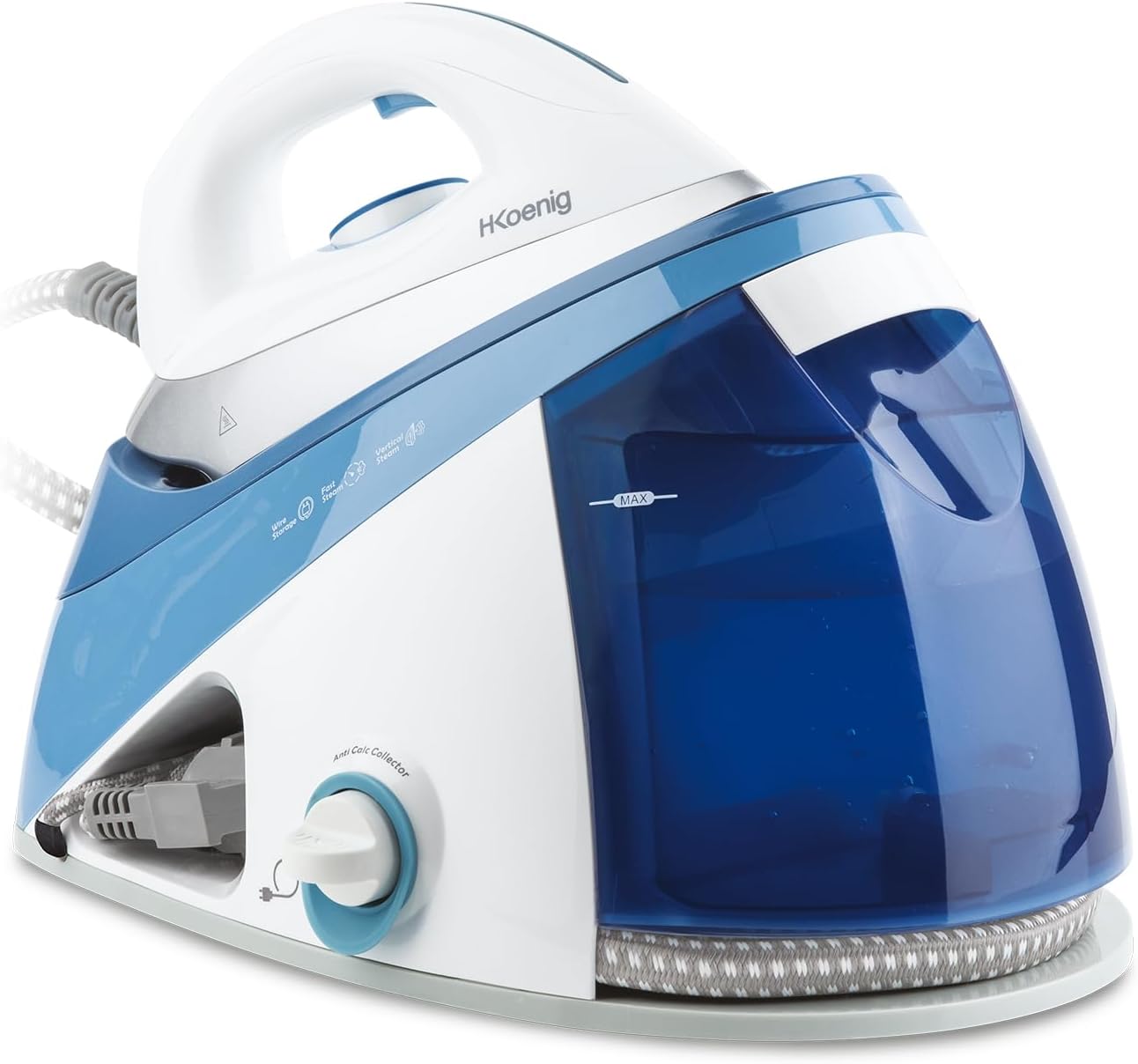

Image 2.1: H.Koenig V24 Steam Generator Iron, showing the iron resting on its base with the water tank visible.

Nøglefunktioner:

• Powerful Steam Pressure: 6 bars for effective wrinkle removal.
• Kontinuerlig dampudgang: 150 g/min for consistent performance.
• Ceramic EasyGlide Soleplate: Ensures smooth movement across various fabrics.
• Vertikal dampfunktion: Allows for steaming garments directly on hangers or curtains.
• Aftagelig vandtank: 1.1 L capacity for easy refilling and continuous use.
• Anti-kalk-opsamler: Helps maintain appliance longevity by collecting limescale.

3. Opsætning og første brug

3.1 Udpakning

1. Carefully remove the steam generator iron from its packaging.
2. Remove all protective materials and labels from the appliance.
3. Undersøg apparatet for eventuelle skader. Brug det ikke, hvis det er beskadiget.

3.2 Påfyldning af vandtanken

The V24 features a removable water tank for convenient refilling.

1. Sørg for, at apparatet er taget ud af stikkontakten.
2. Grasp the handle of the water tank and pull it upwards to remove it from the base unit.
3. Fill the tank with clean tap water up to the 'MAX' indicator line. Do not overfill.
4. Place the filled water tank back into the base unit, ensuring it clicks securely into place.

Image 3.1: Removing the water tank for refilling.

3.3 Førstegangsbrug

Before ironing garments, it is recommended to perform a test on an old piece of fabric to clear any manufacturing residues.

1. Sæt netledningen i en jordet stikkontakt.
2. Press the power button to turn on the appliance. The indicator light will illuminate.
3. Allow the iron to heat up. This usually takes less than one minute. The steam ready indicator will light up when ready.
4. Press the steam trigger a few times to release steam and flush out any impurities.

4. Operating the Steam Generator Iron

4.1 Temperature and Steam Settings

The iron features a dial to select the appropriate temperature for different fabric types. Always check the garment's care label.

Image 4.1: Temperature dial and steam controls on the iron.

• Temperaturvælger: Rotate the dial to select the desired temperature setting (e.g., synthetic, silk, wool, cotton, linen).
• Steam trigger: Press and hold the steam trigger under the handle to release continuous steam. Release to stop.
• Steam Boost: For stubborn creases, press the steam boost button (if available) for an extra burst of steam.

4.2 Horizontal Ironing

Place the garment on a stable ironing board. Adjust the temperature and steam settings according to the fabric type. Glide the iron smoothly over the fabric, applying steam as needed.

Image 4.2: Ironing horizontally on fabric.

4.3 Vertikal dampning

The vertical steam function is ideal for refreshing hanging garments, drapes, or delicate fabrics.

1. Hæng tøjet på en bøjle.
2. Ensure the iron is heated to the maximum temperature setting for optimal steam production.
3. Hold strygejernet lodret, et par centimeter væk fra stoffet.
4. Tryk på dampudløseren for at frigive damp og bevæg strygejernet op og ned langs tøjet.

5. Vedligeholdelse og rengøring

Regular maintenance ensures optimal performance and extends the lifespan of your H.Koenig V24 steam generator iron.

5.1 Anti-Calc Collector

The V24 is equipped with an anti-calc collector to trap limescale particles. Regular cleaning of this collector is essential.

1. Sørg for, at apparatet er frakoblet og helt afkølet.
2. Locate the anti-calc collector knob, usually at the front or side of the base unit.
3. Turn the knob to unlock and remove the collector.
4. Rinse the collector under running water to remove any accumulated limescale.
5. Reinsert the clean collector and turn the knob to lock it in place.

Image 5.1: Location of the anti-calc collector knob.

5.2 Rengøring af sålpladen

• Lad strygejernet køle helt af.
• Tør den keramiske strygesål af med enamp klud og et ikke-slibende rengøringsmiddel om nødvendigt.
• Do not use metallic scouring pads or harsh chemicals, as these can damage the soleplate.

5.3 Opbevaring

When not in use, store the iron in a safe, dry place, out of reach of children. Ensure the iron is cool and empty the water tank before storage.

6. Fejlfinding

If you encounter issues with your H.Koenig V24, refer to the following common problems and solutions:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

7. Tekniske specifikationer

• Model: V24
• Mærke: H. Koenig
• Magt: 2400 watt
• Damptryk: 6 bar
• Kontinuerlig dampudgang: 150 g/min
• Vandtankkapacitet: 1.1 liter
• Materiale sålplade: Ceramic EasyGlide
• Dimensioner (L x B): 33 cm x 25.5 cm
• Vægt: 3.8 kilo
• Voltage: 220 volt
• Speciel funktion: Automatisk slukning

8. Garanti og support

The H.Koenig V24 Steam Generator Iron comes with an extended 2-year warranty. This warranty covers manufacturing defects under normal use conditions.

Hvad dækker garantien:

• Fejl i materialer og udførelse.
• Functional failures not caused by misuse or accidental damage.

Hvad garantien ikke dækker:

• Skader forårsaget af forkert brug, uagtsomhed eller manglende overholdelse af instruktioner.
• Almindelig slitage.
• Skader forårsaget af uautoriserede reparationer eller modifikationer.

Kundesupport:

For warranty claims, technical assistance, or service inquiries, please contact H.Koenig customer support. An authorized service center is available in France.

Please have your proof of purchase and the product model number (V24) ready when contacting support.

Kontaktoplysninger: Please refer to the official H.Koenig webwebstedet eller din købsdokumentation for de mest opdaterede kontaktoplysninger.
