1. Introduktion
The ECO-FLO EFLS15P is a 1-1/2 HP plastic self-priming irrigation pump designed for efficient water transfer. This pump is ideal for lawn sprinkling applications, de-watering, and general water transfer tasks. Its self-priming design simplifies operation with automatic sprinkling systems. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting of your pump.

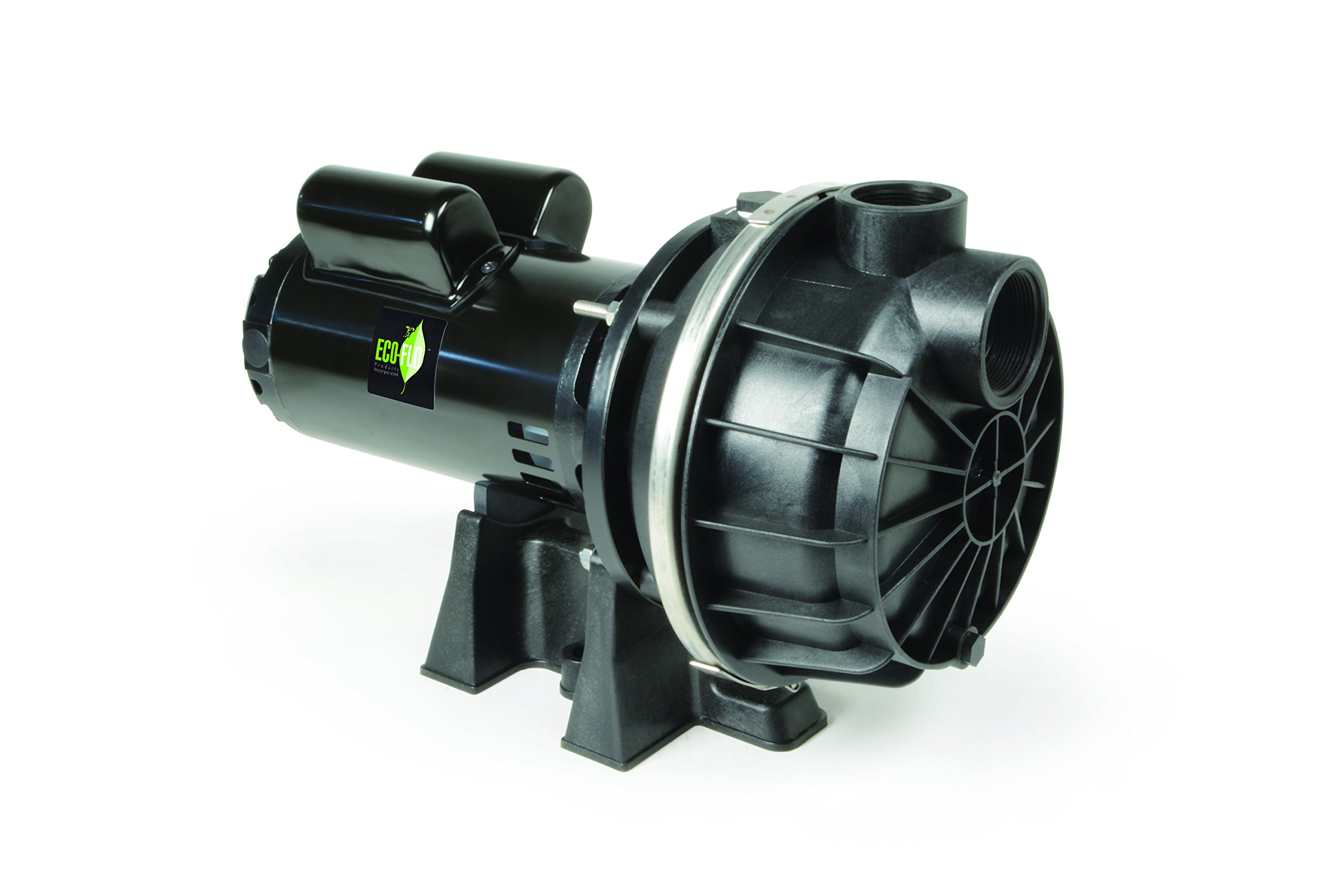

Figure 1: ECO-FLO EFLS15P 1-1/2 HP Plastic Self-Priming Irrigation Pump. This image shows the overall view of the pump unit.
2. Sikkerhedsoplysninger
ADVARSEL: Read and understand all safety instructions before installing or operating this pump. Failure to follow these instructions can result in serious injury, electric shock, or property damage.
- Afbryd altid strømmen, før du udfører service på pumpen.
- Sørg for, at alle elektriske tilslutninger udføres af en kvalificeret elektriker, og at de overholder lokale forskrifter.
- Do not operate the pump with damaged wiring or if the motor housing is open.
- Hold børn og kæledyr væk fra pumpen under drift.
- Pump ikke brandfarlige eller ætsende væsker.
- Beskyt pumpen mod frost.
3. Opsætning og installation
3.1 Udpakning og inspektion
Carefully remove the pump from its packaging. Inspect for any visible damage that may have occurred during shipping. Report any damage to your supplier immediately.
3.2 Montering af pumpen
Mount the pump on a firm, level surface to prevent vibration and ensure stable operation. Secure it using appropriate fasteners.
3.3 VVS-tilslutninger
The pump features 1-1/2 inch suction and discharge pipe sizes. Use appropriate plumbing fittings and ensure all connections are watertight to prevent leaks and maintain priming. Avoid using excessive force when tightening connections to prevent damage to the plastic housing.
3.4 Elektrisk tilslutning
Denne pumpe er dobbelt voltage (115V/230V) and is factory set at 230V. Verify the voltage setting matches your power supply before connecting. All electrical wiring must be performed by a qualified electrician in accordance with national and local electrical codes. Ensure proper grounding to prevent electrical hazards.
Motors are equipped with a stainless steel shaft, heavy-duty bearings, and a dust-proof cover to minimize common causes of motor failure.
4. Betjeningsvejledning
4.1 Spædning af pumpen
The EFLS15P is a self-priming pump. For initial startup or after the pump has been drained, ensure the pump casing is filled with water before starting. The self-priming design will then draw water from the suction line.
4.2 Start af pumpen
Once plumbing and electrical connections are secure and the pump is primed, turn on the power supply. The pump should start operating and begin transferring water. Monitor for unusual noises or vibrations.
4.3 Ansøgninger
This pump is suitable for:
- Lawn sprinkling systems.
- De-watering applications.
- General water transfer tasks.
5. Vedligeholdelse
5.1 Rutinemæssige kontroller
Regularly inspect the pump for leaks, unusual noises, or vibrations. Check electrical connections for signs of wear or corrosion.
5.2 Access to Wear Parts
The pump features an easy service design for quick access to normal wear parts, facilitating maintenance and extending product life.
5.3 Vinterisering
In areas subject to freezing temperatures, drain the pump completely and store it in a warm, dry place to prevent damage from ice expansion.
6. Fejlfinding
This section addresses common issues you might encounter with your ECO-FLO EFLS15P pump.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pumpen kører, men der kommer ikke noget vand | Not primed, air leak in suction line, clogged suction line, low water level. | Ensure pump is fully primed. Check all suction line connections for leaks. Clear any obstructions. Verify adequate water source. |
| Pump leaks at motor/pump connection | Loose bolts, damaged shaft seal. | Check and tighten all bolts. If leak persists, the shaft seal may need replacement. Contact support for assistance. |
| Pumpen starter ikke | Ingen strøm, forkert lydstyrketage, motor issue. | Check power supply and circuit breaker. Verify voltage setting (115V/230V). Consult a qualified electrician if motor issues are suspected. |
| Reduceret flow eller tryk | Clogged impeller, partially closed valve, excessive lift. | Inspect and clean impeller. Ensure all valves are fully open. Verify pump is within recommended operating parameters for lift. |
7. Specifikationer
Figure 2: Detailed specifications and performance chart for the EFLS15P Irrigation Pump.
| Feature | Detalje |
|---|---|
| Model | EFLS15P |
| Hestekræfter (HK) | 1-1 / 2 HK |
| Maksimal flowhastighed | 67 GPM (Gallons pr. minut) |
| Voltage | Dual Voltage (115V/230V), factory set at 230V |
| Suction/Discharge Pipe Size | 1-1/2 tommer |
| Materiale | Plastic, Stainless Steel (shaft) |
| Varens vægt | 43.2 lbs. |
| Produktmål (L x B x H) | 18.3 x 18.3 x 11.8 cm |
| UPC | 858726005232 |
7.1 Performance Chart (Gallons Per Minute)
| Model | HP | Distance of Pump Above Water | Distance Pressure (Gallons Per Minute) | |||
|---|---|---|---|---|---|---|
| 5' | 20' | 30' | 40' | |||
| EFLS15P | 1-1/2 | 5' | 67 | 61 | 48 | 33 |
| 10' | 61 | 56 | 45 | 26 | ||
| 15' | 56 | 54 | 44 | 20 | ||
| 20' | 46 | 44 | 37 | 11 | ||
8. Garantioplysninger
The ECO-FLO EFLS15P pump comes with a 1 års garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, freezing, or unauthorized repairs. For warranty claims, retain your proof of purchase and contact ECO-FLO Products customer support.
9. Kundesupport
For technical assistance, troubleshooting guidance, or to inquire about replacement parts, please contact ECO-FLO Products customer support. Refer to the product packaging or the official ECO-FLO webhjemmeside for de seneste kontaktoplysninger.
Du kan også besøge ECO-FLO Store on Amazon for yderligere produktinformation og ressourcer.
10. Produktvideoer
The following videos provide additional visual guidance and information regarding the product.
Video 1: General overview of the ECO-FLO pump. This video demonstrates key features and applications.
Video 2: Installation guide for the irrigation pump. This video provides visual steps for setting up the pump.
