1. Introduktion
This manual provides essential information for the safe and effective use of the Yato YT-6045 Diamond Drill Bit 68 mm. Please read these instructions carefully before operating the tool and retain them for future reference. This diamond drill bit is designed for precise drilling in various hard materials.

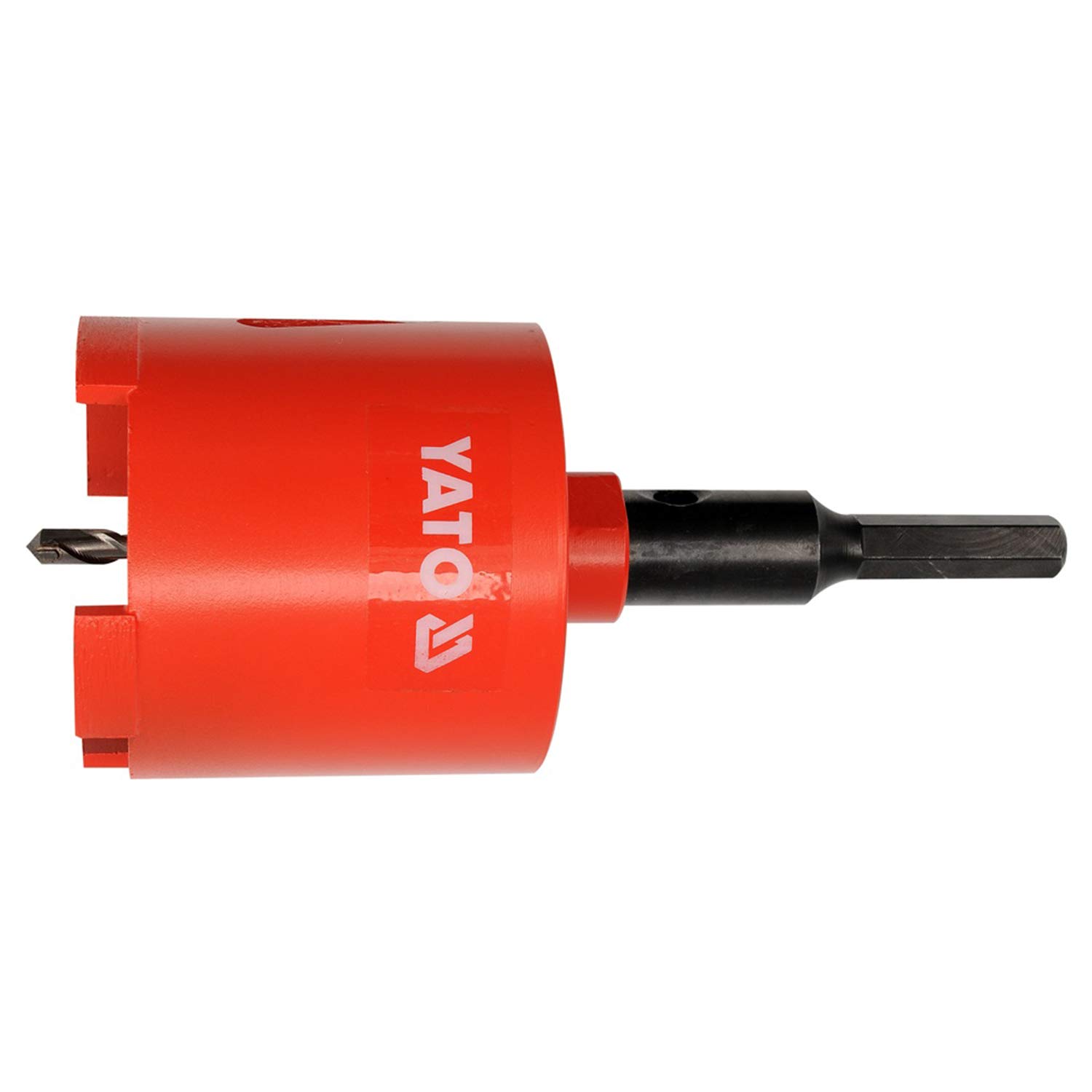

Image 1.1: Yato YT-6045 Diamond Drill Bit. This image displays the diamond drill bit, highlighting its robust construction and diamond-coated cutting edge, suitable for drilling hard materials.
2. Sikkerhedsinstruktioner
Always follow basic safety precautions to reduce the risk of injury when using power tools and accessories.
- Brug personlige værnemidler (PPE): Always wear safety glasses, hearing protection, and appropriate gloves. A dust mask is recommended when drilling materials that produce fine dust.
- Sikkert arbejdsemne: Sørg for, at det materiale, der bores, er sikkert fastgjortampeller holdes for at forhindre bevægelse under drift.
- Brug korrekt hastighed: Operate the drill at the recommended speed for diamond drill bits (maximum 850 RPM for this model) to prevent overheating and premature wear.
- Køling: Diamond drill bits generate significant heat. Use water or a suitable coolant to keep the bit and workpiece cool during drilling.
- Efterse før brug: Before each use, inspect the drill bit for any damage, cracks, or excessive wear. Do not use a damaged drill bit.
- Bevar kontrol: Always maintain a firm grip on the drill and be aware of your surroundings.
- Afbryd strømmen: Frakobl altid elværktøjet fra strømkilden, før du skifter tilbehør eller udfører vedligeholdelse.
3. Opsætning
Proper setup ensures safe and efficient drilling.
- Select Appropriate Drill: Use a drill with a chuck compatible with the Morse taper shank of the YT-6045 drill bit. Ensure the drill can operate at the required speed and has sufficient power.
- Indsæt borehoved: Open the drill chuck and insert the Morse taper shank of the diamond drill bit fully. Tighten the chuck securely to prevent the bit from slipping during operation.
- Forbered arbejdsområde: Ensure the work area is clean, well-lit, and free from obstructions. Set up a system for water cooling if required for the material.
- Testkørsel: Before drilling into the actual workpiece, perform a brief test run at a low speed to ensure the drill bit is properly seated and runs true.
4. Betjeningsvejledning
Follow these steps for optimal performance and safety when using the Yato YT-6045 Diamond Drill Bit.
- Markér boreplacering: Clearly mark the center of the hole to be drilled on the workpiece.
- Begynd at bore: Begin drilling at a low speed with light pressure. This helps to create a starting groove and prevents the bit from wandering.
- Påfør kølevæske: For most hard materials (e.g., tile, glass, stone), continuous water cooling is crucial. Apply water directly to the drilling area to dissipate heat and flush away debris.
- Øg hastighed og tryk: Once a groove is established, gradually increase the drill speed up to the recommended maximum (850 RPM) and apply steady, moderate pressure. Avoid excessive force, as this can damage the bit or the workpiece.
- Maintain Consistent Pressure: Keep the drill bit perpendicular to the workpiece throughout the drilling process.
- Ryd affald: The coolant will help clear debris. If drilling dry (only for specific materials and with caution), periodically lift the bit to clear dust.
- Færdigboring: As the drill bit approaches the end of the material, reduce pressure to prevent chipping or breakout.
- Efter brug: Turn off the drill and allow the bit to cool before handling.
5. Vedligeholdelse
Proper maintenance extends the life of your diamond drill bit.
- Rensning: After each use, clean the drill bit thoroughly to remove any debris or residue. Use a brush and water, then dry completely to prevent rust.
- Opbevaring: Store the drill bit in a dry place, preferably in its original packaging or a protective case, to prevent damage to the diamond coating.
- Inspektion: Regularly inspect the diamond coating for wear. While diamond bits are durable, they will eventually wear down. Replace the bit when its cutting efficiency significantly decreases.
6. Fejlfinding
Her er nogle almindelige problemer og deres løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Slow drilling or no progress | Insufficient pressure, incorrect speed, lack of coolant, worn bit | Increase pressure, adjust speed, apply coolant, replace bit if worn |
| Bit-overophedning | Lack of coolant, excessive speed, too much pressure | Ensure continuous cooling, reduce speed, reduce pressure |
| Lidt vandrende i starten | Starting at high speed, no pilot hole/guide | Start at low speed with light pressure, use a drilling guide if available |
| Chipping around hole | Excessive pressure at exit, drilling too fast | Reduce pressure and speed as bit exits material |
7. Specifikationer
Technical details for the Yato YT-6045 Diamond Drill Bit 68 mm:
- Model: YT-6045
- Diameter: 68 mm
- Materiale: Diamant
- Maksimal rotationshastighed: 850 RPM
- Vægt: 690 g
- Emnemål (L x B x H): 6.8 x 7.4 cm
- Skafttype: Morse Taper
- Værktøjsfløjtetype: Spiralformet
- Punktstil: Diamantpunkt
- Antal fløjter: 1
8. Garanti og support
For information regarding warranty coverage, product support, or spare parts availability for your Yato YT-6045 Diamond Drill Bit, please refer to the official Yato website or contact your local Yato distributor. Keep your purchase receipt as proof of purchase.
