Indledning
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Lennox 14L67 115V 3200RPM Draft Inducer Motor. Please read these instructions thoroughly before proceeding with any installation or operation to ensure proper function and to prevent potential hazards.
The Lennox 14L67 is designed to facilitate the exhaust of combustion gases in heating systems, ensuring optimal performance and safety. This motor operates at 115 volts and a speed of 3200 RPM.
Sikkerhedsoplysninger
ADVARSEL: Fare for elektrisk stød
- Always disconnect power to the appliance before installing, servicing, or performing maintenance on the draft inducer motor. Failure to do so can result in severe personal injury or death.
- Installation and servicing must be performed by a qualified technician.
- Sørg for, at alle ledningsforbindelser er sikre og overholder lokale og nationale elektriske forskrifter.
CAUTION: Moving Parts Hazard
- Hold hænder, hår og tøj væk fra bevægelige dele under drift.
- Do not operate the motor without its protective housing or cover properly installed.
Opsætning og installation
The Lennox 14L67 Draft Inducer Motor is designed for specific heating system applications. Refer to your appliance's service manual for detailed installation procedures.
- Strømafbrydelse: Ensure the main power supply to the heating appliance is completely disconnected at the circuit breaker or fuse box. Verify with a voltage tester.
- Adgang til gammel motor: Carefully remove the access panels and any components obstructing the existing draft inducer motor. Note the orientation and wiring connections of the old motor.
- Fjern den gamle motor: Disconnect all electrical wiring and mounting hardware from the old motor. Carefully remove the old draft inducer motor assembly.
- Inspicer monteringsområde: Clean the mounting surface and inspect for any damage or debris.
- Installer ny motor: Position the new Lennox 14L67 motor in the correct orientation. Secure it using the appropriate mounting hardware. Ensure a tight seal if gaskets are involved.
- Ledningsforbindelser: Connect the electrical wiring to the new motor according to the appliance's wiring diagram. Ensure all connections are secure and properly insulated.
- Saml igen: Reinstall any removed access panels or components.
- Strømgendannelse: Restore power to the heating appliance.

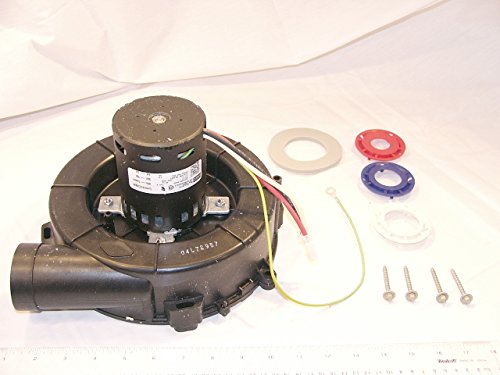

Image: The Lennox 14L67 115V 3200RPM Draft Inducer Motor. This image shows the complete motor assembly, highlighting its compact design and electrical connection points. It is typically installed in the exhaust path of a furnace or boiler.
Betjeningsvejledning
The Lennox 14L67 Draft Inducer Motor operates automatically as part of your heating system's sequence of operation. It does not require manual intervention for starting or stopping.
- Upon a call for heat, the heating system's control board will energize the draft inducer motor.
- The motor will begin to spin, creating a negative pressure (draft) in the combustion chamber and venting system.
- Once sufficient draft is established and verified by safety switches (e.g., pressure switch), the ignition sequence for the main burner will proceed.
- The motor will continue to operate throughout the heating cycle and typically for a short period after the main burner shuts off to purge residual combustion gases.
If the motor fails to start or operate correctly, the heating system will typically enter a lockout state for safety. Refer to the Troubleshooting section.
Opretholdelse
Regular maintenance helps ensure the longevity and efficient operation of your draft inducer motor. Always disconnect power before performing any maintenance.
- Årlig inspektion: Have a qualified technician inspect the motor annually as part of your heating system's preventative maintenance.
- Renhed: Ensure the motor and its impeller are free from dust, debris, and obstructions. Accumulation can reduce efficiency and cause premature wear. Use a soft brush or vacuum to gently clean the exterior.
- Vibrationskontrol: Listen for unusual noises or excessive vibration during operation. These can indicate worn bearings or an unbalanced impeller.
- Ledningsinspektion: Check electrical connections for tightness and signs of corrosion or damage.
- Ventilation: Ensure the motor's cooling vents are not blocked to prevent overheating.
The motor is typically sealed and does not require lubrication. Do not attempt to lubricate sealed bearings.
Fejlfinding
If your heating system is not operating correctly, the draft inducer motor may be a contributing factor. Always consult a qualified technician for diagnosis and repair.
| Symptom | Mulig årsag | Handling |
|---|---|---|
| Motor starter ikke | No power, faulty wiring, seized motor, control board issue, faulty pressure switch | Check power supply. Verify wiring connections. Consult a qualified technician to diagnose motor or control board. |
| Motor runs but burner does not ignite | Faulty pressure switch, blocked flue, restricted air intake, control board issue | Inspect flue and air intake for obstructions. Consult a qualified technician to check pressure switch and control board. |
| Usædvanlig støj eller vibrationer | Worn bearings, unbalanced impeller, debris in housing | Disconnect power and inspect for debris. If noise persists, motor replacement may be necessary. Consult a qualified technician. |
| Motoren overophedes | Blocked ventilation, excessive load, internal motor fault | Ensure ventilation is clear. Consult a qualified technician to assess motor load and internal condition. |
Note: Attempting repairs without proper qualifications can lead to further damage or personal injury.
Specifikationer
- Mærke: LENNOX
- Model: 14L67
- Voltage: 115 volt
- Hastighed: 3200 RPM
- Materiale: Inducer, Motor components
- ASIN: B00Y1Q05OA
Garanti og support
For specific warranty information regarding your Lennox 14L67 Draft Inducer Motor, please refer to the documentation provided with your heating appliance or contact Lennox directly. Warranty terms typically cover defects in materials and workmanship under normal use and service.
For technical support, replacement parts, or professional service, please contact your authorized Lennox dealer or a qualified HVAC technician. Ensure you have the model number (14L67) and any relevant serial numbers available when seeking support.
You can find more information and locate authorized dealers through the official Lennox webwebsted: www.lennox.com
