Robertshaw 9200H Deluxe Mechanical Heat and Cool Thermostat User Manual

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Robertshaw 9200H Deluxe Mechanical Heat and Cool Thermostat. This 24-volt thermostat is designed for single-stage heating and cooling systems, including gas, oil, electric, and heat pump systems without auxiliary heat. It features hermetically sealed contacts and a heavy-duty heat anticipator for reliable performance. Please read this manual thoroughly before installation and use to ensure proper function and safety.

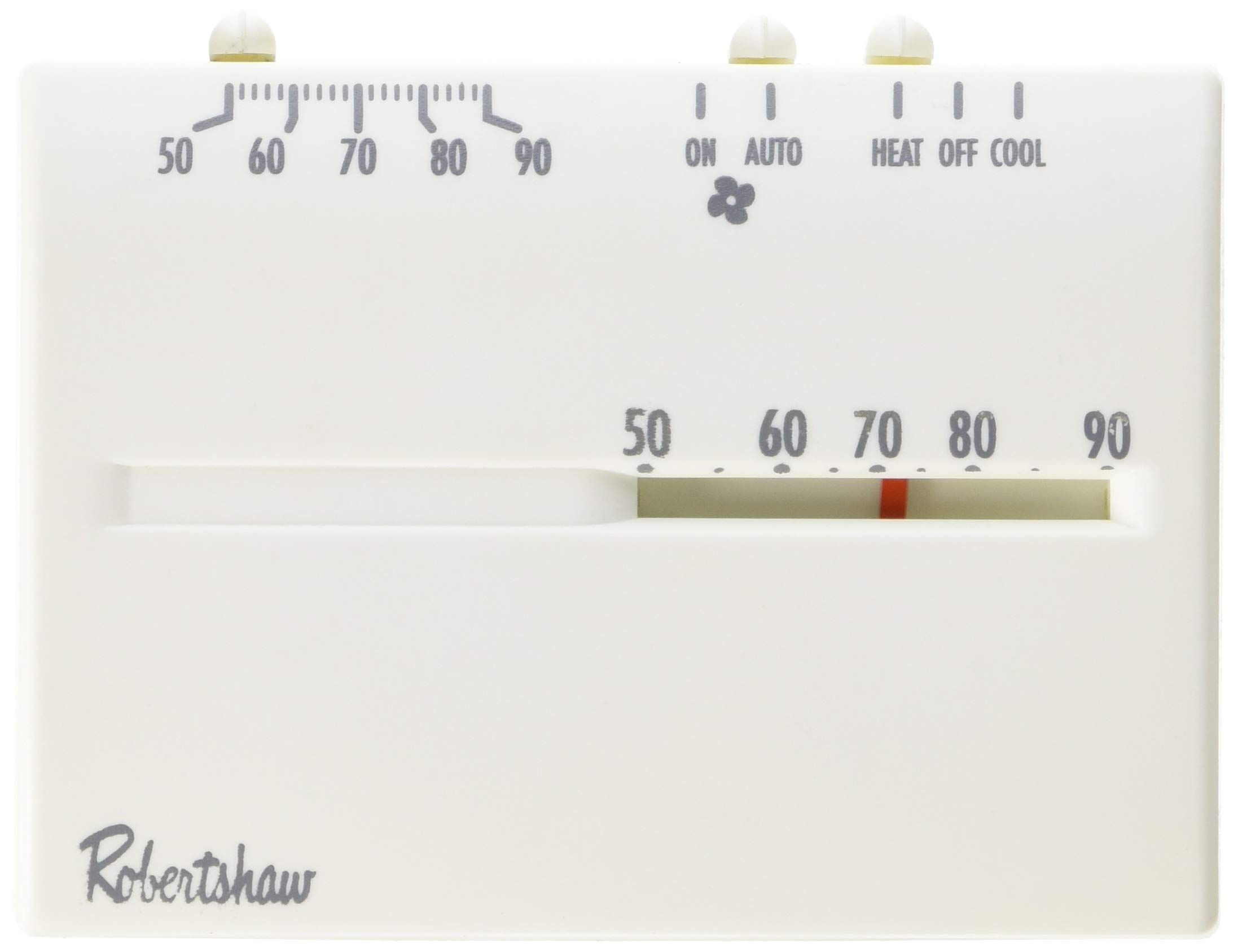

Figur 1: Forside view of the Robertshaw 9200H thermostat, showing the temperature slider and system switch. Dimensions are approximately 3.6 inches (9 cm) in height.

2. Sikkerhedsoplysninger

ADVARSEL: Always disconnect power to the heating and cooling system at the main fuse or circuit breaker panel before installing or servicing the thermostat. Failure to do so could result in electrical shock or equipment damage.

• Sørg for, at al ledningsføring overholder lokale elektriske forskrifter og bestemmelser.
• This thermostat is designed for 24 VAC systems only. Do not use it with line voltage systems (120V or 240V).
• Do not short out terminals on the gas valve or at the system control to test the thermostat. This can damage the thermostat and/or the system.
• Keep the thermostat clean and free from dust.

3. Installation

3.1 Nødvendigt værktøj

• Skruetrækker (Phillips og/eller flad)
• Trådstrippere/skærere
• Drill with appropriate bit (if new mounting holes are needed)

3.2 Monteringssted

Install the thermostat on an inside wall, approximately 5 feet (1.5 meters) above the floor. Avoid locations that are:

• Near windows or doors that may cause drafts.
• Near heat sources such as lamps, radiators, or appliances.
• I direkte sollys.
• Near supply registers or air ducts.
• In areas with poor air circulation.

3.3 Ledningsinstruktioner

1. Afbryd strømmen: Turn off the electricity to the heating and cooling system at the main fuse or circuit breaker panel.
2. Fjern gammel termostat: Carefully remove the cover of your old thermostat. Note the wire connections to each terminal. It is recommended to label each wire with the terminal designation (e.g., R, W, Y, G) before disconnecting.
3. Monter ny termostatbase: Remove the new thermostat's cover. Position the thermostat base against the wall and mark the mounting holes. Drill pilot holes if necessary, then secure the base to the wall using the provided screws.
4. Tilslut ledninger: Connect the wires from your system to the corresponding terminals on the Robertshaw 9200H thermostat. This thermostat is designed for 1-stage varme, 1-stage cool systems. Typical connections are:
   • R: 24V Power (often Red wire)
   • W: Heat Call (often White wire)
   • Y: Cool Call (often Yellow wire)
   • G: Fan Call (often Green wire)
   Ensure wires are securely fastened to their terminals.
5. Install Thermostat Cover: Once wiring is complete and secure, carefully snap the thermostat cover onto the base.
6. Gendan strøm: Turn the electricity back on at the main fuse or circuit breaker panel.

Figur 2: Intern view of the Robertshaw 9200H thermostat, illustrating the circuit board and wiring connection points. Note the terminals for R, W, Y, and G connections.

4. Betjening

The Robertshaw 9200H thermostat features simple mechanical controls for temperature and system mode selection.

4.1 Indstilling af temperaturen

• Locate the temperature slider on the front of the thermostat (refer to Figure 1).
• Slide the indicator to your desired temperature setting. The thermostat will maintain this temperature within its operating range.

4.2 Valg af systemtilstand

The system mode switch allows you to select between heating, cooling, or turning the system off.

• VARME: Select this mode for heating operation. The system will turn on when the room temperature falls below your set temperature.
• OFF: Select this mode to turn off both heating and cooling functions.
• FEDT NOK: Select this mode for cooling operation. The system will turn on when the room temperature rises above your set temperature.

4.3 Ventilatordrift

This mechanical thermostat typically operates the fan automatically with the heating or cooling call. There is no separate fan switch for continuous fan operation.

5. Vedligeholdelse

The Robertshaw 9200H thermostat requires minimal maintenance to ensure continued reliable operation.

• Rensning: Tør termostatens yderside regelmæssigt af med en blød klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at der ikke trænger fugt ind i de indvendige komponenter.
• Luftstrøm: Sørg for, at ventilationsåbningerne på termostaten casing are not obstructed by dust or debris, as this can affect temperature sensing accuracy.
• Ingen batterier påkrævet: This mechanical thermostat does not require batteries for operation.

6. Fejlfinding

Hvis du oplever problemer med din termostat, kan du se følgende almindelige problemer og løsninger:

If problems persist after attempting these solutions, contact a qualified HVAC service technician.

7. Specifikationer

• Model: 9200H
• Voltage: 24 VAC
• Systemkompatibilitet: Single-stage (1 Heat / 1 Cool) gas, oil, electric, or heat pump systems (without auxiliary heat)
• Kontroltype: Mechanical, Push Button (for system mode)
• Skærmtype: Analog
• Særlige funktioner: Heavy Duty Heat Anticipator, Hermetically Sealed Contacts
• Dimensioner: Cirka 1.8 x 4.5 x 3.5 tommer (4.57 x 11.43 x 8.89 cm)
• Varens vægt: Cirka 2.72 ounce (77 gram)
• UPC: 662013212469

8. Garanti og support

For warranty information or technical support regarding your Robertshaw 9200H thermostat, please refer to the warranty card included with your product or visit the official Robertshaw website. You may also contact Robertshaw customer service directly for assistance with product inquiries, troubleshooting, or replacement parts.

Fabrikant: Robertshaw
