MTD Optima PS 700 Sweeper Instruction Manual

Indledning

This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your MTD Optima PS 700 Sweeper, model 24B-812C678. Designed for versatile use, this powerful machine is equipped with a reliable MTD ThorX engine and a stable swivel wheel, making it suitable for various cleaning tasks, including debris removal and snow clearing in winter conditions. Please read this manual thoroughly before operating the machine to ensure proper use and longevity.

Sikkerhedsoplysninger

ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i alvorlig personskade eller død.

• Always read and understand the entire instruction manual before operating the sweeper.
• Bær passende personlige værnemidler (PPE), herunder øjenbeskyttelse, høreværn og robust fodtøj.
• Hold tilskuere, børn og kæledyr på sikker afstand af driftsområdet.
• Ensure the work area is clear of obstacles and debris that could be thrown by the brush.
• Handle fuel with extreme care. Store fuel in approved containers and refuel in a well-ventilated area with the engine off and cool.
• Never operate the machine indoors or in poorly ventilated areas due to carbon monoxide fumes.
• Before performing any maintenance or adjustments, always turn off the engine and disconnect the spark plug wire to prevent accidental starting.
• Be aware of hot surfaces, especially the engine and muffler, which can cause burns.
• Do not modify the machine in any way. Use only genuine MTD replacement parts.

Opsætning

Proper setup ensures optimal performance and safety of your MTD Optima PS 700 Sweeper.

1. Udpakning og montering

Carefully remove all components from the packaging. Assemble the handle system according to the diagrams provided in the separate assembly guide. Ensure all bolts and fasteners are securely tightened.

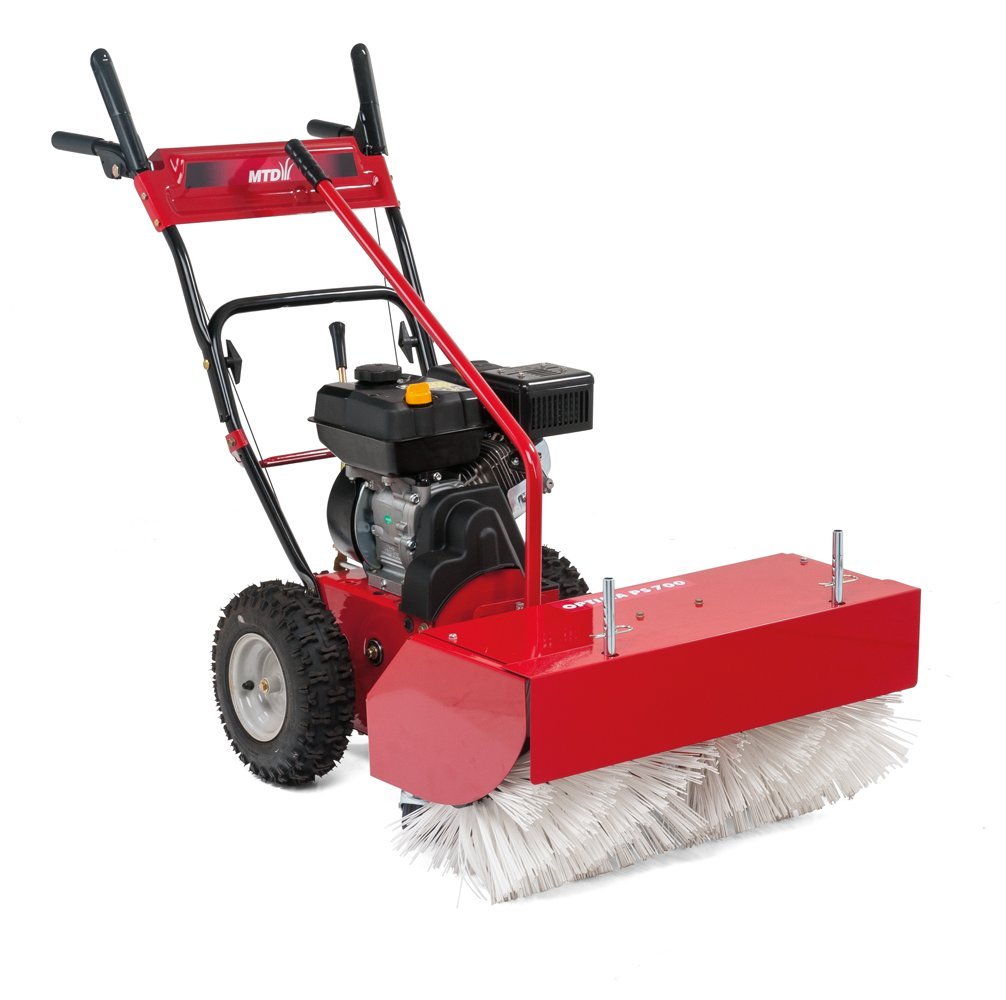

Image: The MTD Optima PS 700 Sweeper main unit, ready for assembly or initial use.

2. Engine Preparation

Your MTD ThorX engine requires oil and fuel before its first use. Refer to the engine manual for specific oil type and capacity. Fill the fuel tank with fresh, unleaded gasoline (E10 compatible) as specified by the engine manufacturer. Do not overfill.

3. Brush Height Adjustment

The sweeper features a stable swivel wheel and a unique brush lift function for reversing. Adjust the brush height to suit the surface and type of debris. For general sweeping, the brush should lightly contact the surface. For snow removal, a slightly higher setting might be appropriate to prevent excessive drag.

4. Attaching Optional Accessories

The Optima PS 700 is compatible with optional accessories such as a collection container (Part No.: 196-067-000, 47-liter volume) or a snow blade. Attach these accessories securely following their respective instruction manuals.

Image: The MTD Optima PS 700 Sweeper shown with its optional snow blade and collection box attachments.

Betjeningsvejledning

Follow these steps for safe and effective operation of your sweeper.

1. Start af motoren

1. Sørg for, at brændstoftanken er fyldt, og at oliestanden er korrekt.
2. Flyt chokerhåndtaget til 'CHOKE'-positionen (ved koldstart).
3. Press the primer bulb 3-5 times until fuel is visible in the bulb.
4. Træk i startsnoren, indtil motoren starter.
5. Once the engine runs smoothly, gradually move the choke lever to the 'RUN' position.

2. Engaging the Brush

Once the engine is running, engage the brush lever to start the sweeping action. The brush will begin to rotate, clearing debris from the path.

3. Sweeping Operation

Guide the sweeper forward at a comfortable pace. The stable swivel wheel allows for easy maneuvering. For optimal cleaning, overlap each pass slightly. The machine is versatile and can be used for various tasks, including clearing leaves, dirt, gravel, and even light snow.

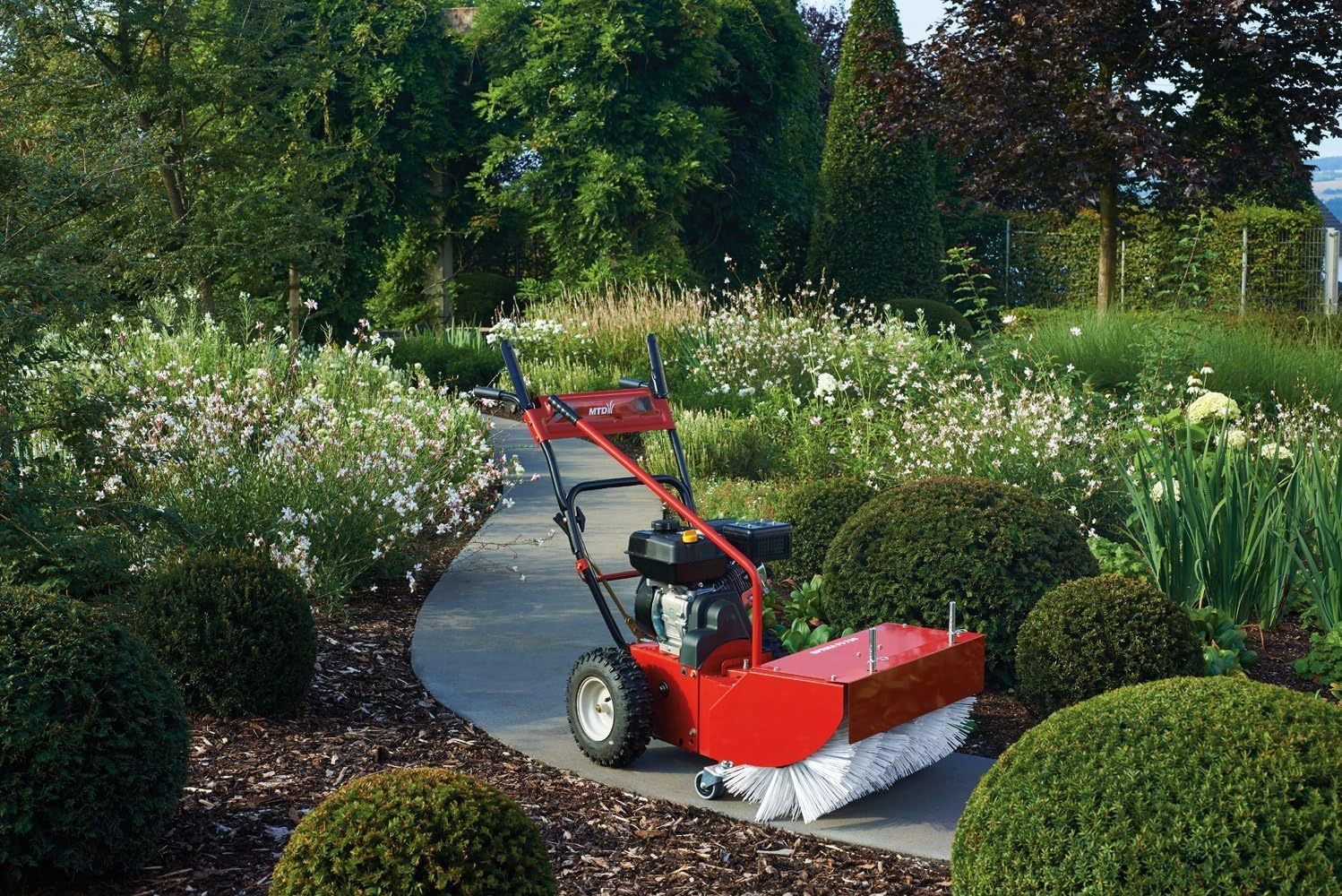

Image: The MTD Optima PS 700 Sweeper being operated on a paved garden path, demonstrating its use in a landscaped environment.

4. Brush Lift Function (Reverse)

When backing up, utilize the unique brush lift function to raise the brush off the ground. This prevents unnecessary wear on the brush and makes maneuvering easier.

5. Nedlukning

To stop the engine, move the throttle lever to the 'STOP' position or turn the ignition key (if equipped) to 'OFF'. Allow the engine to cool before storage.

Opretholdelse

Regular maintenance is crucial for the longevity and performance of your MTD Optima PS 700 Sweeper.

1. Efter hver brug

• Clean the exterior of the machine, removing any accumulated dirt, debris, or snow.
• Inspect the brush for wear and damage.
• Check for any loose fasteners and tighten as necessary.

2. Motorvedligeholdelse

Refer to the MTD ThorX engine manual for detailed maintenance schedules. Key tasks typically include:

• Olieskift: Change engine oil after the first 5 operating hours, then every 25-50 hours or annually.
• Luftfilter: Rengør eller udskift luftfilteret regelmæssigt, især i støvede forhold.
• Tændrør: Inspicer og rengør tændrøret årligt. Udskift det, hvis det er slidt eller snavset.
• Brændstofsystem: Tøm brændstoffet af til langtidsopbevaring, eller brug en brændstofstabilisator.

3. Brush Maintenance

Periodically inspect the sweeping brush for wear. Worn brushes will reduce sweeping effectiveness and may need replacement. Consult your dealer for genuine MTD replacement brushes.

4. General Lubrication

Lubricate moving parts and pivot points as indicated in the manual to ensure smooth operation and prevent rust.

Billede: En omfattende view of the MTD Optima PS 700 Sweeper, useful for identifying components during maintenance.

Fejlfinding

This section addresses common issues you might encounter with your MTD Optima PS 700 Sweeper.

Specifikationer

Garantioplysninger

MTD products are typically covered by a manufacturer's warranty. Please refer to the warranty card included with your product or contact MTD customer service for specific details regarding coverage and duration. Keep your proof of purchase for all warranty claims.

Kundesupport

For technical assistance, spare parts, or service inquiries, please contact MTD customer support. Visit the official MTD website for up-to-date contact information and to locate authorized service centers in your area. When contacting support, please have your model number (24B-812C678) and serial number ready.
