Offgridtec SPR-100 110 Watt Monocrystalline Solar Panel

1. Introduktion

Thank you for choosing the Offgridtec SPR-100 110 Watt Monocrystalline Solar Panel. This high-performance solar module is designed for efficient power generation in various applications, including RVs, boats, yachts, and off-grid systems. Featuring advanced back-contact Sunpower solar cells, this panel offers superior efficiency and a compact design. This manual provides essential information for the safe and effective installation, operation, and maintenance of your solar panel.

2. Sikkerhedsinstruktioner

• Always wear appropriate personal protective equipment (PPE) during installation, including safety glasses and insulated gloves.
• Do not attempt to disassemble or modify the solar panel. This can void the warranty and create safety hazards.
• Avoid touching the electrical terminals with bare hands when the panel is exposed to light, as it can generate voltage.
• Ensure all wiring connections are secure and properly insulated to prevent electrical shorts and fire hazards.
• Installer solpanelet et sted med tilstrækkelig ventilation og væk fra brandfarlige materialer.
• Handle the panel with care to avoid damage to the glass or frame.
• Consult a qualified electrician for complex installations or if you are unsure about any part of the process.

3. Produktet er slutview

3.1 Nøglefunktioner

• Høj effektivitet: Monocrystalline Sunpower cells with over 24% efficiency.
• Kompakt og let: Smaller and lighter than traditional modules of comparable power.
• Holdbar konstruktion: Robust black aluminum frame and specially tempered ESG solar glass.
• Excellent Low-Light Performance: Maintains high output even in less ideal lighting conditions.
• Elegant design: Back-contact cells provide a clean, uniform black appearance.
• Forborede monteringshuller: For easy installation.
• IP67 Rated Junction Box and MC4 Connectors: Ensures weather resistance and reliable connections.

3.2 Komponenter

The Offgridtec SPR-100 solar panel consists of several layers designed for optimal performance and durability:

• Robust, Low-Iron Safety Glass (ESG): Provides protection and allows maximum light transmission.
• EVA Film: Encapsulates and protects the solar cells.
• Class A+ Solar Cells: High-performance monocrystalline cells.
• PET Backsheet: Provides electrical insulation and environmental protection.
• Corrosion-Resistant Aluminum Frame: Ensures structural integrity and long outdoor lifespan.
• IP67 Waterproof Junction Box: Houses the bypass diodes and connection terminals.
• MC4 Connectors: Standard connectors for secure and waterproof electrical connections.

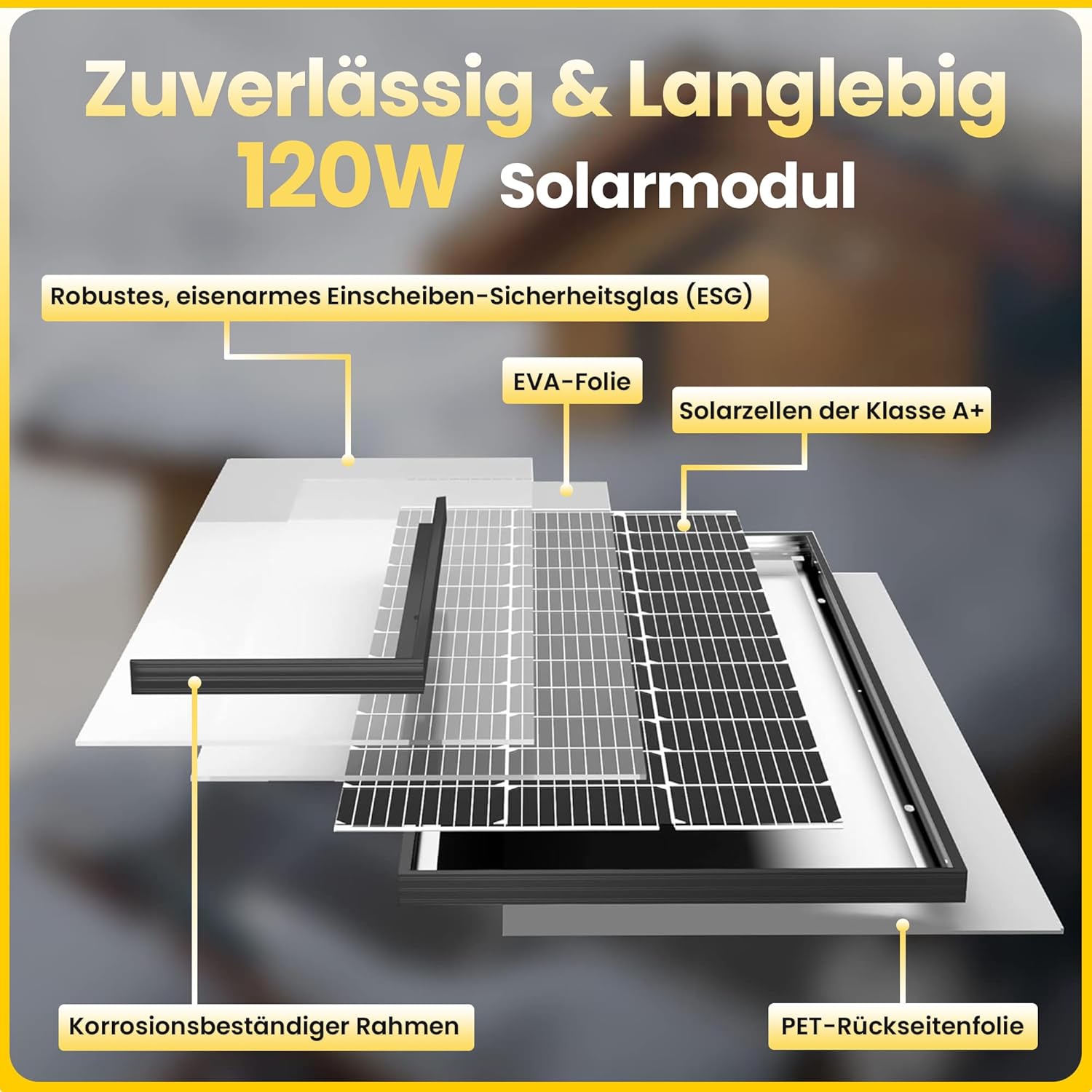

Figure 1: Internal structure of the solar module.

4. Tekniske specifikationer

The following table details the electrical and mechanical specifications of the Offgridtec SPR-100 110 Watt solar panel:

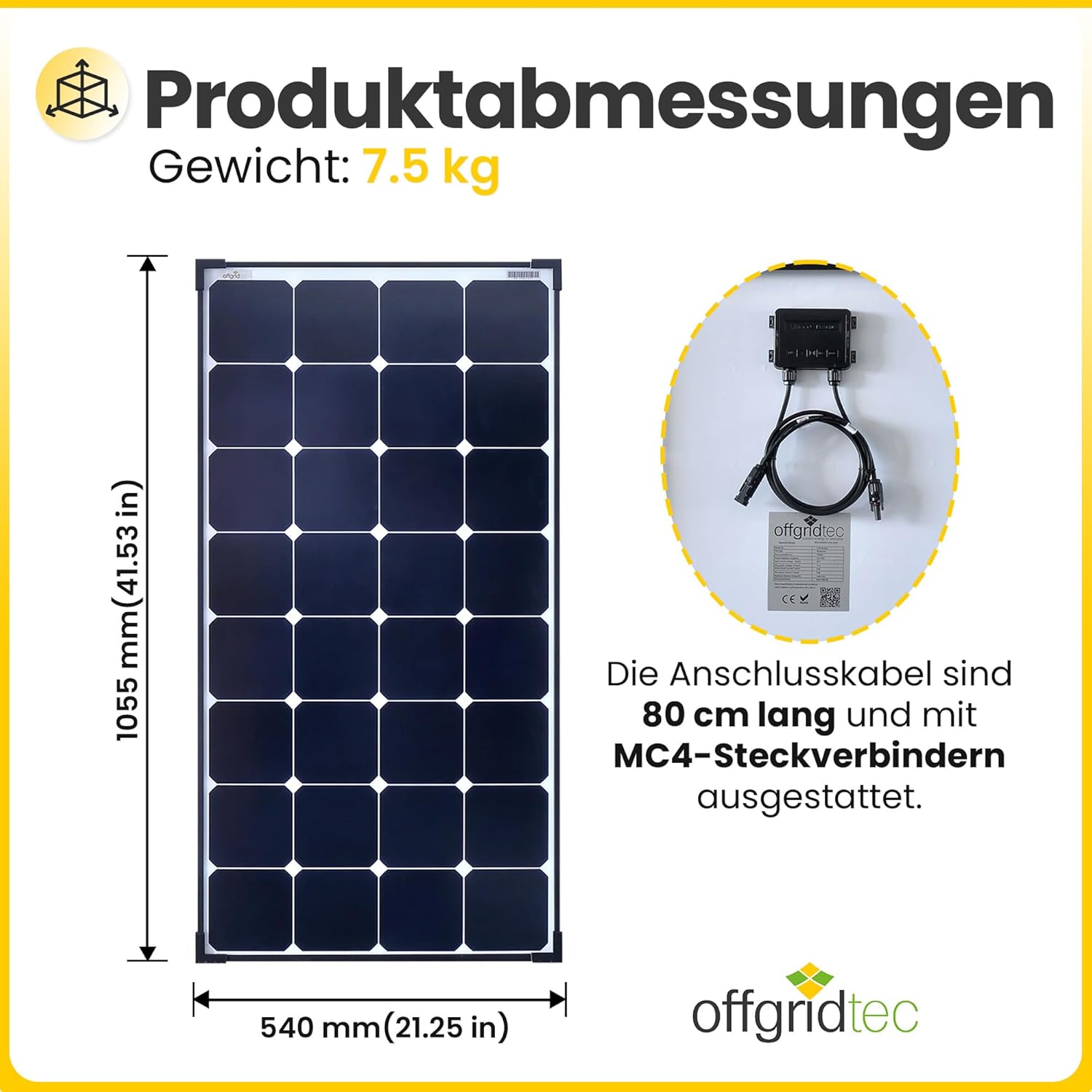

Figure 2: Product dimensions and connection details.

5. Opsætning og installation

Proper installation is crucial for the performance and longevity of your solar panel. Consider the following steps:

5.1 Valg af sted

• Vælg et sted, der får mest muligt direkte sollys hele dagen, fri for skygge fra træer, bygninger eller andre forhindringer.
• Sørg for, at monteringsfladen er stærk nok til at bære panelets vægt og modstå vindbelastninger.
• Consider the optimal tilt angle for your geographical location to maximize energy harvest throughout the year.

5.2 Montering

• The panel features pre-drilled mounting holes on its aluminum frame for secure attachment.
• Use appropriate mounting hardware (not included) suitable for your specific application (e.g., roof mounts, pole mounts, ground mounts).
• Ensure there is adequate airflow around and beneath the panel to prevent overheating, which can reduce efficiency.

Figur 3: Bagside view with junction box and mounting holes.

5.3 Elektriske forbindelser

• Connect the MC4 connectors from the solar panel to your charge controller. Ensure correct polarity (positive to positive, negative to negative).
• The panel's cables are 80 cm long. If longer cables are needed, use appropriate gauge wiring to minimize voltage drop.
• Always connect the solar panel to the charge controller first, then connect the charge controller to the battery. Disconnect in reverse order.
• Ensure all connections are tight and waterproof.

Figur 4: Eksample outdoor setup.

Figure 5: Solar panels installed on a tiny house roof.

Figure 6: Versatile applications of the solar panel.

6. Betjeningsvejledning

Once properly installed and connected to a charge controller and battery bank, your Offgridtec SPR-100 solar panel will begin generating electricity when exposed to sunlight. The charge controller will regulate the voltage and current to safely charge your batteries and power your devices.

• Overvågning: Regularly check your charge controller's display (if available) to monitor the panel's output, battery charge status, and system performance.
• Skygge: Even partial shading of the panel can significantly reduce its output. Optimize placement to minimize shading throughout the day.
• Temperatur: While solar panels operate in a wide temperature range, extreme heat can slightly reduce efficiency. Ensure good ventilation.

7. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på dit solpanel.

• Rensning: Periodically clean the surface of the solar panel with a soft cloth and mild, non-abrasive cleaner to remove dust, dirt, bird droppings, or other debris. Clean when the panel is cool, typically in the morning or evening.
• Inspektion: Annually inspect the panel for any physical damage, such as cracks in the glass, bent frames, or loose connections. Check the wiring for signs of wear or damage.
• Forbindelser: Ensure all electrical connections, especially the MC4 connectors and those at the charge controller, remain tight and free from corrosion.
• Skygge: Beskær al vegetation, der kan vokse og forårsage skygge på panelet.

8. Fejlfinding

If your solar panel system is not performing as expected, consider the following common issues and solutions:

• Ingen strømudgang:
  • Check for shading on the panel.
  • Verify all electrical connections are secure and correctly polarized.
  • Undersøg kabler for skader eller brud.
  • Ensure the charge controller is functioning correctly and connected to the battery.
• Lav effekt:
  • Clean the panel surface from dirt, dust, or debris.
  • Check for partial shading.
  • Verify the panel's tilt angle and orientation are optimized for the sun's position.
  • Consider ambient temperature; very high temperatures can slightly reduce efficiency.
• Batteri oplades ikke:
  • Sørg for, at laderegulatorens indstillinger passer til din batteritype.
  • Kontrollér batteriets tilstand; et defekt batteri kan muligvis ikke oplades.
  • Verify all connections between the panel, charge controller, and battery.

If issues persist after troubleshooting, contact Offgridtec customer support.

9. Garanti og support

Offgridtec products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or visit the official Offgridtec website. For technical support, spare parts, or warranty claims, please contact Offgridtec customer service through their official channels.
