1. Introduktion
The IKRA Ultralight FHS 1545 Electric Hedge Trimmer is designed for efficient and comfortable hedge and shrub maintenance. This manual provides essential information for safe operation, proper setup, effective use, and routine maintenance of your hedge trimmer. Please read this manual thoroughly before first use and keep it for future reference.
This hedge trimmer is notable for its lightweight design, weighing only 1.9 kg, making it one of the lightest electric hedge trimmers available. It features a 500W motor, a 45 cm cutting length, and laser-cut, diamond-ground blades for precise and powerful cuts.
2. Sikkerhedsinstruktioner
Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or damage to the product.
- Læs manualen: Familiarize yourself with all controls and safety warnings before operation.
- Personligt beskyttelsesudstyr (PPE): Always wear safety glasses or goggles, sturdy gloves, and appropriate footwear. Hearing protection is also recommended.
- Arbejdsområde: Keep the work area clear of bystanders, children, and pets. Ensure good lighting.
- Elektrisk sikkerhed: Ensure the power supply matches the tool's requirements. Use only approved extension cords suitable for outdoor use. Always disconnect the power plug from the mains before cleaning, maintenance, or if the cable is damaged. The patented cable strain relief prevents accidental disconnection during use.
- Tohåndsbetjening: This hedge trimmer is equipped with a 2-hand safety switch. The tool will only operate when both switches are engaged, ensuring safe handling.
- Klingesikkerhed: Keep hands and feet away from the cutting blades. Do not attempt to remove cut material while the blades are moving.
- Overbelastningsbeskyttelse: The mechanical overload and blockage protection system prevents damage to the gears and motor if the blades become jammed.
- Vejrforhold: Brug ikke hækkeklipperen i vådt eller regnvejr.
3. Produktet er slutview
The IKRA Ultralight FHS 1545 is engineered for ease of use and durability. Key features include:
- Ultralet design: Weighing only 1.9 kg, it reduces user fatigue during extended use.
- Kraftig motor: 500W motor provides efficient cutting performance.
- Blade af høj kvalitet: 45 cm laser-cut, diamond-ground blades made from specially hardened spring steel ensure clean and powerful cuts with minimal vibration.
- Tysk teknik: Features a German case-hardened steel gear for extremely high wear resistance and fatigue strength.
- Tohånds sikkerhedsafbryder: Enhances user safety by requiring both hands to operate the tool.
- Kabeltrækaflastning: A patented system to secure the power cable and prevent accidental disconnection.
- Mechanical Overload Protection: Protects the motor and gears from damage in case of blade blockage.

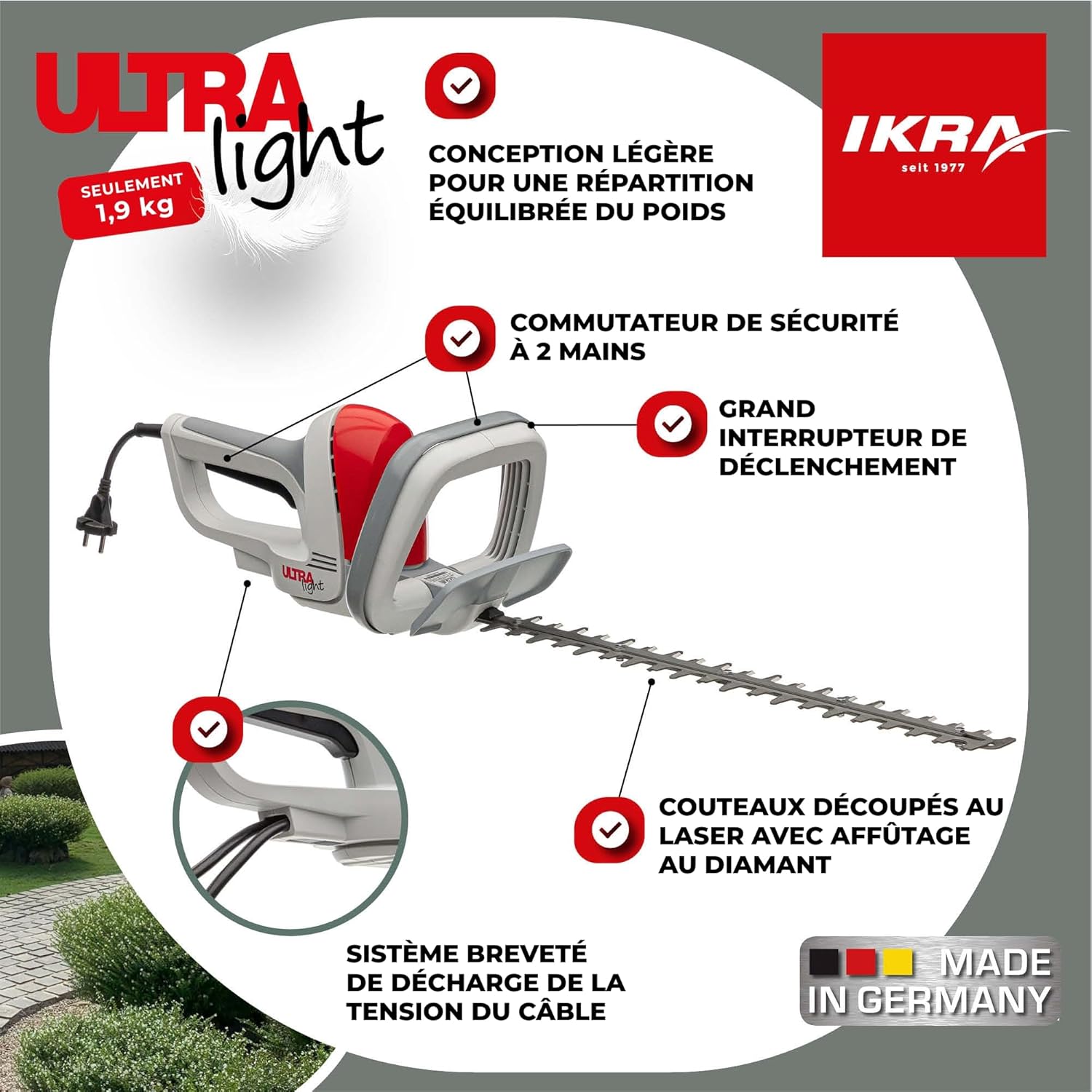

Figure 1: Key features of the IKRA FHS 1545 hedge trimmer.

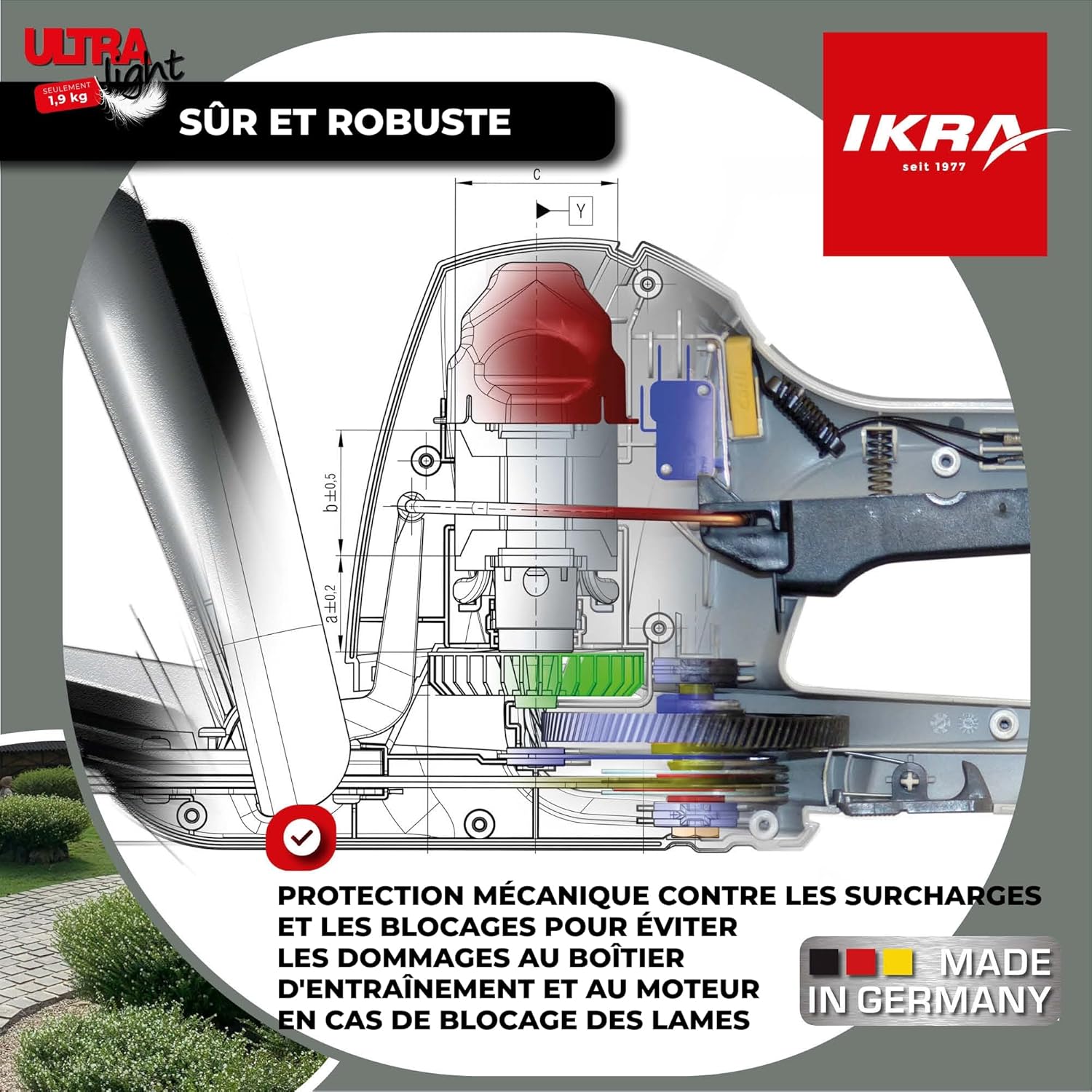

Figur 2: Intern view highlighting mechanical overload protection.

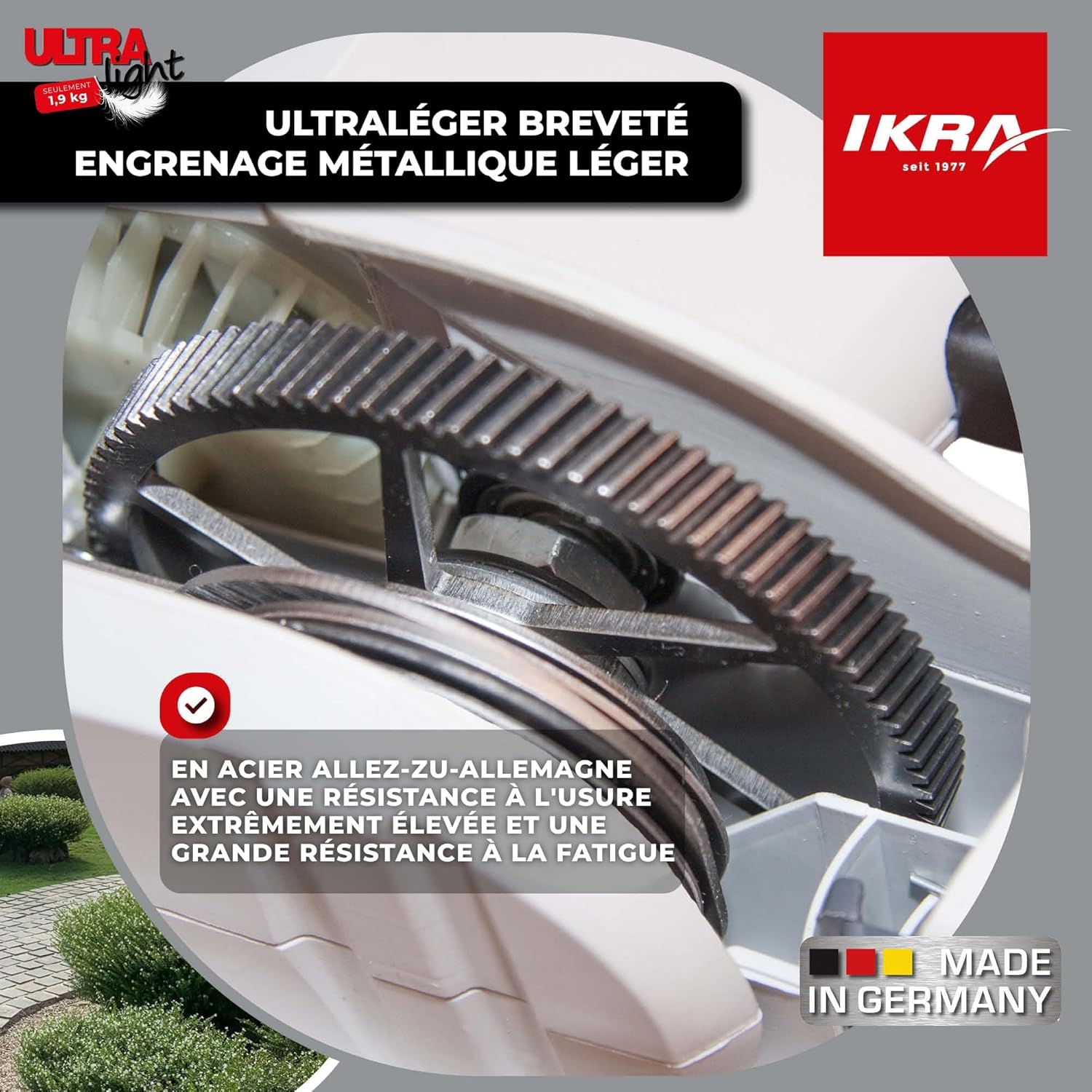

Figure 3: Detail of the durable lightweight metal gear.
4. Opsætning
Before operating your hedge trimmer, follow these steps for proper setup:
- Udpakning: Carefully remove the hedge trimmer and all accessories from the packaging. Check for any damage.
- Fjernelse af klingehylster: Slide the protective blade sheath off the cutting blades. Store the sheath in a safe place for future use.
- Strømtilslutning: Connect the hedge trimmer's power cord to an appropriate outdoor-rated extension cord. Ensure the extension cord is in good condition and suitable for the power requirements of the tool.
- Sikkert kabel: Utilize the patented cable strain relief system to secure the extension cord to the hedge trimmer's handle. This prevents accidental unplugging during operation.
- Tænd: Plug the extension cord into a suitable power outlet.
Video 1: Demonstrates the unpacking, removal of the blade sheath, and proper connection of the power cord using the cable strain relief system for the IKRA FHS 1545 hedge trimmer.
5. Betjeningsvejledning
Follow these guidelines for effective and safe hedge trimming:
- Kontrol før operation: Before each use, inspect the hedge trimmer for any loose parts, damaged blades, or frayed cables. Ensure all safety features are functional.
- Start af trimmeren: To start the hedge trimmer, hold it firmly with both hands. Engage both the front handle switch and the rear handle trigger simultaneously. The 2-hand safety switch ensures the tool only operates when held correctly.
- Trimningsteknik: Maintain a firm grip and a balanced stance. Move the hedge trimmer smoothly and steadily along the hedge. For optimal results, use a sweeping motion. Avoid forcing the blades through thick branches.
- Skærekapacitet: The FHS 1545 can cut branches up to approximately 18 mm in thickness. For thicker branches, use appropriate pruning shears.
- Arbejdsstilling: The lightweight and balanced design allows for comfortable and safe operation in various working positions.
- Stop af trimmeren: Release either the front handle switch or the rear handle trigger to stop the blades.
- Efter operationen: Disconnect the power cord from the mains after use.
Figure 4: Proper technique for trimming hedges.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din hækkeklippers lange levetid og optimale ydeevne.
- Rensning: After each use, disconnect the power and clean the blades and housing. Remove any sap, leaves, or debris using a brush or cloth.
- Klingepleje: Periodically apply a light machine oil or blade lubricant to the cutting blades to prevent rust and ensure smooth operation.
- Opbevaring: Always re-attach the durable protective blade sheath before storing the hedge trimmer. Store the tool in a dry, secure place, out of reach of children.
- Inspektion: Regularly check the power cord for damage and the blades for sharpness and integrity. Replace damaged parts immediately.
7. Fejlfinding
Hvis du støder på problemer med din hækkeklipper, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Hækkeklipperen starter ikke. | No power supply; 2-hand safety switch not engaged; damaged cable. | Check power connection; ensure both switches are pressed; inspect and replace damaged cable. |
| Blades are jammed or cutting poorly. | Debris in blades; dull blades; cutting branches too thick. | Disconnect power, clear debris; sharpen or replace blades; use appropriate tools for thick branches. |
| Overdreven vibration. | Damaged or unbalanced blades; loose components. | Inspect blades for damage; tighten all fasteners; contact customer support if issue persists. |
8. Specifikationer
Technical data for the IKRA Ultralight FHS 1545 Electric Hedge Trimmer:
- Modelnummer: 44154500
- Magt: 500 W
- Skærelængde: 45 cm
- Cutting Thickness (Max): Ca. 18 mm
- Vægt: 1.9 kg
- Materiale: Alloy Steel (blades: Stainless Steel)
- Strømkilde: Elektrisk med ledning
- Produktmål (L x B x H): 87 x 21 x 20 cm
- Farve: Grå / Rød
Figure 5: Visual representation of key technical data.
9. Garanti og support
The IKRA Ultralight FHS 1545 Electric Hedge Trimmer comes with a 3 års producentgaranti. For warranty claims, technical support, or spare parts inquiries, please contact IKRA customer service or your authorized dealer. Keep your proof of purchase for warranty validation.
