Severin MW 9693 Microwave Oven Instruction Manual

Indledning

Thank you for choosing the Severin MW 9693 Microwave Oven. This appliance is designed to provide efficient and versatile cooking solutions for your home. To ensure safe operation and optimal performance, please read this instruction manual thoroughly before using the appliance and keep it for future reference. This manual covers important information regarding installation, operation, maintenance, and troubleshooting.

Vigtige sikkerhedsinstruktioner

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, burns, or injury to persons. Please observe the following:

• Læs alle instruktioner før brug af apparatet.
• Do not operate the oven if the door or door seals are damaged. Contact qualified service personnel for repair.
• Opvarm ikke væsker eller andre fødevarer i lukkede beholdere, da de er tilbøjelige til at eksplodere.
• Lad kun børn bruge ovnen uden opsyn, når der er givet tilstrækkelige instruktioner, så barnet er i stand til at bruge ovnen på en sikker måde og forstår farerne ved forkert brug.
• Brug kun redskaber, der er egnede til brug i mikrobølgeovne.
• Ved opvarmning af mad i plast- eller papirbeholdere skal du holde øje med ovnen på grund af muligheden for antændelse.
• Hvis der observeres røg, sluk eller tag stikket ud af stikkontakten og hold døren lukket for at kvæle eventuelle flammer.
• Lad være med at overkoge mad.
• Brug ikke ovnen til opbevaring. Efterlad ikke papirprodukter, køkkenredskaber eller mad i ovnen, når den ikke er i brug.
• Liquids heated in a microwave oven can boil over suddenly. Exercise caution when removing containers.
• Indholdet af sutteflasker og babymadsglas bør omrøres eller rystes, og temperaturen kontrolleres før indtagelse for at undgå forbrændinger.
• Apparatet skal rengøres regelmæssigt, og eventuelle madrester skal fjernes.
• Manglende vedligeholdelse af ovnen i ren tilstand kan føre til forringelse af overfladen, hvilket kan påvirke apparatets levetid negativt og muligvis resultere i en farlig situation.

Produkt overview

The Severin MW 9693 is a versatile microwave oven featuring multiple cooking functions including microwave, grill, and convection. It has a 23-liter capacity and an 800-watt microwave power output.

Figur 1: Front view of the Severin MW 9693 microwave oven with the door closed, showing the control panel on the right.

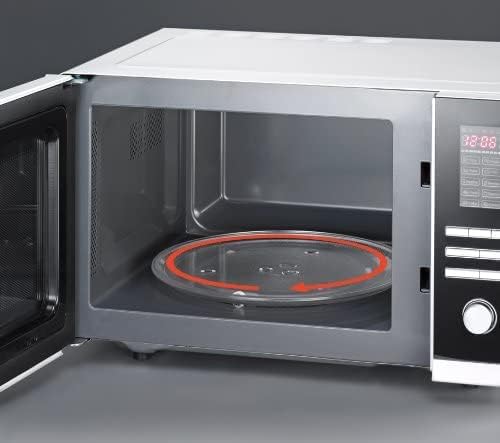

Figur 2: Indre view of the microwave oven with the door open, showing the glass turntable and roller ring in place. The red arrow indicates the rotation direction.

Figur 3: Indre view of the microwave oven with the door open, showing the glass turntable, roller ring, and the metal grill rack positioned on top of the turntable.

Kontrolpanel Beskrivelse

The control panel consists of a digital display, various function buttons, and a rotary dial for setting time and weight.

Figur 4: Close-up of the digital display showing "88:88" and a grid of auto menu buttons for various food types like Pizza, Potato, Meat, Fish, Vegetable, Beverage, Pasta, Popcorn, Cake, and Chicken. The "Vegetable" button is highlighted.

Figur 5: Close-up of the function buttons, including symbols for microwave, grill, convection, defrost, clock, and quick start. These buttons are used to select cooking modes and settings.

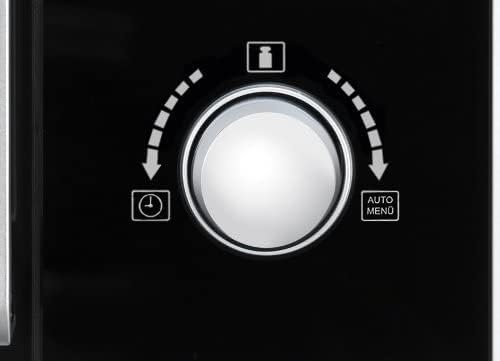

Figur 6: Close-up of the central rotary dial, used for adjusting time, weight, and navigating auto menu options. Arrows indicate adjustment directions, and "AUTO MENU" is visible.

Opsætning og installation

1. Udpakning: Fjern forsigtigt mikrobølgeovnen og alt emballagemateriale. Kontroller for eventuelle skader. Brug ikke mikrobølgeovnen, hvis den er beskadiget.
2. Placering: Place the oven on a flat, stable surface strong enough to hold its weight plus the heaviest food item likely to be cooked. Ensure adequate ventilation space: at least 20 cm (8 inches) above the oven, 10 cm (4 inches) at the rear, and 5 cm (2 inches) on each side. Do not block air vents.
3. Strømtilslutning: Sæt netledningen i en stikkontakt med jordforbindelse. Sørg for, at lydstyrken ertage stemmer overens med klassificeringsetiketten på ovnen.
4. Drejebordssamling: Place the roller ring in the depression on the oven floor. Place the glass turntable on top of the roller ring, ensuring it sits securely.
5. Første brug: Tør indersiden og ydersiden af ​​med en sprayflaske før første brug.amp cloth. Run the microwave empty for a few minutes on high power to eliminate any manufacturing odors.

Betjeningsvejledning

Dette afsnit beskriver de forskellige tilberedningsfunktioner og hvordan de bruges.

Indstilling af uret

1. Tryk på Ur button (refer to Figure 5).
2. Turn the rotary dial (Figure 6) to set the hour.
3. Tryk på Ur knappen igen.
4. Turn the rotary dial to set the minutes.
5. Tryk på Ur button one more time to confirm.

Mikroovn madlavning

1. Placer maden i en mikrobølgeovnssikker beholder på glasdrejetallerkenen.
2. Luk ovndøren.
3. Tryk på Mikrobølgeovn button (refer to Figure 5) repeatedly to select the desired power level (e.g., 100%, 80%, 50%, 30%, 10%).
4. Turn the rotary dial (Figure 6) to set the cooking time.
5. Tryk på Starte knappen for at starte madlavningen.

Grill madlavning

1. Place food on the grill rack (Figure 3) and then on the glass turntable.
2. Luk ovndøren.
3. Tryk på Grill button (refer to Figure 5).
4. Turn the rotary dial (Figure 6) to set the grilling time.
5. Tryk på Starte knappen for at begynde at grille.

Konvektion madlavning

1. Place food in an oven-safe dish on the grill rack or directly on the turntable.
2. Luk ovndøren.
3. Tryk på Konvektion button (refer to Figure 5) repeatedly to select the desired temperature.
4. Turn the rotary dial (Figure 6) to set the cooking time.
5. Tryk på Starte knappen for at starte varmluftstilberedning.

Combination Cooking (Microwave + Grill / Convection)

The MW 9693 offers combined cooking modes for faster and more even results.

1. Select the desired combination mode by pressing the appropriate button (e.g., Microwave+Grill or Microwave+Convection, refer to Figure 5).
2. Turn the rotary dial (Figure 6) to set the cooking time.
3. Tryk på Starte knap.

Auto Menu Programmer

The oven features pre-set programs for common food items (Figure 4). These programs automatically set the cooking time and power level based on the food type and weight.

1. Press the desired auto menu button (e.g., Grøntsag, Pizza, Popcorn).
2. Turn the rotary dial (Figure 6) to select the weight or quantity of the food.
3. Tryk på Starte knappen for at begynde.

Afrimning efter vægt

1. Placer den frosne mad i ovnen.
2. Tryk på Optøning button (refer to Figure 5).
3. Turn the rotary dial (Figure 6) to select the weight of the food.
4. Tryk på Starte knappen for at starte optøningen.

Vedligeholdelse og rengøring

Regelmæssig rengøring og korrekt vedligeholdelse vil sikre din mikrobølgeovns levetid og effektive drift.

• Før rengøring: Tag altid stikket ud af stikkontakten før rengøring.
• Ovn interiør: Tør det indvendige hulrum af efter hver brug med enamp cloth. For stubborn stains, use a mild detergent. Avoid abrasive cleaners or scouring pads.
• Ovndør: Clean the door, door seals, and window with a soft cloth and mild detergent. Ensure no food particles accumulate in the door seal area.
• Glaspladespiller og rullering: Disse kan vaskes i varmt sæbevand eller i opvaskemaskinen. Sørg for, at de er helt tørre, før du sætter dem tilbage i ovnen.
• Ydre: Tør de udvendige overflader af med en blød, damp klæde. Brug ikke skrappe kemikalier eller slibende materialer.
• Lugtfjernelse: To remove odors, combine a cup of water with the juice of one lemon in a microwave-safe bowl. Microwave on high for 5-7 minutes.

Fejlfinding

If you encounter any issues with your Severin MW 9693, please refer to the following common problems and solutions before contacting customer service.

Specifikationer

Garanti og support

For warranty information, please refer to the warranty card included with your product or visit the official Severin website. If you require technical assistance, spare parts, or have questions not covered in this manual, please contact Severin customer support.

You can typically find contact details on the Severin official webwebstedet eller på din købsdokumentation.
