Steba DD 1 ECO Electronic Pressure Cooker User Manual

1. Introduktion

Thank you for choosing the Steba DD 1 ECO Electronic Pressure Cooker. This appliance is designed to provide efficient and versatile cooking. Please read this manual thoroughly before first use to ensure safe operation and optimal performance. Keep this manual for future reference.

Vigtige sikkerhedsinstruktioner

• Always ensure the lid is properly closed and locked before operating the pressure cooker.
• Do not fill the inner pot beyond the maximum fill line to prevent overfilling and potential blockages.
• Never attempt to force open the lid while the cooker is pressurized. Wait until all pressure has been released.
• Keep hands and face clear of the steam release valve during operation and when releasing-tryk.
• Use caution when handling hot surfaces. Always use oven mitts or handles.
• Sørg for, at tætningsringen er korrekt installeret og fri for skader før hver brug.
• Dette apparat er kun til husholdningsbrug. Må ikke bruges udendørs.
• Tag stikket ud af stikkontakten, når det ikke er i brug, og før rengøring.

2. Produktet er slutview

The Steba DD 1 ECO is a multi-functional electronic pressure cooker made from durable stainless steel. It offers various cooking functions and features for convenient meal preparation.

Nøglefunktioner:

• Multifunktionel madlavning: Supports pressure cooking (two pressure levels), slow cooking, roasting, and reheating.
• Effektiv madlavning: Cooks food up to 70% faster than traditional methods, saving energy.
• Flavor Preservation: Designed to retain the natural flavors and nutrients of your food.
• Forudindstillede programmer: Features nine pre-programmed settings for common dishes.
• Forsinkelsestimer: A 12-hour delay timer allows for flexible meal planning.
• Nem rengøring: Components are designed for simple cleaning, with dishwasher-safe parts.
• Damp madlavning: Includes a container with a base for steam cooking.

Komponenter:

The Steba DD 1 ECO Electronic Pressure Cooker typically includes the following main components:

• Main Unit with Heating Element and Control Panel
• Removable Inner Pot (Stainless Steel)
• Lid with Sealing Ring, Pressure Release Valve, and Float Valve
• Steam Rack/Trivet
• Målebæger
• Serveringsske

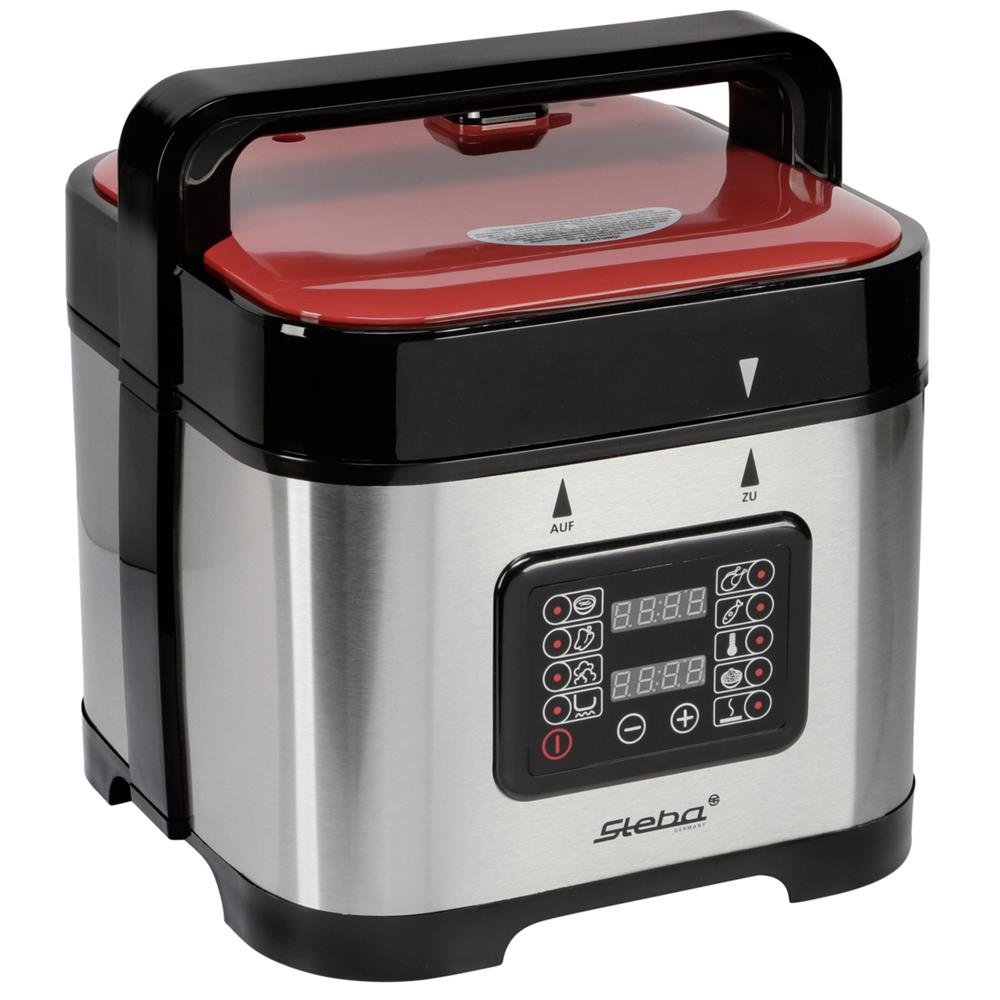

Image: The Steba DD 1 ECO Electronic Pressure Cooker, showcasing its stainless steel exterior, control panel, and lid. The main unit houses the heating element, and the inner pot is visible inside.

3. Opsætning og første brug

Udpakning:

1. Fjern forsigtigt alle emballagematerialer fra kassen.
2. Inspect the pressure cooker and all accessories for any damage. Do not use if damaged.

Indledende rengøring:

1. Wash the inner pot, lid (including the sealing ring and steam release valve), and all accessories with warm, soapy water. Rinse thoroughly and dry completely.
2. Tør ydersiden af ​​hovedenheden af ​​med enamp klud. Hovedenheden må aldrig nedsænkes i vand.

Placering:

1. Place the pressure cooker on a stable, level, heat-resistant surface away from direct heat sources.
2. Ensure there is adequate space around the cooker for ventilation, especially above the steam release valve.

First Test Run (Water Test):

It is recommended to perform a water test before cooking food to familiarize yourself with the appliance and ensure it is functioning correctly.

1. Tilsæt 2-3 kopper vand til den inderste gryde.
2. Placer den indre gryde i hovedenheden.
3. Close the lid, ensuring it is securely locked. The steam release valve should be in the 'Sealing' position.
4. Sæt netledningen i.
5. Select a short pressure cooking program (e.g., 'Soup' for 5 minutes) or manually set it.
6. Once the program finishes, allow the pressure to release naturally or use the quick release method (if applicable and safe).
7. Open the lid carefully and discard the water. The cooker is now ready for use.

4. Betjeningsvejledning

The Steba DD 1 ECO offers various cooking modes. Always refer to specific recipes for recommended cooking times and liquid amounts.

Basic Pressure Cooking:

1. Tilsæt ingredienser og væske til den indre beholder. Overskrid ikke MAX-påfyldningslinjen.
2. Placer den indre gryde i hovedenheden.
3. Close the lid and turn it clockwise until it locks into place. Ensure the steam release valve is set to 'Sealing'.
4. Plug in the power cord. The display will show 'OFF'.
5. Select a pre-set program (e.g., 'Meat', 'Rice', 'Soup') or use the manual settings for desired pressure level and cooking time.
6. The cooker will begin to preheat. Once pressure is reached, the cooking timer will start counting down.
7. After cooking, the cooker will beep and may switch to 'Keep Warm' mode.
8. Trykudløsning: Allow pressure to release naturally (NPR) or use the quick release method (QR) by carefully turning the steam release valve to 'Venting'. Always follow recipe instructions for pressure release.
9. Once the float valve drops, indicating all pressure is released, open the lid by turning it counter-clockwise.

Forudindstillede programmer:

The cooker features nine pre-set programs. To use, select the desired program from the control panel. You may adjust the cooking time if needed before the program starts.

Manuel madlavning:

For custom recipes, use the manual settings to adjust cooking time and pressure level (high or low pressure, if available on your model).

Langsom madlavning:

1. Tilføj ingredienser til den inderste gryde.
2. Placer den indre gryde i hovedenheden.
3. Close the lid (it does not need to be sealed for slow cooking, but can be for heat retention). Set the steam release valve to 'Venting'.
4. Select the 'Slow Cook' program and adjust the cooking time as required.

Forsinket starttimer:

The 12-hour delay timer allows you to program the cooker to start at a later time.

1. Forbered dine ingredienser og læg dem i den indre gryde.
2. Select your desired cooking program and adjust the cooking time.
3. Press the 'Delay Start' button and use the '+' or '-' buttons to set the desired delay time.
4. Komfuret starter automatisk efter den indstillede forsinkelsestid.

5. Rengøring og vedligeholdelse

Regular cleaning and maintenance ensure the longevity and safe operation of your Steba DD 1 ECO Electronic Pressure Cooker.

Før rengøring:

• Tag altid stikket ud af komfuret og lad det køle helt af før rengøring.

Indre gryde:

• The stainless steel inner pot is dishwasher safe.
• For hand washing, use warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry.
• Ved genstridige madrester, læg gryden i blød i varmt vand før rengøring.

Låg:

• The lid can be washed by hand with warm, soapy water.
• Remove the sealing ring and wash it separately. Ensure it is clean and flexible before re-installing.
• Check the steam release valve and float valve for any food particles and clean them as needed. Ensure they move freely.
• Låget tåler opvaskemaskine.

Hovedenhed:

• Tør ydersiden af ​​hovedenheden af ​​med enamp klæde.
• Nedsænk aldrig hovedenheden i vand eller anden væske.
• Ensure the heating element and surrounding area are clean and dry before storage or next use.

Opbevaring:

• Opbevar trykkogeren et tørt sted.
• For optimal sealing ring longevity, store the lid inverted on the inner pot to prevent compression.

6. Fejlfinding

If you encounter issues with your Steba DD 1 ECO Electronic Pressure Cooker, refer to the following common problems and solutions:

7. Specifikationer

Technical details for the Steba DD 1 ECO Electronic Pressure Cooker:

8. Garanti og support

For warranty information, please refer to the warranty card included with your product or contact the retailer where you purchased the Steba DD 1 ECO Electronic Pressure Cooker. Keep your proof of purchase for warranty claims.

If you require technical assistance or have questions not covered in this manual, please contact Steba customer support or your local service center. Contact details can typically be found on the manufacturer's webwebsted eller produktemballage.
