Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE Euroeco New Basin Mixer 32734000. To ensure proper function and longevity of your product, please read these instructions carefully before beginning installation or use. Keep this manual for future reference.

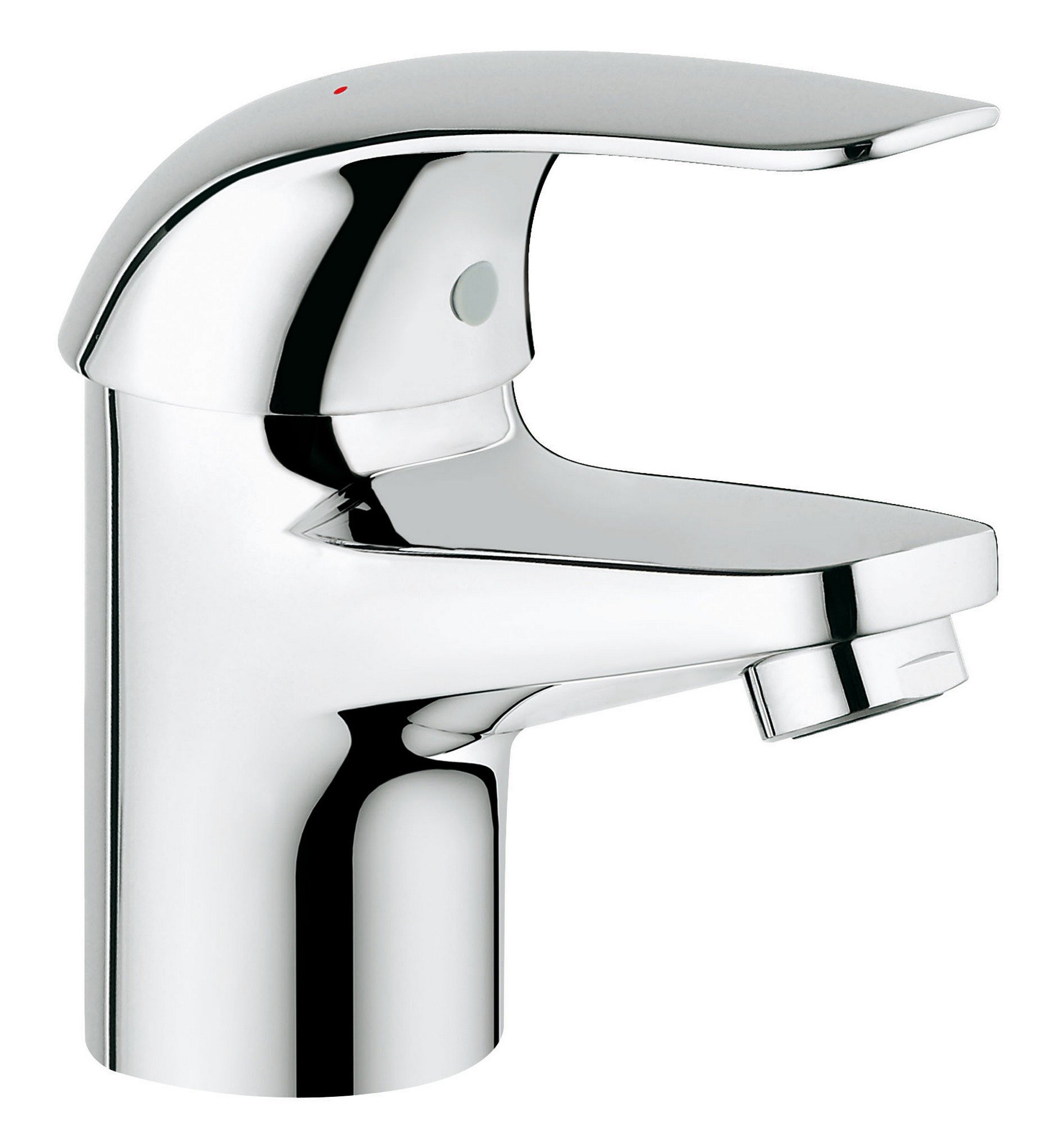

Image: The GROHE Euroeco New Basin Mixer 32734000, showcasing its chrome finish and single lever design.
Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger under installation og brug:
- Sluk for hovedvandforsyningen, før du påbegynder installations- eller vedligeholdelsesarbejde.
- Sørg for, at alle forbindelser er sikre for at forhindre lækager.
- Hvis du er usikker på nogen del af installationsprocessen, skal du kontakte en kvalificeret VVS-installatør.
- Do not use abrasive cleaners or harsh chemicals on the faucet's surface, as this can damage the finish.
- Beskyt produktet mod frost.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- GROHE Euroeco New Basin Blander enhed
- Mounting Hardware (washers, nuts)
- Flexible Connection Hoses (integrated)
- Adapter (as specified for UK compression adaptors 15 mm x 3/8 Inch, Grohe 46914000)
- Brugermanual
Opsætning og installation
The GROHE Euroeco New Basin Mixer is designed for single-hole, deck-mount installation. Follow these general steps:
- Forbered monteringsoverfladen: Sørg for, at basin or countertop has a single mounting hole of the appropriate size. Clean the area thoroughly.
- Installer vandhanen: Insert the faucet body into the mounting hole. From underneath the basin, secure the faucet using the provided washer and mounting nut. Tighten firmly but do not overtighten.
- Tilslut vandforsyning: The mixer includes integrated flexible connection hoses. Connect these hoses to your hot and cold water supply lines. Note that UK Compression Adaptors 15 mm x 3/8 Inch (Grohe 46914000) are required for proper connection in some regions. Ensure all connections are watertight.
- Test for lækager: Slowly turn on the main water supply and check all connections for leaks. Operate the faucet to ensure proper water flow and temperature adjustment.
Note: For visual guidance, refer to the installation diagrams typically included in the physical product packaging.
Betjeningsvejledning
The GROHE Euroeco New Basin Mixer features a single lever for effortless control of water flow and temperature.
- Tænd/sluk: Lift the lever to turn on the water. Push the lever down to turn off the water.
- Justering af vandgennemstrømning: The height to which you lift the lever controls the water flow rate. Lift higher for more flow, lower for less.
- Justering af temperatur: Move the lever to the left for hot water and to the right for cold water. The central position provides mixed water. The specially designed cartridge ensures smooth movement and precise control.
Note: For visual guidance on handle operation, refer to the diagrams typically included in the physical product packaging.
Vedligeholdelse og pleje
To maintain the scratch-resistant and easy-to-clean chrome finish of your GROHE Euroeco New Basin Mixer, follow these care instructions:
- Regelmæssig rengøring: Rengør vandhanen regelmæssigt med en blød klud og mild sæbe eller et ikke-slibende flydende rengøringsmiddel.
- Undgå barske kemikalier: Brug ikke slibende svampe, skuresvampe eller rengøringsmidler, der indeholder alkohol, ammoniak, blegemiddel eller fosforsyre, da disse kan beskadige kromfinishen.
- Skyl grundigt: After cleaning, rinse the faucet thoroughly with clean water and dry it with a soft cloth to prevent water spots.
- Vedligeholdelse af belufter: Periodically unscrew and clean the aerator (at the spout tip) to remove any mineral deposits or debris that may affect water flow.
Note: For visual guidance on cleaning the aerator, refer to the diagrams typically included in the physical product packaging.
Fejlfinding
If you encounter any issues with your basin mixer, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lav vandgennemstrømning | Clogged aerator; partially closed stopcock; low water pressure in supply. | Clean the aerator; ensure stopcocks are fully open; check main water supply pressure. |
| Lækage fra tud | Slidt patron; snavs i patronen. | Contact GROHE customer service for cartridge replacement or professional assistance. |
| Lækage fra base | Løs monteringsmøtrik; dårlig tætning. | Check and tighten the mounting nut; ensure seals are correctly seated. |
| Vanskeligheder med at justere temperaturen | Cartridge issue; imbalanced water pressure. | Ensure hot and cold water supplies are balanced; contact GROHE customer service. |
Specifikationer
- Modelnummer: 32734000
- Mærke: GROHE
- Monteringstype: Dækmontering
- Antal huller: 1
- Udfør type: Chrome
- Materiale: Chrome / Metal
- Antal håndtag: 1 (Lever Handle)
- Tuddesign: Standard Basin Mixer Spout
- Krav til tryk: High pressure, over 1.0 bar
- Særlige funktioner: Scratch resistant and easy to clean finish, effortless to install and maintain.
- Required Adaptors: UK Compression Adaptors 15 mm x 3/8 Inch, Grohe 46914000 (if applicable)
- Varens vægt: Approximately 1 Kilogram
Garanti og support
GROHE products are manufactured to the highest quality standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official GROHE webwebsted.
For technical support, spare parts, or any other inquiries, please contact GROHE customer service through their official channels. When contacting support, please have your model number (32734000) and purchase information readily available.
