Jacuzzi SIGNATURE Acrylic Oval Whirlpool Drop-In Bathtub

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Jacuzzi SIGNATURE Acrylic Oval Whirlpool Drop-In Bathtub. Designed for ultimate relaxation and therapeutic benefits, this bathtub features a 6-jet massage system, an integrated heater, and a slip-resistant surface. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

Figure 1.1: Jacuzzi SIGNATURE Acrylic Oval Whirlpool Drop-In Bathtub.

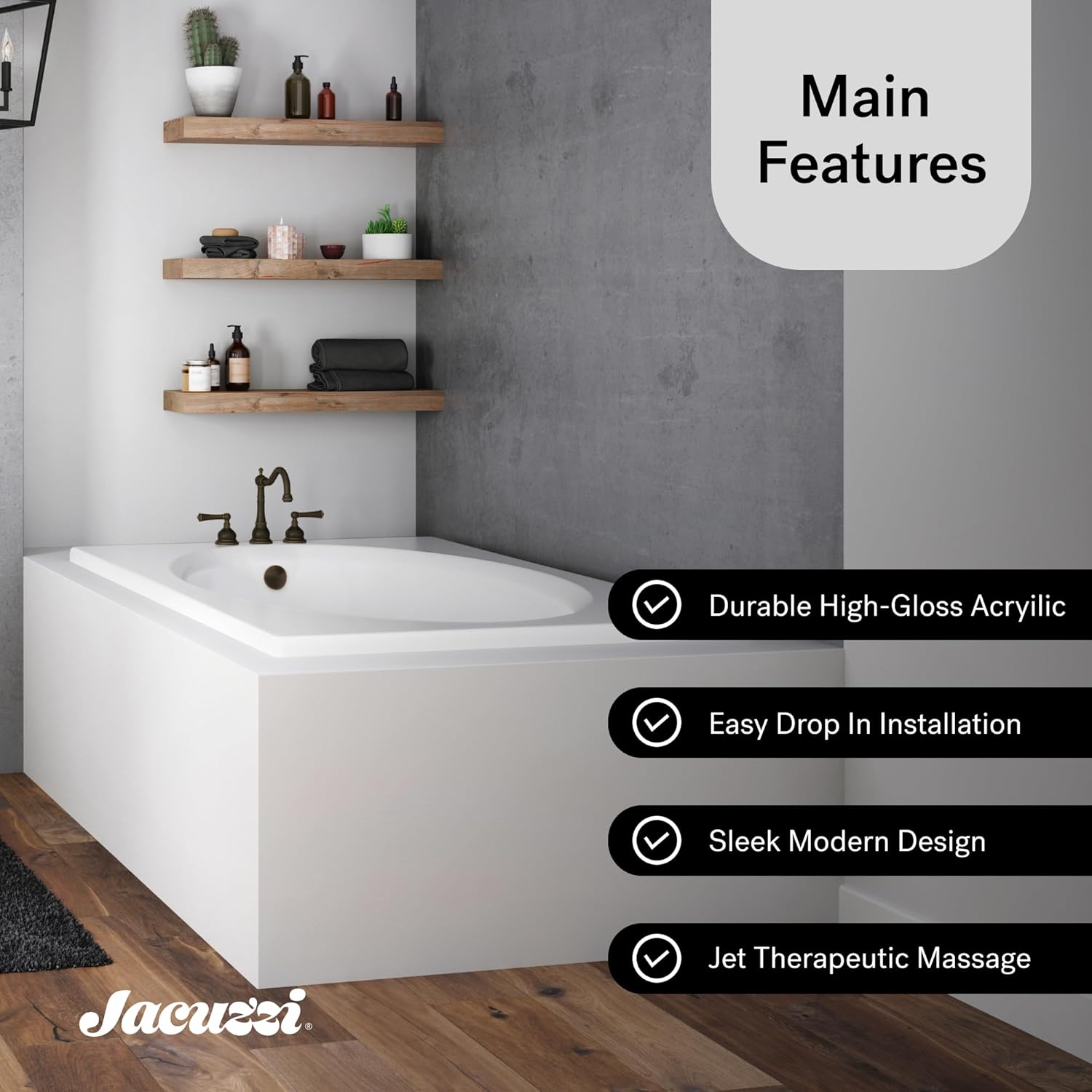

Figure 1.2: Key features of the Jacuzzi Signature Bathtub.

2. Sikkerhedsoplysninger

WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. Consult a physician before use if you have any medical conditions. This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).

• Always ensure proper electrical grounding and installation by a qualified professional.
• Do not operate the whirlpool system without sufficient water level.
• Avoid using abrasive cleaners or harsh chemicals that may damage the acrylic surface.
• Ensure the bathtub is securely installed according to local building codes and the provided installation manual.

3. Opsætning og installation

The Jacuzzi SIGNATURE Bathtub is designed for drop-in installation. For detailed step-by-step instructions, please refer to the official Installation Manual PDF available her.

Nødvendige værktøjer (ikke inkluderet):

• Skruetrækker
• Målebånd
• Tang

Compatible Drain Kits (Sold Separately):

Drain Kits are required to complete installation. Compatible kits include:

• PG35959, PG35817, PG35824, PG35826, PG35827, PG35845
• HP55826, HP55827, HP55845
• LH33827, LH33826, LH33845

Figure 3.1: Compatible Drain Kits for Jacuzzi Signature Bathtubs.

4. Betjeningsvejledning

Whirlpool Jet Massage with Heater:

Your Jacuzzi SIGNATURE Bathtub features six high-performance POINTPRO jets and a therapeutic heater. To activate the whirlpool system, ensure the bathtub is filled with water above the jets. The jets provide customizable intensity and directionality for optimal air and water therapy.

Hydrotherapy Experiences:

Jacuzzi bathtubs offer various hydrotherapy experiences. The Signature products specifically offer soaking and whirlpool options:

Figur 4.2: Overview of various hydrotherapy experiences available with Jacuzzi bathtubs.

• Iblødsætning: A simple and calm pleasure to sit, stretch, read, and relax in a deep bath.
• Heated Soak: Allows for a longer soak without adding more hot water, maintaining a comfortable temperature.
• Spabad: An invigorating and therapeutic massage powered by the legendary Jacuzzi jet system.

5. Vedligeholdelse

The Jacuzzi SIGNATURE Bathtub is crafted from high-quality acrylic, ensuring easy maintenance and enduring beauty. Regular cleaning is recommended to preserve its finish and functionality.

Rengøring af badekarret:

• Use a soft cloth or sponge with a non-abrasive, mild bathroom cleaner.
• Skyl grundigt med rent vand efter rengøring.
• Avoid using abrasive pads, harsh chemicals, or solvents, as these can damage the acrylic surface.

Jet and Plumbing System Maintenance:

• Periodically run the whirlpool system with a specialized jet cleaner or a mixture of warm water and a small amount of dish soap to prevent buildup.
• Follow the instructions on the jet cleaner product for best results.

6. Fejlfinding

If you encounter issues with your Jacuzzi SIGNATURE Bathtub, please review the following common troubleshooting tips. For more complex problems, it is recommended to contact a qualified technician or Jacuzzi customer support.

Almindelige problemer:

• No Power to the Unit:
  Check the circuit breaker. Ensure the GFCI (Ground Fault Circuit Interrupter) is not tripped. Verify all electrical connections are secure.
• Jets Not Functioning:
  Ensure the water level is above the jets. Check for any obstructions in the jet nozzles. Verify the pump is receiving power.
• Vand, der ikke opvarmes:
  Confirm the heater is properly connected and receiving power. Ensure the water level is adequate for heater operation.
• Usædvanlige lyde:
  Inspect the pump and motor for any loose components or debris. Ensure the bathtub is level and securely installed to prevent vibrations.

7. Specifikationer

The following table details the specifications for the Jacuzzi SIGNATURE Acrylic Oval Whirlpool Drop-In Bathtub (Model ND14959).

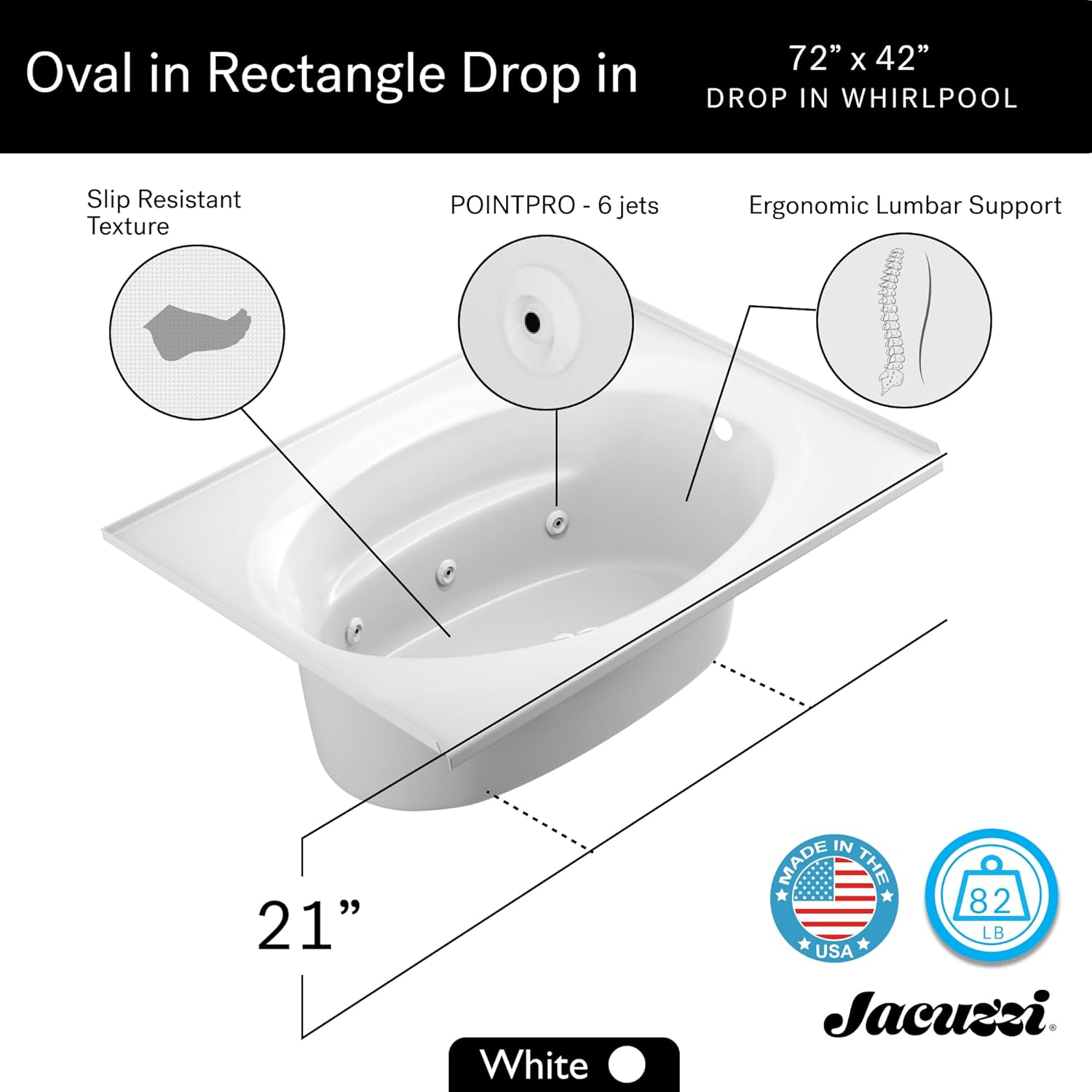

Figure 7.1: Dimensions and key features of the Jacuzzi Signature Bathtub.

Figure 7.2: Detailed specification sheet with dimensions.

Figure 7.3: Technical specifications and diagrams for Jacuzzi Signature bathtubs.

8. Garanti og support

Garantioplysninger:

Jacuzzi stands by its products with an industry-leading quality commitment. For specific warranty details and terms, please refer to the documentation included with your purchase or visit the official Jacuzzi webwebsted.

Kundesupport:

For any questions, technical assistance, or service requests, please contact Jacuzzi Group customer support. You can also find additional resources and FAQs on the Jacuzzi Store on Amazon or refer to the full Installationsmanual (PDF).
