ACORN 2570-025-000 Plastic Valve Body

1. Introduktion

This manual provides essential information for the proper installation, operation, and maintenance of the ACORN 2570-025-000 Plastic Valve Body. This valve body is designed for use in lavatories, showers, and combination lavatory and toilet valve systems. Please read these instructions thoroughly before installation and retain for future reference.

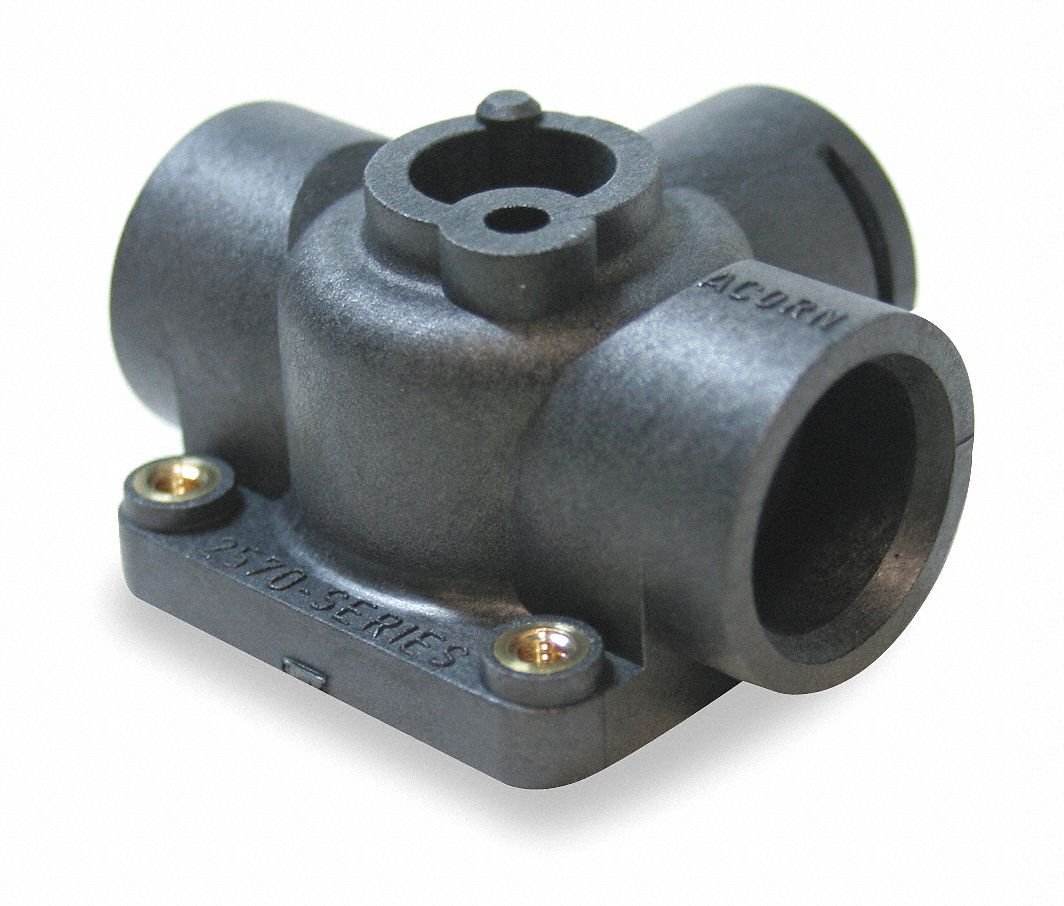

Figure 1: ACORN 2570-025-000 Plastic Valve Body

2. Sikkerhedsoplysninger

Always observe basic safety precautions when installing or servicing plumbing components. Failure to follow these instructions could result in property damage or personal injury.

• Sørg for, at hovedvandforsyningen er slukket, før du påbegynder installation eller vedligeholdelse.
• Bær passende personlige værnemidler, såsom sikkerhedsbriller og handsker.
• Hvis du er usikker på nogen del af installationsprocessen, skal du kontakte en kvalificeret VVS-installatør.
• Do not overtighten connections, as this may damage the plastic components.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter med installationen.

• 1 x ACORN 2570-025-000 Plastic Valve Body

4. Installationsvejledning

Follow these steps for proper installation of the valve body.

1. Sluk for vandforsyningen: Locate the main water shut-off valve for your property and turn it off. Open nearby faucets to drain any remaining water from the lines.
2. Forbered forbindelser: Ensure the inlet and outlet pipes are clean and free of debris. The valve body features threaded inlet and outlet connections.
3. Påfør tætningsmiddel: Apply an appropriate thread sealant (e.g., PTFE tape or pipe dope) to the male threads of the pipes that will connect to the valve body.
4. Tilslut indløb: Carefully thread the inlet pipe into the valve body's inlet connection. Hand-tighten first, then use a wrench to tighten an additional 1/4 to 1/2 turn. Avoid overtightening.
5. Tilslut stikkontakt: Thread the outlet pipe into the valve body's outlet connection. Follow the same tightening procedure as the inlet. The outlet connection size is 2 inches.
6. Undersøg forbindelser: Visually inspect all connections to ensure they are secure.
7. Genopret vandforsyningen: Slowly turn the main water supply back on. Check for any leaks at the connections. If leaks occur, turn off the water, tighten the connection slightly, and recheck.

5. Betjening

The ACORN 2570-025-000 is a valve body designed to integrate into a larger plumbing system. Its primary function is to provide the structural housing and connection points for internal valve components (not included with this valve body) that control water flow to lavatories, showers, or combination units. Once installed, its operation is passive, facilitating the function of the internal valve mechanisms.

6. Vedligeholdelse

Regular inspection and proper maintenance can extend the life of your valve body.

• Periodisk eftersyn: Periodically check for any signs of leaks, cracks, or damage to the valve body.
• Rensning: If necessary, clean the exterior of the valve body with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that could damage the plastic material.
• Udskiftning af komponenter: If the valve body shows signs of significant wear or damage, it should be replaced.

7. Fejlfinding

This section addresses common issues that may arise with the valve body.

8. Specifikationer

Key technical details for the ACORN 2570-025-000 Valve Body.

9. Garanti og support

For warranty information and technical support, please contact Acorn directly. Details regarding specific warranty periods and terms are typically provided with the product packaging or can be obtained from the manufacturer's official webwebsted.

Fabrikant: AGERN
Webwebsted: www.acorneng.com (Eksamplinket, bekræft venligst det officielle webwebsted)
