Indledning
Thank you for choosing the Maxx Ice MIM250 Commercial Ice Maker. This manual provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your ice machine. Please read this manual thoroughly before installation and use, and retain it for future reference.
The Maxx Ice MIM250 is designed for commercial use, capable of producing up to 260 pounds of full dice ice cubes daily with a self-contained storage bin capacity of 75 pounds. Its durable stainless steel construction ensures longevity and ease of cleaning. This unit is suitable for both freestanding and built-in applications.
Nøglefunktioner:
- ICE PRODUCTION: Produces up to 260 pounds of full dice ice cubes daily.
- AMPLE STORAGE: Self-contained storage bin with 75 pounds of ice storage capacity and a polyethylene interior liner.
- LET VEDLIGEHOLDELSE: Easy-to-clean exterior is constructed of durable stainless steel with black trim.
- ICE SCOOP: Includes an ice scoop.
- COMPACT UNIT: Compact, self-contained unit can be installed freestanding or built-in.
Sikkerhedsoplysninger
ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du læse alle instruktioner, før du bruger dette apparat.
- Afbryd altid apparatets strømforsyning før rengøring eller service.
- Brug ikke apparatet med en beskadiget ledning eller stik.
- Sørg for korrekt jording for at undgå elektriske farer.
- Hold ventilationsåbninger fri af forhindringer.
- Dette apparat er kun beregnet til kommerciel brug.
- Refer to the warning label on the back of the unit for specific electrical and safety instructions.

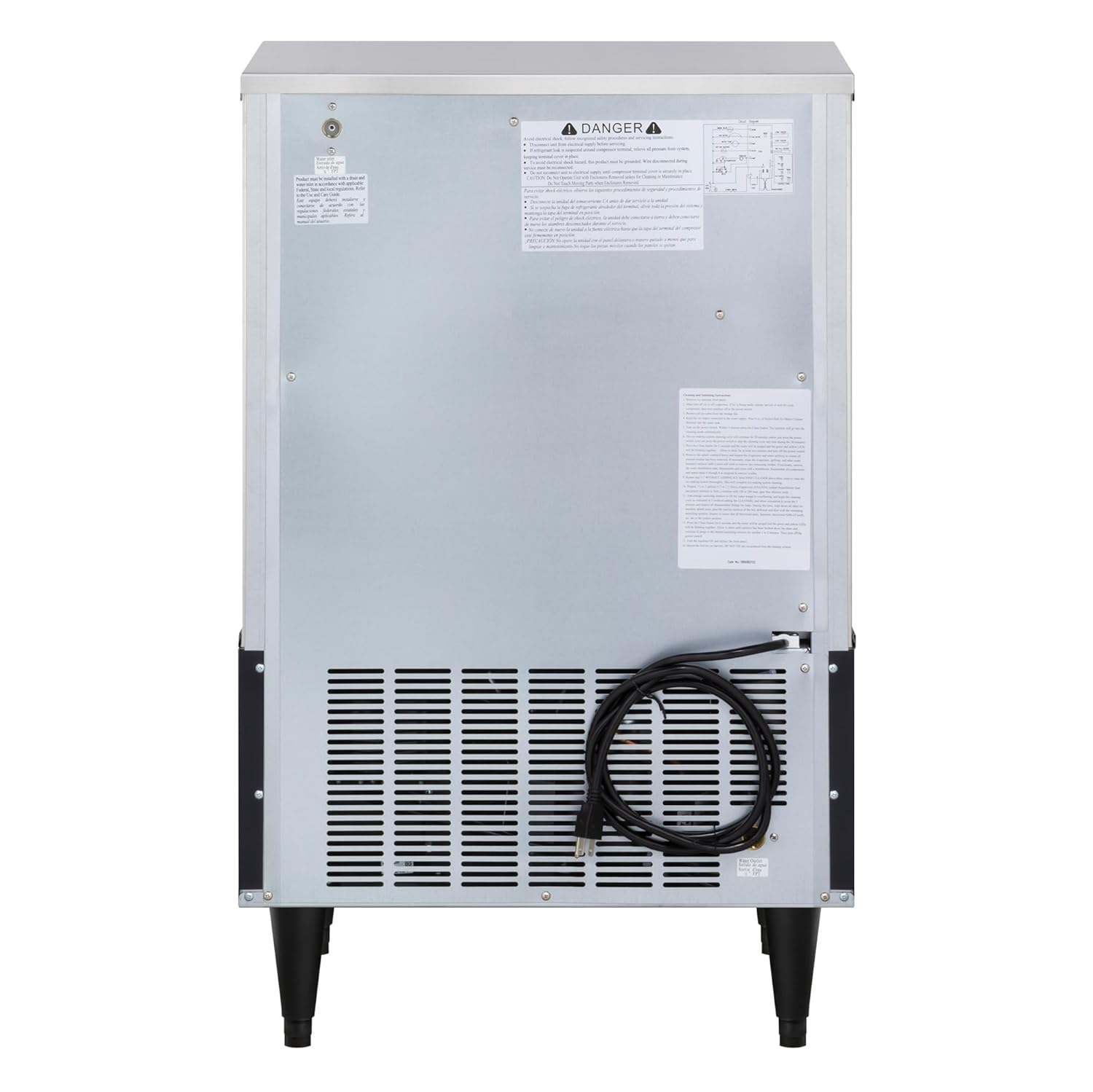

The rear of the ice maker showing the ventilation grilles and the DANGER warning label, which provides critical safety information regarding electrical connections and operation.
Opsætning og installation
Udpakning:
- Fjern alle emballagematerialer, inklusive tape og skum.
- Undersøg enheden for eventuelle transportskader. Rapporter straks eventuelle skader til transportfirmaet.
- Ensure all accessories, including the ice scoop and care manual, are present.
Beliggenhed:
- Place the ice maker on a flat, level surface capable of supporting its weight when full of ice and water.
- Allow adequate clearance around the unit for proper ventilation. The unit requires sufficient airflow for efficient operation.
- Undgå direkte sollys eller varmekilder.
- The adjustable legs allow for height adjustment from 4.7 to 7 inches, facilitating built-in or freestanding applications.
A diagram illustrating the external dimensions of the Maxx Ice MIM250, with a depth of 24 inches, width of 24 inches, and height of 38.6 inches (including legs), crucial for planning installation space.
Elektrisk tilslutning:
- The unit operates on 120 Volts / 60Hz / 1 Phase.
- A 6-foot (2M) NEMA 5-15P cord set is included. Ensure the electrical outlet matches the plug type and voltage krav.
- Connect to a dedicated, grounded circuit. Do not use extension cords.
A visual representation of the NEMA 5-15P plug type and the required 120V / 60Hz / 1PH voltage, essential for correct electrical setup.
Vandtilslutning:
- Connect the ice maker to a potable water supply using appropriate plumbing.
- Install a water filter to ensure optimal ice quality and prolong the life of the unit.
- Ensure proper drainage for melted ice and wastewater.
Betjeningsvejledning
Indledende opstart:
- After connecting water and power, turn on the ice maker.
- The unit will begin its ice-making cycle automatically. The first few batches of ice may be smaller or irregular; this is normal.
- Discard the first 2-3 batches of ice to ensure the system is clean.
Isproduktion:
The Maxx Ice MIM250 produces full dice ice cubes. The ice production process is fully automatic. The unit will continue to make ice until the storage bin is full, then it will pause and resume production as ice is removed.
En detaljeret view of the internal ice production mechanism, showing the evaporator plate where ice cubes are formed before being released into the storage bin.
The Maxx Ice MIM250 with its front access door open, revealing the ample storage bin filled with freshly produced ice cubes.
Isopsamling:
Use the provided ice scoop to retrieve ice from the storage bin. Always use the scoop to maintain hygiene and prevent contamination.
The included ice scoop positioned within the ice storage bin, demonstrating its convenient placement for easy ice retrieval.
Opretholdelse
Regular maintenance is crucial for the longevity and efficient operation of your Maxx Ice MIM250.
Udvendig rengøring:
- Wipe down the stainless steel exterior with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Clean the air filter (located behind the front grille) regularly to ensure proper airflow and prevent overheating.
Interior Cleaning and Sanitization:
- Empty the ice bin and clean the interior with a solution of mild soap and water.
- Sanitize the ice bin and water system periodically using a food-grade sanitizer solution. Follow the sanitizer manufacturer's instructions carefully.
- Rinse thoroughly with clean water after cleaning and sanitizing.
Afkalkning:
Mineral deposits can build up in the water system over time, affecting ice production. Use a commercial ice machine descaler as recommended by the manufacturer. Follow the descaler's instructions for proper use and safety.
Fejlfinding
Før du ringer efter service, bedes du kontrollere følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen isproduktion | No power; Water supply off; Clogged water filter; High ambient temperature. | Check power connection and circuit breaker; Ensure water supply valve is open; Replace water filter; Ensure proper ventilation and room temperature. |
| Ice production too slow | Dirty condenser; Low water pressure; Mineral buildup. | Clean condenser coils; Check water supply pressure; Perform descaling procedure. |
| Isterninger er små eller hule | Low water flow; Mineral buildup; Incorrect water level. | Check water supply; Descale the unit; Consult manual for water level adjustment. |
| Vand lækker | Loose water connections; Clogged drain line. | Tighten all water connections; Clear the drain line. |
| Usædvanlig støj | Løse komponenter; Blokering af ventilator; Problem med kompressor. | Inspect for loose parts; Clear any obstructions from fan; Contact qualified service technician if compressor noise persists. |
Specifikationer
| Specifikation | Værdi |
|---|---|
| Modelnummer | MIM250 |
| Mærke | Maxx is |
| Isproduktionskapacitet | Up to 260 pounds per day |
| Lagerkapacitet | 75 pund |
| Produktmål (D x B x H) | 24" D x 24" B x 38.6" H |
| Voltage | 120 volt |
| Frekvens | 60 Hz |
| Fase | 1 fase |
| Fabrikant | Asbury Foodservice - In Network |
| Første ledige dato | 11. maj 2011 |
Garanti og support
Maxx Ice products are manufactured to high-quality standards. For warranty information and terms, please refer to the warranty card included with your product or visit the official Maxx Ice webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
Kundesupport:
If you encounter issues not covered in the troubleshooting section or require professional service, please contact Maxx Ice customer support. Contact details can typically be found on the manufacturer's webwebsted eller i produktemballagen.
When contacting support, please have your model number (MIM250) and serial number ready to expedite assistance.
