Denon AVR2112CI Integrated Network A/V Surround Receiver Instruction Manual

1. Introduktion

The Denon AVR2112CI is a 7.1-channel integrated network A/V surround receiver designed to manage your home theater audio and video components. It features multiple HDMI inputs and outputs, along with various analog connections, to support a wide range of entertainment sources. This receiver includes capabilities for 3D pass-through and an Audio Return Channel, enhancing its compatibility with modern display technologies. An integrated Ethernet port enables access to internet radio and other streaming services.

Nøglefunktioner:

• 7.1-kanals integreret netværks-A/V-receiver
• HDMI 1.4a med 6 indgange og 1 udgang, der understøtter 3D-indhold
• AirPlay Ready for wireless audio streaming
• Diskret strøm AmpForstærkere med en effekt på 90 watt pr. kanal
• Enhanced Network Capability for internet radio and streaming

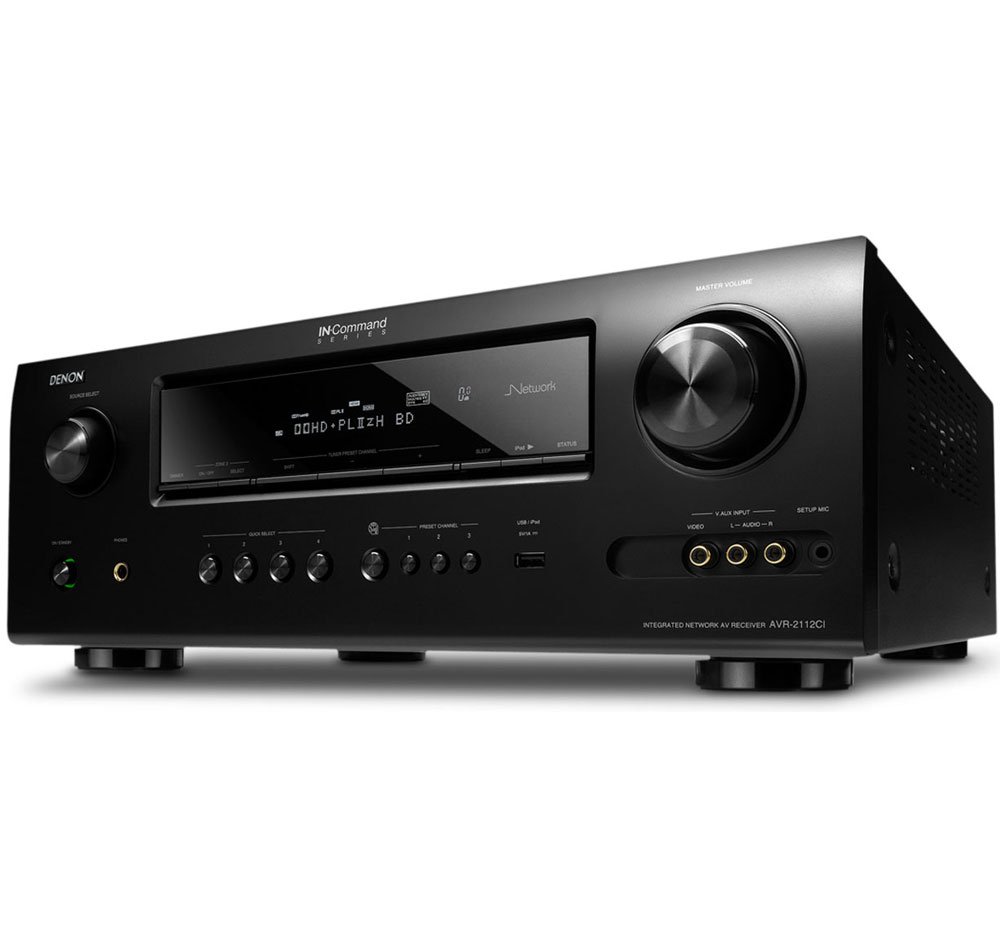

Front view of the Denon AVR2112CI Integrated Network A/V Surround Receiver, showcasing dens display- og betjeningsknapper.

2. Opsætning

Proper setup is crucial for optimal performance of your Denon AVR2112CI receiver. This section outlines the basic steps for connecting your components and initial configuration.

2.1. Forbindelser

Connect your audio and video sources to the appropriate inputs on the rear panel of the receiver. The AVR2112CI features:

• HDMI-indgange: 6 HDMI 1.4a inputs for high-definition video and audio from devices like Blu-ray players, game consoles, and cable/satellite boxes.
• HDMI udgang: 1 HDMI 1.4a output to connect to your television or projector. This output supports 3D pass-through and Audio Return Channel (ARC) if your display also supports ARC.
• Komponentvideoindgange: For older video sources.
• Sammensatte videoindgange: For videokilder i standard definition.
• USB-indgang: Til tilslutning af USB-lagerenheder.
• Ethernet-port: Connect to your home network for internet radio and streaming services.
• Højttalerterminaler: Connect your 7.1 channel speakers. Ensure correct polarity (+/-) for each speaker.

2.2. Indledende konfiguration

After connecting all components, power on the receiver and your display. The receiver features an on-screen display (OSD) to guide you through the initial setup process. Utilize the included Audyssey MultEQ XT setup system for automatic speaker calibration. This system measures your room acoustics and speaker characteristics to optimize sound output for your listening environment.

For network features, connect the receiver to your home network via an Ethernet cable. Follow the on-screen prompts to configure network settings, which may include DHCP or static IP address setup.

3. Betjeningsvejledning

This section covers the basic and advanced operational aspects of your Denon AVR2112CI receiver.

3.1. Grundlæggende betjening

• Tænd/sluk: Brug tænd/sluk-knappen på frontpanelet eller fjernbetjeningen.
• Valg af input: Select the desired input source (e.g., Blu-ray, Game, TV) using the input selector buttons on the front panel or remote.
• Lydstyrkekontrol: Adjust the master volume using the large knob on the front panel or the volume buttons on the remote. The on-screen display will show the current volume level.
• Lydtilstande: Select various surround sound modes (e.g., Stereo, Dolby Digital, DTS) to match your content and preference.

3.2. Netværksfunktioner

The AVR2112CI offers extensive network capabilities:

• Internet radio: Access a wide variety of internet radio stations.
• Streamingtjenester: Supported services include Pandora and Napster.
• DLNA: Stream musik filefra kompatible enheder på dit hjemmenetværk (f.eks. pc, NAS).
• AirPlay: Stream audio wirelessly from Apple devices (iPhone, iPod touch, iPad) or iTunes on your Mac/PC. Ensure your Apple device and the receiver are on the same network. AirPlay can also be used to stream to Zone 2.

3.3. Multi-Zone Operation (Zone 2)

The receiver supports multi-zone audio, allowing you to play a different audio source in a second zone (Zone 2) while the main zone plays another. This is particularly useful for extending music playback to outdoor speakers or another room.

3.4. Kontrolmetoder

You can control the receiver using:

• The included remote control.
• The Denon remote app for Android devices.
• Front panel controls.

4. Vedligeholdelse

To ensure the longevity and optimal performance of your Denon AVR2112CI receiver, follow these maintenance guidelines:

• Ventilation: The receiver generates heat during operation. Ensure adequate air circulation around the unit. Do not place it in an enclosed cabinet without proper ventilation. Maintain at least 4 inches (10 cm) of clear space above the unit.
• Rensning: Dust the unit regularly with a soft, dry cloth. Avoid using liquid cleaners or solvents, which can damage the finish.
• Magt: Disconnect the power cord from the wall outlet during electrical storms or when the unit is left unattended for long periods.

5. Fejlfinding

This section addresses common issues you might encounter with your Denon AVR2112CI receiver.

5.1. Ingen lyd eller forvrænget lyd

• Kontroller alle højttalertilslutninger for korrekt polaritet og sikker montering.
• Bekræft, at den korrekte inputkilde er valgt.
• Sørg for, at lydstyrken ikke er slået fra eller indstillet for lavt.
• If using a specific channel and experiencing signal loss, check the speaker wire for damage or loose connections.

5.2. AirPlay Connectivity Issues / Audio Stuttering

• Netværksstabilitet: AirPlay performance is highly dependent on your home network's stability. Ensure a strong Wi-Fi signal for your Apple device and the receiver.
• Placering af router: Moving your wireless router closer to the receiver can improve signal strength and reduce stuttering.
• Trådløs bro: If using a wireless bridge, ensure it has a stable connection to your main router. A direct Ethernet connection to the receiver is recommended for the most reliable AirPlay experience.
• Wi-Fi-bånd: Newer Apple devices (e.g., iPhone 5 and later) support 5 GHz Wi-Fi, which can offer better performance than the more congested 2.4 GHz band used by older devices.

5.3. Denon App Losing Connection

• Ensure the receiver and your control device are on the same network.
• Check for network interference or router settings that might be causing devices to disconnect.
• Restart both the app and the receiver.

5.4. GUI for Net/USB Function Not Appearing on TV

• Ensure your TV is set to the correct HDMI input connected to the receiver's HDMI output.
• Try resetting the receiver to factory defaults (refer to the full user manual for specific steps, usually involving a button combination on the unit). Note that this will erase all custom settings.

5.5. Standby Passthrough Issues

• Verify the standby passthrough settings in the receiver's menu. Ensure it is configured to the desired HDMI input (e.g., HDMI 2 for TV) or to the last used input.
• If the issue persists, a receiver reset might be necessary, followed by reconfiguring the passthrough settings.

5.6. Configuration Complexity

The receiver's configuration options can be extensive. If you find the setup confusing, consult the detailed user manual (typically provided on a CD or available for download from Denon's website) for step-by-step instructions on advanced settings.

6. Specifikationer

7. Garanti og support

7.1. Garantioplysninger

The Denon AVR2112CI receiver typically comes with a 3 års garanti from the manufacturer. Please refer to your purchase documentation or the official Denon website for specific terms and conditions, as warranty details may vary by region and retailer.

7.2. Kundesupport

For further assistance, technical support, or service inquiries, please contact Denon customer service. Contact information can usually be found on the official Denon webwebstedet eller i den fulde produktmanual.
