Dometic LS100 Top Ventilation Grill System User Manual

1. Introduktion

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Dometic LS100 Top Ventilation Grill System. Please read these instructions carefully before installation and use, and keep them for future reference.

The Dometic LS100 is designed to provide optimal ventilation for single-door Dometic absorption refrigerators in recreational vehicles (RVs) and similar applications. It is intended for top-side installation on the exterior of the vehicle and includes a winter cover for seasonal use.

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller skade på produkt og køretøj:

• Ensure the vehicle's power supply to the refrigerator is disconnected before installation or maintenance.
• Installationen bør udføres af en kvalificeret tekniker, hvis du er usikker på nogle trin.
• Brug passende personlige værnemidler (PPE) under installationen.
• Do not modify the ventilation grill system. Unauthorized modifications can compromise safety and performance.
• Hold ventilationsåbningerne fri af forhindringer for at sikre korrekt luftstrøm.

3. Produktet er slutview

The Dometic LS100 Top Ventilation Grill System consists of a main grill unit and a removable winter cover. It is designed for efficient heat dissipation from the refrigerator's condenser unit.

Figur 1: Dometic LS100 Top Ventilation Grill System. This image shows the complete grill unit, highlighting its design for optimal airflow.

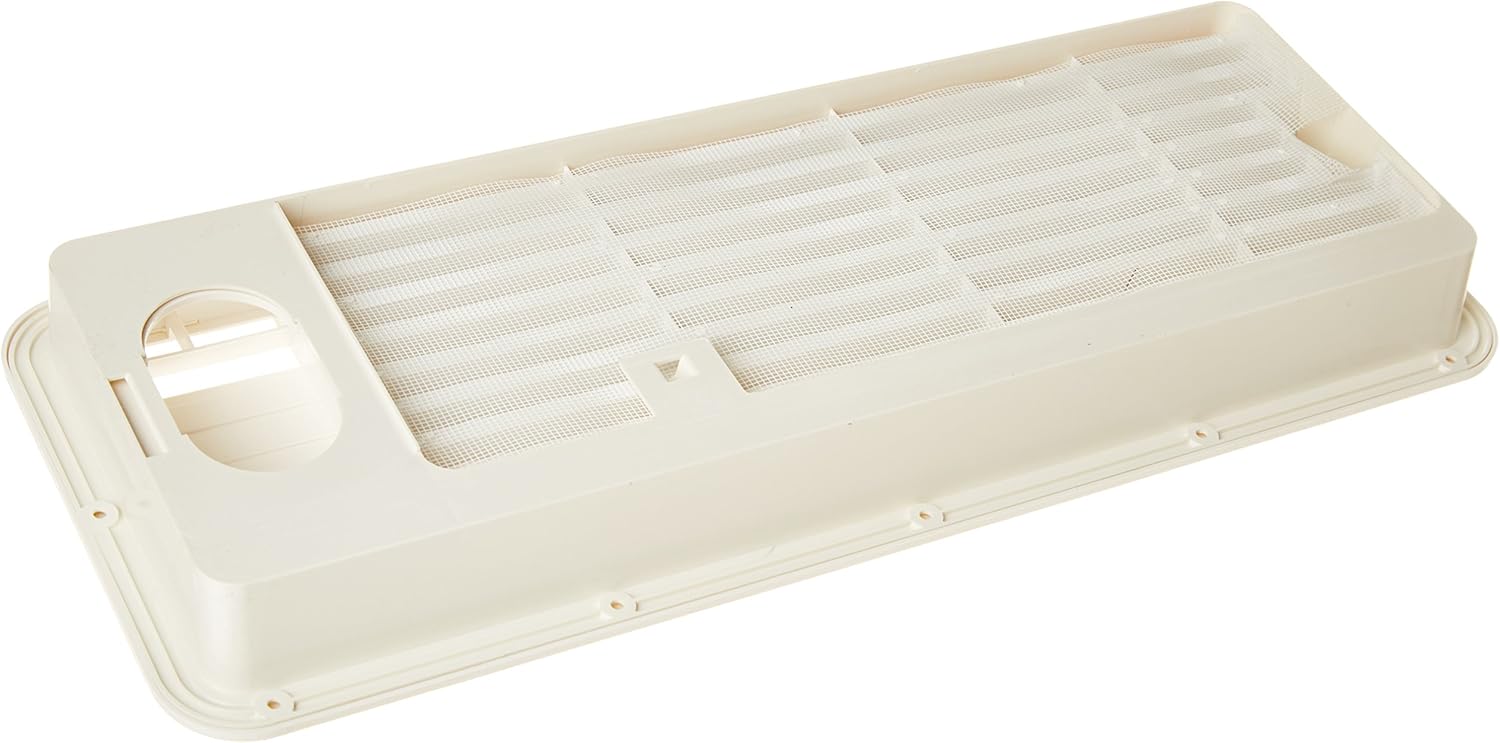

Figur 2: Dometic LS100 with dimensions. This image illustrates the physical dimensions of the ventilation grill, indicating a height of 7.8 inches (19 cm).

4. Opsætning og installation

The Dometic LS100 is designed for top-side installation on the exterior wall of your recreational vehicle, above the refrigerator compartment.

4.1. Nødvendige værktøjer

• Skruetrækker (passende type til monteringsskruer)
• Sealant (weather-resistant, RV-grade)
• Målebånd og blyant
• Bor (hvis der er behov for nye monteringshuller)

4.2. Installationstrin

1. Forbered åbningen: Ensure the existing or new opening in the vehicle wall is clean, dry, and correctly sized for the LS100 grill. Refer to the refrigerator's installation manual for specific opening dimensions.
2. Position the Grill: Place the LS100 grill into the opening, ensuring it sits flush against the vehicle's exterior surface.
3. Fastgør grillen: Use appropriate screws to fasten the grill securely to the vehicle wall through the designated mounting holes. Do not overtighten.
4. Forsegl kanterne: Apply a continuous bead of weather-resistant, RV-grade sealant around the entire perimeter of the grill where it meets the vehicle wall. This prevents water ingress.
5. Tjek for forhindringer: Verify that the internal components of the refrigerator are not obstructed by the grill's installation and that airflow is unimpeded.

5. Betjeningsvejledning

The Dometic LS100 ventilation grill operates passively, allowing heat to escape from the refrigerator compartment. Its primary operational feature is the winter cover.

5.1. Using the Winter Cover

• Formål: The winter cover is designed to reduce cold air ingress into the refrigerator compartment during low ambient temperatures, improving refrigerator efficiency and preventing freezing of internal components.
• Installation: To install the winter cover, align it with the main ventilation grill and snap or slide it into place. Ensure it is securely fastened to prevent it from dislodging during travel.
• Fjernelse: Remove the winter cover when ambient temperatures rise above freezing or when the refrigerator requires maximum ventilation (e.g., during hot weather or heavy use).

Figur 3: Dometic LS100 Winter Cover. This image displays the winter cover component, which can be attached to the main grill during colder seasons.

6. Vedligeholdelse

Regular maintenance ensures optimal performance and longevity of your Dometic LS100 ventilation grill.

• Rensning: Periodically clean the grill and winter cover with a mild soap solution and a soft cloth. Rinse thoroughly with water and allow to air dry. Avoid abrasive cleaners or solvents.
• Inspektion: Regularly inspect the grill for any damage, cracks, or loose fastenings. Check the sealant around the edges for signs of deterioration and reapply if necessary to maintain a watertight seal.
• Ryd forhindringer: Ensure that the ventilation openings are free from debris, insects, or other obstructions that could impede airflow.

7. Fejlfinding

This section addresses common issues you might encounter with your ventilation grill.

8. Specifikationer

9. Garanti og support

For warranty information, technical support, or to purchase replacement parts, please contact Dometic customer service or visit the official Dometic webwebsted.

Domestic Official Webwebsted: www.dometic.com

Please have your product model (LS100) and part number (9105900012) available when contacting support.
