Produkt overview
The Tsurumi Automatic Sand/Trash Pump (Model HSZ2.4S-62) is engineered for efficient pumping of water containing sands, solids, and debris. Its robust design minimizes wear and clogging, making it suitable for demanding applications such as dewatering sumps or basins. The integrated agitator helps suspend settled sand and mud, facilitating their removal.

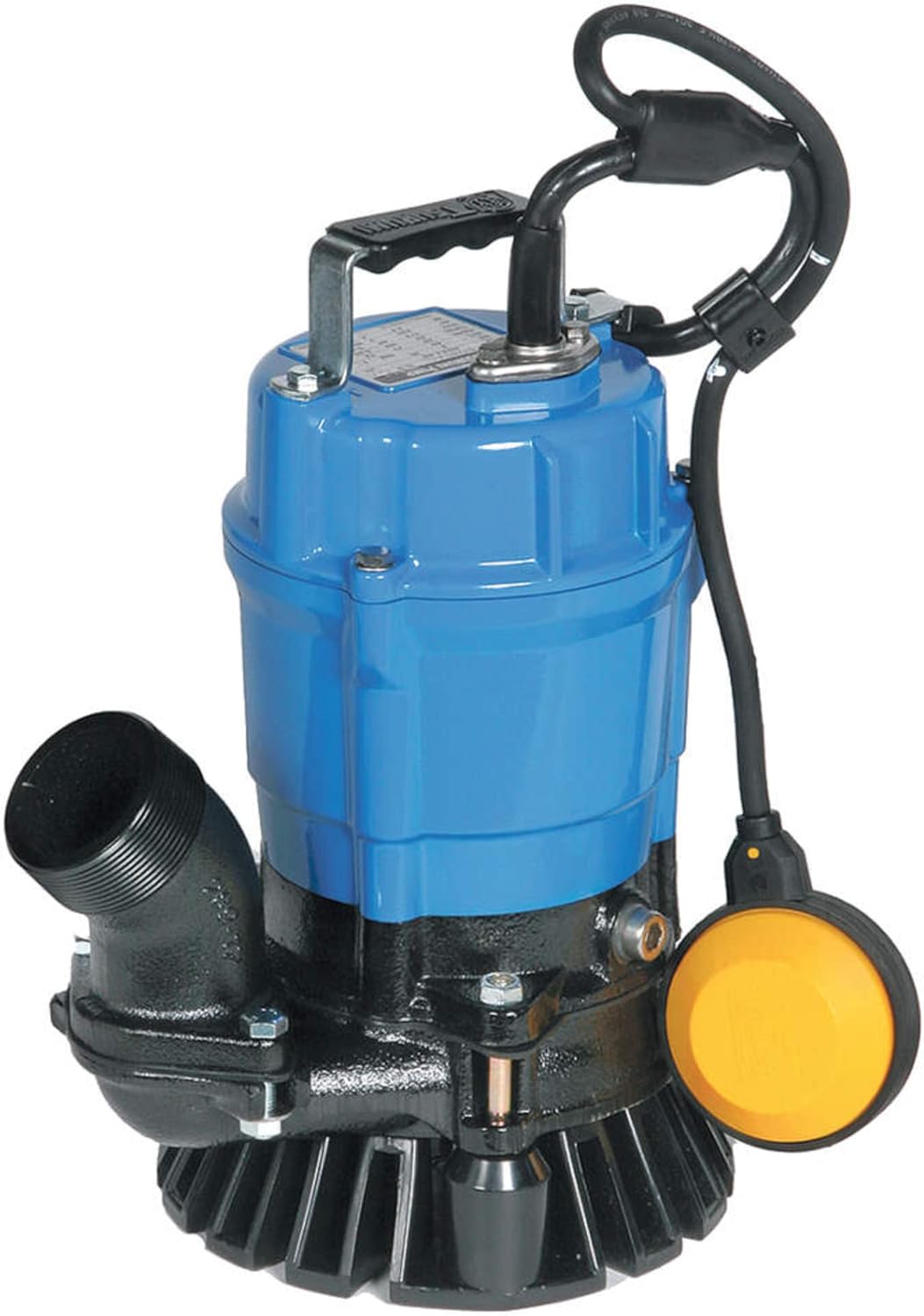

Figure 1: Tsurumi Automatic Sand/Trash Pump, Model HSZ2.4S-62. This image shows the complete pump unit, featuring its blue motor housing, black pump body with a 2-inch discharge outlet, and an attached yellow float switch for automatic operation.
Sikkerhedsoplysninger
Always read and understand all safety warnings and instructions before operating the pump. Failure to do so can result in serious injury or property damage.
- Sørg for, at strømkilden er 110 volt as specified for this pump.
- Brug ikke pumpen med beskadigede ledninger eller stik.
- Afbryd altid strømmen, før du udfører vedligeholdelse eller inspektion.
- Keep hands and feet clear of the pump intake and discharge during operation.
- This pump is designed for submersible use only.
Opsætning
- Udpakning: Tag forsigtigt pumpen ud af emballagen. Undersøg den for eventuelle forsendelsesskader.
- Placering: Position the pump on a stable, level surface in the area to be dewatered. Ensure the pump is fully submerged for optimal operation and cooling.
- Tilslutning af udløbsslange: Attach a suitable 2-inch discharge hose to the pump's outlet. Secure the connection with a hose clamp for at forhindre lækager.
- Strømtilslutning: Connect the pump to a grounded 110-volt power outlet. Ensure the circuit is protected by a Ground Fault Circuit Interrupter (GFCI).
- Justering af flydekontakt: For automatic operation, ensure the float switch has sufficient clearance to move freely and activate the pump at desired water levels.
Betjeningsvejledning
The Tsurumi HSZ2.4S-62 pump features automatic operation via its float switch.
- Automatisk drift: Once connected to power and submerged, the pump will automatically start when the water level rises and lifts the float switch. It will stop when the water level drops and the float switch falls.
- Overvågning: Periodically check the pump's operation and the discharge flow. Ensure the pump is not running dry for extended periods, as it features motor protection for dry run situations.
- Handling Solids: The agitator suspends sand and mud, allowing the pump to handle solids effectively. Avoid pumping excessively large or abrasive materials that could damage the impeller.
Opretholdelse
Regelmæssig vedligeholdelse sikrer din Tsurumi-pumpes levetid og optimale ydeevne.
- Strømafbrydelse: Always disconnect the pump from the power source before any maintenance.
- Rensning: Regularly clean the pump's intake screen and impeller area to remove accumulated debris, sand, or mud. This prevents clogging and maintains efficiency.
- Inspektion: Inspect the power cable for any signs of damage, cuts, or fraying. Check the float switch for free movement and any obstructions.
- Opbevaring: If storing the pump for an extended period, clean it thoroughly, drain all water, and store it in a dry, protected area.
- Anti-Wicking Block: The cable features an anti-wicking block. Do not tamper with this component, as it prevents water intrusion into the motor.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pumpen starter ikke. | Ingen strøm; Flyderafbryder ikke aktiveret; Tilstoppet impeller. | Check power supply and GFCI; Ensure float switch is free to rise; Disconnect power and clear impeller. |
| Pumpen kører, men intet vand eller lavt flow. | Air lock; Clogged intake/discharge; Impeller wear. | Reposition pump to release air; Clear obstructions; Inspect impeller for damage. |
| Pumpen tænder og slukker ofte. | Float switch obstruction; Insufficient water level. | Clear debris around float switch; Ensure adequate water for continuous operation. |
If troubleshooting steps do not resolve the issue, contact Tsurumi Pump customer support.
Specifikationer
| Modelnummer | HSZ2.4S-62 |
| Mærke | Tsurumi-pumpe |
| Strømkilde | Elektrisk med ledning |
| Voltage | 110 volt |
| Hestekræfter | 0.5 hk |
| Maksimal flowhastighed | 50 gallon pr. minut (3000 GPH) |
| Udledningsstørrelse | 2 tommer |
| Varens vægt | 29 pund |
| Produktmål (L x B x H) | 20 cm x 16 cm x 16 cm |
| Materiale | Aluminium |
| Impeller Type | Urethane rubber semi-vortex |
| UPC | 735090774424 |
Garanti og support
For warranty information, technical support, or to purchase replacement parts, please contact Tsurumi Pump directly.
- Fabrikant: Tsurumi-pumpe
- Webwebsted: www.tsurumipump.com (Note: This is a general link, specific support contact details may vary by region.)
- Kundeservice: Refer to the official Tsurumi Pump webwebstedet eller produktemballagen for de mest aktuelle kontaktoplysninger.
