Murray 782965MA 36-Inch Cut Blade User Manual

1. Introduktion

This manual provides essential information for the safe and effective use, installation, and maintenance of your Murray 782965MA 36-inch cut blade. Please read these instructions carefully before installation and operation.

2. Sikkerhedsoplysninger

Always prioritize safety when handling and installing mower blades. Improper handling can result in serious injury.

• Brug beskyttelsesudstyr: Always wear heavy-duty gloves and eye protection when handling mower blades. Blades are sharp and can cause cuts.
• Afbryd strømmen: Before performing any maintenance or blade replacement, ensure the lawn tractor or mower engine is off, the spark plug wire is disconnected, and the key is removed to prevent accidental starting.
• Fastgør plæneklipperen: If tilting the mower, ensure the fuel tank cap is tightly closed and the mower is stable to prevent fuel spills.
• Inspicer knivene regelmæssigt: Check blades for damage, bends, or excessive wear before each use. Replace damaged blades immediately.
• Brug de rigtige dele: Only use genuine Murray replacement parts or equivalent specifications to ensure proper fit and performance.

3. Pakkens indhold

Din pakke skal indeholde følgende vare:

• One (1) Murray 782965MA 36-Inch Cut Blade

Note: For a complete 36-inch cutting deck, two blades are typically required. This product is sold individually. Please verify your mower's requirements.

4. Installationsvejledning

Follow these steps to safely replace your lawn mower blade:

1. Forbered plæneklipperen: Ensure the engine is off, the spark plug wire is disconnected, and the key is removed. Place the mower on a flat, stable surface. If tilting, ensure the fuel tank is sealed.
2. Adgang til bladet: Depending on your mower model, you may need to tilt the mower or remove the cutting deck. Consult your mower's specific instruction manual for detailed access procedures.
3. Fjern gammelt blad: Use a wrench to loosen the blade bolt. You may need a block of wood or a blade removal tool to prevent the blade from turning while loosening the bolt. Note the orientation of the old blade for correct installation of the new one.
4. Efterse komponenter: Check the blade adapter, washers, and bolt for wear or damage. Replace any worn parts.
5. Installer nyt blad: Position the new Murray 782965MA blade with the cutting edge facing the correct direction (usually indicated by an arrow or curve on the blade, or by matching the old blade's orientation). Ensure it sits flush against the blade adapter.
6. Spænd knivbolten: Reinstall the blade bolt and tighten it securely with a torque wrench to the manufacturer's specified torque setting (refer to your mower's manual). Overtightening or undertightening can be dangerous.
7. Bekræft installationen: Ensure the blade is firmly attached and spins freely without obstruction.
8. Tilslut strøm igen: Reconnect the spark plug wire and return the mower to its operating position.

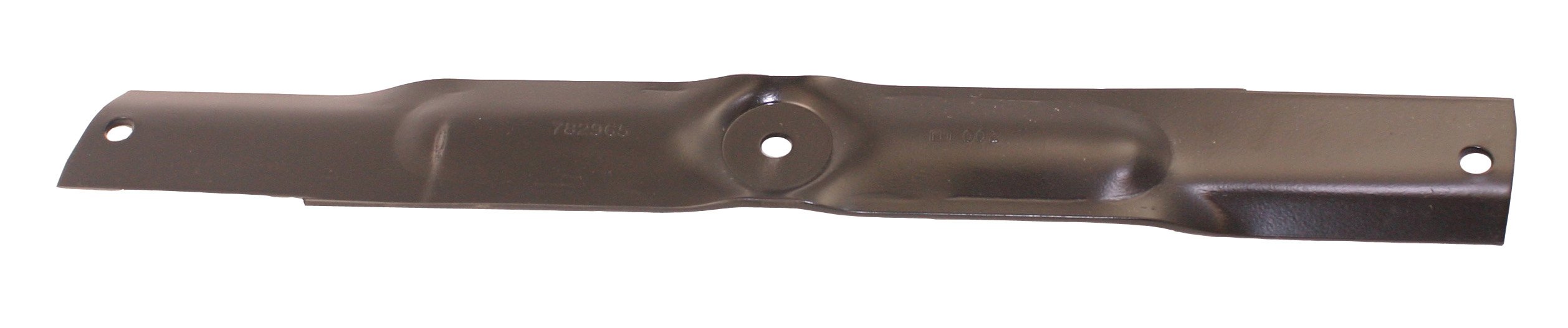

Image 1: Murray 782965MA 36-inch cut blade. This image shows the general appearance of the blade, which is designed for lawn tractors and mowers.

5. Driftsmæssige overvejelser

While the blade itself does not "operate," its proper function is critical for effective mowing. Ensure your mower is in good working order and follow these guidelines:

• Knivbalance: A properly installed and balanced blade reduces vibration and extends the life of your mower. If you notice excessive vibration after installation, recheck the blade's balance and installation.
• Skærehøjde: Adjust your mower's cutting height according to grass type and desired lawn appearance.
• Undgå forhindringer: Do not mow over rocks, roots, or other hard objects that can damage the blade or mower.
• Skarphed: A sharp blade cuts grass cleanly, promoting healthier lawn growth. Dull blades tear grass, leading to browning and disease.

6. Vedligeholdelse

Regelmæssig vedligeholdelse af dit blad sikrer optimal ydeevne og sikkerhed.

• Rensning: After each use, clean grass clippings and debris from the underside of the mower deck and the blade. This prevents buildup that can affect cutting performance and balance.
• Skærpning: Sharpen the blade regularly, or as needed, to maintain a clean cut. Use a blade sharpener or file, maintaining the original blade angle. Ensure the blade remains balanced after sharpening. If unsure, consult a professional.
• Inspektion: Periodically inspect the blade for cracks, bends, or excessive wear. Replace the blade if any significant damage is found.
• Opbevaring: When storing the mower for extended periods, ensure the blade is clean and lightly oiled to prevent rust.

7. Fejlfinding

This section addresses common issues related to mower blades.

8. Specifikationer

• Modelnummer: 782965MA
• Mærke: Murray
• Klip størrelse: Designed for 36-inch cutting decks (requires two blades for a complete 36-inch deck)
• Erstatter varenumre: 782965, 8685, 327504, 5549MA
• Varens vægt: 1.33 pund
• Produktdimensioner: 1 x 1 x 1 tommer (Note: These dimensions may refer to packaging or a generic placeholder. For a 36-inch cut deck, each individual blade is typically around 18 inches long.)

9. Garanti og support

Specific warranty information for this replacement blade is not provided in the product details. For warranty claims or technical support, please contact Murray customer service or the retailer from whom the blade was purchased. Always retain your proof of purchase.

For further assistance, refer to your lawn tractor or mower's original instruction manual, as it may contain specific blade replacement and maintenance guidelines relevant to your equipment.

10. Officielle produktvideoer

Der er ingen officielle produktvideoer fra sælgeren tilgængelige for denne vare på nuværende tidspunkt.
