BG Electrical dobbelt stikkontakt brugermanual

1. Produktet er slutview

The BG Electrical Double Switched Power Socket (Model: NPC22W-01) is a 13 Amp, 2-gang switched outlet designed for domestic and commercial electrical installations. It features a polished chrome finish with white inserts, offering a sleek and modern aesthetic. This product is part of the Nexus Metal range, known for its softly rounded corners and slim profile.

Figure 1: The BG Electrical Double Switched Power Socket features a polished chrome finish with two switched outlets and white inserts, designed for modern interiors.

Figure 2: The socket boasts a sleek, polished chrome finish with no visible plastic around the switches, ensuring a clean and elegant appearance.

2. Opsætning og installation

Vigtig sikkerhedsmeddelelse: Installation should only be carried out by a qualified electrician in accordance with current wiring regulations. Always isolate the mains power supply before commencing any electrical work.

2.1 Kontrol før installation

• Ensure the power supply to the circuit is switched off at the consumer unit/fuse box.
• Verify that the existing back box is suitable for the new socket. This unit is designed to fit a 25mm deep back box.
• Inspect the socket for any signs of damage before installation.

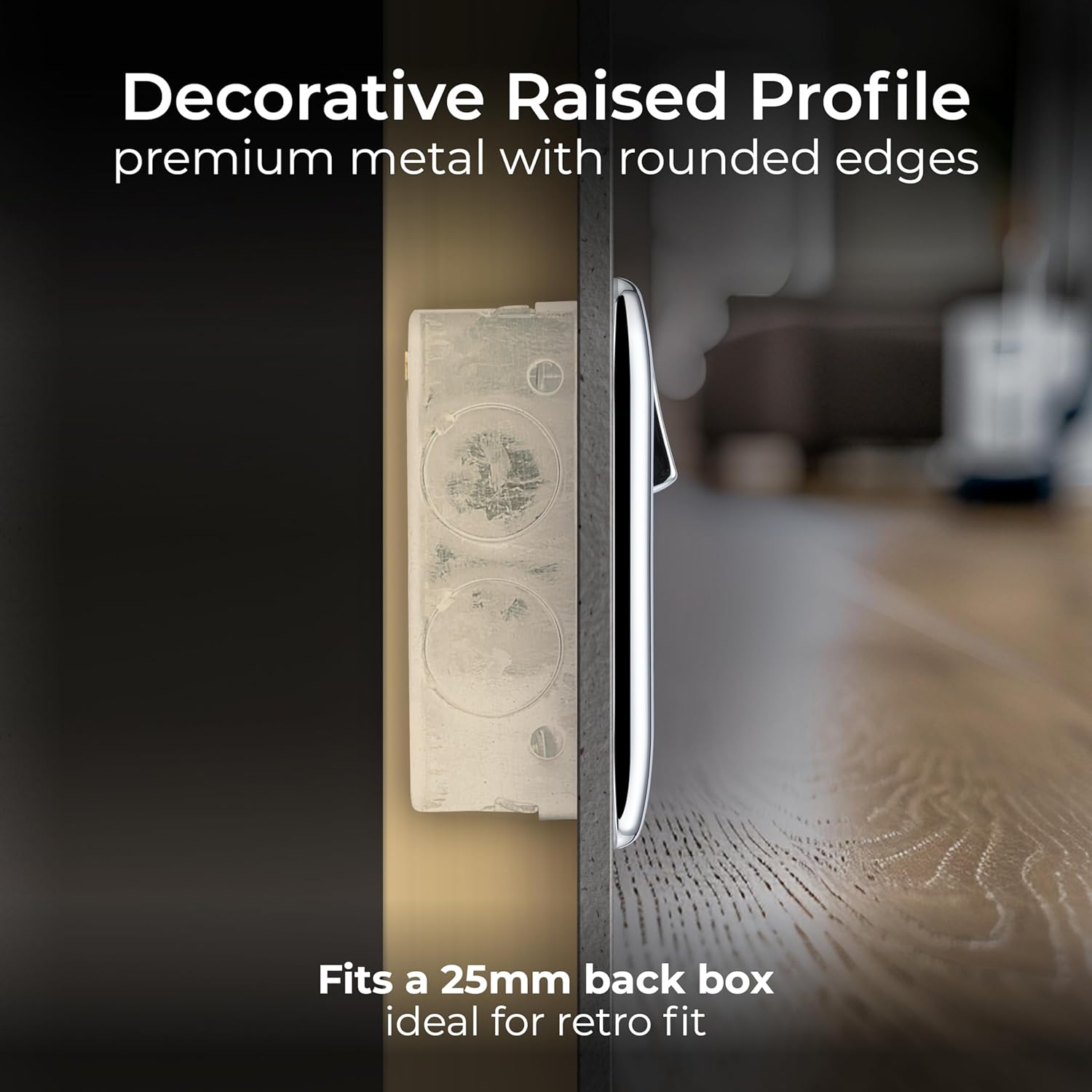

Figure 3: Designed with a decorative raised profile and rounded edges, this premium metal socket fits a standard 25mm back box, making it ideal for both new installations and retrofits.

2.2 Ledningsinstruktioner

1. Carefully remove the existing socket (if applicable) and disconnect the wiring, noting the connections.
2. Prepare the new socket by loosening the angled in-line colour-coded captive screw terminals.
3. Connect the wires to the corresponding terminals:
   • Brown/Red wire: Connect to the 'L' (Live) terminal.
   • Blue/Black wire: Connect to the 'N' (Neutral) terminal.
   • Grøn/gul ledning: Connect to the 'E' (Earth) terminal.
   Ensure all wire insulation is stripped to the correct length and that no bare wires are exposed outside the terminals. Tighten the screws securely.
4. Gently push the wired socket into the back box, ensuring no wires are trapped or pinched.
5. Secure the socket to the back box using the provided screws.
6. Replace the faceplate and tighten any retaining screws.

Figure 4: The rear of the socket features angled in-line colour-coded captive screw terminals (brown for live, blue for neutral, green/yellow for earth) for easy and secure wiring. The screws are retained, simplifying the installation process.

2.3 Efterinstallation

• Once installation is complete, restore power at the consumer unit/fuse box.
• Test the functionality of both switched outlets.

3. Betjeningsvejledning

The BG Electrical Double Switched Power Socket operates like any standard switched wall socket. Each outlet has an independent switch for controlling power to the connected appliance.

• To supply power: Insert the appliance plug into the desired socket. Flip the corresponding switch to the 'ON' position.
• To cut power: Flip the corresponding switch to the 'OFF' position. This will disconnect power to the appliance without needing to unplug it.

Figure 5: The socket is designed for standard electrical plugs, providing reliable power access for various appliances.

4. Vedligeholdelse

This power socket requires minimal maintenance. Regular cleaning and periodic safety checks are recommended.

• Rensning: To clean the polished chrome finish, use a soft, dry cloth. For stubborn marks, a slightly damp cloth with mild soap can be used, followed by immediate drying. Avoid abrasive cleaners, solvents, or polishes as these can damage the finish. Always ensure the power is off before cleaning.
• Sikkerhedstjek: Periodically check the socket for any signs of damage, such as cracks, loose connections, or discolouration. If any issues are observed, isolate the power and consult a qualified electrician immediately.

5. Fejlfinding

If you encounter issues with your power socket, consider the following common troubleshooting steps. If the problem persists, contact a qualified electrician.

• No Power from Socket:
  • Check if the switch on the socket is in the 'ON' position.
  • Verify that the appliance is working by testing it in another known-good socket.
  • Check the circuit breaker or fuse for the circuit at your consumer unit/fuse box. Reset the breaker or replace the fuse if tripped/blown.
  • Sørg for, at stikket er sat helt ind i stikkontakten.
• Løs forbindelse:
  • If the socket feels loose on the wall, isolate the power and gently tighten the mounting screws. Do not overtighten.
  • If the internal wiring feels loose, this requires professional attention. Do not attempt to fix internal wiring unless you are a qualified electrician.
• Socket is Hot to Touch:
  • Immediately unplug any appliances and switch off the power to the socket at the consumer unit.
  • A hot socket can indicate an overload or a faulty connection. This requires immediate inspection by a qualified electrician.

6. Specifikationer

7. Garantioplysninger

BG Electrical provides a 25 års producentgaranti for this product. This warranty guarantees against faulty materials and workmanship from the date of purchase. Please retain your proof of purchase for any warranty claims.

Figure 6: British General provides a 25-year manufacturer's warranty, reflecting their commitment to quality and over 80 years of experience in the electrical industry.

8. Support og kontakt

For further assistance, technical support, or warranty claims, please contact British General customer service. Refer to the packaging or the official British General webhjemmeside for de seneste kontaktoplysninger.

In case of any electrical concerns or if you are unsure about any installation steps, always consult a qualified and certified electrician.
