Instruktionsmanual

1. Introduktion

Thank you for choosing the Acorn Manufacturing AZC210-4-POL Polished Stainless Steel Absolute Zero Cabinet Pull. This manual provides detailed instructions for the proper installation, use, and maintenance of your new cabinet pull. Please read this manual thoroughly before installation to ensure correct procedure and optimal performance.

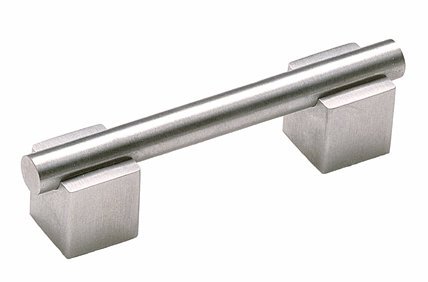

Image 1.1: The Acorn Manufacturing AZC210-4-POL cabinet pull, featuring a polished stainless steel finish and a sleek bar design.

2. Sikkerhedsoplysninger

• Brug altid passende personlige værnemidler (PPE) såsom sikkerhedsbriller og handsker under installationen.
• Keep small parts and hardware out of reach of children and pets to prevent choking hazards.
• Ensure the cabinet surface is clean and free of debris before drilling or mounting.
• Use the correct drill bit size for pilot holes to avoid damaging the cabinet or the pull.
• Do not overtighten screws, as this may strip the threads or damage the cabinet material.

3. Pakkens indhold

Please verify that all components are present before beginning installation. If any parts are missing or damaged, contact Acorn Manufacturing customer support.

• 1 x Acorn Manufacturing AZC210-4-POL Cabinet Pull
• 2 x Mounting Screws (typically 8-32 x 1" or similar, check actual product for exact size)

4. Installationsvejledning

Nødvendige værktøjer (medfølger ikke):

• Målebånd eller lineal
• Blyant
• Bore
• Drill Bit (appropriate size for mounting screws, typically 3/16" or 5mm)
• Skruetrækker (Phillips eller flad, afhængigt af skruetype)
• Punch or Awl (optional, for marking drill points)

Installationstrin:

1. Forbered overfladen: Ensure the cabinet door or drawer front is clean and dry.
2. Marker borepunkter:
   • Measure the distance between the center of the two mounting holes on the cabinet pull. This pull has 4" (102mm) centers.
   • On the cabinet door or drawer, use a measuring tape and pencil to mark the desired location for the pull. Ensure the marks are level and accurately spaced 4 inches apart.
   • For best results, use a template or a ruler to ensure precise alignment.
3. Bor pilothuller:
   • Using the appropriate drill bit (e.g., 3/16" or 5mm), carefully drill pilot holes at the marked points. Drill straight through the cabinet material.
   • Place a scrap piece of wood behind the drilling area to prevent splintering on the exit side.
4. Fastgør trækket:
   • Align the cabinet pull with the drilled holes.
   • From the inside of the cabinet door or drawer, insert the mounting screws through the pilot holes and into the threaded receivers on the back of the cabinet pull.
   • Using a screwdriver, tighten the screws until the pull is secure. Do not overtighten.
5. Bekræft installationen: Gently pull on the installed handle to ensure it is firmly attached and does not wobble.

5. Brug

The Acorn Manufacturing AZC210-4-POL cabinet pull is designed for opening and closing cabinet doors and drawers. Apply gentle, even pressure when using the pull to ensure longevity and prevent undue stress on the mounting points.

6. Pleje og vedligeholdelse

• Rensning: To clean the polished stainless steel finish, wipe with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying with a clean, soft cloth.
• Undgå: Do not use abrasive cleaners, harsh chemicals, or scouring pads, as these can scratch or damage the finish.
• Periodisk kontrol: Periodically check the mounting screws for tightness. If they become loose, gently tighten them with a screwdriver.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

Acorn Manufacturing products are designed for durability and performance. For information regarding warranty coverage, product support, or to purchase replacement parts, please visit the official Acorn Manufacturing webwebstedet eller kontakt deres kundeserviceafdeling. Kontaktoplysninger findes typisk på produktemballagen eller producentens webwebsted.

Note: Specific warranty terms may vary. Please refer to the documentation included with your purchase or the manufacturer's official webwebstedet for de seneste garantioplysninger.
