Indledning
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Laufen Pro Wall-Mounted WC with Clean Coat. Please read these instructions carefully before proceeding with installation or use to ensure proper function and longevity of the product.
The Laufen Pro WC is a flat-flush, wall-mounted toilet designed for modern bathrooms. It features a special LCC (Laufen Clean Coat) surface treatment, which helps maintain hygiene and simplifies cleaning.

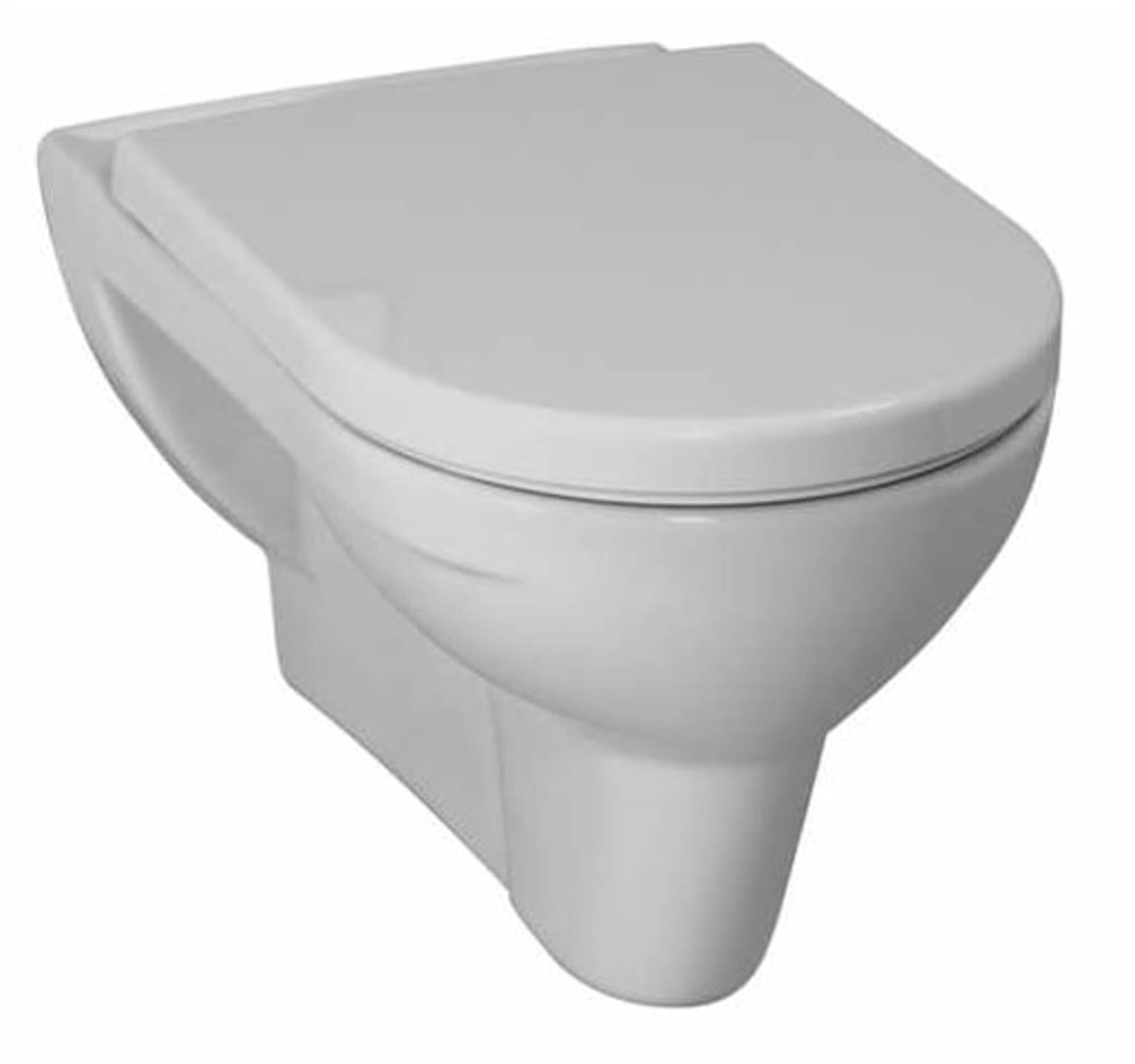

Image of the Laufen Pro wall-mounted toilet, showcasing its D-shape design and white finish.
Opsætning og installation
Installation of a wall-mounted WC requires specialized knowledge and should be performed by a qualified professional. Incorrect installation can lead to leaks, damage, or improper function.
Nødvendige værktøjer og materialer (medfølger ikke):
- Appropriate wall-mounting frame/cistern system
- Plumbing tools
- Fugemasser
- Målebånd, niveau
Installation Steps (Professional Guidance Recommended):
- Forberedelse: Ensure the wall-mounting frame and concealed cistern are correctly installed according to their respective manufacturer's instructions. Verify all water supply and waste connections are in place.
- Montering: Carefully attach the Laufen Pro WC to the mounting bolts protruding from the wall frame. Ensure the WC is level and securely fastened.
- Forbindelser: Connect the water inlet and waste outlet pipes to the WC, ensuring all seals are properly seated and tightened to prevent leaks.
- Test: After installation, perform a flush test to check for leaks and proper flushing action. Inspect all connections thoroughly.
- Efterbehandling: Apply appropriate sealant around the base of the WC where it meets the wall or tiles, if necessary, to prevent water ingress.
Betjeningsvejledning
The Laufen Pro WC operates like a standard toilet. To flush, activate the flush mechanism on your concealed cistern's flush plate. The flat-flush design ensures efficient waste removal with minimal water usage.
- flushing: Press the appropriate button on your flush plate. Most modern cisterns offer a dual-flush option for water conservation.
- LCC Coating: The Laufen Clean Coat (LCC) surface is designed to be exceptionally smooth, preventing dirt, limescale, and bacteria from adhering. This makes cleaning significantly easier and more hygienic.
Opretholdelse
Regular cleaning and proper maintenance will ensure the longevity and hygienic performance of your Laufen Pro WC.
Cleaning the LCC Surface:
- Brug kun milde, ikke-slibende rengøringsmidler.
- Avoid harsh chemicals, scouring powders, or abrasive sponges, as these can damage the LCC coating and the ceramic surface.
- Wipe the surface with a soft cloth or sponge and rinse thoroughly with clean water.
- For stubborn stains, a diluted solution of vinegar or citric acid can be used, followed by thorough rinsing.
Generel vedligeholdelse:
- Regularly check for any signs of leaks around the connections.
- Ensure the flush mechanism in the cistern is functioning correctly. Refer to the cistern manufacturer's manual for maintenance of internal components.
- Do not dispose of non-biodegradable items in the toilet, as this can cause blockages.
Fejlfinding
This section addresses common issues you might encounter with your WC. For complex problems, contact a qualified plumber.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Svag eller ufuldstændig skylning | Low water level in cistern, partially closed stopcock, blockage in rim jets. | Check cistern water level and fill valve. Ensure stopcock is fully open. Clean rim jets if obstructed. |
| Continuous water running into bowl | Faulty flush valve or fill valve in cistern. | Inspect and adjust or replace the flush valve or fill valve components within the cistern. Consult cistern manual. |
| Leaks around the WC base or connections | Loose connections, damaged seals, improper sealant application. | Tighten connections carefully. Replace damaged seals. Reapply sealant if necessary. If persistent, contact a plumber. |
| Toilet is blocked | Foreign objects, excessive toilet paper. | Use a plunger. If unsuccessful, a drain snake may be required. Avoid harsh chemical drain cleaners. |
Specifikationer
| Feature | Detalje |
|---|---|
| Fabrikant | Laufen |
| Modelnummer | 4014804464841 (også kendt som 8209514000001) |
| Installationsmetode | Vægmonteret |
| Form | D-Shape |
| Skylningstype | Flat-flush |
| Overfladebehandling | Laufen Clean Coat (LCC) |
| Farve | Hvid |
| Batterier påkrævet | Ingen |
| Antal pr pakke | 1 |
| ASIN | B003VZF1SM |
Garantioplysninger
Specific warranty terms for the Laufen Pro WC are provided by the manufacturer. Please refer to the warranty documentation included with your purchase or visit the official Laufen website for detailed information regarding coverage, duration, and claims procedures. Keep your proof of purchase for warranty purposes.
Støtte
For technical assistance, spare parts, or further inquiries regarding your Laufen Pro WC, please contact:
- Your installer or plumbing professional for installation-related issues.
- Den forhandler, hvor du købte produktet.
- Laufen Customer Service (contact details typically available on the official Laufen webwebsted: www.laufen.com).
Når du kontakter support, bedes du have dit produktmodelnummer (4014804464841) og købsbevis klar.
