Fissler CookStar Induction Pro Portable Cooktop User Manual

1. Introduktion

Thank you for choosing the Fissler CookStar Induction Pro Portable Cooktop. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.

2. Produktfunktioner

• Kraftig ydeevne: Equipped with a 1500-watt motor for rapid heating.
• Elegant design: Stylish black profile with a frameless Schott Ceran glass ceramic surface.
• Booster funktion: Temporarily increases power to 1500 watts for 20 seconds for quick boiling or searing.
• Hold varm funktion: Maintains food at a steady 140°F (60°C), ideal for serving, with an automatic 2-hour timer.
• Integreret timer: Allows for precise cooking control.
• Stille drift: Features a whisper-quiet cooling fan.
• Kompakt og bærbar: Slim design for easy storage and use in various locations.
• Let at rengøre: Frameless surface simplifies cleaning.
• Kvalitetskonstruktion: Made in Germany, ensuring high standards of craftsmanship.

3. Sikkerhedsinstruktioner

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.

• Elektrisk sikkerhed: Ensure the cooktop is plugged into a grounded 110V outlet. Do not use with damaged cords or plugs.
• Ventilation: The cooktop requires adequate airflow. Do not block the air intake vents on the bottom or the exhaust vents on the back of the unit. Placing the unit on a towel or against a wall can impede airflow and cause overheating.
• Gryder: Use only induction-compatible cookware with a flat, magnetic bottom. Non-induction cookware will not heat.
• Avoid Glazed Pots: Do not use pots with glaze, especially cast iron with glaze, even if labeled induction-ready. The glaze may shatter due to rapid expansion differences between the glaze and the metal.
• Placering: Place the cooktop on a stable, heat-resistant, and flat surface. Keep it away from heat sources, water, and flammable materials.
• Varme overflader: The cooktop surface will become hot during and after use. Do not touch hot surfaces.
• Indledende lugt: A slight electrical odor may be present during the first few uses, especially at high power. This is normal and will dissipate. Ensure good ventilation during this period.
• Høreapparater: Some users with hearing aids may experience interference at higher power levels.
• Børn og kæledyr: Hold apparatet utilgængeligt for børn og kæledyr.

4. Opsætning

1. Pakker ud: Carefully remove the cooktop from its packaging. Retain packaging for future transport or storage.
2. Placering: Place the cooktop on a clean, dry, stable, and level surface. Ensure there is sufficient space around the unit for proper ventilation, especially at the bottom and back. Avoid placing it directly against a wall or on soft surfaces like tablecloths or towels that could block vents.
3. Strømtilslutning: Sæt netledningen i en standard 110V stikkontakt.

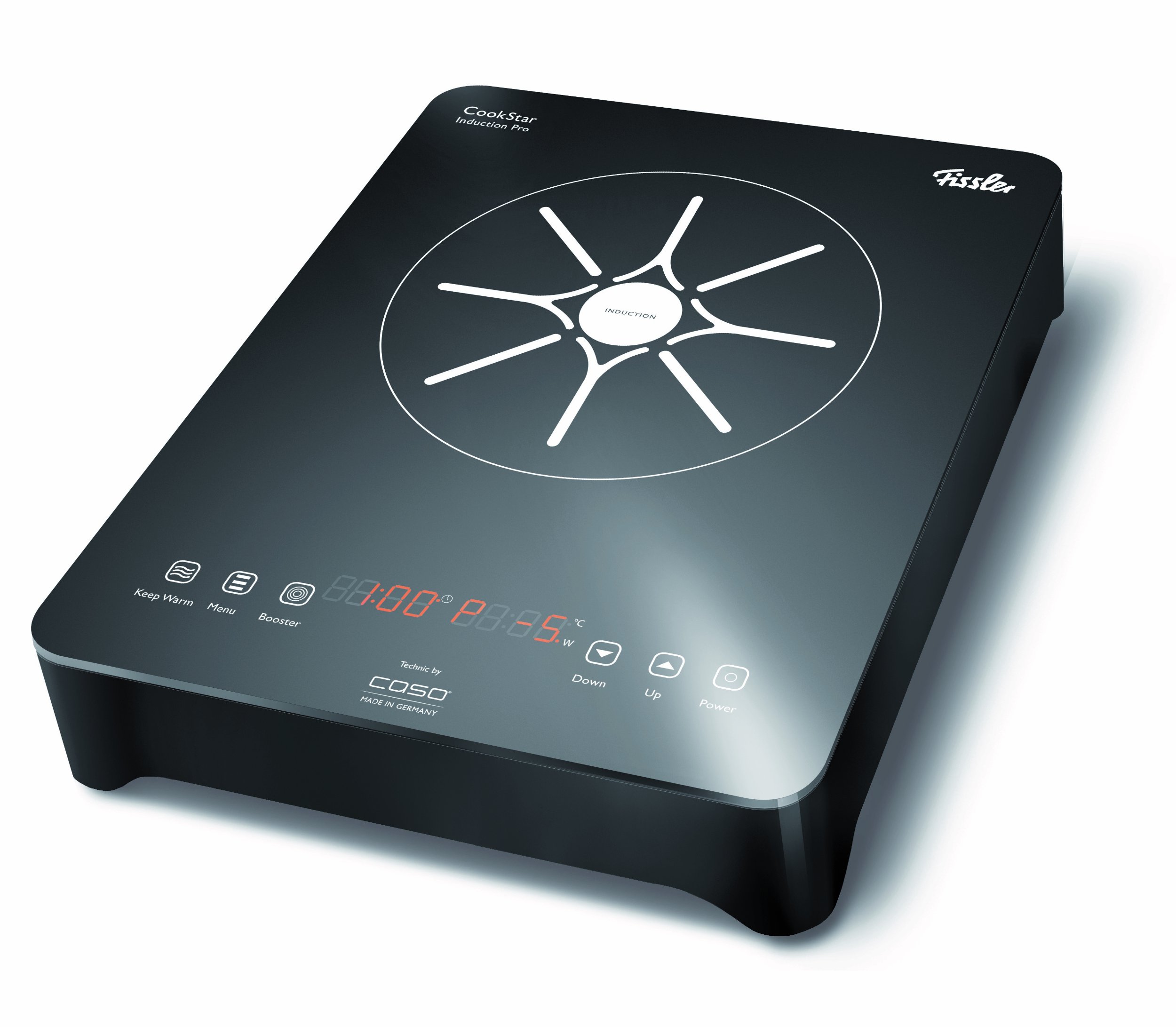

Image: The Fissler CookStar Induction Pro Portable Cooktop, showcasing its sleek black design and frameless glass ceramic surface, positioned on a countertop. This image illustrates the compact size and aesthetic of the unit when set up for use.

5. Betjeningsvejledning

The Fissler CookStar Induction Pro offers intuitive touch controls for various cooking functions.

5.1 Tænd/sluk

• Tryk på Magt knappen for at tænde enheden. Displayet lyser.
• For at slukke skal du trykke på Magt knappen igen.

5.2 Valg af effektniveau

After turning on, place an induction-compatible pot on the cooktop. The unit will typically start at a default power level (e.g., 0) or prompt for selection.

• Brug Op (+) og Ned (-) knapperne til at justere effektniveauet fra 1 til 9.
• For quick adjustment, pressing the Menu button may jump to a common power level (e.g., 5), from which you can fine-tune with the Up/Down buttons.
• Power level 9 is the maximum setting for rapid heating.

5.3 Temperaturtilstand

The cooktop also features preset temperature settings for precise cooking.

• Switch to temperature mode (refer to the control panel for the specific button, often labeled 'Temp' or integrated with 'Menu').
• Select desired temperature, such as 180°F (82°C) or 150°F (66°C) for simmering.

5.4 Boosterfunktion

• Aktiver Booster function (usually a dedicated button) for a temporary surge of power up to 1500 watts.
• This function operates for approximately 20 seconds, after which the power returns to the previously set level.

5.5 Hold varm funktion

• Tryk på Hold varmen knappen for at aktivere denne funktion.
• The cooktop will maintain a temperature of 140°F (60°C).
• The timer automatically starts for 2 hours, but you can manually turn off the function or restart the timer as needed.

5.6 integreret timer

• Brug Timer button to set a cooking duration.
• Adjust the time using the Up/Down buttons. The cooktop will automatically turn off once the set time expires.

5.7 Display Readability

Note that the red LED display for power and timer may be challenging to read in very bright lighting conditions.

6. Kompatibelt køkkenudstyr

Induction cooktops require specific types of cookware. For optimal performance, use pots and pans that are compatible with induction heating.

• Magnetic Test: To check if your cookware is induction-compatible, hold a magnet to the bottom of the pot or pan. If the magnet sticks firmly, the cookware is suitable for induction.
• Anbefalede materialer: Cast iron, magnetic stainless steel, and enamel-on-steel cookware are generally compatible. Many All-Clad pots and pans are suitable due to their induction-ready stainless steel outer layer.
• Undgå: Aluminum, copper, glass, and non-magnetic stainless steel cookware will not work on an induction cooktop. As noted in safety instructions, avoid glazed pots, even if they claim to be induction-ready, as the glaze can crack or shatter.

7. Vedligeholdelse og rengøring

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your Fissler CookStar Induction Pro.

• Før rengøring: Tag altid stikket ud af stikkontakten, og lad kogepladen køle helt af, inden den rengøres.
• Overflade rengøring: The frameless glass ceramic surface is easy to clean. Wipe it with a soft, damp cloth and mild detergent. For stubborn stains, use a non-abrasive ceramic cooktop cleaner.
• Undgå slibemidler: Brug ikke slibende rengøringsmidler, skuresvampe eller stærke kemikalier, da disse kan ridse eller beskadige overfladen.
• Kontrolpanel: Tør forsigtigt kontrolpanelet af med enamp cloth. Ensure no liquid enters the control area.
• Vents: Periodically check the air intake and exhaust vents for dust or debris. Gently wipe them clean to ensure unobstructed airflow. Do not use liquids directly on the vents.
• Opbevaring: When not in use, store the cooktop in a clean, dry place. Its slim design allows for compact storage.

8. Fejlfinding

Hvis du støder på problemer med din kogeplade, skal du se følgende almindelige problemer og løsninger, før du kontakter kundeservice.

9. Specifikationer

• Modelnummer: PROX61
• Mærke: Fissler
• Farve: Sort
• Materiale: Glass Ceramic (Schott Ceran)
• Varmeelementer: 1
• Wattage: 1500 watt
• Kontroltype: Røre
• Strømkilde: Ledningsbaseret elektrisk (110V)
• Dimensioner: 14.4 x 11.1 x 2.9 cm (omtrentligt)
• Fabrikant: Fissler USA

10. Garanti og support

The Fissler CookStar Induction Pro Portable Cooktop comes with a 3 års garanti, covering defects in materials and workmanship under normal household use.

For warranty claims, technical support, or any questions not addressed in this manual, please contact Fissler customer service. Keep your proof of purchase for warranty validation.

You can find contact information for Fissler USA on their official webhjemmeside eller gennem din forhandler.
