Swisher 83 in. Engine to Deck Belt Instruction Manual

1. Introduktion

This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Swisher 83 inch Engine to Deck Belt, Model 10263. This belt is designed as a direct replacement for select Swisher zero turn mowers, ensuring reliable power transmission from the engine to the mower deck. Adhering to the instructions herein will help maintain the longevity and performance of your equipment.

2. Sikkerhedsoplysninger

Always prioritize safety when working with machinery. Failure to follow safety precautions can result in serious injury or damage to equipment.

• Afbryd strømmen: Before attempting any installation or maintenance, ensure the mower's engine is off, the spark plug wire is disconnected, and the battery is disconnected to prevent accidental starting.
• Tillad afkøling: Allow the engine and all moving parts to cool down completely before handling.
• Brug beskyttelsesudstyr: Brug altid passende personlige værnemidler, herunder handsker og øjenbeskyttelse.
• Sikkert udstyr: Ensure the mower is on a stable, level surface and properly supported to prevent movement during work.
• Efterse komponenter: Before and after installation, inspect all pulleys, tensioners, and guards for wear or damage. Replace any worn components.

3. Opsætning og installation

The Swisher 83 in. Engine to Deck Belt (Model 10263) is designed for replacing the engine belt on select Swisher Zero Turn Mowers. Compatible models include:

• ZT2454
• ZT2454-CA
• ZT2454K
• ZT2454K-CA
• ZT2460
• ZT2560
• ZT2660
• ZT2660B

3.1. Belt Overview

Figure 1: The Swisher 83 inch Engine to Deck Belt (Model 10263) in its typical coiled or circular form. This image provides a general view of the belt's length and overall appearance.

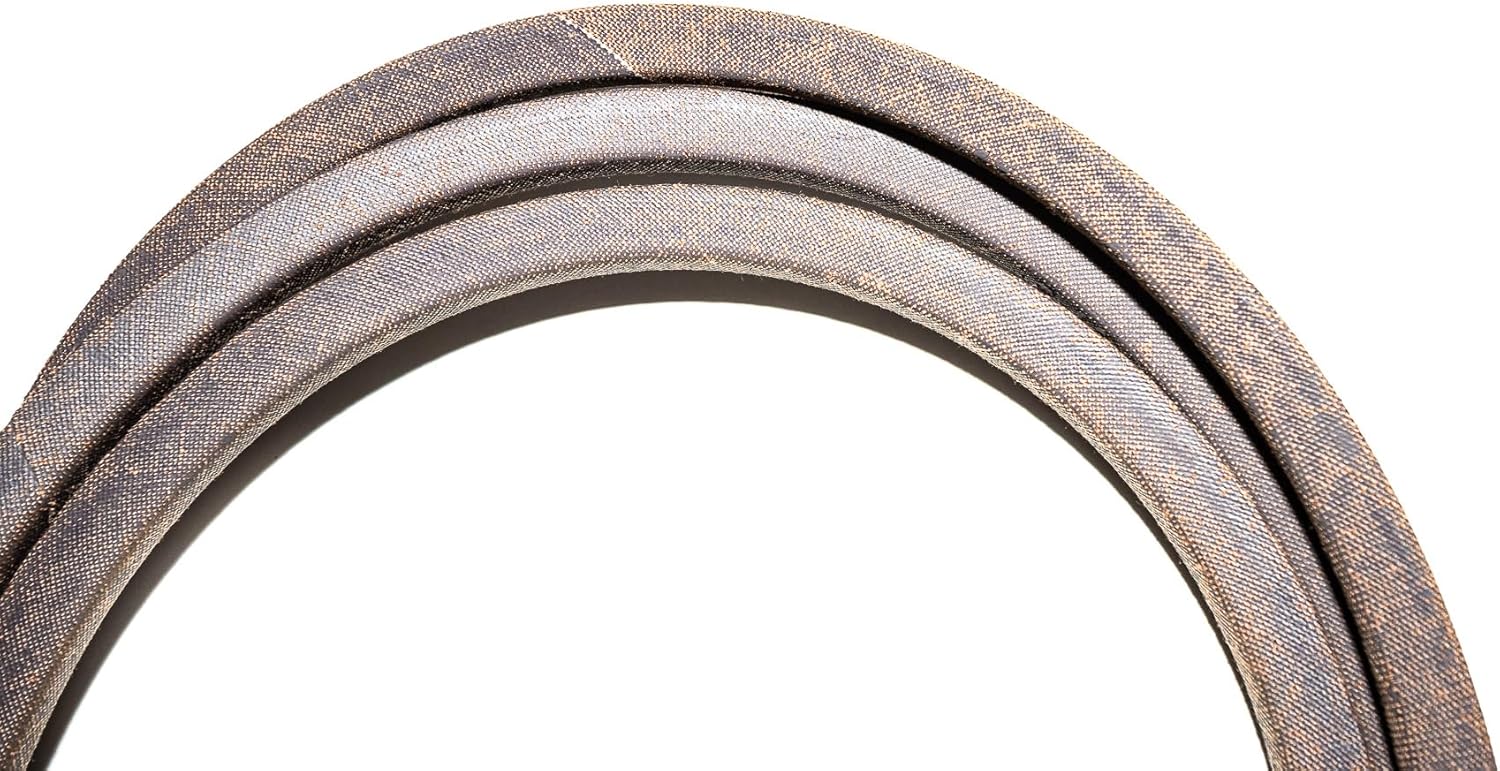

Figure 2: A detailed close-up of the belt's surface, highlighting its aramid material construction and textured finish designed for optimal grip and durability.

Figur 3: En sideprofile view of the belt, illustrating its V-belt design which allows it to seat properly in pulley grooves for efficient power transfer.

3.2. Installationstrin

1. Forbered plæneklipperen: Park the mower on a flat, stable surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire. Allow the engine to cool.
2. Adgang til bælteområdet: Depending on your specific mower model, you may need to remove deck covers, guards, or other components to gain clear access to the engine and deck belt pulleys. Refer to your mower's specific service manual for detailed access instructions.
3. Lindre spændinger: Locate the belt tensioner or idler pulley. Use a wrench or appropriate tool to relieve tension on the old belt.
4. Fjern gammel rem: Carefully remove the old belt from all pulleys, noting its routing path. It may be helpful to take a photo or draw a diagram of the belt's path before removal.
5. Installer ny rem: Route the new Swisher 83 in. belt (Model 10263) around the pulleys, following the exact path of the old belt. Ensure the belt is properly seated in all pulley grooves.
6. Påfør spænding: Reapply tension to the belt using the tensioner or idler pulley. Verify that the belt is taut and correctly aligned.
7. Saml igen: Reinstall any covers, guards, or components that were removed to access the belt.
8. Test drift: Reconnect the spark plug wire and battery. Start the mower briefly to ensure the belt operates smoothly without slipping or unusual noise. Turn off the engine and inspect the belt again after initial operation.

4. Driftsmæssige overvejelser

While the belt itself does not have operational controls, its proper function is critical to the mower's operation. Ensure the belt is correctly installed and tensioned before operating the mower. Any unusual noises, vibrations, or loss of power during operation may indicate a belt issue.

5. Vedligeholdelse

Regular inspection and proper maintenance will extend the life of your Swisher belt.

• Rutinemæssig inspektion: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or stretching. Check for any foreign objects lodged in the pulleys or around the belt.
• Renhed: Keep the belt and pulley areas free from grass clippings, dirt, and debris, which can cause premature wear and slippage.
• Korrekt spænding: Ensure the belt maintains proper tension. A belt that is too loose will slip, causing wear and inefficient power transfer. A belt that is too tight can put excessive strain on bearings and pulleys.
• Opbevaring: If storing the mower for an extended period, ensure the belt is clean and dry. Store in a cool, dry place.

6. Fejlfinding

Common issues related to drive belts and potential solutions:

7. Specifikationer

• Modelnummer: 10263
• Længde: 83 inches (OD - Outside Diameter)
• Materiale: Aramid
• Bæltestil: Toothed/Timing Belt (V-belt type)
• Farve: Sort
• Kompatible enheder: Swisher Zero Turn Mowers (specific models listed in Section 3)
• Produktdimensioner: Cirka 13.3 x 4 x 0.9 cm (emballeret)
• Varens vægt: Cirka 10.2 ounce
• Fabrikant: Swisher Mower

8. Garanti og support

For specific warranty information regarding your Swisher 83 in. Engine to Deck Belt (Model 10263), please refer to the documentation provided with your original Swisher Zero Turn Mower or contact Swisher customer support directly. Swisher replacement parts are designed to meet the brand's quality standards.

For technical assistance, replacement part inquiries, or further support, please visit the official Swisher website or contact their customer service department. Always provide your product model number (10263) and mower model number when seeking support.

9. Officielle produktvideoer

Ingen officielle produktvideoer fra sælgeren blev fundet relevante til medtagelse i denne instruktionsmanual.
