1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Delta Faucet 980T-DST Pilar Single Handle Pull-Down Kitchen Faucet with Touch2O Technology. Designed for modern kitchens, this faucet combines innovative features with elegant design to enhance your daily water experience.

Key features include Touch2O Technology for touch-activated water flow, MagnaTite docking for secure sprayer retention, and DIAMOND Seal Technology for long-lasting, leak-free performance.

Figure 1: The Delta Faucet Pilar 980T-DST in its elegant chrome finish, featuring the distinctive high-arc spout and ergonomic single handle.

2. Nøglefunktioner

• MagnaTite-docking: Keeps the kitchen pull-down spray wand firmly in place with a powerful integrated magnet.
• DIAMANT-tætningsteknologi: Features a valve embedded with diamonds to ensure like-new operation for the life of the faucet, lasting up to 5 million uses.
• Touch2O-teknologi: Allows you to start and stop the flow of water with just a tap anywhere on the spout or handle, helping to prevent the spread of bacteria and conserve water.
• ADA-kompatibel: Meets standards set by the Americans with Disabilities Act.
• High-Arc Pull-Down Spout: Swivels 360 degrees, providing ample clearance and flexibility.
• Dobbelte sprøjtetilstande: Toggle between aerated spray and stream modes with a push button on the wand.
• Berøringsfri sprøjtehuller: Soft, rubber nubbins allow for easy wipe-away of calcium and lime buildup.
• Efficient Flow Rate: 1.80 gallons per minute (gpm) at 60 psi, 6.8 liters per minute (L/min) at 414 kPa.

3. Opsætning og installation

The Delta Faucet Pilar 980T-DST is designed for a 2-hole, 4-inch to 16-inch installation. It includes 32-inch minimum supply lines below the deck for convenient setup. While installation is designed to be straightforward, professional installation is recommended if you are unfamiliar with plumbing procedures.

Strømkrav: The Touch2O Technology requires four (4) alkaline 'C' batteries for operation. Ensure these are installed correctly in the battery box before use. Batteries are not included with the faucet.

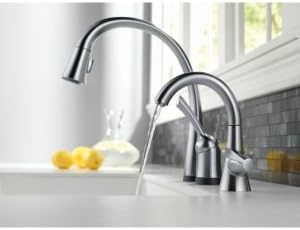

Figure 2: The faucet seamlessly integrated into a kitchen environment, demonstrating its functional design.

4. Betjeningsvejledning

4.1. Touch2O Technology

To activate or deactivate the water flow, simply touch anywhere on the faucet's spout or handle with your hand, wrist, or forearm. This allows for hands-free operation, especially useful when your hands are messy or full.

Figure 3: Demonstrating the Touch2O Technology, where a simple touch initiates water flow.

4.2. Handle Operation

The single lever handle controls both water temperature and flow rate:

• Temperaturkontrol: Move the handle left for hotter water and right for colder water.
• Flowhastighedskontrol: Move the handle up to increase water flow and down to decrease or stop water flow.

4.3. Pull-Down Wand and Spray Modes

The pull-down wand offers extended reach and versatility. Gently pull the wand from the spout to use. It features a 54-inch hose and a 360-degree swivel range.

• Valg af sprøjtetilstand: Use the toggle push button on the wand to switch between a focused aerated spray and a steady stream.
• MagnaTite-docking: When finished, guide the wand back towards the spout. The powerful integrated magnet will securely pull the wand into its docked position.

Figure 4: The pull-down wand in action, demonstrating its flexibility for various kitchen tasks.

5. Vedligeholdelse

5.1. Rengøring af vandhanen

To maintain the chrome finish, clean the faucet regularly with a soft, damp klud. Undgå slibende rengøringsmidler, stærke kemikalier eller skuresvampe, da disse kan beskadige overfladen.

5.2. Touch-Clean Spray Holes

The spray holes on the pull-down wand are made of soft rubber. To remove mineral buildup (calcium and lime), simply wipe the spray holes with your finger or a soft cloth. This will dislodge any deposits and restore full spray performance.

5.3. Udskiftning af batteri

When the Touch2O Technology responsiveness decreases or stops functioning, it is likely time to replace the four 'C' alkaline batteries. Refer to the installation guide for specific instructions on accessing and replacing the battery pack.

6. Fejlfinding

If you encounter issues with your Delta Faucet Pilar 980T-DST, please refer to the following common troubleshooting steps:

• Ingen vandgennemstrømning eller lav vandgennemstrømning:
  • Check that the main water supply valves under the sink are fully open.
  • Ensure the batteries for the Touch2O Technology are fresh and correctly installed.
  • Inspect the aerator for clogs and clean if necessary.
• Inconsistent Touch Response:
  • Ensure the faucet surface is clean and dry.
  • Verify that the battery pack has sufficient power.
  • Avoid touching the faucet with metal objects or wearing gloves that might interfere with the touch sensor.
• Wand Does Not Dock Securely:
  • Check for any obstructions around the MagnaTite docking area.
  • Ensure the hose weight is properly positioned on the pull-down hose under the sink.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact Delta Faucet customer support.

7. Specifikationer

8. Garanti og support

The Delta Faucet 980T-DST Pilar Single Handle Pull-Down Kitchen Faucet comes with a Livstid begrænset garanti on the faucet and finish. This warranty covers defects in material and manufacturing for the original consumer purchaser.

For detailed warranty information, claims, or technical support, please refer to the official Delta Faucet webwebstedet eller kontakt deres kundeserviceafdeling direkte. Gem din købsbevis for at validere garantien.
