GoPro Handlebar Seatpost Mount (GRH30) Instruction Manual

1. Produktet er slutview

The GoPro Handlebar Seatpost Mount is designed to securely attach your GoPro camera to various tubes, including bicycle handlebars, seatposts, ski poles, and other similar cylindrical objects. This mount allows for stable on-bike video capture and versatile placement options.

2. Dele inkluderet

• Handlebar / Seatpost / Pole Mount
• 3-Way Pivot Arm (Mounting Hardware)
• Tommelfingerskrue
• Adapter for smaller diameter tubes
• Beskyttende liner

3. Opsætning og installation

3.1. Attaching the Mount to a Tube

The mount is compatible with tubes ranging from 0.75 inches to 1.4 inches (19.5mm to 35.56mm) in diameter. For smaller tubes, from 0.43 inches to 0.7 inches (11mm to 18mm), use the included adapter.

1. Identify the desired mounting location on your handlebar, seatpost, or pole.
2. If mounting to a smaller diameter tube, insert the protective liner into the clamp. This liner also helps prevent marring the mounting surface and enhances stability.
3. Åbn clamp and position it around the tube.
4. Fastgør clamp by tightening the two thumb screws until the mount is firmly in place and does not rotate freely. Ensure it is tight enough to prevent movement during activity.

3.2. Montering af kameraet

1. Align the mounting tabs of your GoPro camera housing with the slots on the 3-Way Pivot Arm.
2. Insert the thumb screw through the aligned tabs and tighten it securely.
3. Adjust the angle of your camera using the 3-Way Pivot Arm to achieve your desired shot. Tighten the pivot arm thumb screw to lock the angle in place.

4. Betjening af holderen

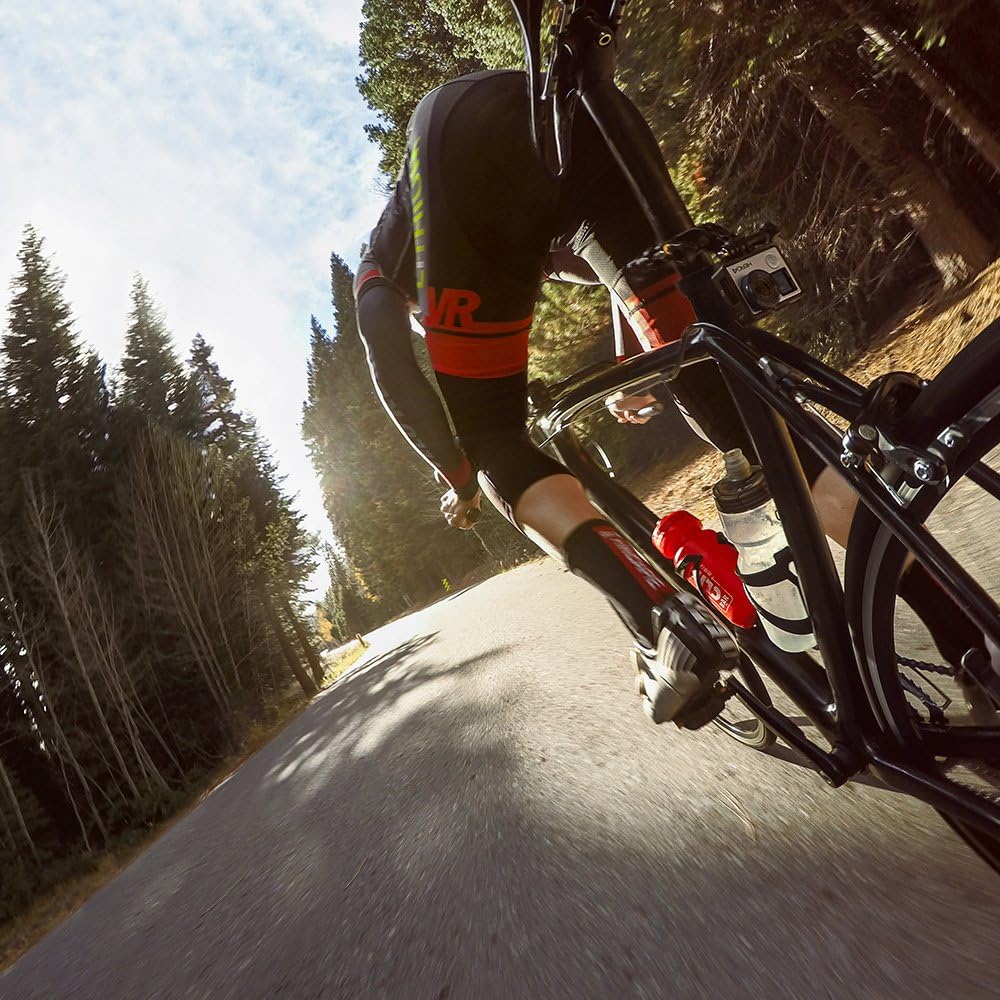

Once installed, the Handlebar Seatpost Mount provides a stable platform for capturing footage. The 3-Way Pivot Arm allows for flexible camera positioning, enabling you to capture various perspectives, whether forward-facing, rear-facing, or side-angled.

4.1. Brugseksempelamples

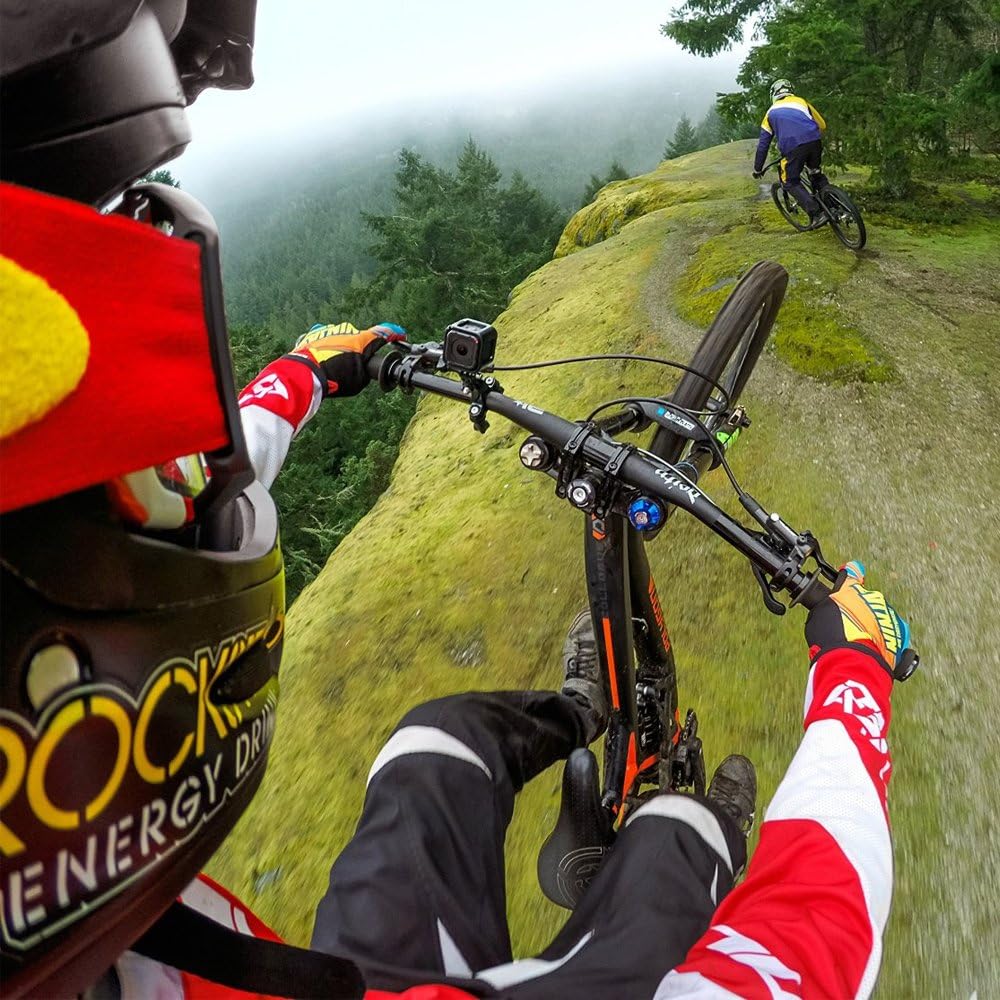

• Bicycle Handlebars: Capture your ride from the front, showing the path ahead.
• Bicycle Seatposts: Get unique rear-facing shots of your cycling action or the trail behind you.
• Ski Poles: Record your skiing or snowboarding adventures from a dynamic pole-mounted perspective.
• Other Poles/Tubes: Use it as a handheld boom or attach it to other equipment for creative angles.

4.2. Videodemonstration

5. Vedligeholdelse

• Rensning: Tør beslaget af med adamp klud til at fjerne snavs og snavs. Undgå skrappe kemikalier.
• Inspektion: Regularly check all components, especially the thumb screws and pivot arm, for any signs of wear, damage, or loosening.
• Protective Liner: Ensure the protective liner is clean and free of tears to maintain optimal grip and prevent scratches on your mounting surface.
• Opbevaring: Store the mount in a clean, dry place when not in use.

6. Fejlfinding

6.1. Mount is not secure or slips

• Ensure the thumb screws are tightened sufficiently.
• Verify that the correct protective liner is used for the diameter of your tube.
• Clean the mounting surface and the inside of the clamp/liner to remove any grease or dirt that might reduce grip.

6.2. Camera angle shifts during use

• Ensure the thumb screw on the 3-Way Pivot Arm is tightened firmly to lock the camera angle.
• Check for any debris or wear in the pivot joint that might prevent a secure lock.

7. Specifikationer

8. Garantioplysninger

This GoPro Handlebar Seatpost Mount comes with a 1 års garanti on all parts. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official GoPro webwebsted eller kontakt kundesupport.

9. Kundesupport

For further assistance, technical support, or to inquire about replacement parts, please visit the official GoPro support website or contact their customer service team. You can find contact information and FAQs on gopro.com/support.
