Metra Electronics 71-1721 Reverse Wiring Harness User Manual

Indledning

The Metra 71-1721 Reverse Wiring Harness is designed to connect to the factory radio in compatible 1998-up Honda and Acura vehicles. This harness provides connections for power and up to four speakers, making it suitable for repairing existing harnesses or for specific audio system installations. It ensures a direct plug-and-play connection to the OEM radio, simplifying the wiring process.

Sikkerhedsoplysninger

Always disconnect the vehicle's battery before performing any electrical work to prevent short circuits and electrical shock. Ensure all connections are secure and properly insulated to avoid damage to the vehicle's electrical system or the audio components. If you are unsure about any step, consult a professional automotive technician.

Pakkens indhold

• Metra 71-1721 Reverse Wiring Harness
• Instruktionsmanual (dette dokument)

Opsætning og installation

This harness is intended for use with 1998-up Honda and Acura vehicles. It plugs directly into the OEM (Original Equipment Manufacturer) radio's harness port. The individual wires on the harness are color-coded to match standard aftermarket radio wiring conventions.

Identifikation af komponenter

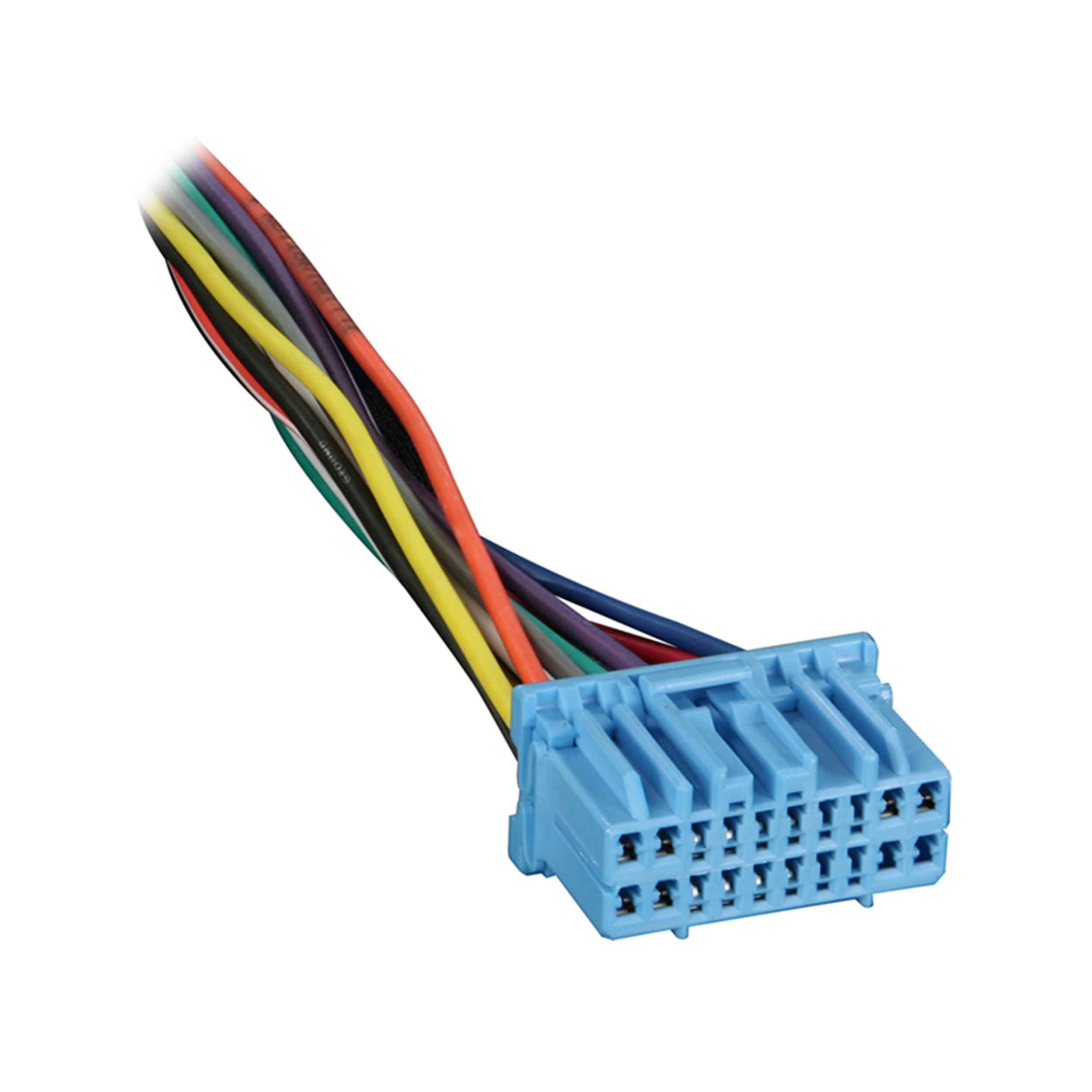

Figur 1: Metra 71-1721 Reverse Wiring Harness. This image shows the Metra 71-1721 Reverse Wiring Harness. It features a light blue multi-pin connector on one end, from which numerous individual wires extend. These wires are color-coded (red, orange, yellow, green, blue, purple, gray, white, black) and have exposed copper tips, ready for connection. The harness is designed to plug into an OEM radio.

The harness consists of a multi-pin connector designed to interface with the vehicle's factory radio wiring, and a series of individual wires. Each wire is color-coded to indicate its function (e.g., power, ground, speaker outputs).

Tilslutningsprocedure

1. Afbryd batteriet: Før start skal du frakoble den negative pol på dit køretøjs batteri.
2. Adgang til radio: Carefully remove the factory radio from the dashboard to access its wiring harness. Refer to your vehicle's service manual for specific instructions on radio removal.
3. Identify OEM Connector: Locate the factory wiring harness connector that plugs into the back of your OEM radio.
4. Tilslut ledningsnet: Plug the blue multi-pin connector of the Metra 71-1721 harness directly into the corresponding port on the OEM radio. Ensure it clicks securely into place.
5. Ledningsforbindelser: The individual wires extending from the Metra harness are designed to provide power and speaker outputs. These wires can be used to repair a damaged factory harness or to provide a clean connection point for an aftermarket amplifier or other audio components.
   • Strømledninger: Typically red (accessory), yellow (constant 12V), and black (ground).
   • Højttalerkabler: Typically pairs of solid and striped wires (e.g., white/white-black for front left, gray/gray-black for front right, green/green-black for rear left, purple/purple-black for rear right).

   Match these wires to the corresponding functions of your aftermarket component or to the wires you are repairing. Use appropriate crimp connectors or solder for secure and reliable connections. Insulate all connections with electrical tape or heat shrink tubing.

6. Test forbindelser: Before fully reassembling the dashboard, reconnect the vehicle's battery and test the functionality of your audio system.
7. Saml igen: Once confirmed working, carefully reassemble the radio and dashboard components.

Drift

The Metra 71-1721 Reverse Wiring Harness is a passive electrical component. Once correctly installed, it facilitates the electrical connection between your vehicle's factory radio and other audio components or repairs. Its operation is integrated into the overall vehicle audio system, providing the necessary power and speaker signals without requiring user interaction.

Opretholdelse

This wiring harness requires minimal maintenance. Ensure all connections remain secure and free from corrosion. Periodically inspect the wiring for any signs of wear, fraying, or damage, especially if the harness is exposed to movement or extreme temperatures. Keep the area around the connections clean and dry.

Fejlfinding

Specifikationer

• Model: Metra 71-1721
• Kompatibilitet: 1998-up Honda/Acura Vehicles (Factory Radio)
• Connector Type: 20-polet stik
• Materiale: Kobber, polyvinylklorid (PVC)
• Emnemål (L x B x H): 7.5 x 4.5 x 0.75 tommer
• Inkluderede komponenter: Ledningsnet

Garantioplysninger

This Metra product is covered by a 1 års begrænset garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications. For warranty claims or further details, please contact Metra Electronics customer support.

Kundesupport

For technical assistance, installation questions, or warranty inquiries, please visit the official Metra Electronics website or contact their customer service department. Have your product model number (71-1721) and purchase information ready when contacting support.
